Manual DIN Rail Cutter & Dual Groove Rail Cutting Tool – 50cm/20” Dual-Scale Ruler Sliding Baffle for Steel/Aluminium/Iron Rails, Anti-Slip Handle & Precision Blade

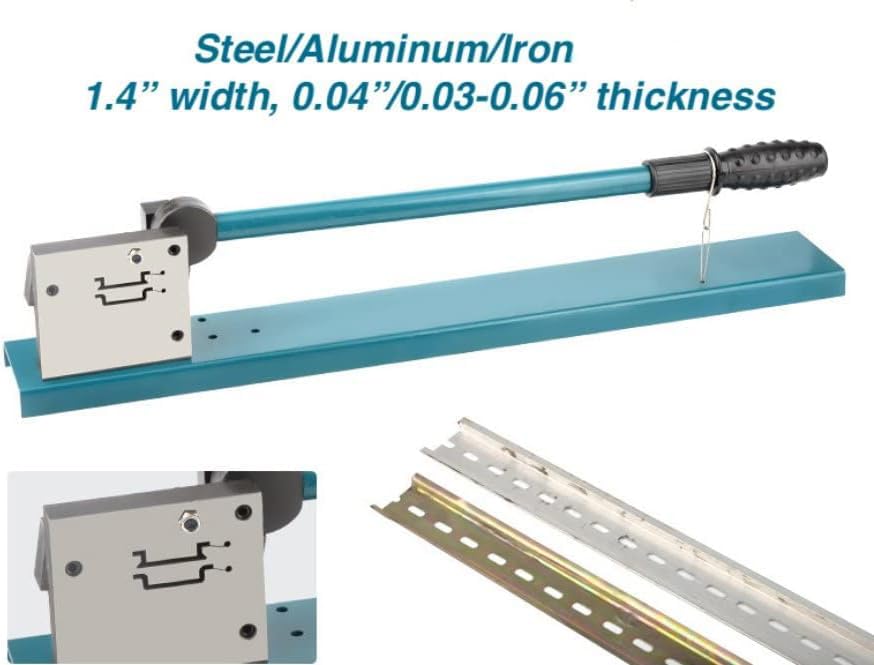

• Dual-Groove Precision Cutting: Engineered to cut DIN rails (steel, aluminium, iron) with widths up to 35mm(1.4 inches), heights of 6.5–7.5mm(0.26–0.3 inches), and thicknesses of 0.5–1.5mm(0.02–0.06 inches), ensuring compatibility with standard industrial rail profiles

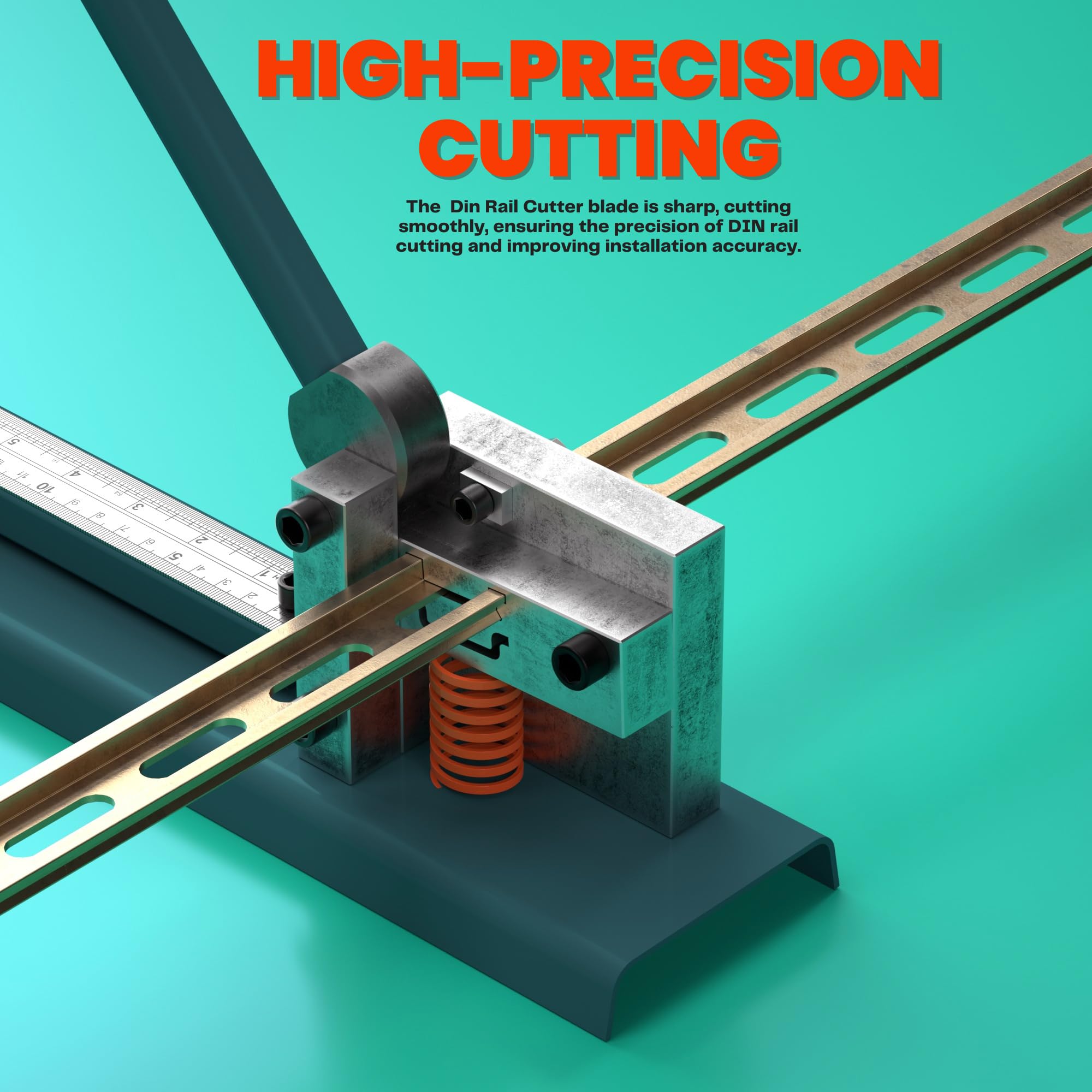

• Sharp Blade Technology: Equipped with hardened steel blades for burr-free, smooth cuts in seconds, ideal for high-volume projects requiring clean edges and minimal post-processing

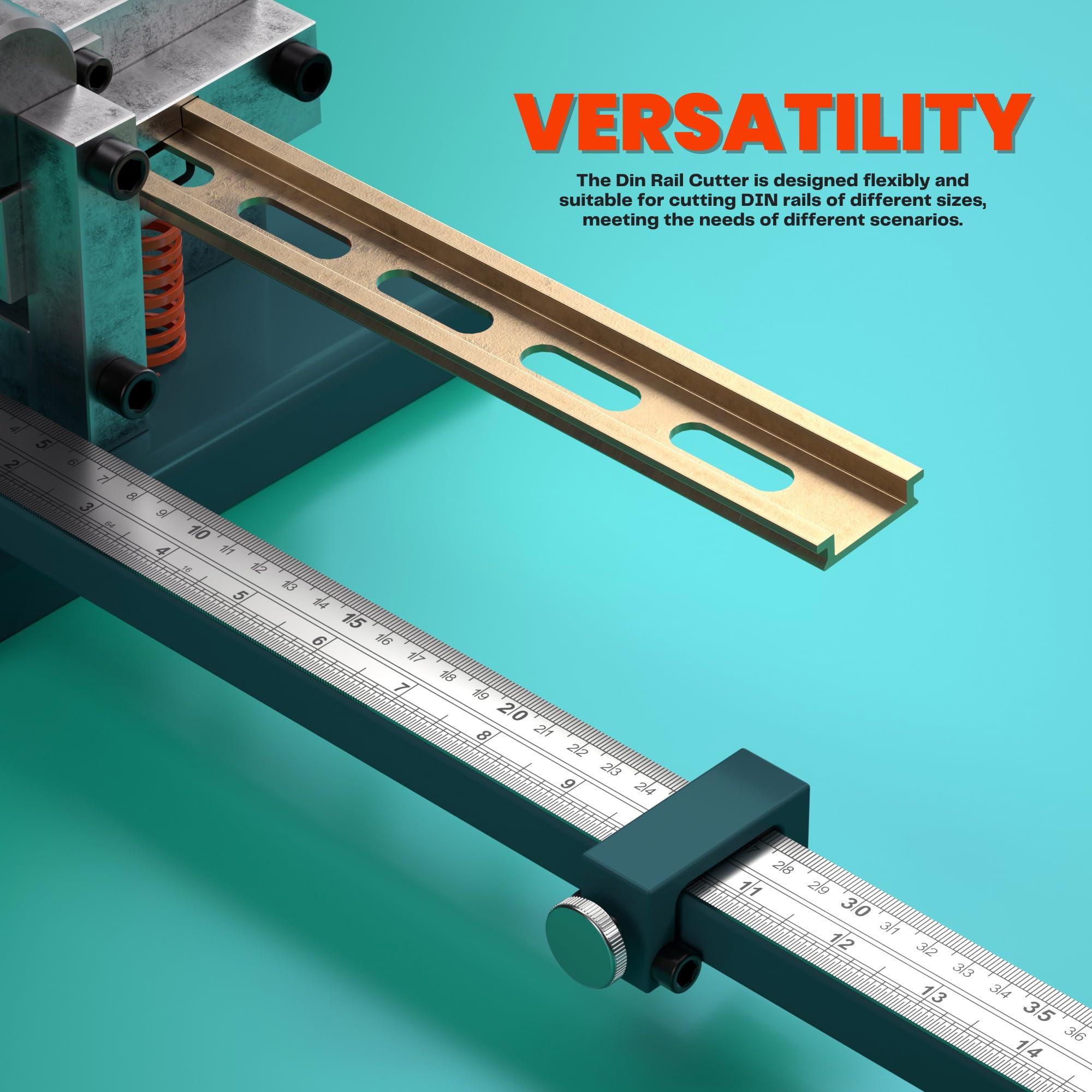

• Adjustable Ruler Baffle: Integrated 50cm/20” dual-scale ruler (cm and inches) with a sliding caliper for rapid length adjustments, enabling batch cutting with ±0.5mm precision for repetitive tasks
• Anti-Slip Ergonomics: Features textured, non-slip handles with grip-enhancing bumps, reducing hand fatigue and improving control during prolonged use by professionals or DIYers
• Versatile Industrial Use: Designed for on-site applications in power systems, construction, and automation, tackling steel/aluminium rails in confined spaces or rugged environments
• Maintenance & Tolerance Tips: tighten blade screws if cuts degrade and account for material tolerance during measurement to ensure accuracy

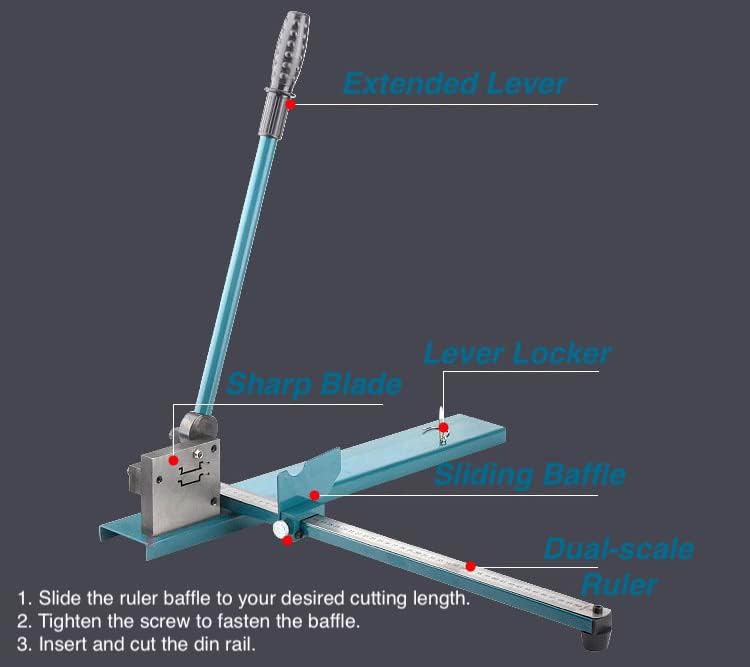

Manual Rail Cutter Operating Instructions How to Use the Ruler for Precise Cuts Extend and Secure the Ruler : Unfold the ruler horizontally and snap it into the fixed position of the bottom plate for stability during measurement. Attach the Slider Baffle : Install the slider baffle on the slider, securing it with screws to allow the baffle to open and close freely for accurate positioning. Position the Slider : Slide the slider along the ruler to the exact scale position where the cut needs to be made on the guide rail. Secure the Slider : Tighten the fixing screws of the slider to ensure it remains stationary at the desired measurement. Insert the Guide Rail : Place the guide rail into the cutting mechanism until it makes contact with the baffle for proper alignment. Cut the Guide Rail : Press down firmly on the handle to initiate the cutting process through the guide rail. Remove the Cut Rail : After cutting, open the baffle and carefully remove the cut piece of the guide rail. Repeat Cutting : If the cutting length remains unchanged, continue cutting without adjusting the slider; if the length changes, repeat the above steps for precise measurement. Post-Cutting Procedure : After completing all cuts, return the ruler to its original position, retract the handle, and store the rail cutter in a safe place. Always ensure the tool is used in a well-ventilated area and follow standard safety precautions when operating cutting equipment. SPECIFICATION -Applicable materials: Steel, Aluminum, Iron -Applicable din rails: 35 mm (1.4 inches) Width, 6.5–7.5 mm (0.26–0.3 inches) Height, and 0.5–1.5 mm (0.02–0.06 inches) Thickness -Cutting Angle: 90 degrees -Product Weight: 4.5 kg/9.9 lbs -Gross Weight: 5.2 kg/11.5 lbs -Product Size: 62×13.5×8.5 cm/24.4×5.3×3.3 inch -Package Size: 70.0×17.0×10.0 cm/27.6×6.7×3.9 inch PACKAGE - 1 x Manual Din Rail Cutter
