Manual Capsule Filler Machine - 100 Holes Empty Capsule Filling Tool With Spreader for Size 0 Capsules, Holding Tray for Hospital, Clinic, Laboratory and Home Use (0#)

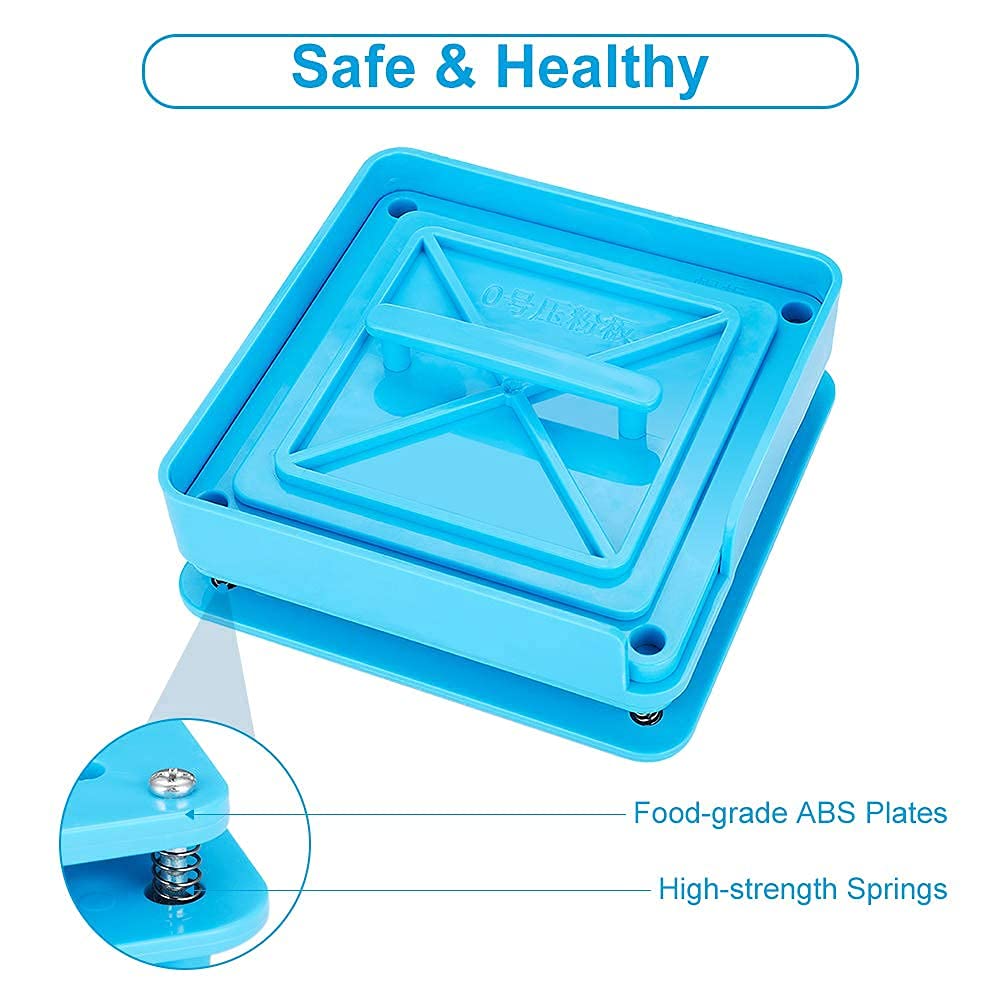

• High Quality Material: Our unique gel capsule filler machine is made of high quality environmentally friendly ABS materials and it is more durable than similar products, it is also small, lightweight and compact, so it can be easily stored anywhere
• 100 Holes Capsule: 10 x 10 holes, total 100 holes, base holder and top size 0, faster and easier than other products; Comes with a tool to make this manual capsule filler easy to follow the step by step instructions in just a few minutes at home
• Widely Use: This empty capsule filling machine is easy to use and effective to reduce waste, for personal use, professional laboratory application, university, pattern testing

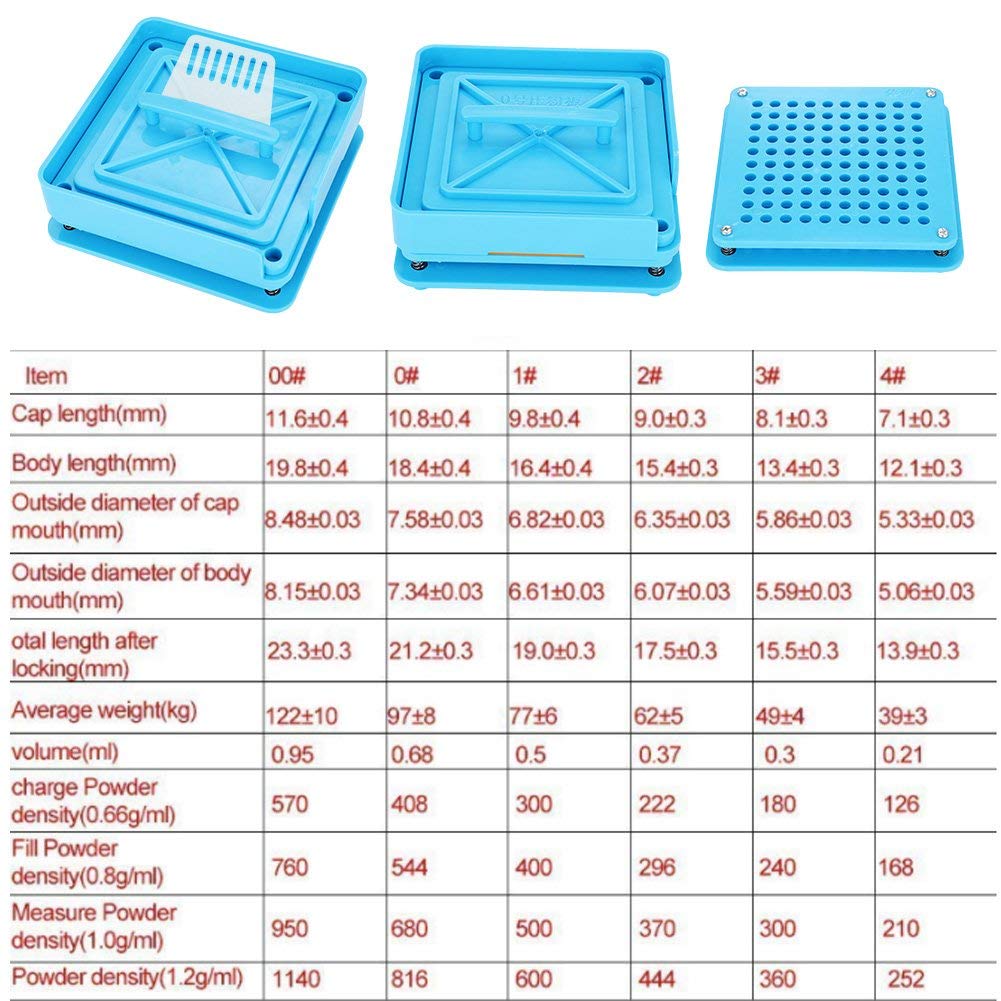

• Fill Powder: Improve capsule filling efficiency, simulate the automatic mechanical arrangement; Suitable for capsule mode 0#, with a cap length of 10.7 - 11 mm, body length of 18.2 - 18.5 mm; e.g. with food supplements, powders of all kinds, vitamins etc

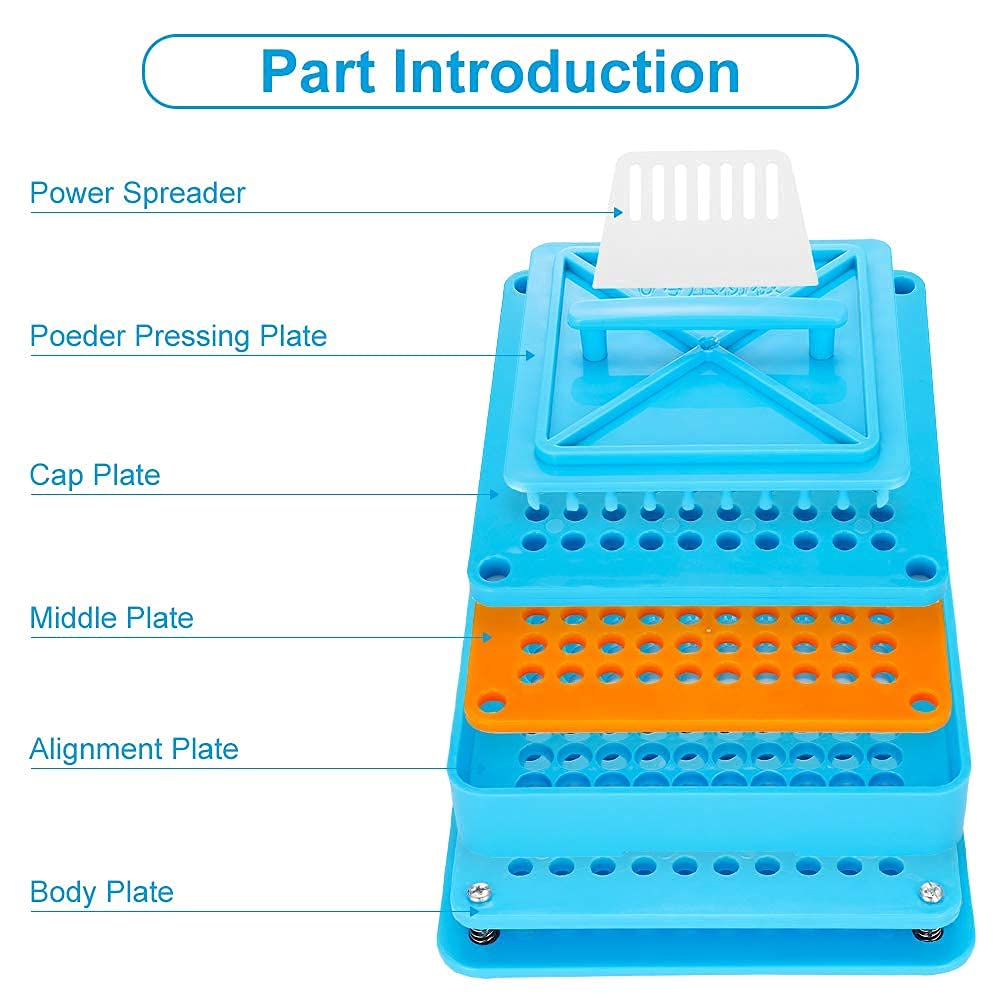

• Complete Accessories:The capsule machine size 0 contains alignment plate, 0# capsule filler set contains alignment plate, body plate, middle plate, hat plate, powder pressing plate and power shaker, are therefore very practical and compact to store and transport

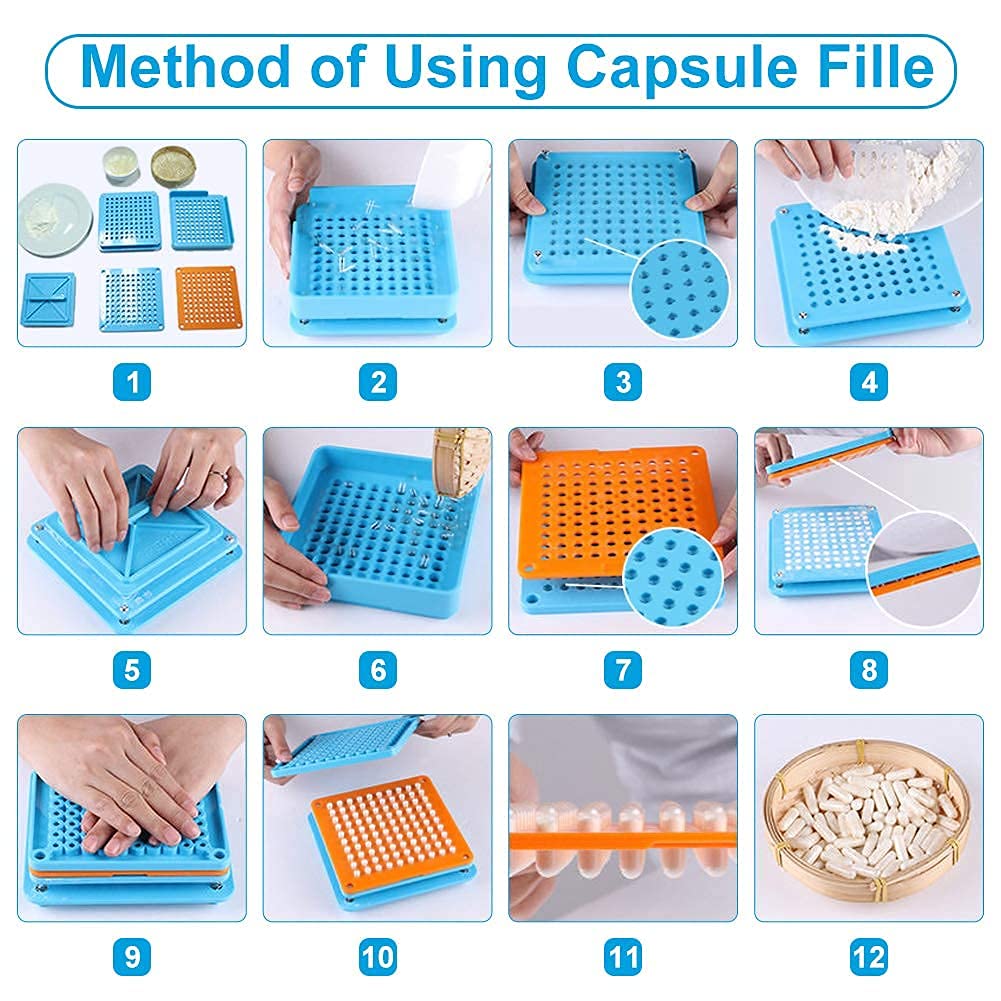

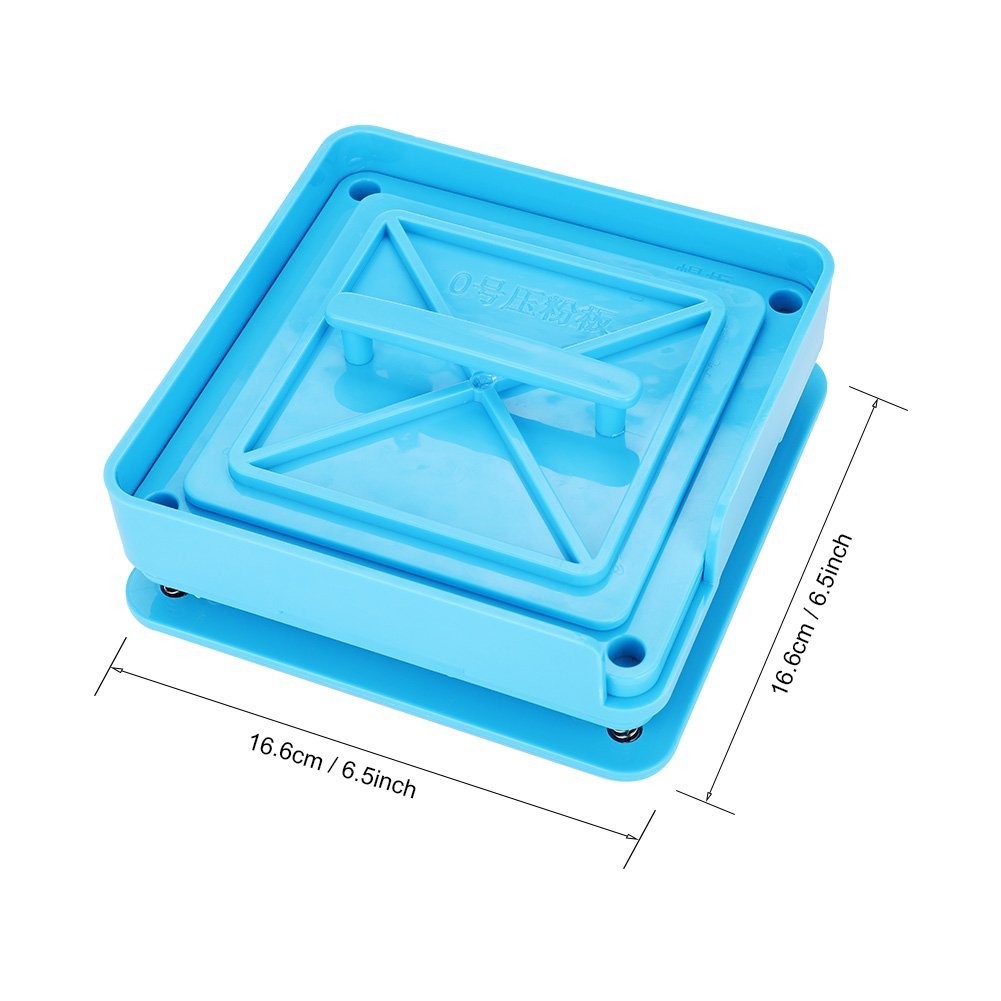

Product description Features: 1. Capsule filling machine 0 is suitable for capsule mode 0#, whose cap length of 10.7-11mm, body length of 18.2-18.5mm. 2. 100 holes capsule filler is capable to fill 100 pieces capsules one time, fast and efficient. 3. Imitate automatic mechanical arrangement, you can arrange capsules cap and capsule body quickly, more convenient to use and improve capsules filling efficiency. Specification: Item Type: Capsule Filler Product Material: Plastic Holes Quantity: 100 Suitable for Capsule Type: 0# Plate Size: approx. 16.6 * 16.6cm / 6.5 * 6.5inch Package Weight: Approx. 816g Operational Steps: 1. Load the capsule body, put the body plate in flat. 2. Put the frame of the arrangement plate on the body plate. 3. Put about 100 capsules in the frame. 4. Pick up the plate body and arranged wheel swinging around. 5. Capsule body will fall into the plate hole one by one, then pour the extra capsule body out. 6. Take the wheel arrangement plate, put the capsule body installed on the board aside. 7. Filling power in the capsule body. 8. Scrape the board back and forth on the body, when the capsule body is full on powder. 9. Use powder pressing plate filling capsules plate, filling capsules. 10. Scraping plate excess powder. 11. Turned over the the cap plate and middle plate to cover the body plate. 12. Lock the capsule body and the capsule cap. 13. Remove the cap plate. 14. Remove the middle plate, pour out the capsule from the locking middle plate. Package Included: 1 x Alignment Plate 1 x Body Plate 1 x Middle Plate 1 x Cap Plate 1 x Powder Pressing Plate 1 x Power Spreader 1 x Handle Note: The capsules in the pictures are not Directions Load the capsule body, put the body plate in flat. Put the frame of the arrangement plate on the body plate. Put about 100 capsules in the frame. Pick up the plate body and arranged wheel swinging around. Capsule body will fall into the plate hole one by one, then pour the extra capsule body out. Take the wheel arrangement plate, put the capsule body installed on the board aside. Filling power in the capsule body. Scrape the board back and forth on the body, when the capsule body is full on powder. Use powder pressing plate filling capsules plate, filling capsules. Scraping plate excess powder. Turned over the the cap plate and middle plate to cover the body plate. Lock the capsule body and the capsule cap. Remove the cap plate. Remove the middle plate, pour out the capsule from the locking middle plate. Safety Warning Warning: contains small parts that pose a risk of swallowing for children and pets. Keep out of reach of children. Use the product only for its intended purpose and follow the instructions carefully. Store the product safely after use and dispose of it according to local regulations. Legal Disclaimer Size Name:0# Specification: Element type: capsule filler Product Material: Plastic Number of holes: 100 Suitable for capsule type: 0 # / 00 # Plate Size: Approx. 16.6 x 16.6 cm Package weight: approx. 816 g Operation Steps: 1. Insert the capsule body and lay the body plate flat. 2. Place the frame of the arrangement plate on the base plate. 3. Place about 100 capsules in the frame. 4. Lift the plate body and the folded wheel. 5. The capsule body falls one by one into the plate hole and then pours out the additional capsule body. 6. Take the wheel arrangement plate and put the capsule body installed on the board aside. 7. Fill power into the capsule body. 8. Scratch the board back and forth on the body when the capsule body is full of powder. 9. Use the powder press plate to fill the capsules. 10. Scrape off excess powder of the plate. 11. The cover plate and the middle plate turned over to cover the housing plate. 12. Lock the capsule body and capsule cap. 13. Remove the cover plate. 14. Remove the middle plate, pour out the capsule from the middle locking plate. Contents: 1 x Alignment Plate 1 x body plate. 1 x Medium Plate 1 x lid plate. 1 x powder press plate. 1 x power distributor. 1 x handle. Notes: 1. Please allow 1~3mm error due to manual measurement. Thanks for your understanding 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard 3. Check the specifications and make sure that the size of the product matches your component
