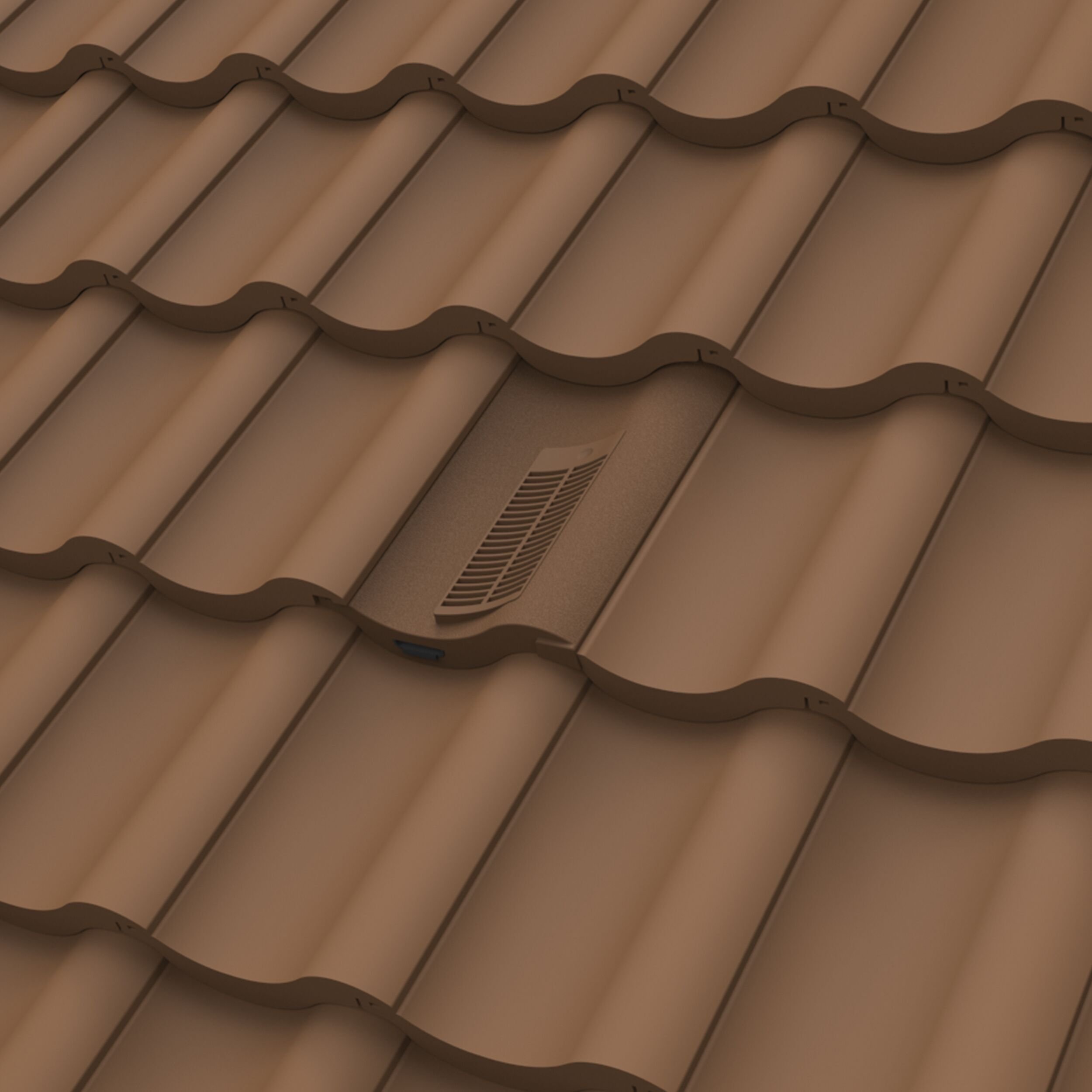

Manthorpe Single Pantile Roof Tile Vent with Pipe Adaptor to Fit Marley Anglia, Redland Fenland, Sandtoft Shire, Brown Textured Finish

• Brown Single Pantile Roof Tile Vent.
• Fits Marley, Redland, & Sandtoft.
• In-line and discreet low profile design.
• Round 100mm outlet connection for mechanical extraction.
• For roof ventilation, extractor fans and soil pipe termination.

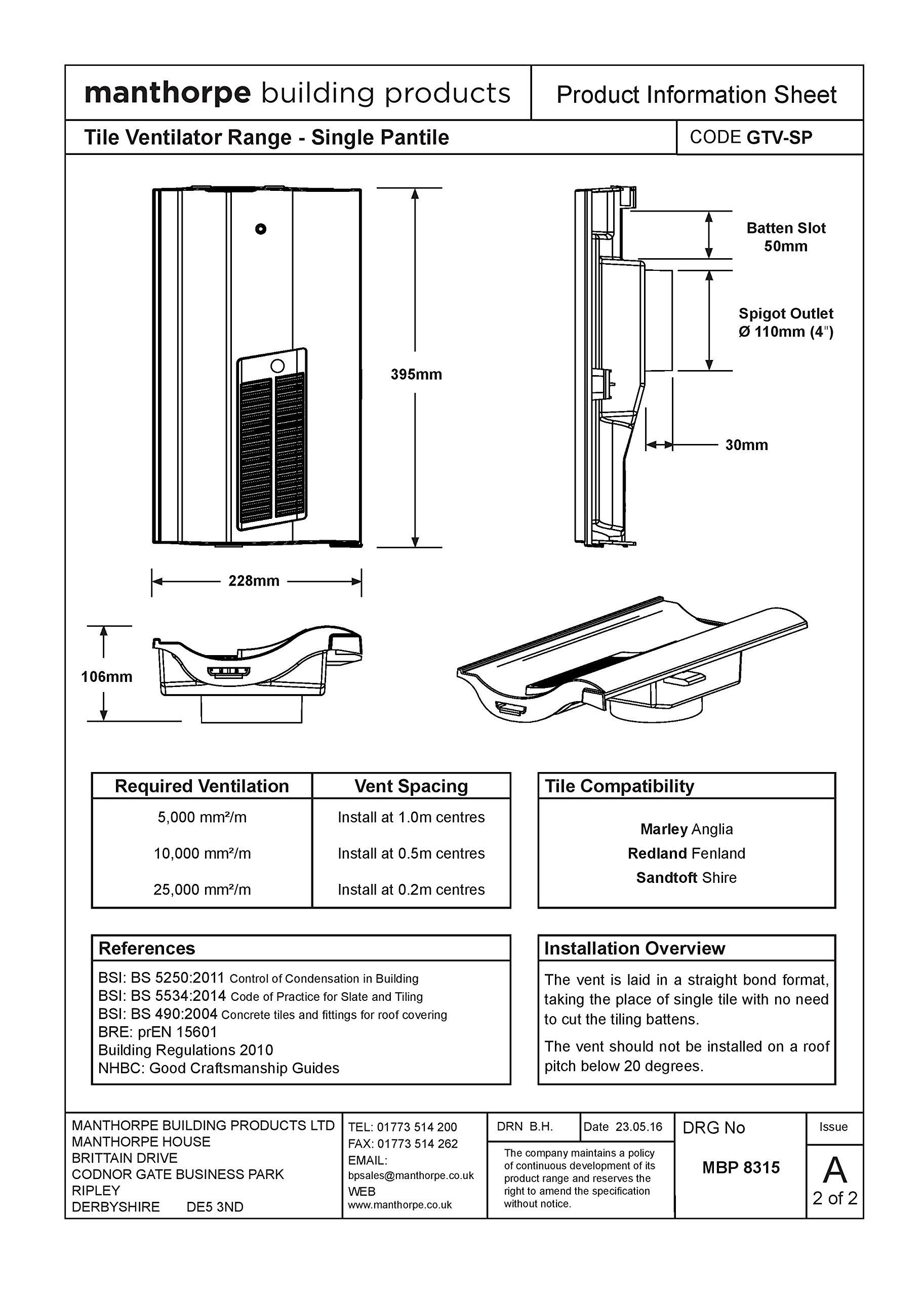

• Size 395mm x 230mm Free Vent Area 5000mm2
• Part No: GTV-SP-BR

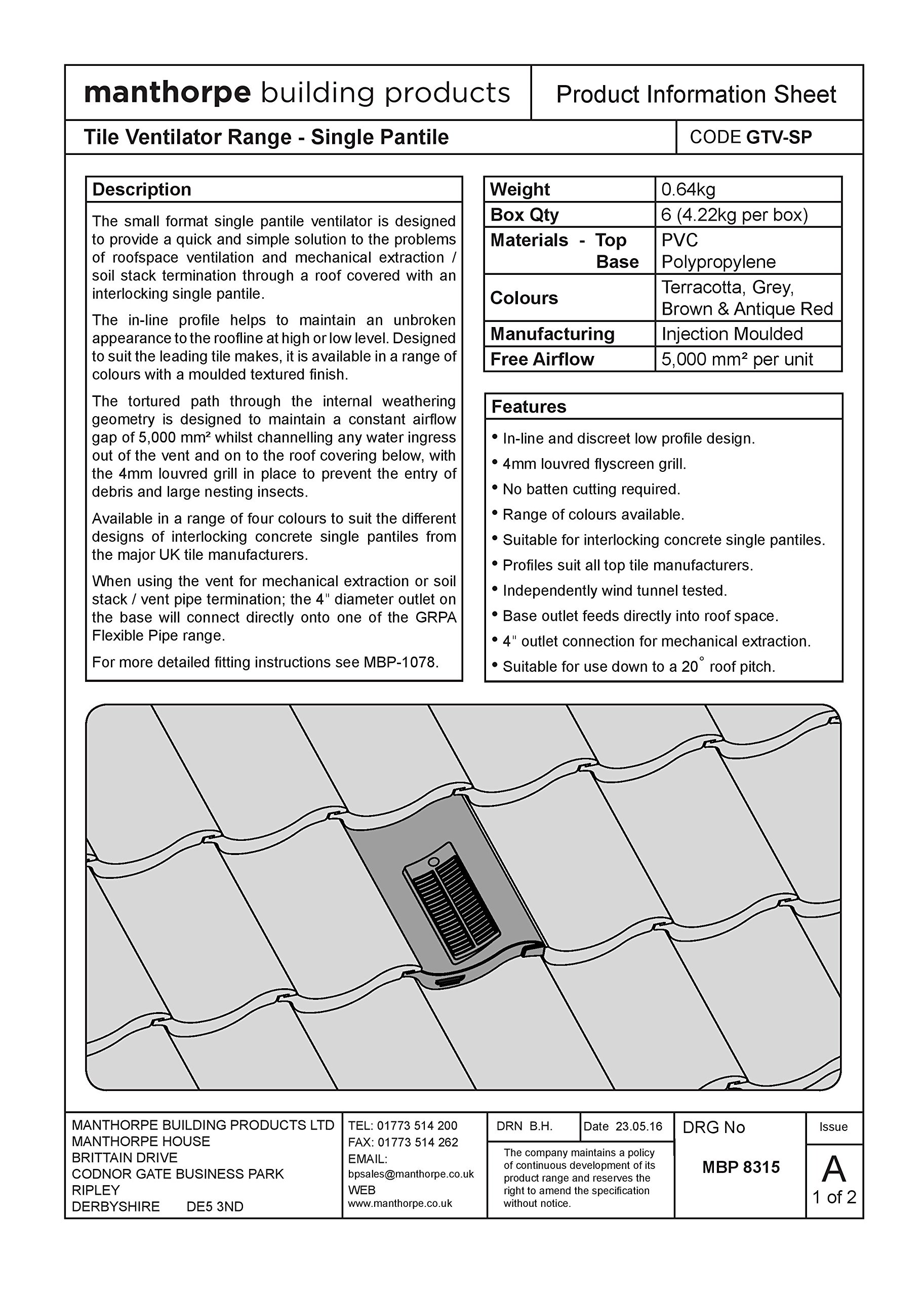

The small format single pantile ventilator is designed to provide a quick and simple solution to the problems of roofspace ventilation and mechanical extraction / soil stack termination through a roof covered with a concrete single pantile. The in-line profile helps to maintain an unbroken appearance to the roofline at high or low level. Designed to suit the leading tile makes, it is available in a range of colours with a moulded textured finish. The tortured path through the internal weathering geometry is designed to maintain a constant airflow gap of 5,000 mm² whilst channelling any water ingress out of the vent and on to the roof covering below, with the 4mm louvred grille in place to prevent the entry of debris and large nesting insects. Available in a range of four colours to suit the different designs of concrete single pantiles from the major UK tile manufacturers.
