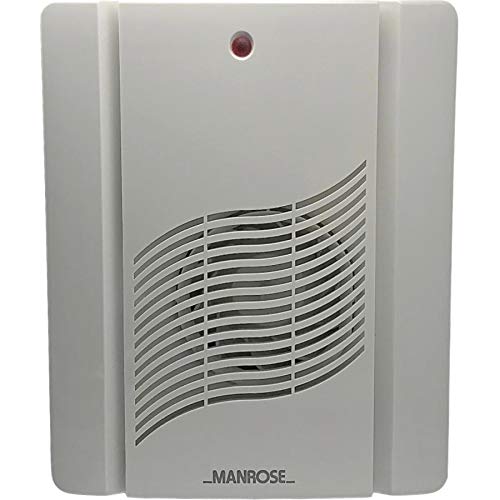

Manrose LM200T Centrifugal Extractor Fan with Timer for 100mm / 4 Inch diameter Ducting

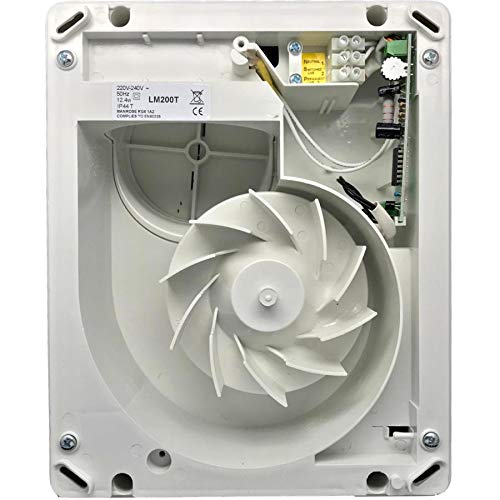

• High quality ball bearing, long life motor. Surface or Flush mountable. Designed for wall or ceilings mounting and discharging via rigid, flexible or flat ducting

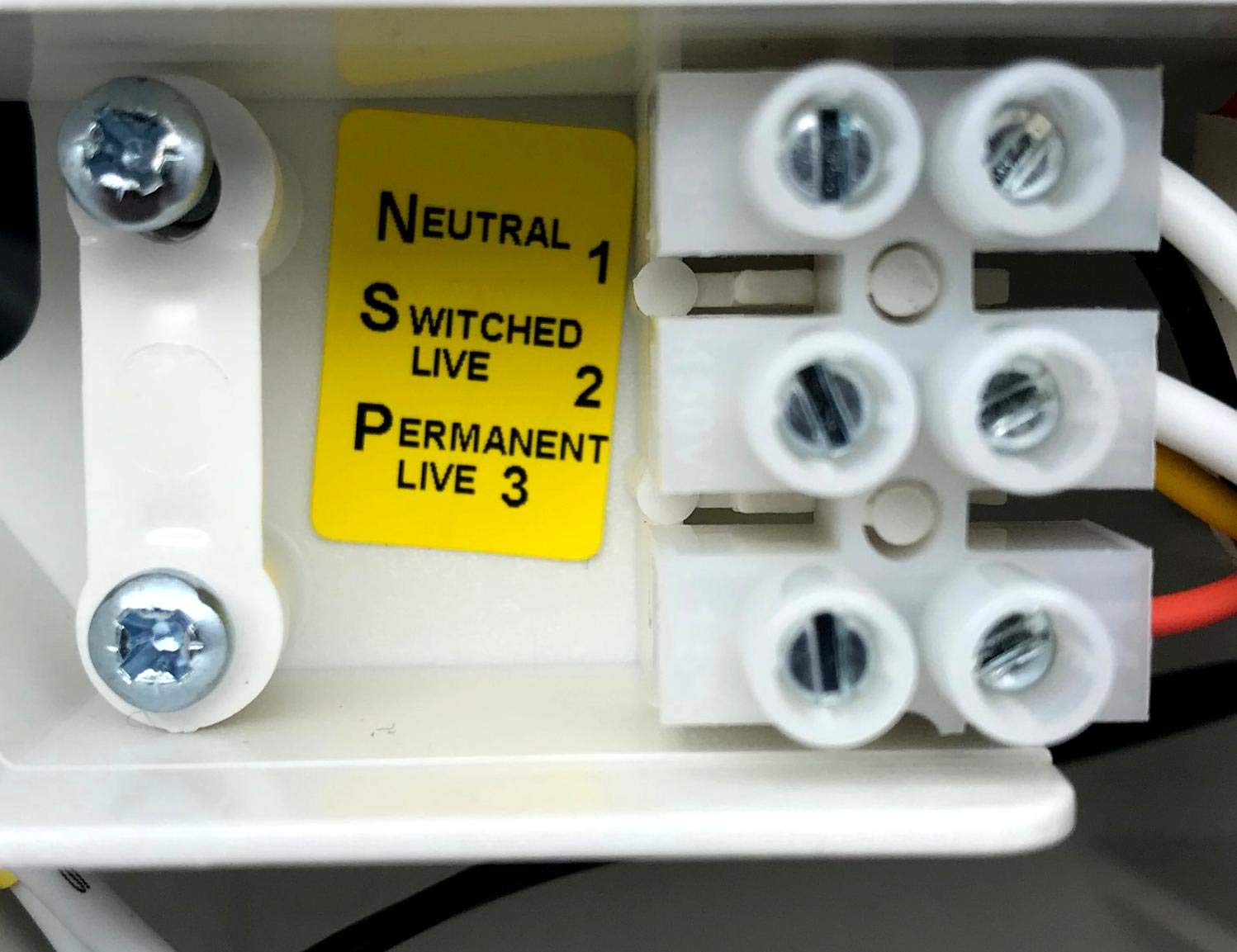

• Double Insulation - no earth required. Rated to IP44. Mains voltage 230/240V AC 50Hz. Three wire connection - Permanent Live, Switched Live and Neutral
• 13 watts power consumption. 26 litres per second extraction rate. Overrun timer adjustable 1-20mins. Sound output 36dB (A) @ 3m. Single spring operated anti-backdraught shutter
• UKCA & CE certified
• Dimensions: 208mm wide x 255mm high 87mm deep. 98mm spigot

Designed to be operated in conjunction with the room light. When the light is switched on the fan starts, when the light is switched off the fan continues to run for the pre-set time (which is adjustable). IMPORTANT: Requires a permanent live, switched live and neutral connection (3 wires excluding earth) at the fan position in order for the timer functionality to operate correctly. If replacing an existing unit please check that you have these three wires available to connect before purchasing the product.
