Manrose Deluxe Internal Quick Wall Kit White

• YOU WILL REQUIRE 117mm CORE DRILL
• Quick fit wall kit designed for use with most 100mm UK extractor fans
• Can be fitted with no need for external access or scaffolding
• Safer and easier to fit than a traditional wall kit

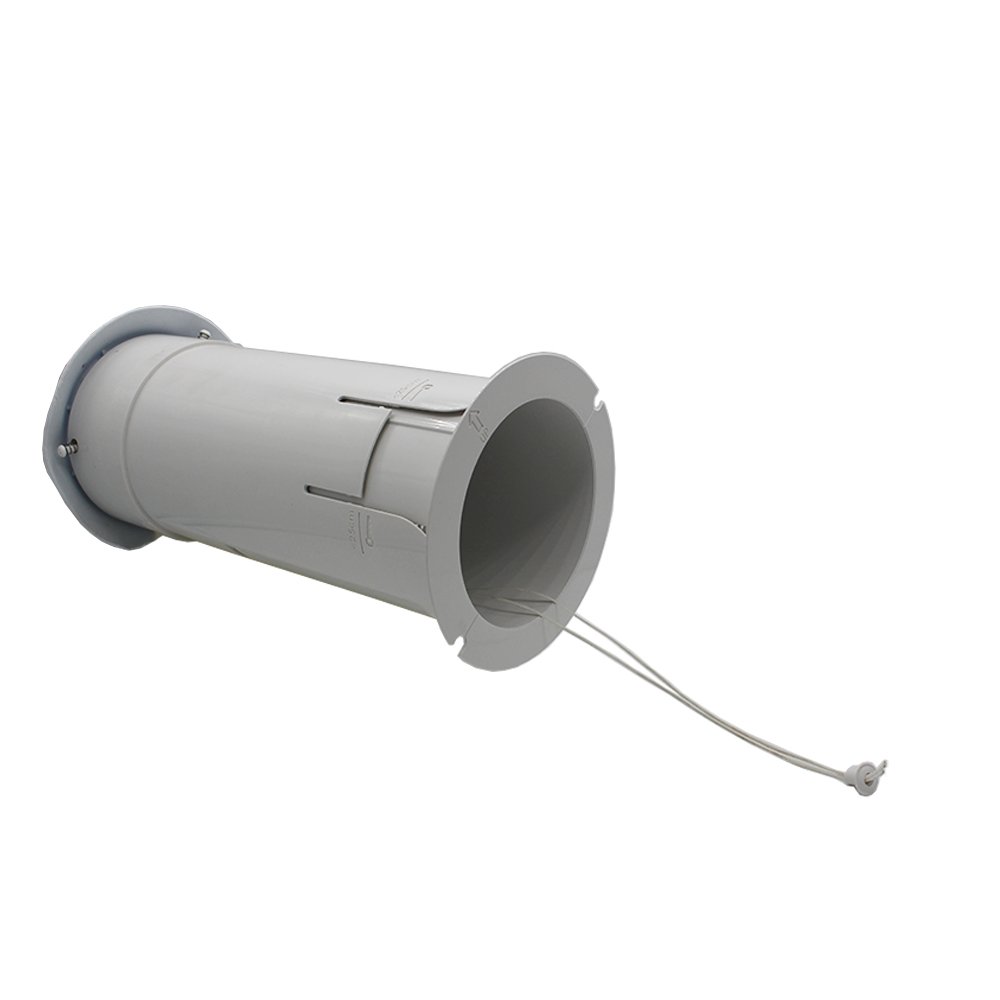

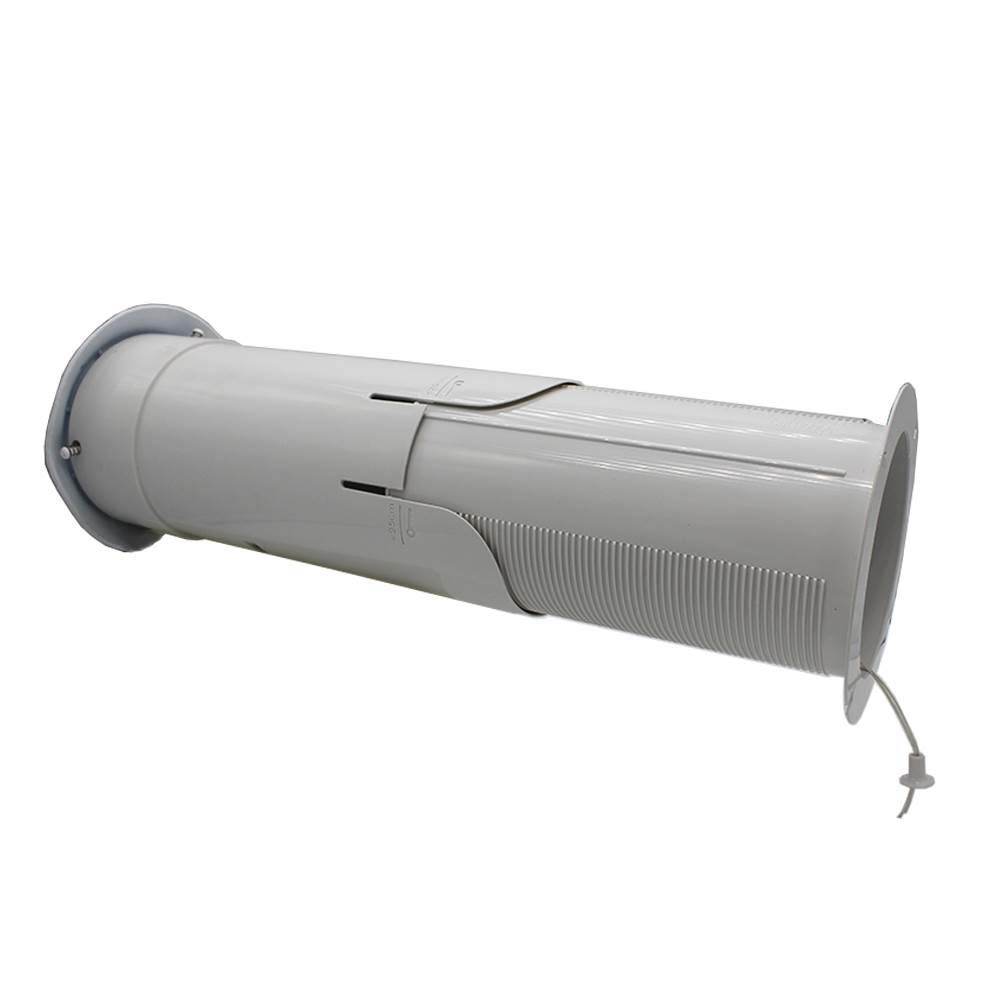

• Telescopic design - Will fit all standard UK wall sizes

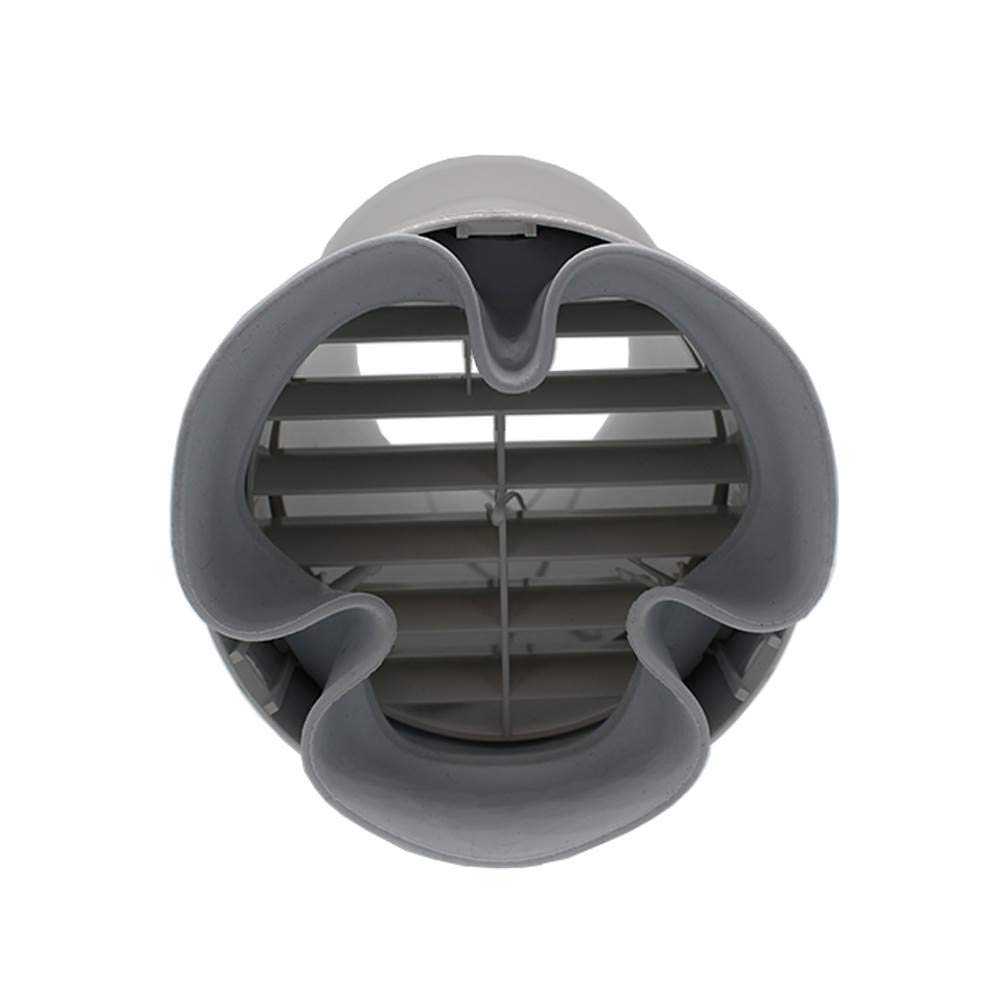

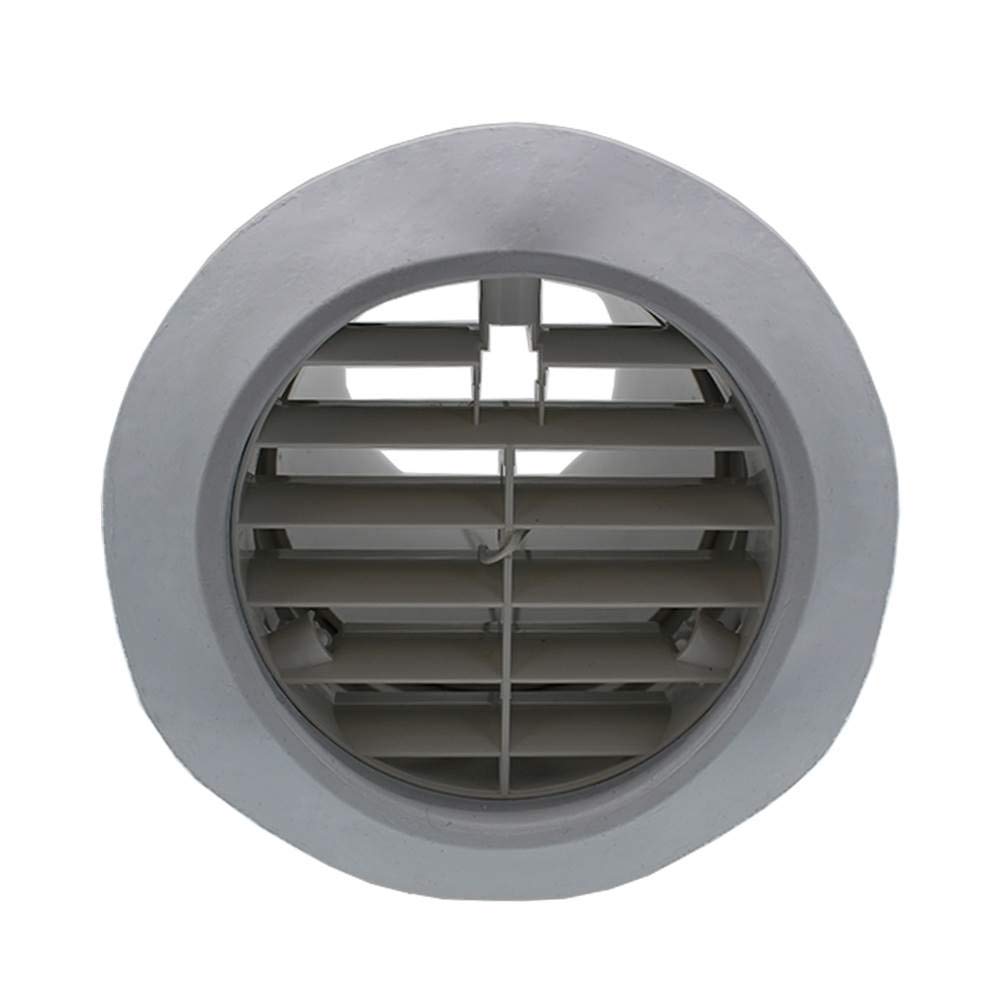

QUICK FIT TELESCOPIC WALL KIT - WHITE - FITS ALL 100MM EXTRACTOR FANSThe NEW Deluxe Quick Internal Fit Wall Kit can be installed entirely from the inside of a property reducing installation time and removing the need for costly and time consuming external grille fitting involving scaffolding. This innovative new wall kit includes an adjustable wall liner and external grille with a rubber seal on the outside of the building. The wall kit can be adjusted to wall thicknesses anywhere between 225mm and 390mm - just measure the wall then use the guide on the tube of the wall kit to set it to the correct length. Simply insert the tube into the hole deploy the external grille and 3 pins will hold the wall kit securely in place. The external grille and seal can then be pulled back against the external wall so a tight fit can be achieved. The external rubber seal covers up any break out on the external hole and leaves a clean tidy finish. In addition the rubber seal will help to protect against water ingress. The wall kit is also suitable as a passive air inlet grille. Patented design.Designed to fit through the wall in a 117mm hole with a maximum depth of 390mm and a minimum depth of 225mm.Can be used with any 100mm fan - select model without integral backdraught shutter if fan already has them.Installation Instruction Video:Features:Telescopic DesignLocking pins secure wall kit in placeScrew fixings to secure in placeFixed external grilleEasy to use measurement guide forflexible installation depthMin wall thickness: 225mmMax wall thickness: 390mmHole diameter: 117mmVariations:ModelColourDescriptionSuggested Use QFWALLKIT-100MM-WH White Quick Fit Wall Kit Any ventilation unit with standard 100mm spigot QFWALLKIT-100MM-BS-WH White Quick Fit Wall Kit Any ventilation unit with standard 100mm spigotQFWALLKIT-100MM-BR Brown Quick Fit Wall Kit&nbs
