Maco GTS Multipoint Gearbox - Serrated Latch Reversal Button - Lift Lever – 35mm Backset with 92mm PZ (Centres)

• This product is a replacement gearbox for Maco GTS Multipoint Locks, this will not work with other Multipoint Brands/Sizes.

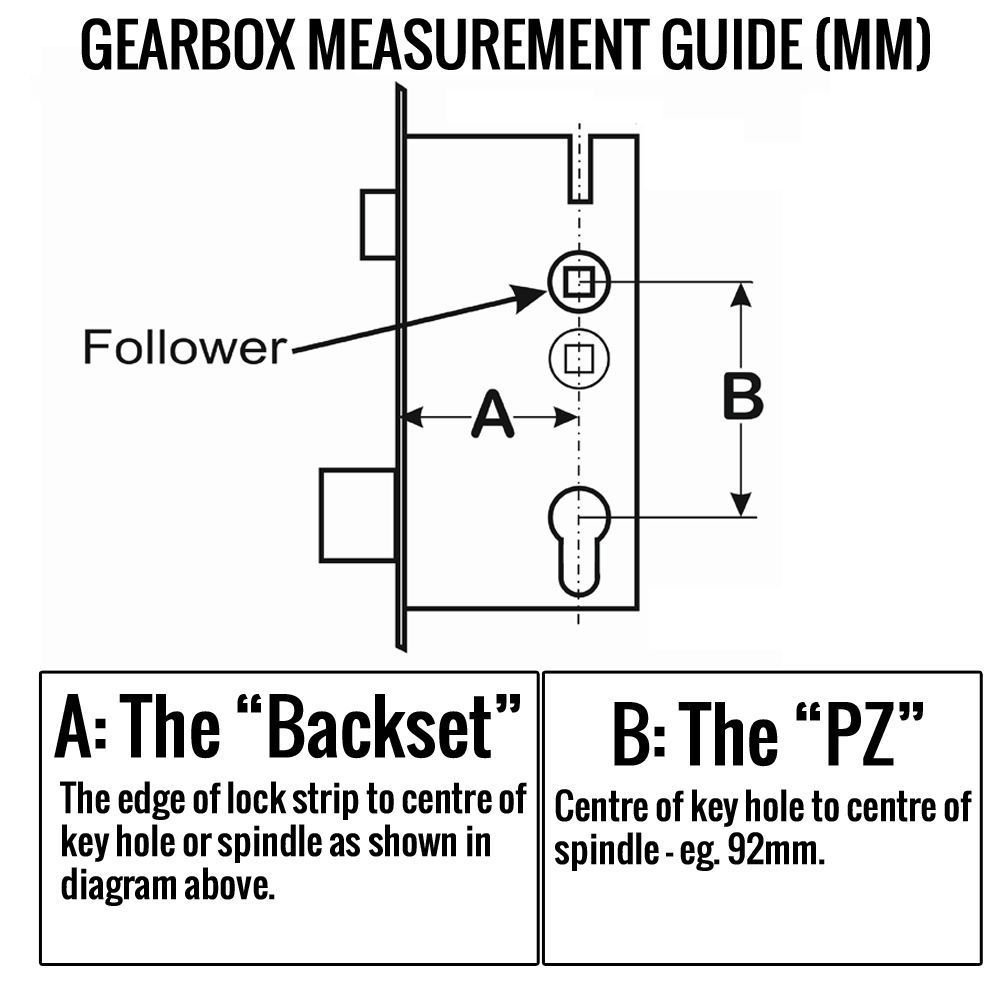

• Backset measurement = 35mm. This is the distance from the face of the Lock to the centre of the Spindle Hole (square cut out). Please refer to the line drawing in the images to confirm.
• Centres also known as PZ measurement = 92mm. This is the distance from the centre of the spindle hole to the centre of the key hole. Please refer to the line drawing in the images to confirm.
• Operation = Lift Lever. You have to lift the Handle to throw the locking points before deadlocking with the key.

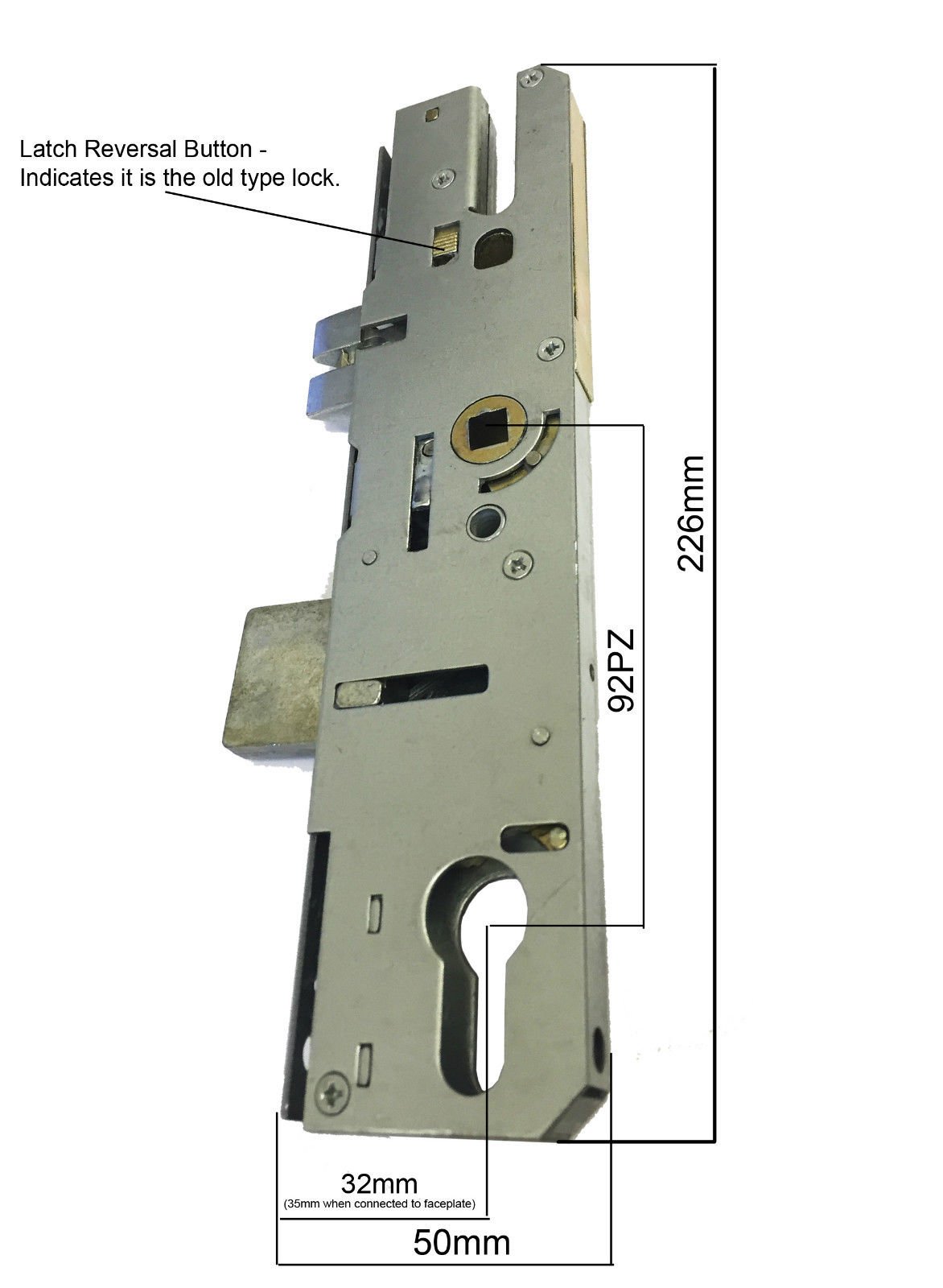

• Case Measurements = 228mm x 52mm. Please refer to the line drawing in the images to confirm.

This gearbox can be used to replace the existing gearbox instead of replacing the entire locking system
