MACHSWON 1 Channel USB Isolator USB to USB USB Isolation Module Coupling Protection Board ADUM3160

• The USB isolation module adopts ADI's proprietary iCoupler technology, is compatible with USB 2.0, provides fully isolated 1.5 Mbps and 12 Mbps data rates, isolates 1500V voltage, does not require external power, and does not require drivers. Make the USB port free from the interference of external strong power supply and strong signal, and escort the USB port of the computer and the computer motherboard.
• Single isolated USB module No driver, support hot swap, plug and playStandard interface for expansion on various development boards.Support all MCU control, industrial field, PLC control, home intelligent control.
• Function parameter:Compatible with USB2.0,Power Module Isolation Voltage: 1500V,ADUM3160 isolation voltage: 2500V,The output power of B0505S is 1W,Power supply: Taken from the USB port of the computer host,Operating Environment: -40°C to 85°C,Support USB control transfer, batch transfer, Support USB low speed 1.5Mbps and full speed 12Mbps,Interrupt transfer, isochronous/isochronous transfer,Can be switched by DIP switch, does not support pure high-speed devices
• Supported Devices:Full-speed devices: USB flash drives, digital cameras, card readers, mobile hard drives, USB shields, USB hubs, AVR-JTAG, AVRISP, AVRISPMKII, S-Lab ab, JET51, J-Link, FET430UIF, PICKIT2, XDS100, LPC-Link, ICD2 , USB to serial port (FT232, CP2102, PL2303, CH341 chip).Low-speed devices: keyboard, mouse, USBASP, USBHID device, USBCDC device.Unsupported devices: USB wireless network card, some USB3.0 flash drives.
• Scope of application:Work environment with strong electricity and strong interference,Noise sensitive areas,USB debugging device,Various industrial control USB devices,Other common USB peripherals,medical equipment.These Relay Modules can be used as microcontroller development board modules or home appliance controllor.

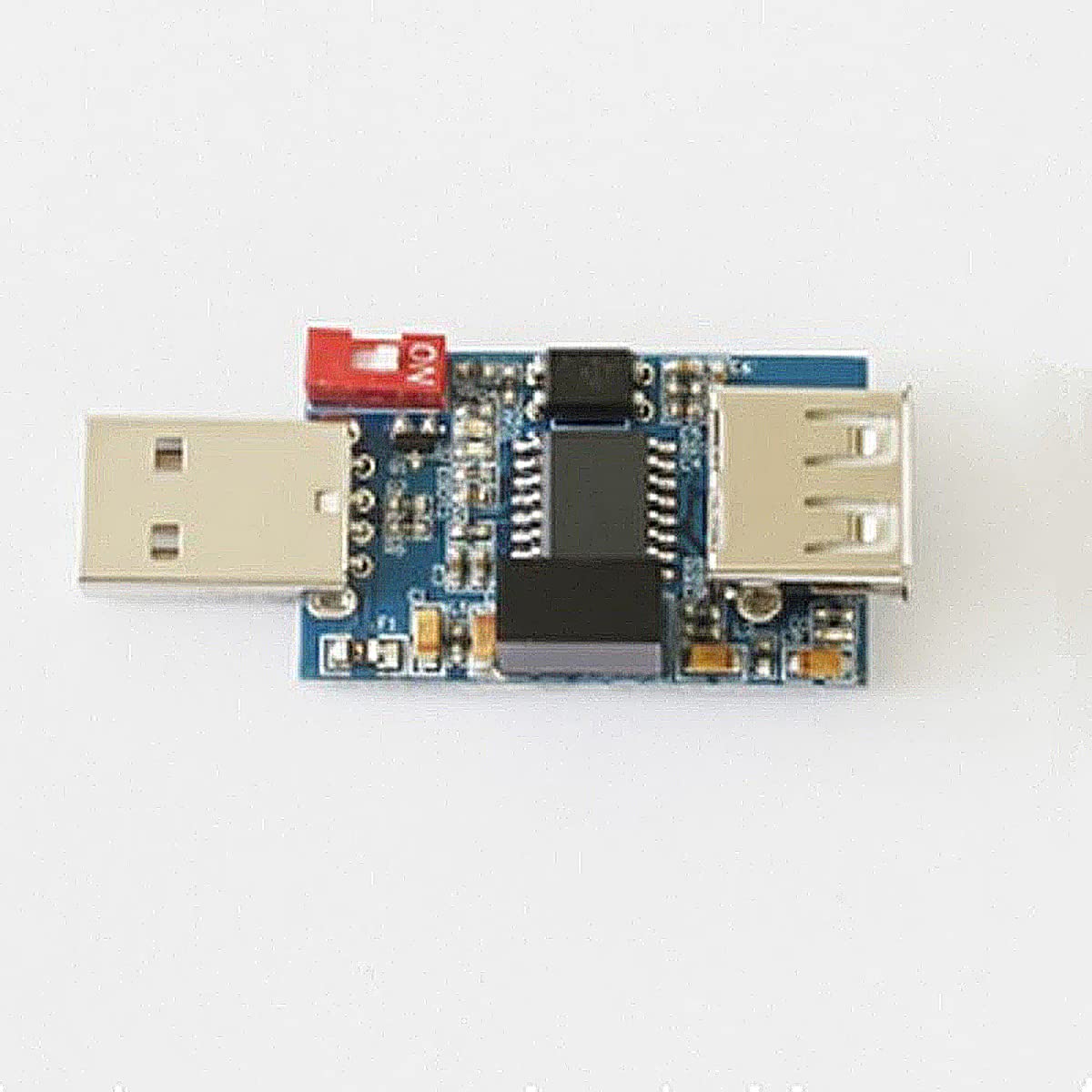

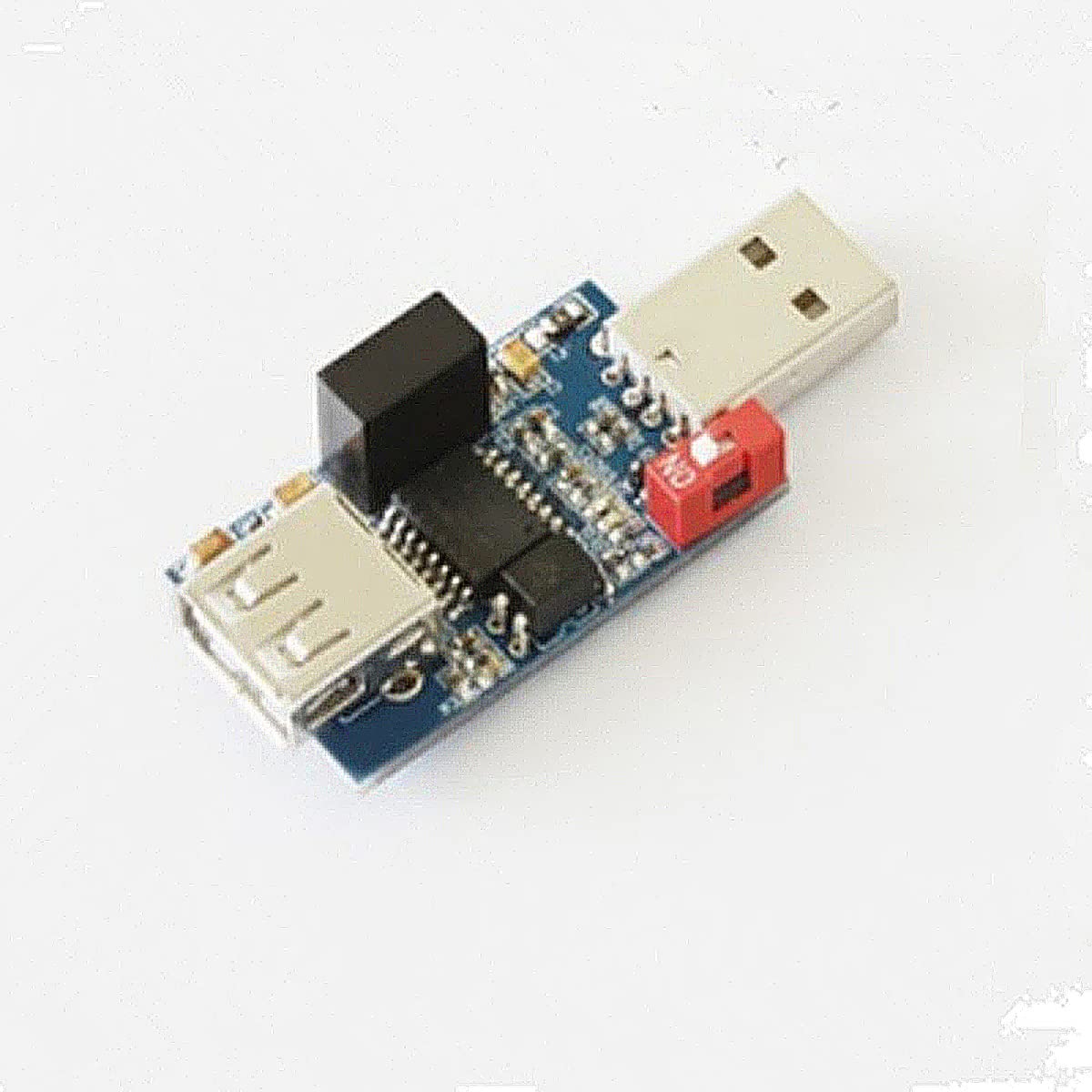

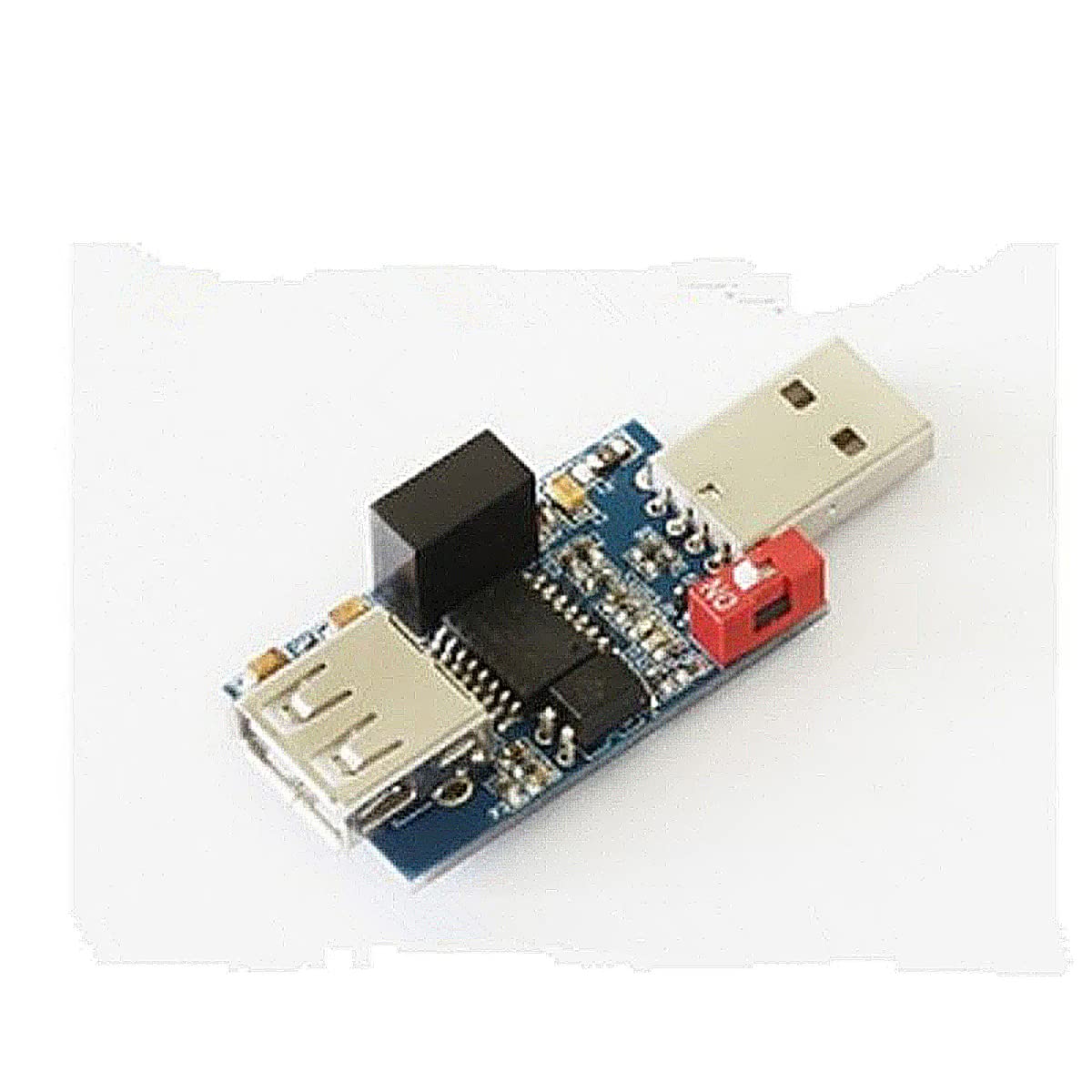

MACHSWON 1 Channel USB Isolator USB to USB USB Isolation Module Coupling Protection Board ADUM3160 【Descrition】 Single isolated USB module No driver, support hot swap, plug and play Function parameter: Compatible with USB2.0 Power Module Isolation Voltage: 1500V ADUM3160 isolation voltage: 2500V The output power of B0505S is 1W Power supply: Taken from the USB port of the computer host Operating Environment: -40°C to 85°C Support USB control transfer, batch transfer, Support USB low speed 1.5Mbps and full speed 12Mbps, Interrupt transfer, isochronous/isochronous transfer Can be switched by DIP switch, does not support pure high-speed devices Interface Introduction LED indicator: blue light is full speed mode, red light is low speed mode DIP switch: dial to 1-digit full-speed mode K, dial to ON for low-speed mode Isolation chip ADUM3160 Output Interface Input interface Power Isolation B0505S-1W Power Indicator Scope of application: Work environment with strong electricity and strong interference Noise sensitive areas USB debugging device Various industrial control USB devices Other common USB peripherals Medical equipment Supported Devices: Full-speed devices: USB flash drives, digital cameras, card readers, mobile hard drives, USB shields, USB hubs, AVR-JTAG, AVRISP, AVRISPMKII, S-Lab ab, JET51, J-Link, FET430UIF, PICKIT2, XDS100, LPC-Link, ICD2 , USB to serial port (FT232, CP2102, PL2303, CH341 chips). Low-speed devices: keyboard, mouse, USBASP, USBHID device, USBCDC device. Unsupported devices: USB wireless network card, some USB3.0 flash drives. [product included] 1x Relay Module
