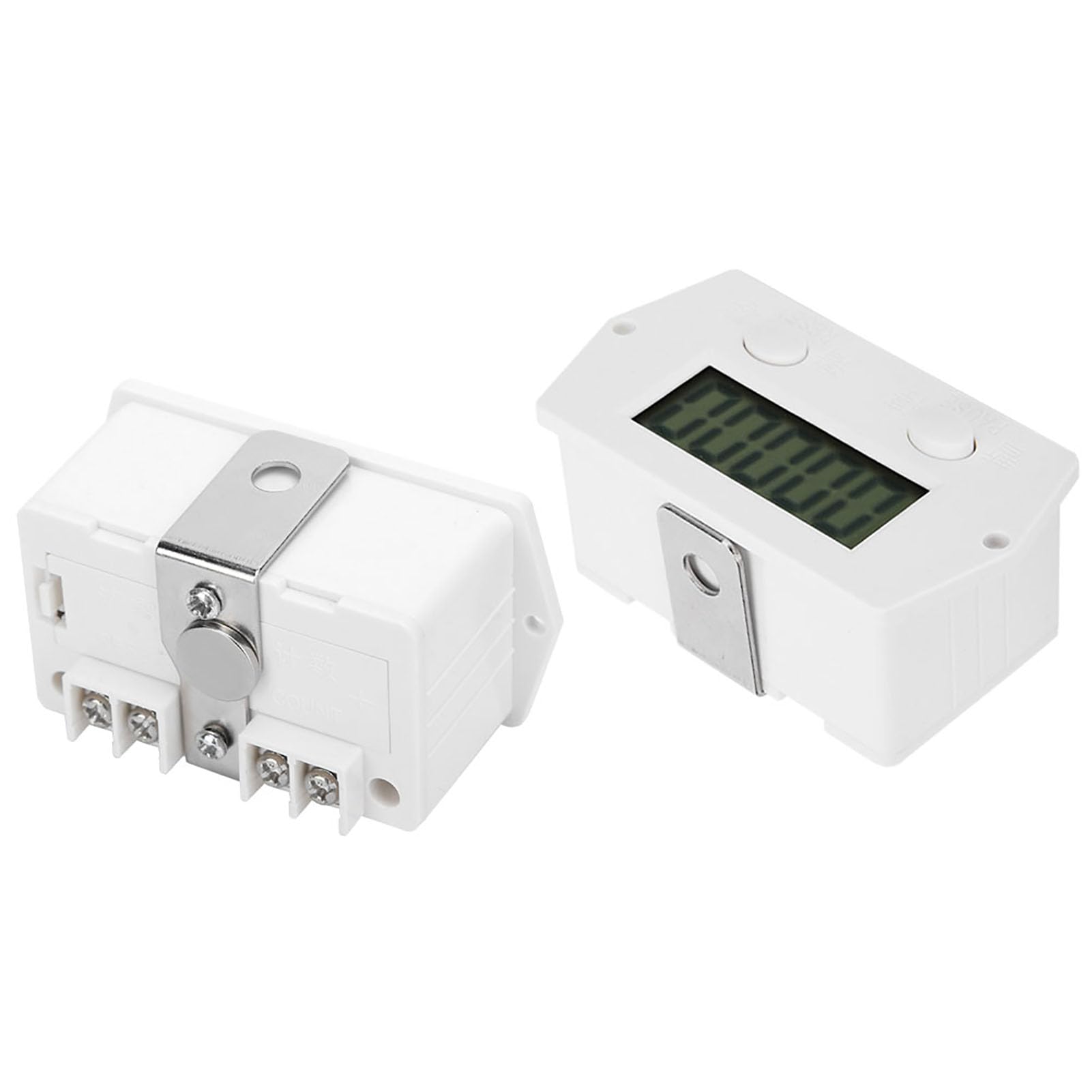

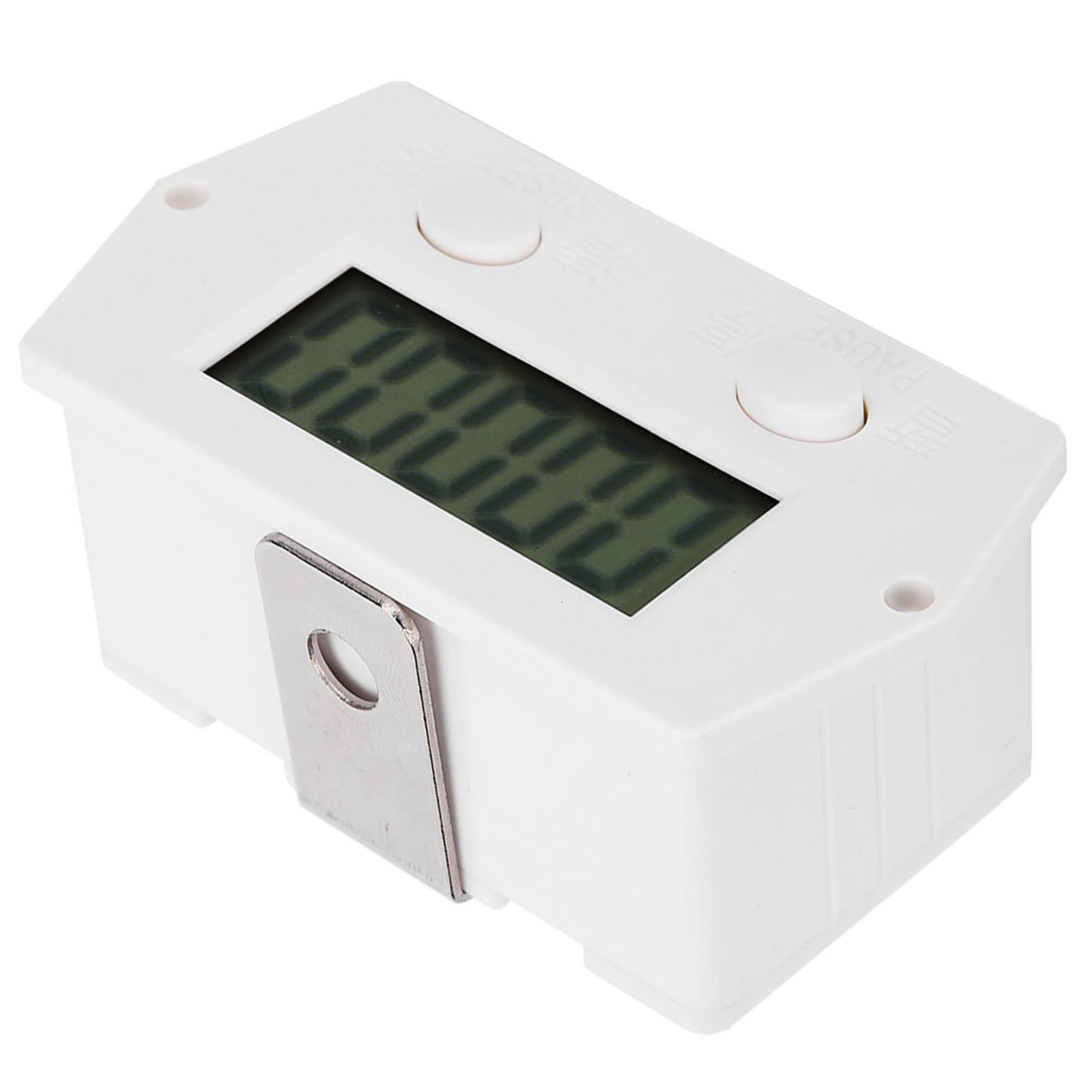

Machine Tool Counter, XJ5J Magnetic Induction Display, Automated 5Digit 099999 Machine Tool Counter LCD Digital Tally Counter

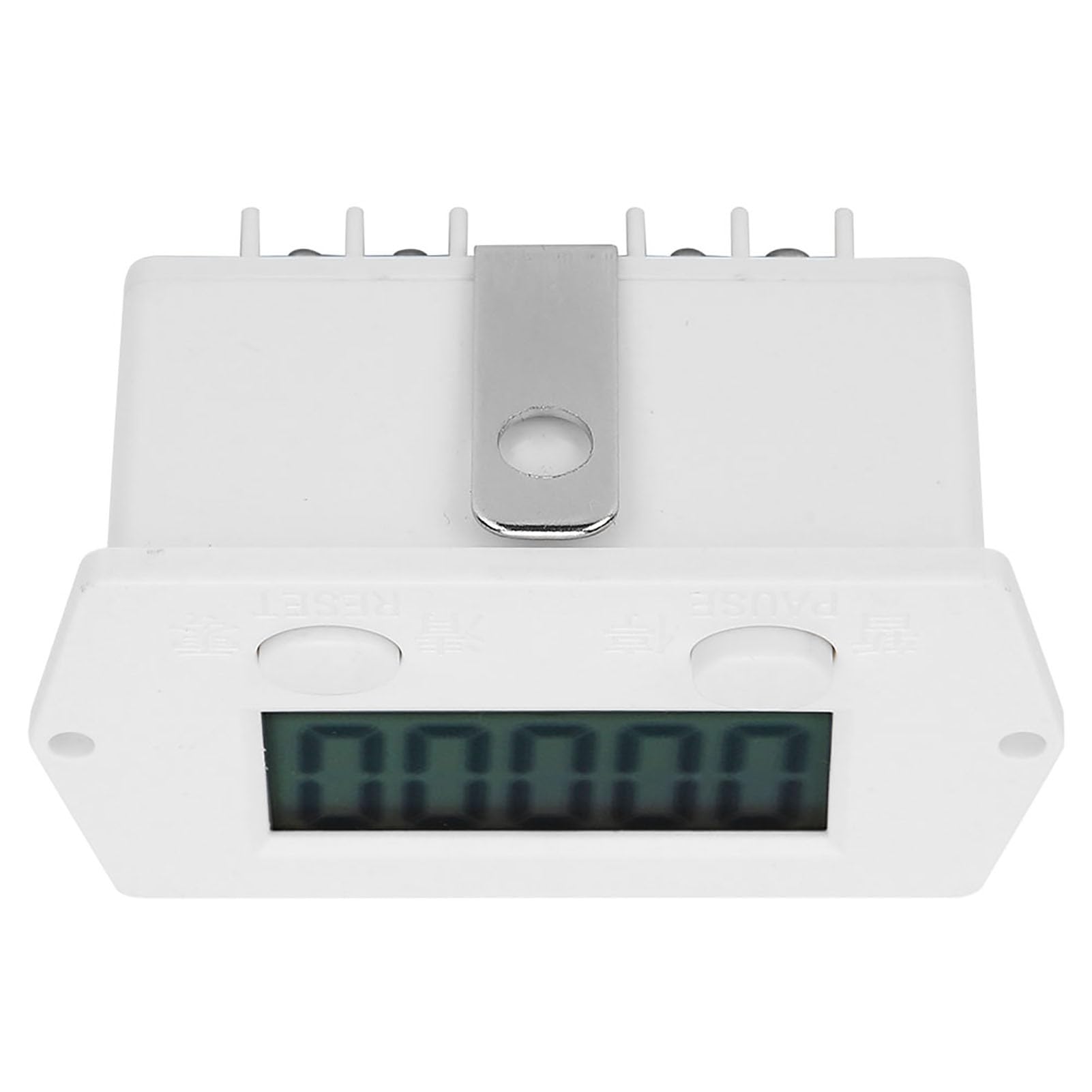

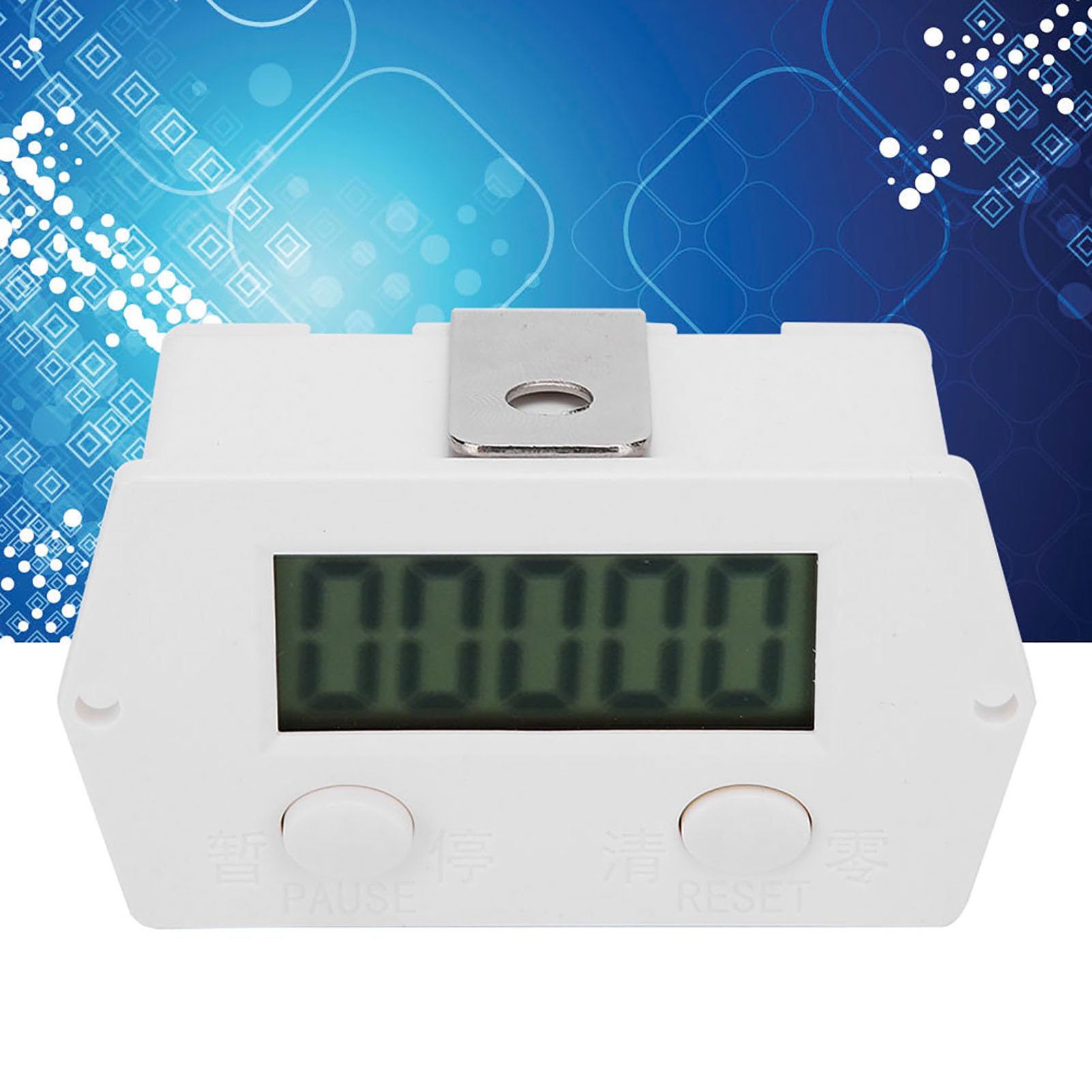

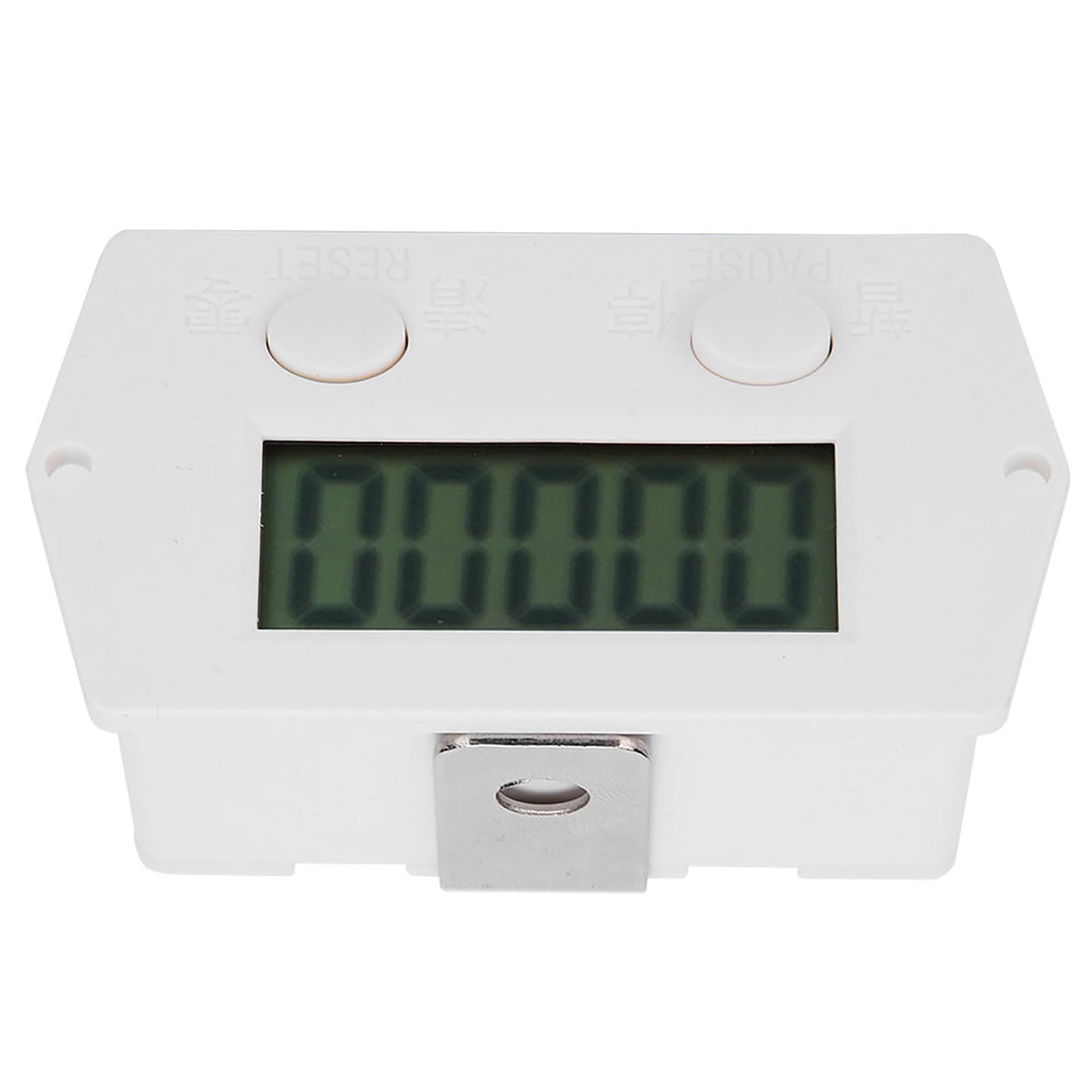

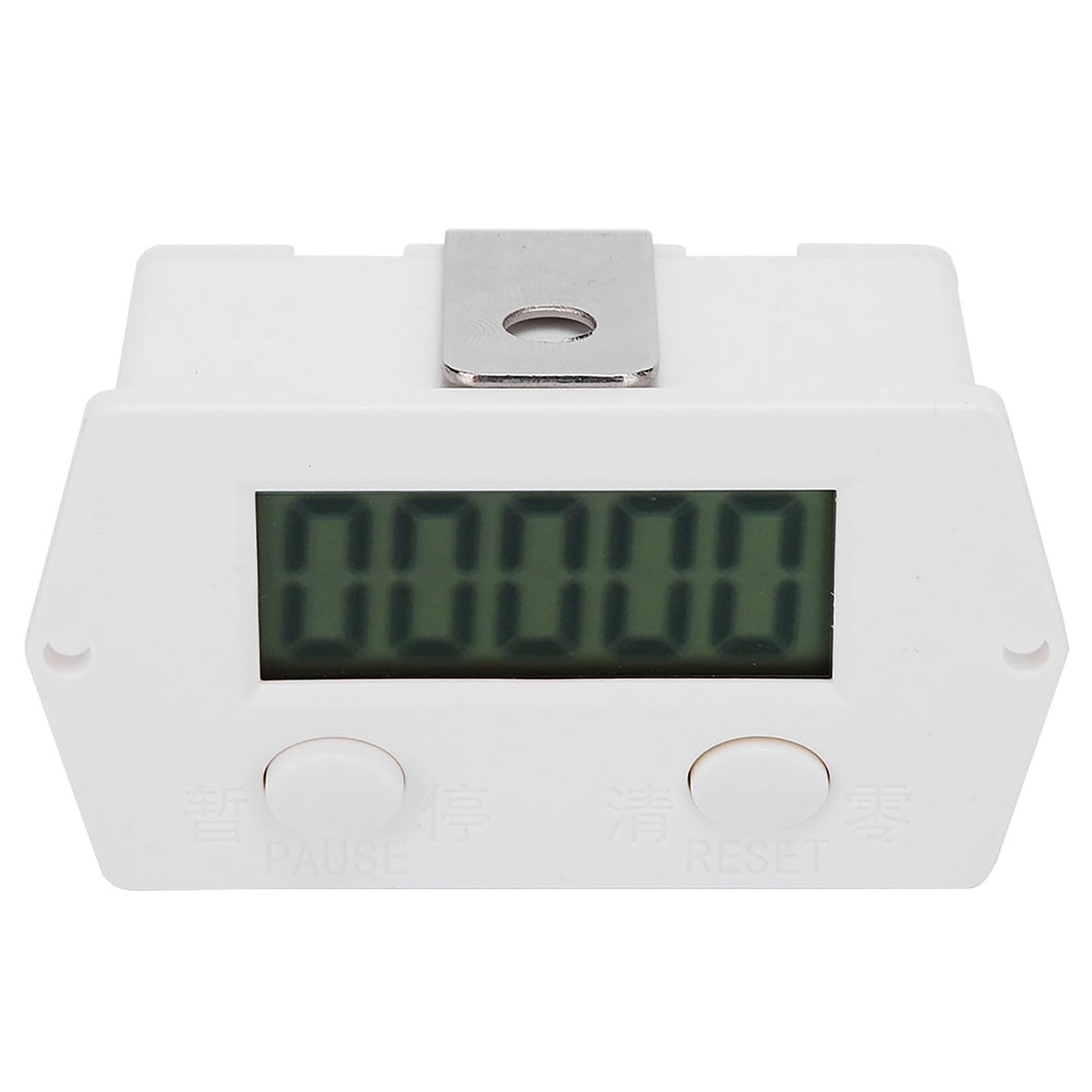

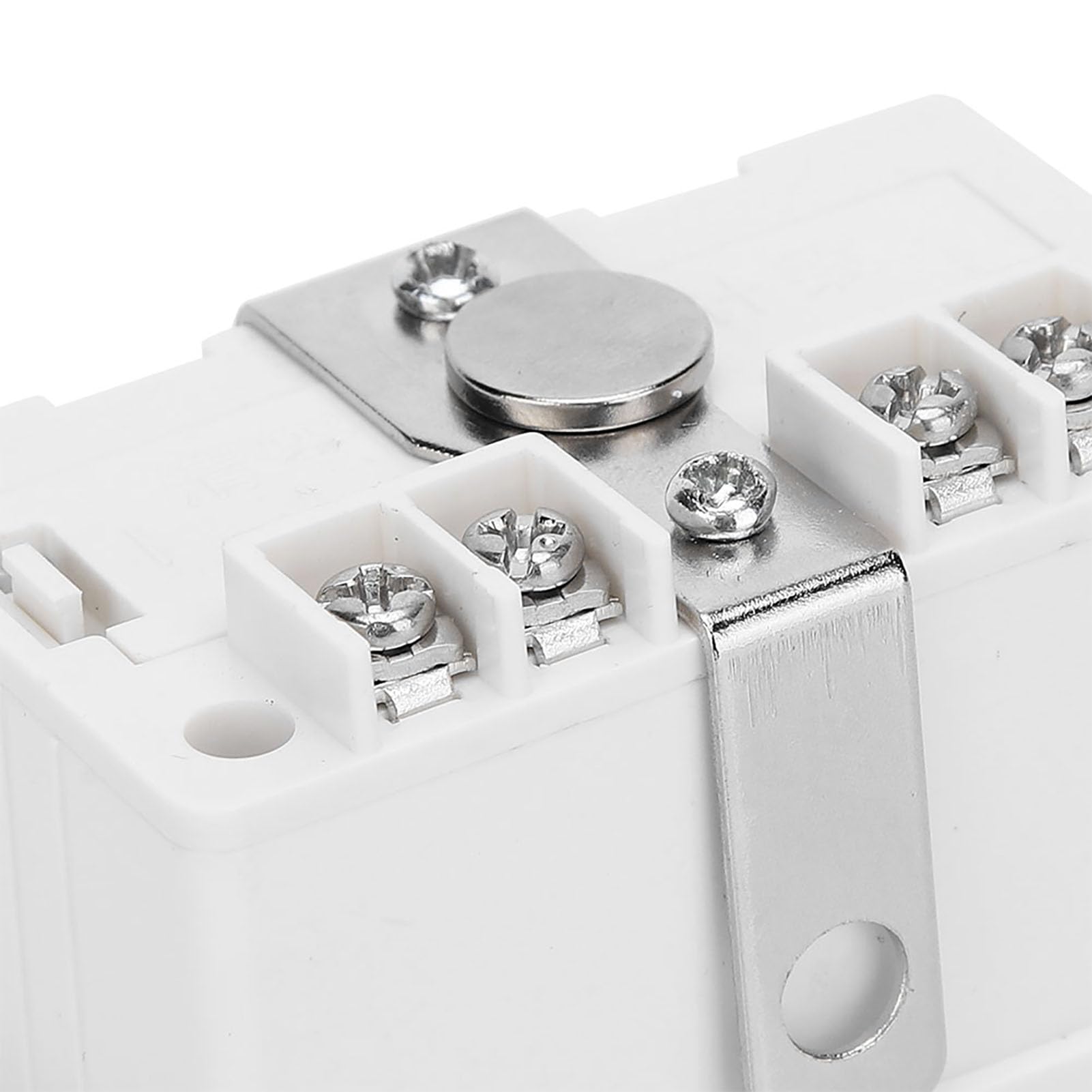

Specification: Item Type: 5Digit 099999 Machine Tool Counter Material: Plastic and iron Counting Range: 0-99999 digits Clear Way: Panel or External Hole Size: Approx. 61 x 35mm/ 2.4 x 1.4in Ambient Temperature: -5-40 Power Supply: 1.5V-AA AA battery (not included) 1. Connect the induction switch to the counting terminal, install the induction switch and the magnet in the corresponding position of the equipment according to the actual work needs, let the equipment that needs counting complete the process, and the magnet approaches the induction switch once to complete the work. 2. When working, let the magnet follow the device to move, approach the sensor switch about 1-2 cm away, and then let the magnet leave the switch more than 3-5 cm away, the counter will increment once and repeat the above process. (Adjust the distance and position of the magnet sensor switch during installation.) 3. Pause counting: Press the PAUSE button (PAUSE) to pause counting. Press the pause button (PAUSE) once to resume counting. 4. Clear: First press the pause button (PAUSE) and then press the clear part (PESET) counter to clear, or an external button, the counter is cleared. (In other words, when the counter is in use, first press the pause button and then press the clear part. The product data will be reset.) 5. The counter signal and the reset signal can be input to the contact signal. For example, the relay limit switch cannot input the signal with voltage. Package List: 1 x Digital Display Counter 1 x Metal Magnetic Induction Switch 1 x Bracket 1 x Magnet
