M10 x 8mm Stroke Oil Pressure Shock Absorber Self-Pressure-Regulation Fast Reset Adjustable Damper for Pneumatic Air Cylinder AC1008-2

• 【Self-Pressure-Regulation】-It has a soft shock absorbing effect because the self-pressure-regulation function.
• 【Reduce Shock&Noise】-It can reduce shock and noise in automated mechanical operations, enhance working efficiency.
• 【Good Damping】-Shell is made of high quality material, good damping, high hardness and strong heat resistance.
• 【Stable Performance】-Greatly reduce the shock and improve the stability.
• 【Reset Fast】-The spring inside can reset the piston rod fast cause the perfect movement of the check valve.

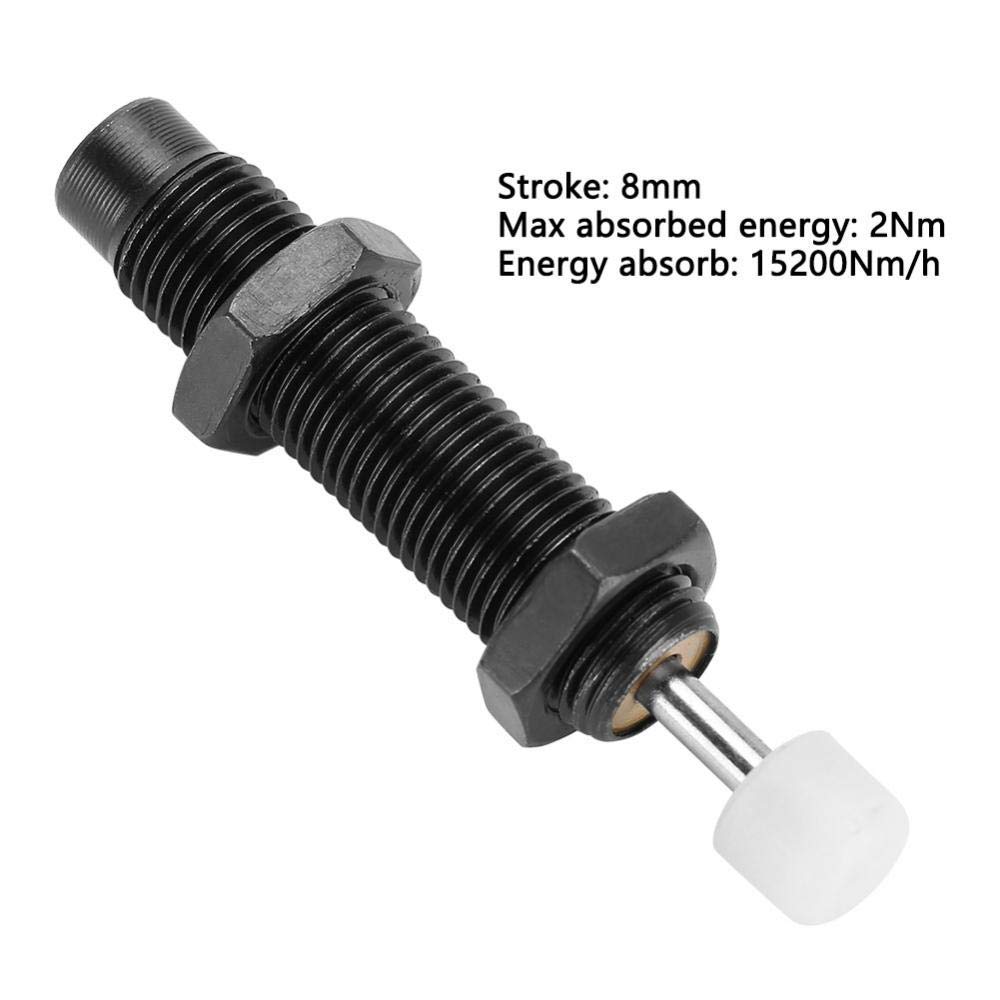

Specifications: Material: Alloy + Stainless steel Color: Black Stroke: 8mm Max absorbed energy: 2Nm Energy absorb: 15200Nm/h Effective weight: 0.5-6WE(KG) Allowable speed: 0.8-3m/s Working temperature: -10~80 Thread: M10 Length: Approx. 5.8cm / 2.28inch Weight: Approx. 23g Package Included: 1 x Oil Pressure Shock Absorber Note: Please aim the impactor at the center of the shaft. Do not remove the front cap to use, because remove the cap will lengthen the piston rod and make it hit to the bottom, this may break the bottom. It is strictly prohibited to spray paint on the tube teeth and shaft hub, otherwise it will affect the heat dissipation effect and leak oil. Do not make the piston rod rust and other foreign matter. If there are two or more vibration absorbers are installed on the same side, Please confirm the synchronization. For safety, do not break it up to use.
