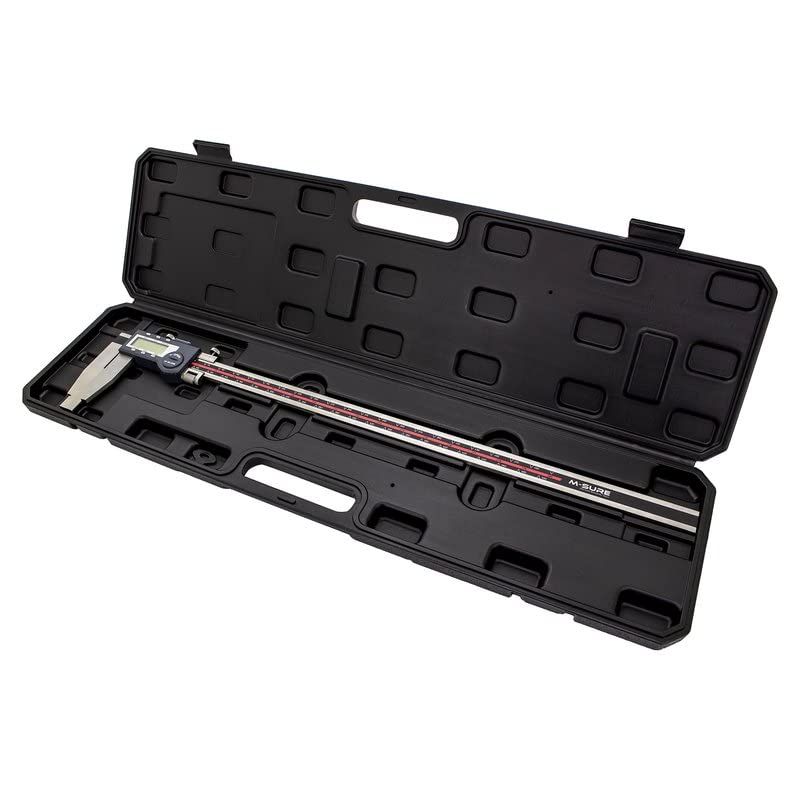

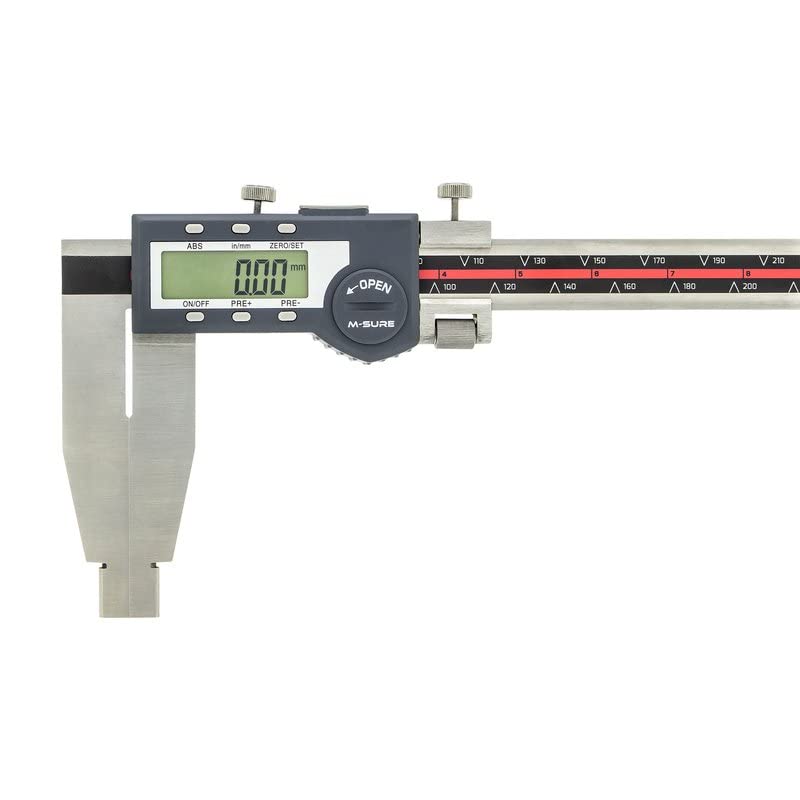

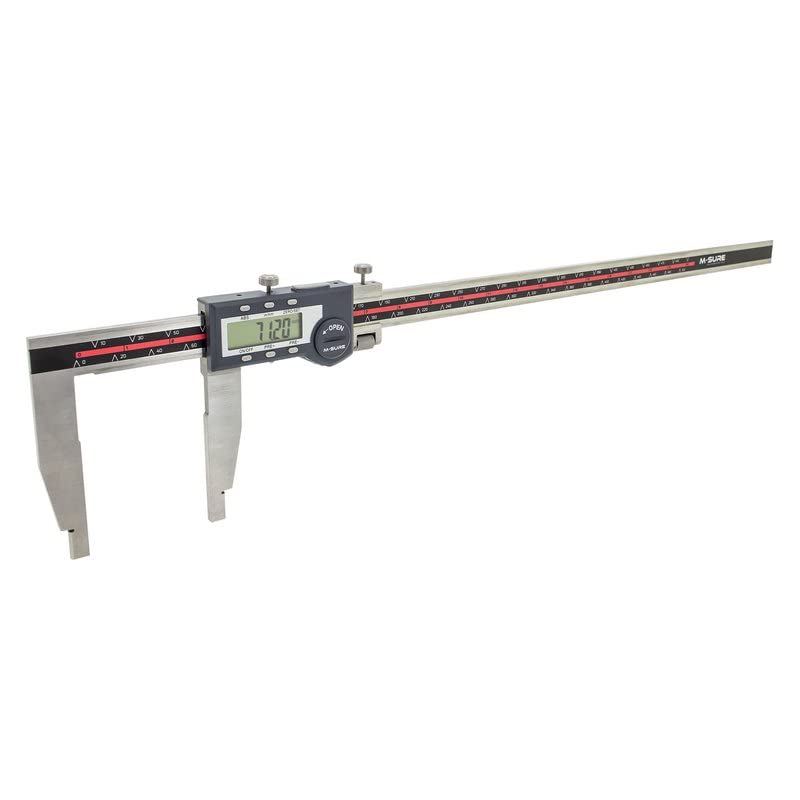

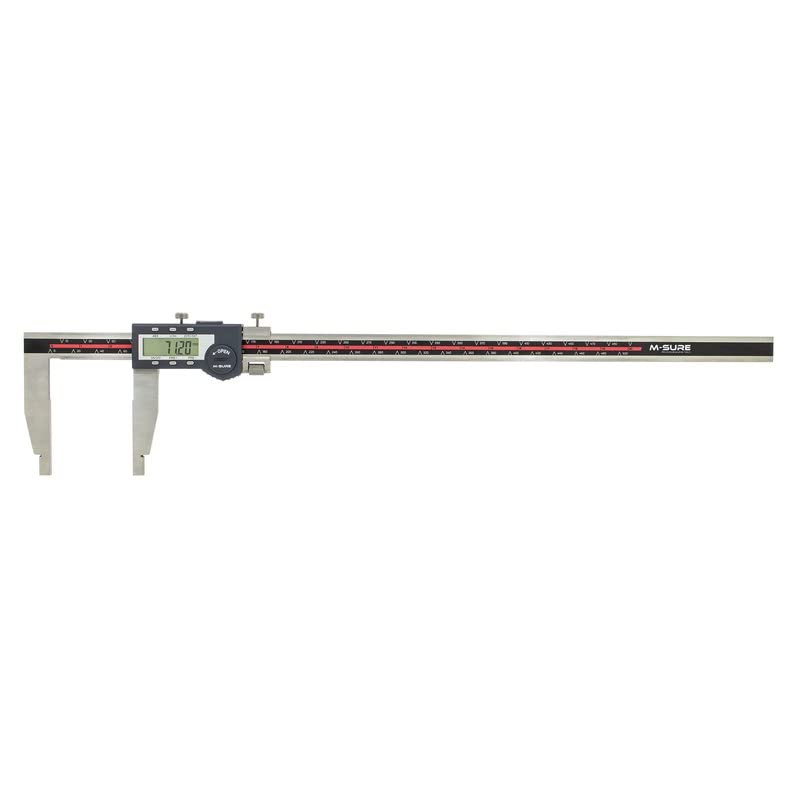

M-SURE MS-222-500 Large Digital Caliper 0-500mm / 0-20" | ±0.05mm Accuracy | Nib-Type Jaw | Outside & Inside Measurement | Stainless Steel | ABS/INC | Cabled Data Output | Storage Case Included
★★★★★
$396.99
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- ±0.05mm Accuracy Across Full 0–500mm Range, 0.01mm Resolution – The MS-222-500 delivers rated accuracy of ±0.05mm across its full 0–500mm (0–20") measuring range at 0.01mm (0.0005") resolution. Designed for dimensional inspection of large engineering components where standard 150–300mm calipers cannot reach, it provides reliable outside diameter and inside diameter measurement via precision nib-type jaws across the complete 500mm travel range.
- Nib-Type Jaw Design | 100mm Jaw Depth | Outside and Inside Measurement – The MS-222-500 uses precision nib-type jaws for both outside and inside diameter measurement across its 500mm range. The 100mm jaw depth accommodates large-diameter bores and external features beyond the capacity of standard-jaw calipers. Precision-machined from hardened and ground stainless steel with a fine-adjust thumb wheel for controlled, repeatable slider positioning across large-format components.

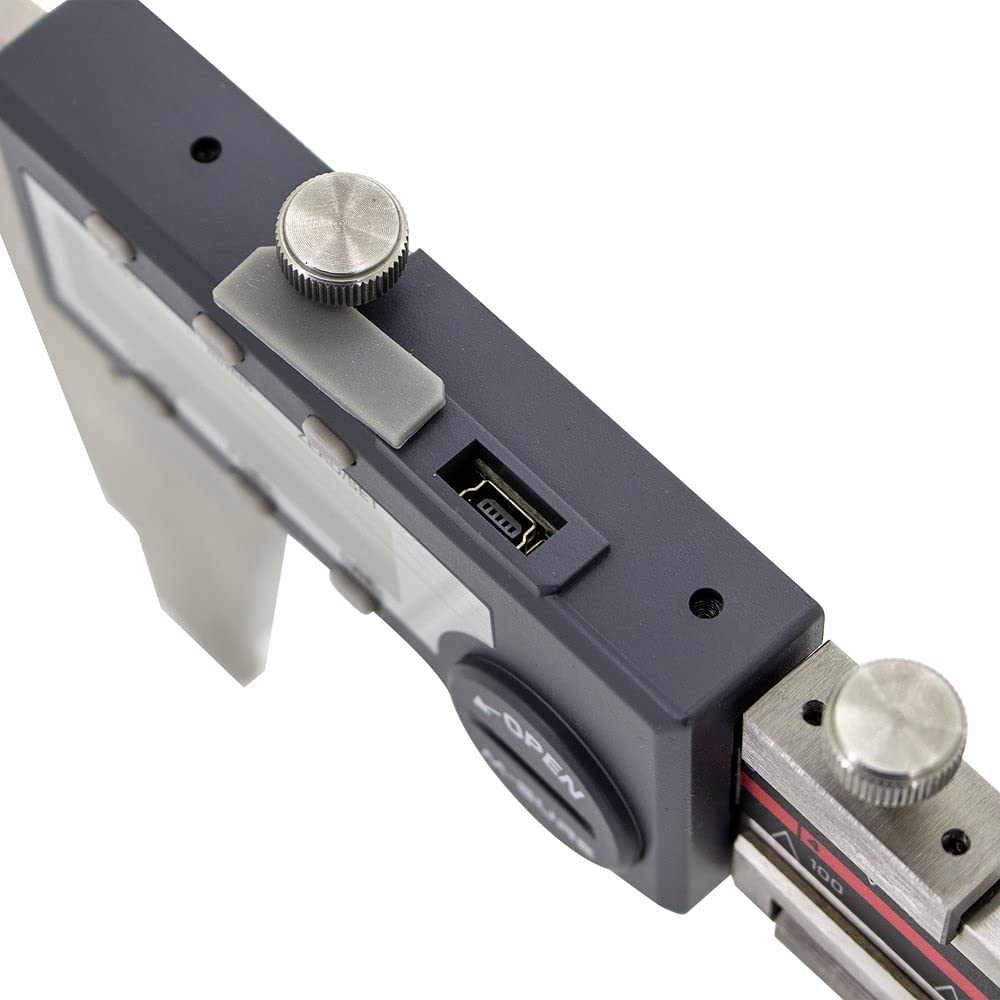

- Cabled Data Output | ABS/INC | Preset Value – The MS-222-500 features Type 1 cabled data output, compatible with the M-SURE MS-601-010 USB Data Interface (up to 8 readings per second, no PC driver required) and MS-620-001 Remote Display. Additional functions include ABS/INC switching and Preset Value (offset) - enabling direct reference-point measurement essential for production engineering, incoming inspection, and large-component QC documentation workflows.

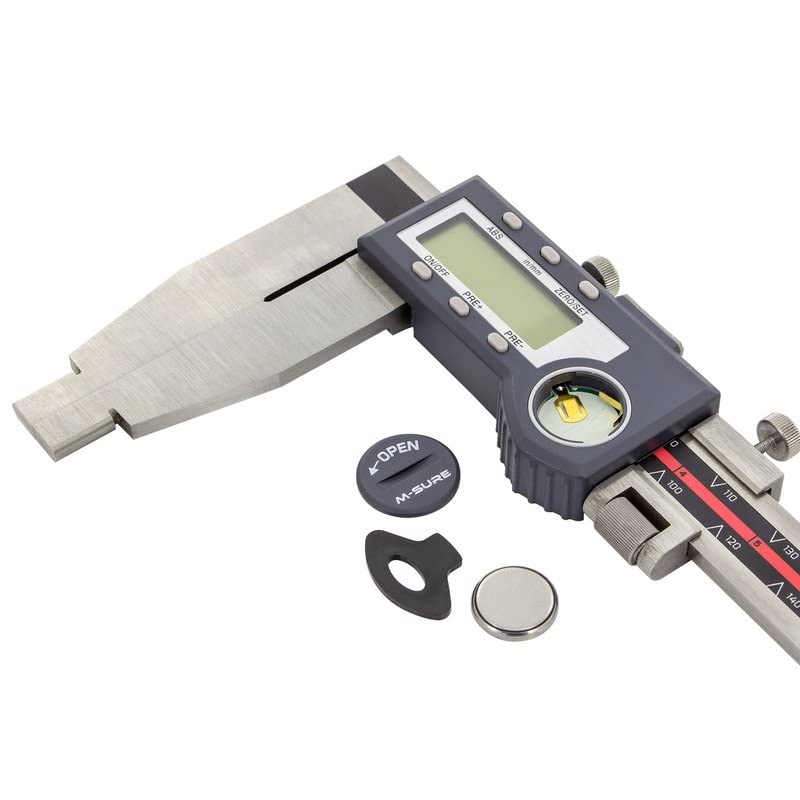

- Auto Wake, Auto Power Off, Zero Reset and Inch/Metric Conversion – Standard functions include Auto Wake (activates on movement - no manual power-on required), Auto Power Off to preserve battery life, instant Zero Reset at any position along the 500mm range, Low Battery Alert, and single-button Inch/Metric conversion. Powered by a standard CR2032 battery. Genuine spare parts and UK-based technical servicing are available to support long-term instrument performance.
- M-SURE Precision Instruments | 1-Year Return-to-Base Warranty | UK-Based Technical Support – M-SURE is a precision metrology brand with over 10 years' experience supplying industrial measuring instruments across engineering, manufacturing, and quality control sectors. Every MS-222-500 carries a 1-year return-to-base warranty. UK-based technical support and genuine spare parts are available. Compatible accessories: MS-601-010 USB Data Interface, MS-620-001 Remote Display.
