Lybunair Omni Directional 360 Degree Wind Direction Sensor, DC9 30V 4mA to 20mA ABS Shell for Meteorology and Environmental Monitoring Aerospace

• Responsible Wind Detection Tool: Wind direction sensor is characterized by good linearity, high accuracy, no dead spot, no fear of strike, and easy observation, more stable and responsible use. Users can know the wind direction through the sensor and make corresponding decisions and countermeasures. This ensures accurate readings and dependable performance in various conditions

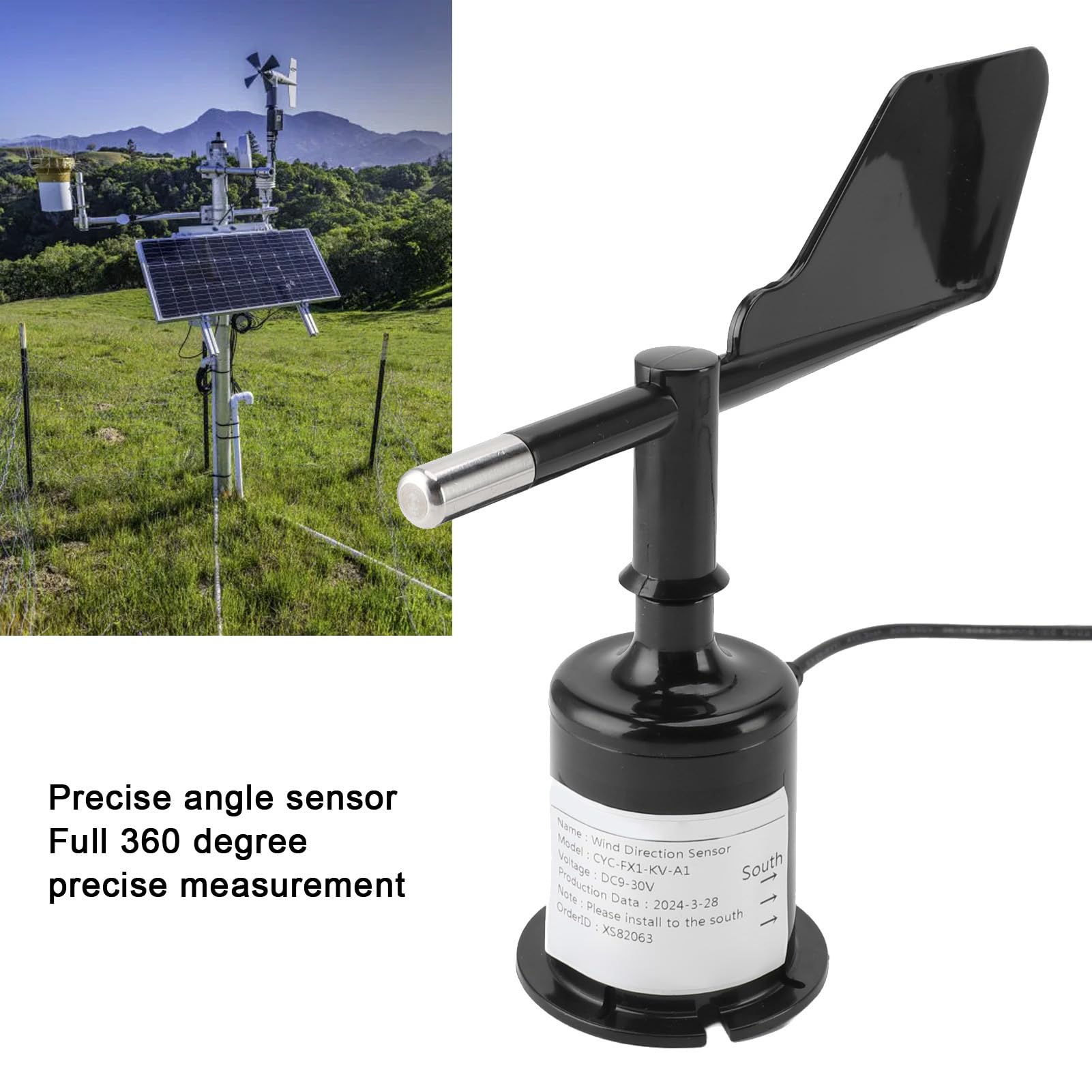

• Comprehensive Wind Direction Monitoring: The internal precise angle sensor is able to realize all round 360° wind direction monitoring. Users can obtain complete wind direction information, ensuring the data's thoroughness and accuracy. This allows for detailed analysis and a better understanding of weather conditions
• High-Quality Wind Sensor Material: Made of low inertia ABS material with good dynamic characteristics. The premium material ensures stable performance and long-lasting reliability, even in diverse environments. This allows the sensor to provide consistent and accurate readings over time
• Accurate Wind Direction Measurement: It is mainly used to measure the direction of the wind, adopting the rotary type, which can accurately measure the direction of the wind. This design ensures responsible data collection for various applications. Users can depend on this sensor for clear and precise wind direction information

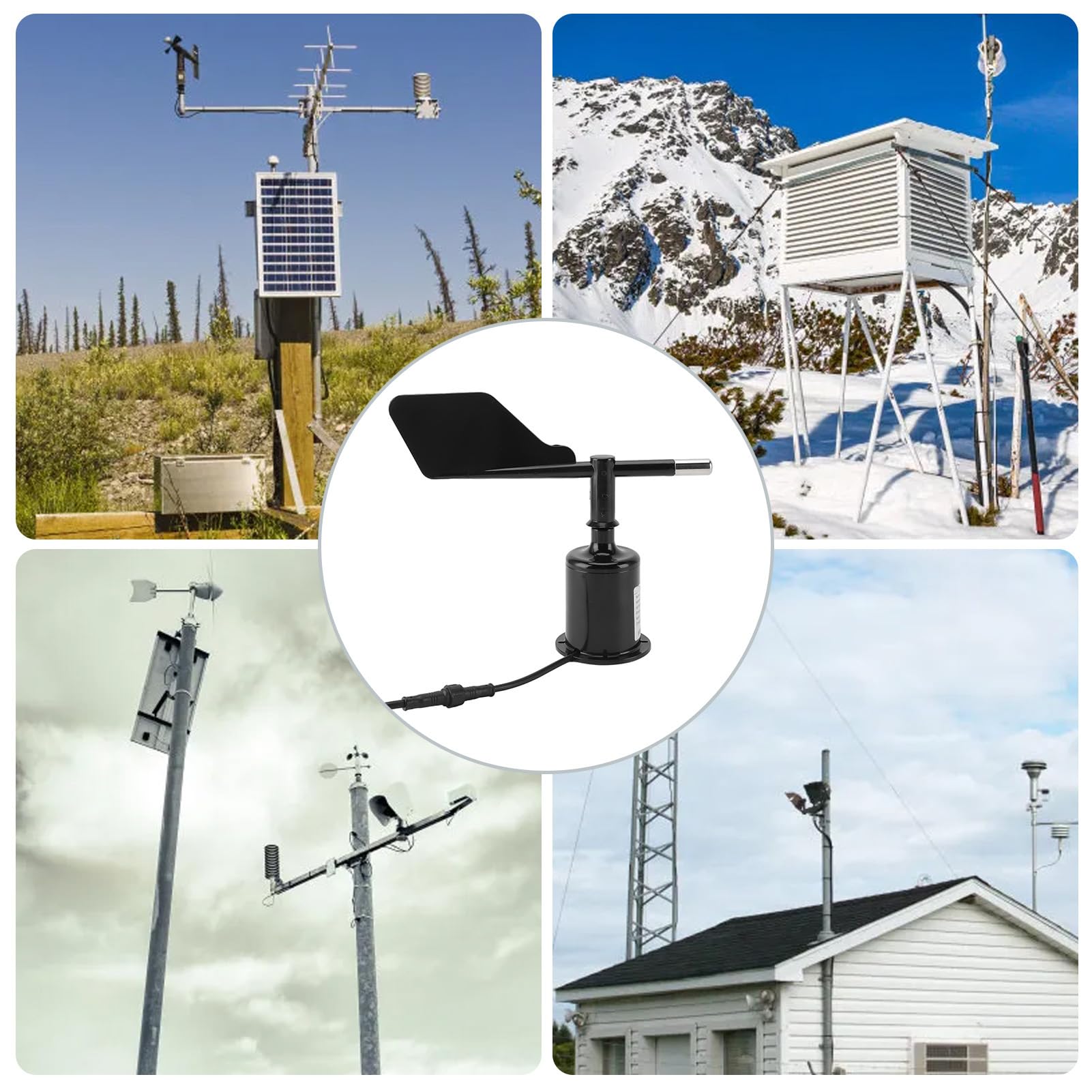

• Versatile Application Areas: It is suitable for meteorology, environmental monitoring, aerospace and other fields. Additionally, it can also be used for wind direction measurement applied in gardens, greenhouses, environmental protecting, weather stations, ships, wharves, aquaculture, advertisement gates, marine, environment, airports, ports, laboratories, industry, and transportation environments

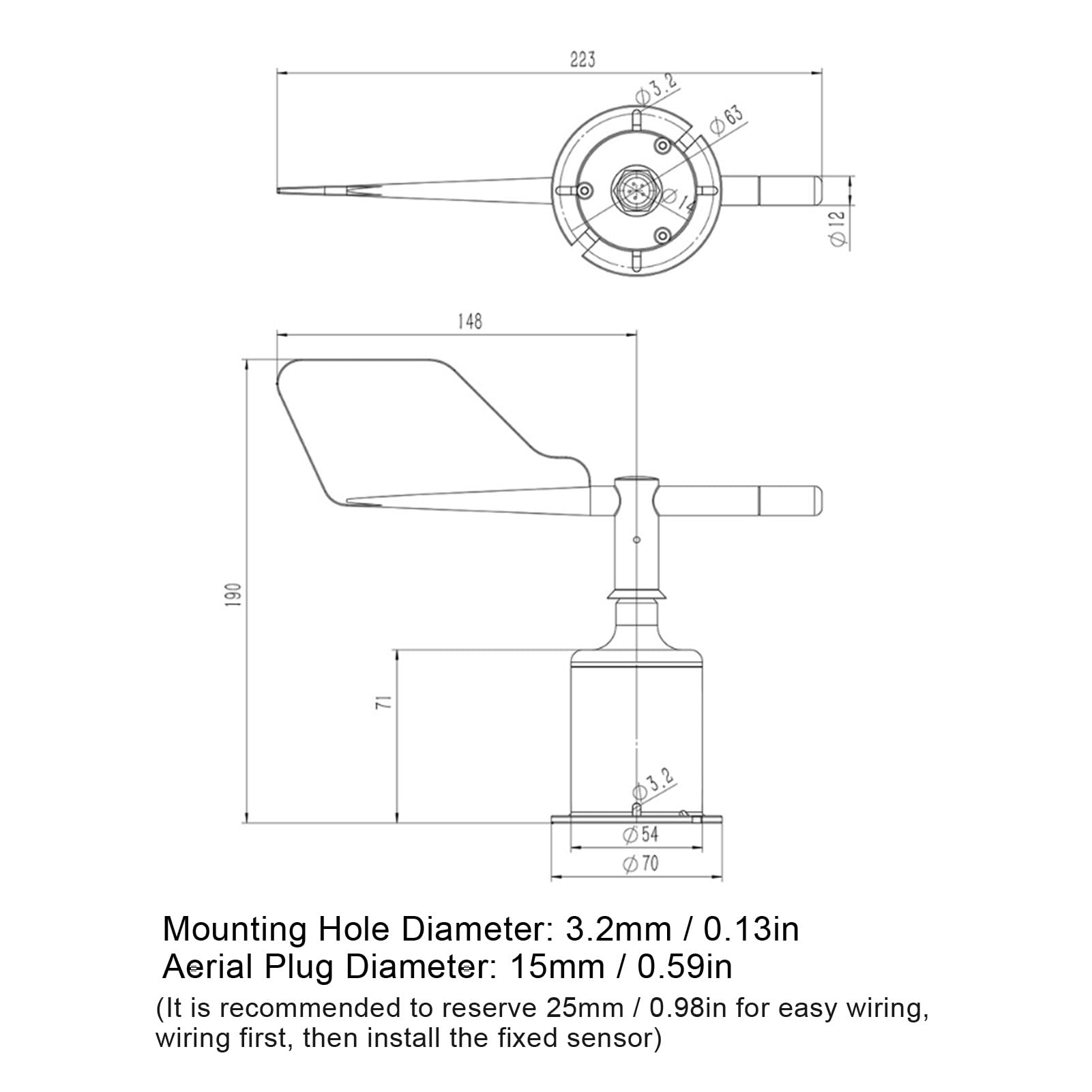

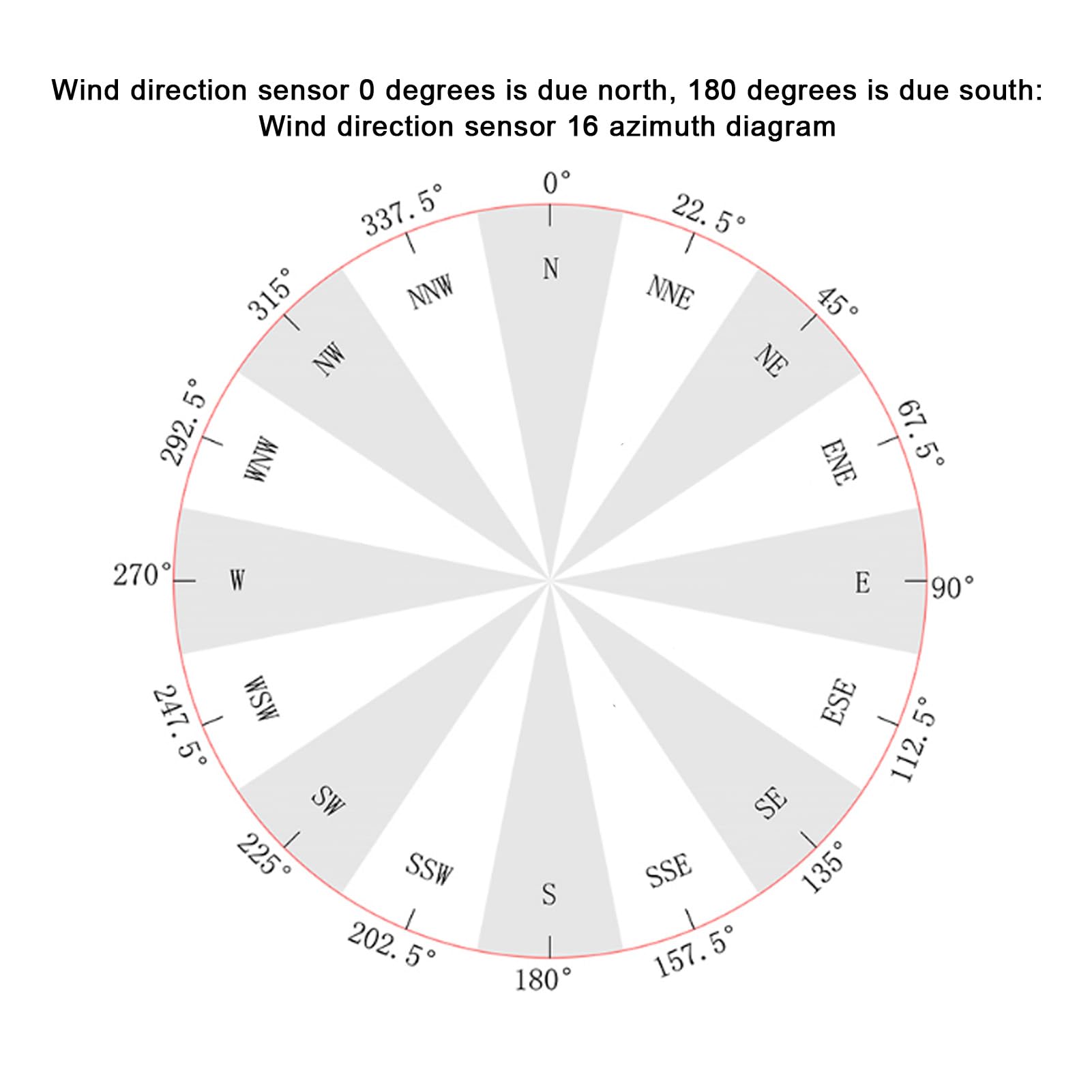

Item Type: Wind Direction Sensor Material: ABS Weight: Approx. 385g / 13.6oz Product Size: Approx. 223x190x70mm / 8.8x7.5x2.8in Supply Voltage: DC 9-30V Output: 4-20mA Extension Wire Length At Connection: 0.8m / 2.6ft Accuracy: Omni Directional: ± 3° Resolution: Omni Directional: 1° Starting Wind Speed: 0.8m/s mum Power Consumption: 0.48W Load Capacity: DC12V power supply, current type output impedance 350Ω, DC24V power supply, current type output impedance 900Ω, voltage type output impedance 1KΩ Operating Environment: Temperature -35℃-60℃ Humidity: all RH without condensation Prevention Grade: IP64 Cable Grade: Rated Voltage: 300V 80°C Mounting Hole Diameter: 3.2mm / 0.13in Aerial Plug Diameter: 15mm / 0.59in (It is recommended to reserve 25mm / 0.98in for easy wiring, wiring first, then install the fixed sensor) Calculation Formula: 4-20mA: F=(I-4)/16x359 Attention: F: Indicates the wind direction angle value, unit: °. I: Sensor output current value, mA Wiring Methods (Wire Sequence) Wire color Output signal (current) Red Power positive Black Power negative Yellow Signal Troubleshooting : 1. The wind blades do not rotate properly, and the hysteresis is big. There are foreign objects or jammed in the bearing due to long term use. Please send the sensor back to the company for processing. 2. Analog signal meter display value is not correct. Possible wiring problems or communication serial port failure caused by the inability to obtain the correct data. Please check whether the wiring is correct and firm, whether the serial port is occupied, and whether the serial port setting is correct. 3. If it is not the above reasons, please communicate customer service. Package List： 1 x Wind Direction Sensor Note: 1. Please check whether the package is intact, and check whether the
