Lumonic Heavy Duty Anchor Pad M12 x 180 mm Galvanised I For Use As A Metal Dowel I For Different Types Of Mounting

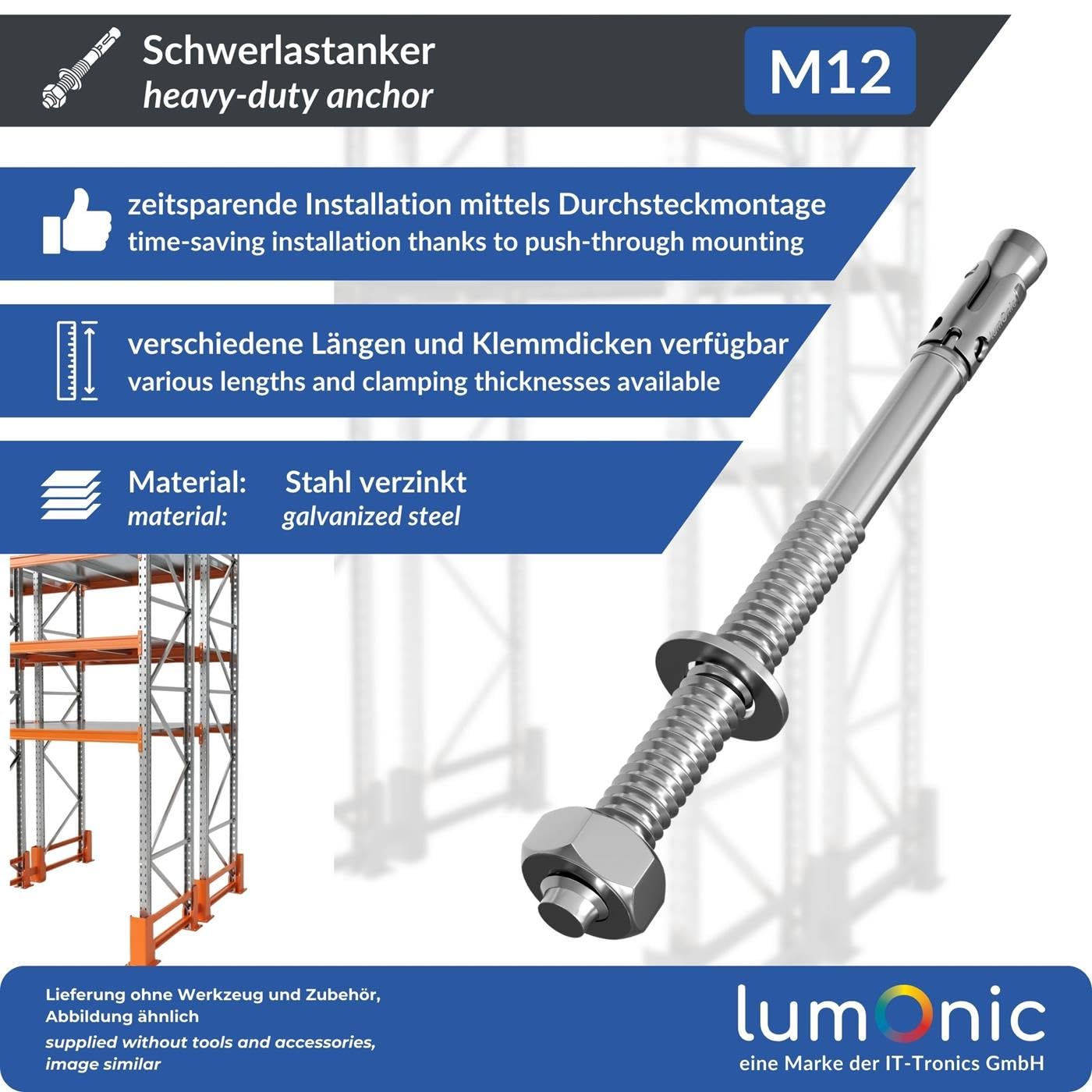

• PRODUCT: M12 heavy duty anchor can be used as metal dowel, bolt dowel and lightning dowel for mounting. Material: galvanised steel. In the offer, you are purchasing 1 piece.

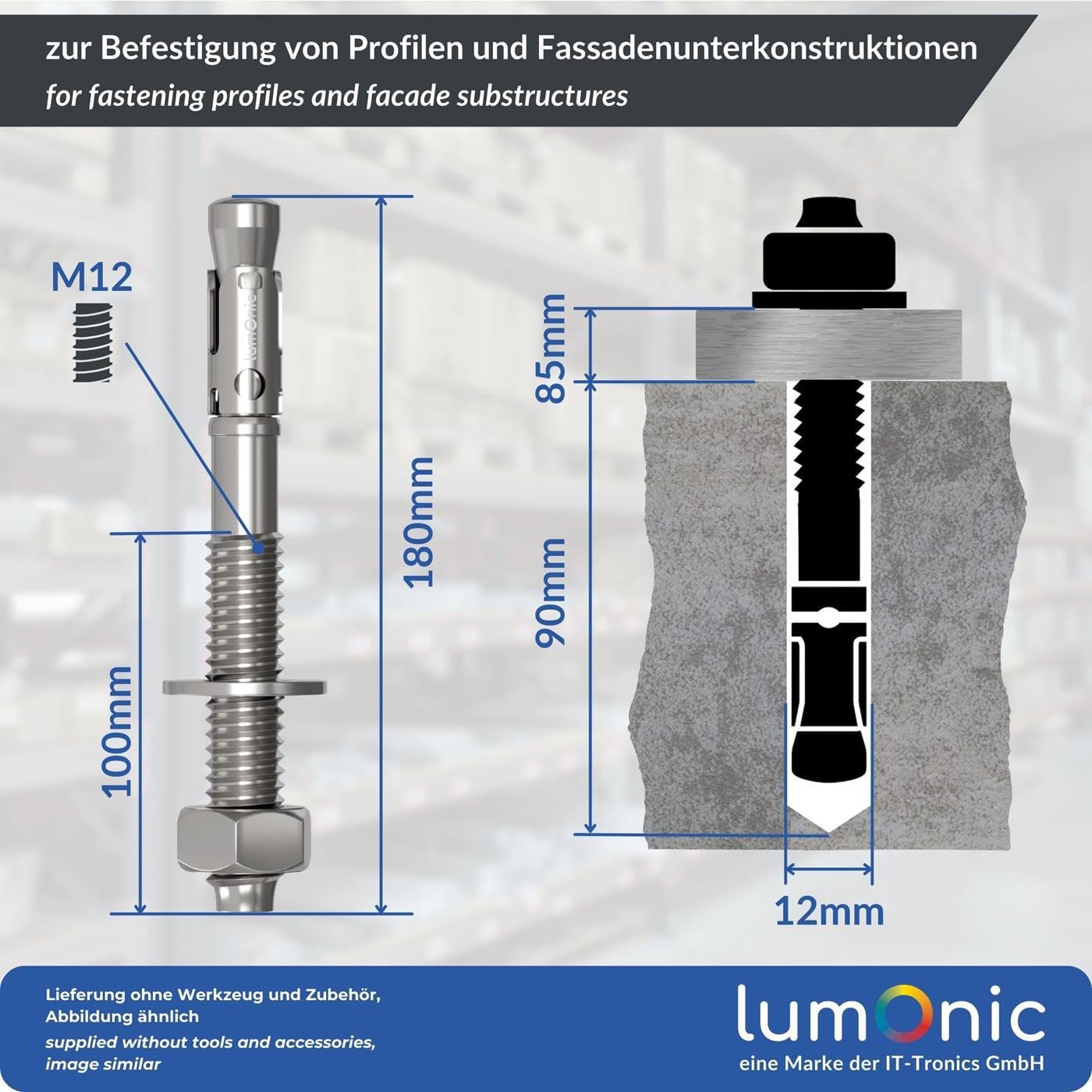

• DIMENSIONS: The total length of the M12 key anchor is 180mm, with a thread length of 100mm. The clamping thickness is 85 mm, the maximum torque is 50Nm. The diameter of the drill hole is 12mm and the length of the drill hole should be 90mm.
• APPLICATION: Heavy duty anchor is suitable for through mounting in building materials such as concrete and steel, among others for corner bars, rails, consoles, wooden beams and facade sub-constructions.
• PROPERTIES: Galvanized steel, deformation resistance up to 50 newton meters. Allows easy mounting, ideal for mounting through in different building materials. The mechanism reduces the installation effort.
• FUNCTION: Drill the hole and then clean it. Push the key anchor into the borehole, the expansion clip resting by its own tension on the wall of the borehole. Clamping the nut compresses the expansion clip against the building material.

✔ Areas of application: Corner anchor is suitable for push installation for corner profiles, rails, supports, wooden beams and facade substructures, among others. ✔ Features: quick assembly, ideal for through hole mounting, low installation effort ✔ Operation mode: The wedge anchor is driven into the drilled hole, the expansion clip then being applied against the wall of the drilled hole due to internal stress. When the nut is tightened, the cone drives into the expansion clip, the Product: Metal Dowels Type: Heavy anchor Material: galvanised. Thread: M12 Total length: 180 mm Wire length: 100 Clamping thickness: 85 mm Torque: 50 Nm. Probe hole diameter: 12 mm. Probe Hole Length: 90mm
