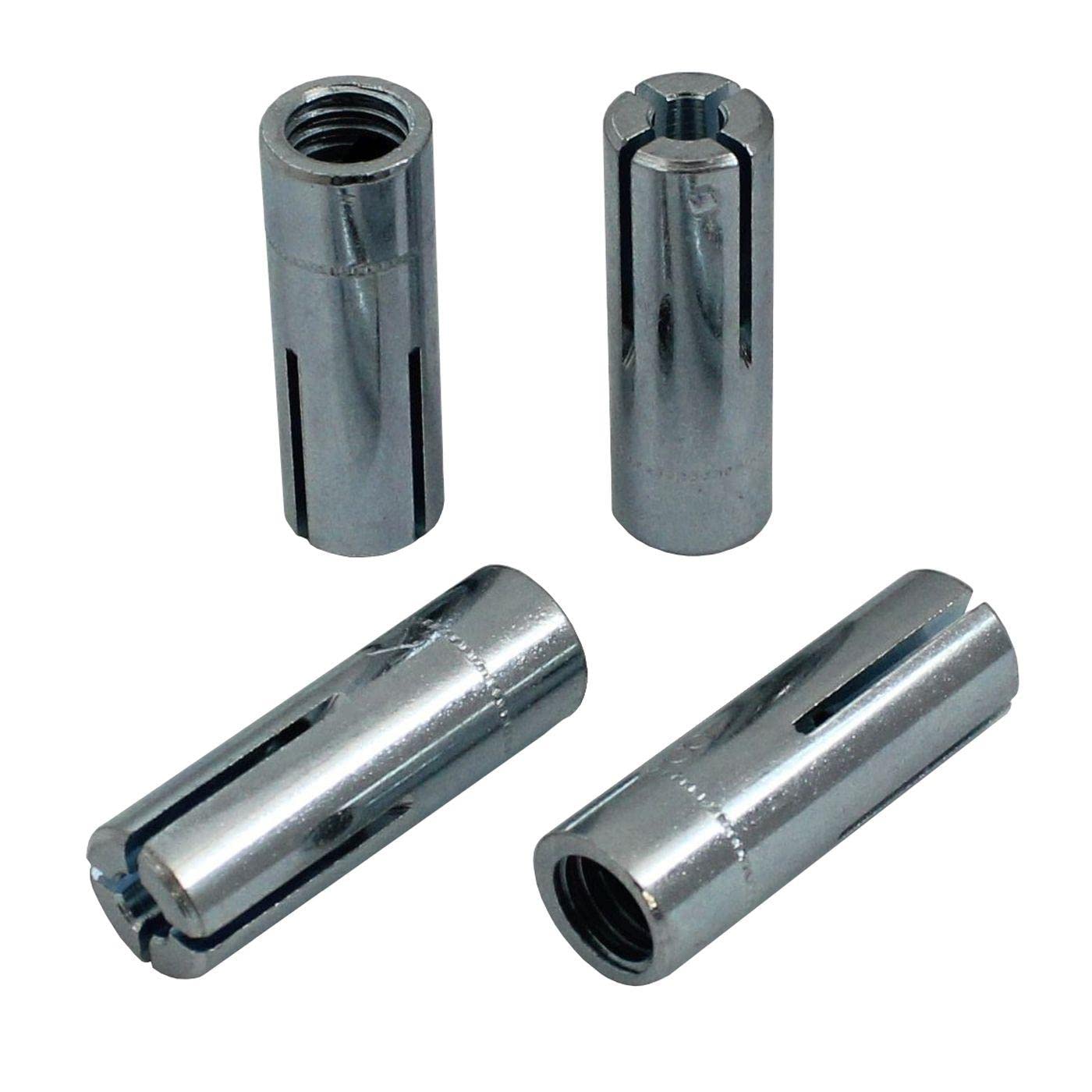

Lumonic 20 x M8 x 30 mm Galvanised Plug for Use as Metal Dowel I for Different Types of Through Mounts

• PRODUCT: The M8 heavy duty anchor can be used as a metal dowel, as an anchor bolt and also as a lightning bolt for mounting. Material: galvanised steel. In the offer, you are purchasing 1 piece.
• DIMENSIONS: The thread length of the M8 dowel is 16mm. The diameter of the drill hole is 10mm and the length of the drill hole should be 33mm.
• APPLICATION: The knock anchor bolt is suitable for through mounting in building materials such as concrete and steel, among others for angle bars, rails, consoles, wooden beams and facade sub-constructions.
• Properties: galvanised steel, dimensionally stable up to 0 newton meter. Allows easy installation, ideal for drilling mounting in various building materials. The mechanism reduces the installation effort.
• FUNCTION: Drill the hole and then clean it. Push the key anchor into the borehole, the expansion clip resting by its own tension on the wall of the borehole. Clamping the nut compresses the expansion clip against the building material.

✔ Areas of application: For the installation of e.g. suspensions, pipes, ventilation pipes, rails, sprinkler systems, consoles, metal constructions, grids, cable trays, gates, facades or cladding of suspended ceilings. ✔ Features: Impact anchors are suitable for all metric threaded screws and rods. The shallow depth of adjustment reduces drilling time and allows for a more cost-effective installation. The flush wall setting is partic ✔ Operation mode: After insertion into the drill hole, the tip of the impact anchor is moved apart using a laying tool. The screw or threaded rod is then screwed into the internal thread. Product: Metal Dowels Type: Impact Anchor Material: galvanised. Thread: M8 Total length: 30 mm Probe hole diameter: 10 mm. Probe Hole Length: 33 mm
