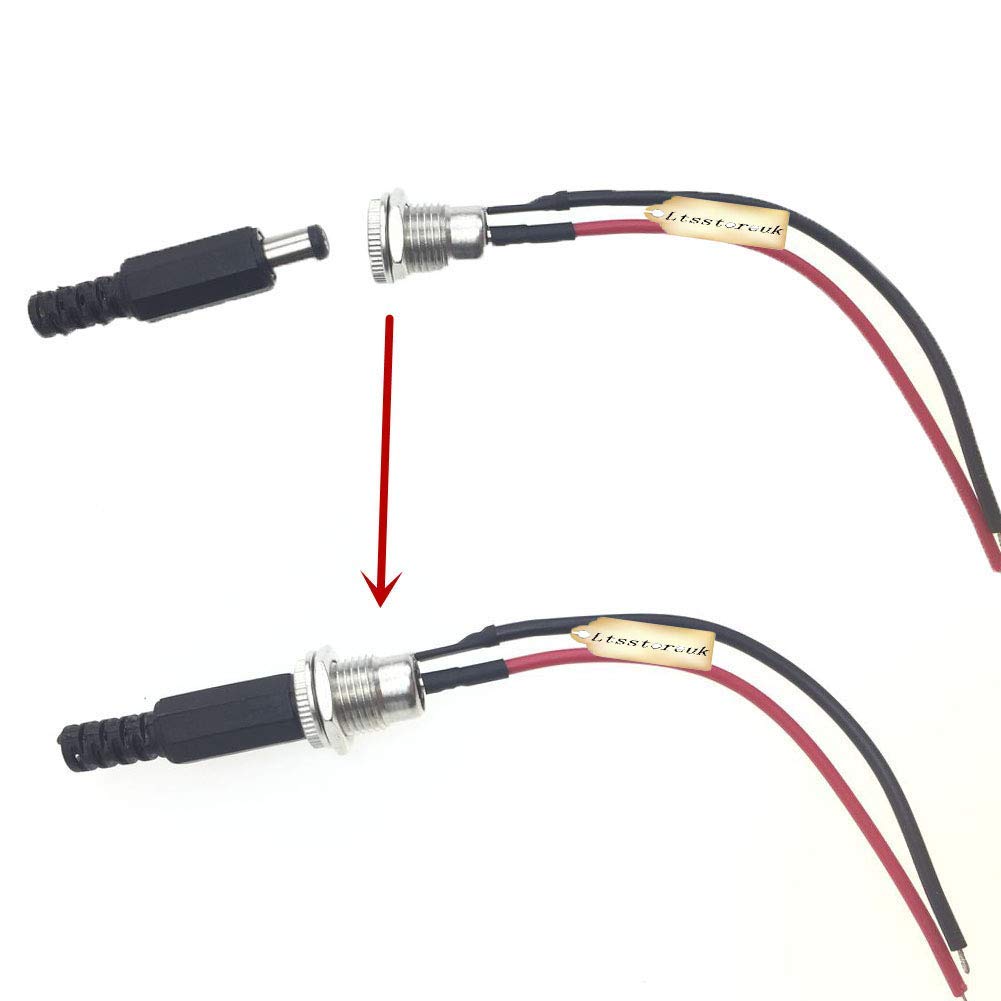

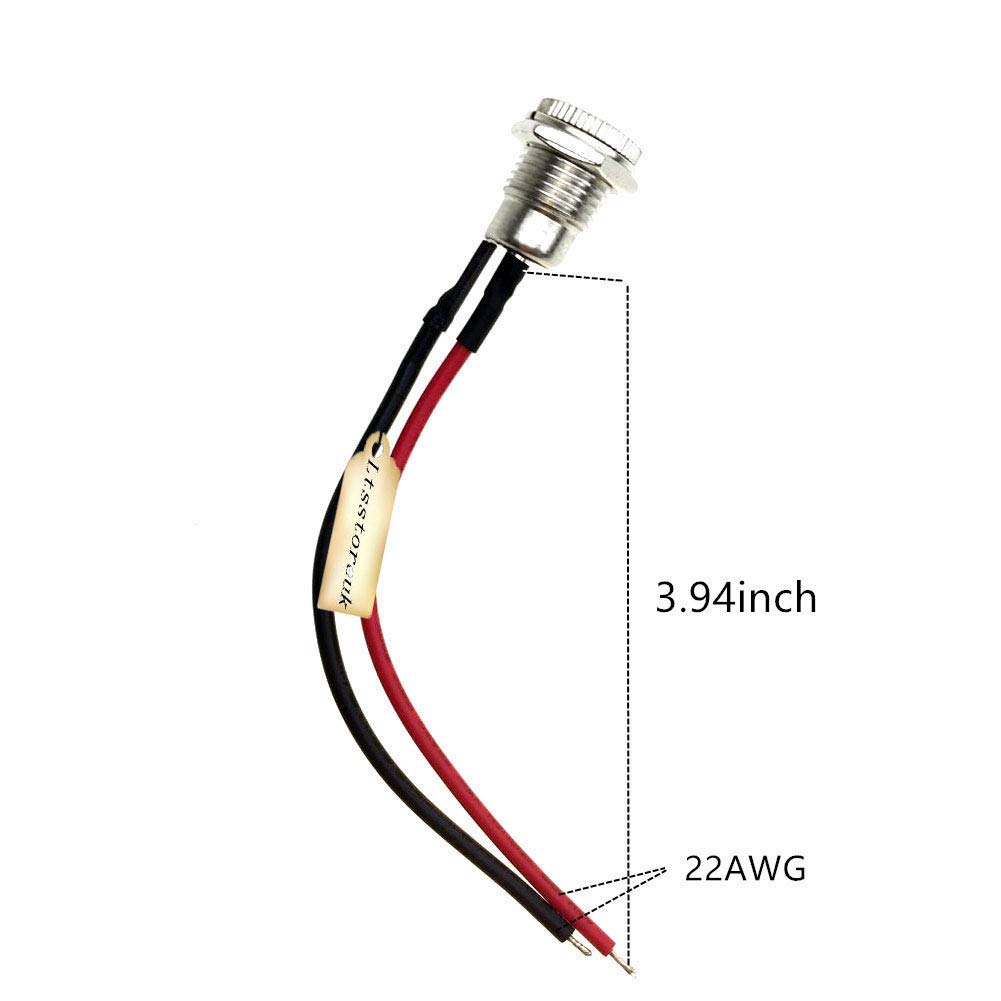

Lsgoodcare 5.5 x 2.5 MM 10A DC Power Jack Socket DC-099 30V Threaded Female Mount Connector Adapter with 3.94Ich 22Awg Cable & Dc Barrel Jack Plug Male

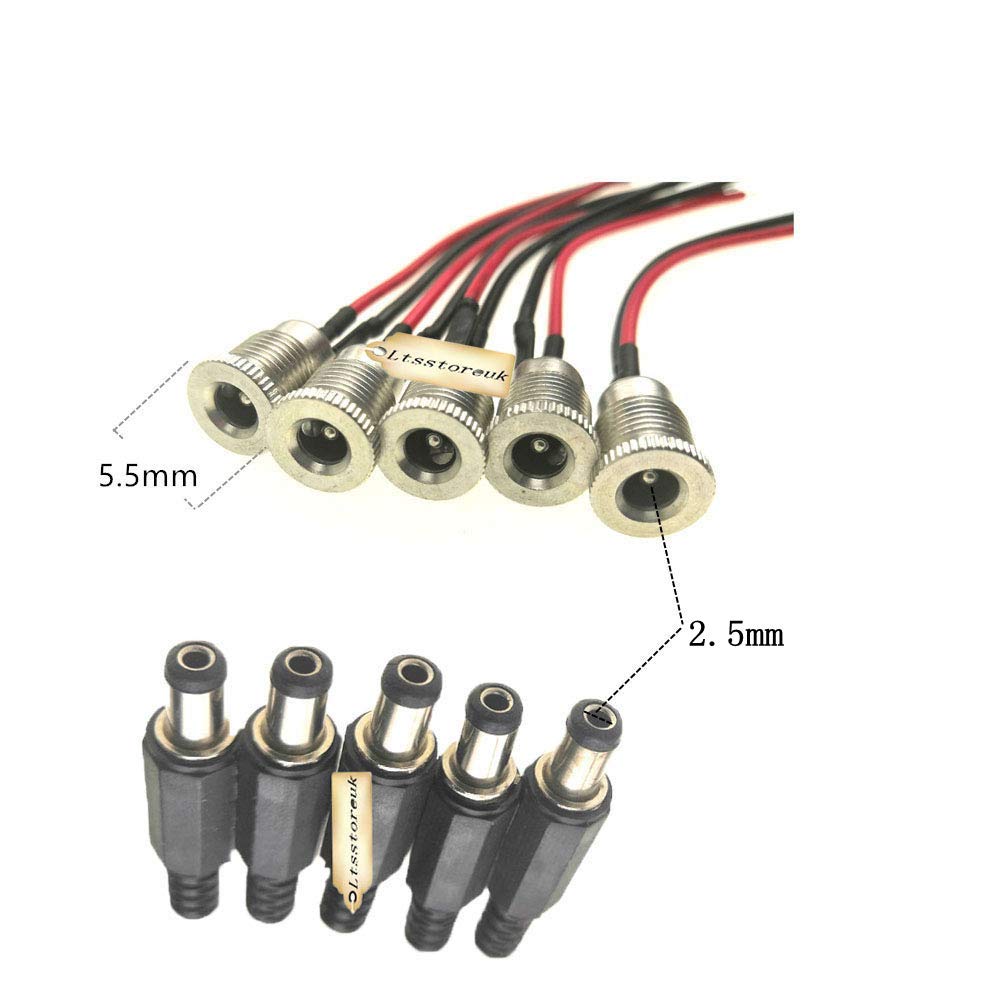

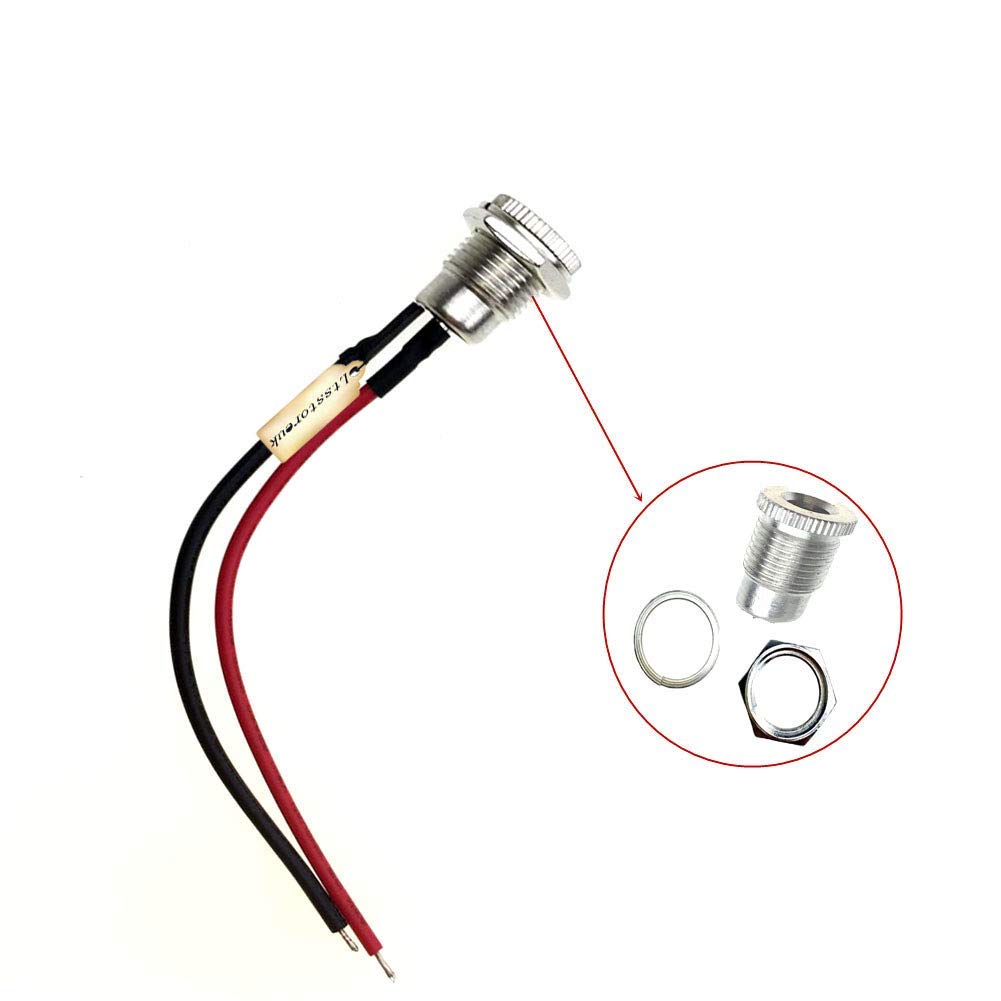

• 5.5 MM x 2.5 MM Female 10V Socket: Threaded 10V 30V high current metal dc female receptacle plug; Mount Hole Diameter : 11mm;Total Size : 16 x 17mm/0.63" x 0.67"(D*H)
• DC Power Jack 5.5mm x 2.5mm: Metal Copper Material 5.5 2.5 jack, Insulation flame retardant,Fast conduction
• 2.5MM Panel Mount Power Jack, Easy to use, DC Barrel Power Plug with Cable, More convenient to use;
• Multipurpose 5.5MM Wall Mount DC: barrel 10v socket for 2.5mm power supplies; for connecting power sources to your wireless Stereos; for low voltage solar controller board; for laptop computers, small televisions and other electronic

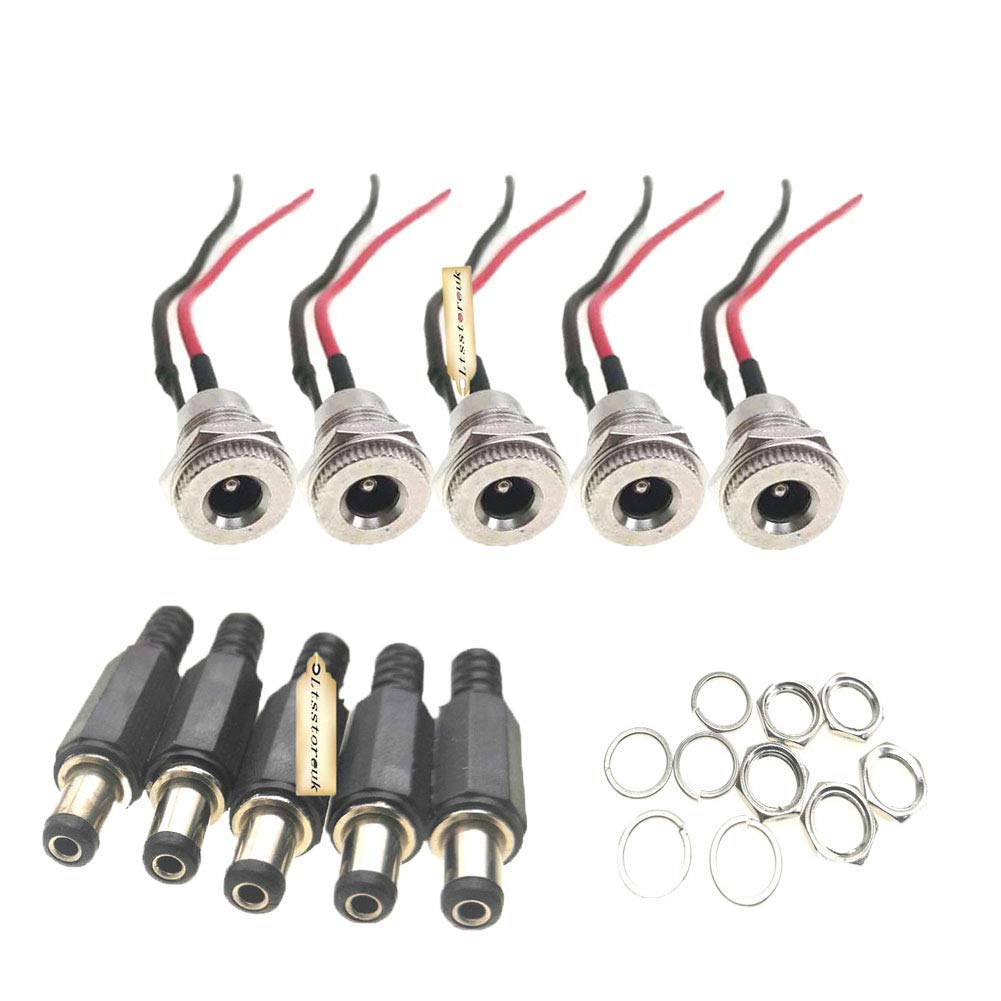

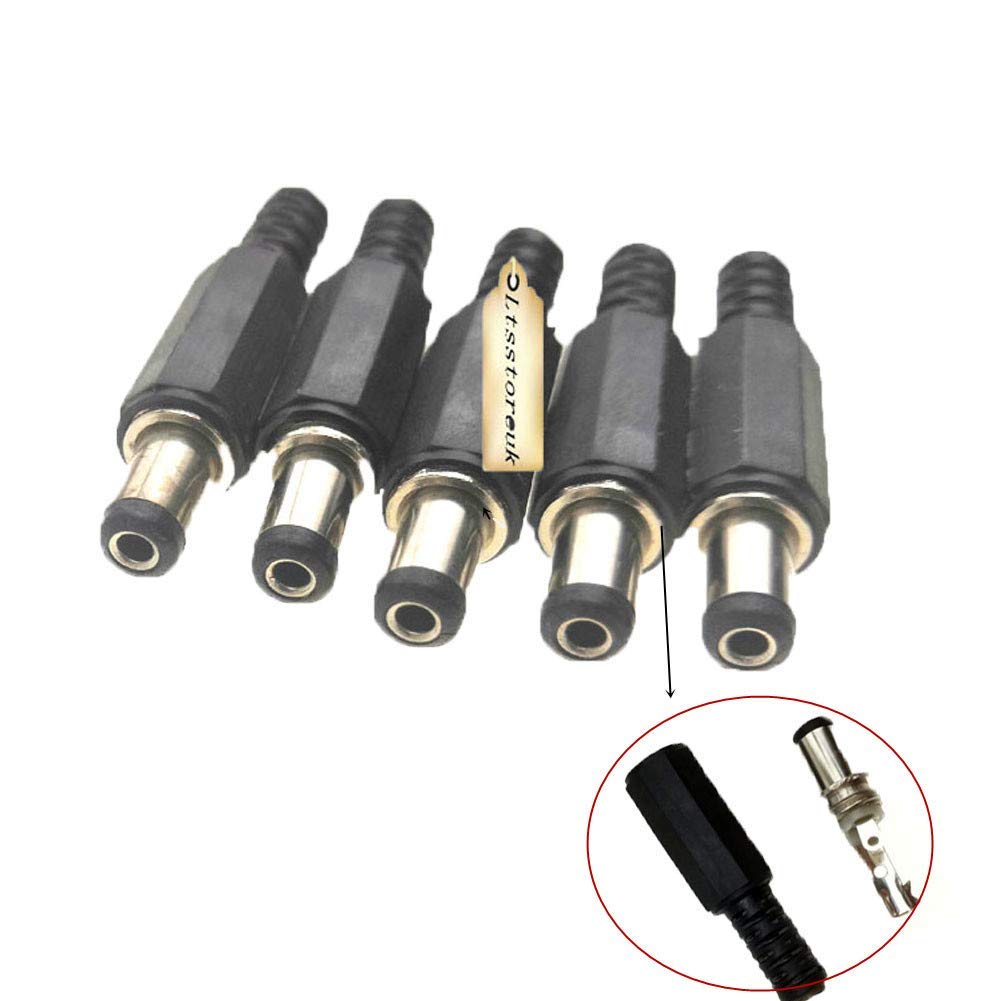

• 5pack 5.5 x 2.5 mm 2 pin 10a connector with cable + 5Pack 5.5 x 2.5mm dc power jack plug male

5Pack DC-099 5.5 mm x 2.5mm 30V 10A DC Power Jack Socket,Threaded Female Panel Mount Connector Adapter with 22Awg Black Red Wire Lead + 5 Pack Male DC Power Plug Solder Power Jack Adapter Connector 5.5 x 2.5 MM 10A 30V DC Power Jack Socket Threaded Female Mount Connector The temperature range of use: - 30-70 ℃ The rated load: 10A DC30V Contact resistance: ≤0.03Ω Insulation resistance: ≥100MΩ Withstand Voltage : AC 500V(50Hz)/min Insertion and Extraction Force: 3N-20N Life: 6000 times 5.5 x 2.5 MM DC Male Plug Specification: Voltage rating ：30V AC,DC Current rating：1A Contact resistance：≤30mΩ Insulation resistance：≥100MΩ Withstand voltage ：50-60Hz. 500.60S Work temperature：-40℃+85℃ The above information is measured with error 0.05-0.2 Application to Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, Car Audio etc. Note: when you solder the center pin, please keep the male plug connector inserted until the plastic has hardened, so that the insulator will not get too much heat to melt quickly.
