LTRGBW M5 LED Controller Dimmer Color Temperature Adjustable Dimming Control Warm - Natural - Cold White LED Strip Lighting (M5+M3-3A)

• M series mini LED controller reflected our company's 12 years' powerful independent R&D ability in LED field, Its volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control. Its high cost performance and creative design, allowing users to enjoy the benefits and convenience.
• RF radio frequency (RF) remote control, strong penetration ability of the wall: RF radio frequency (RF) remote control, wireless signal strong penetrating power, even if there is an obstacle in front can be controlled, the partition of remote control; ID code, independent each other To simplify: Well-designed remote control operation key, Useful features, rejection of complex instructions,enjoy the colorful world.
• Five Years Warranty. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure.
• Small figure, big function: Mini controller volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control. Chic, very talented: Back of remote control through a scrub treatment,it isn't easily slipped in your hands;it's show noble beacuse it use piano black with white edges on table in stark contrast.Perfect size, one-hand control,perform well.
• receiver compatible 6 different functions remote controllers. Dimmer, color temperature,RGB, select what you want. Such as, M3,M6 and M7 control the receiver connected with RGB lights meanwhile, and function is 3 times than general ones. 10 remote control for 1 receiver: 1 receiver can be controlled by 10 same or different RF remote at most for dimming.

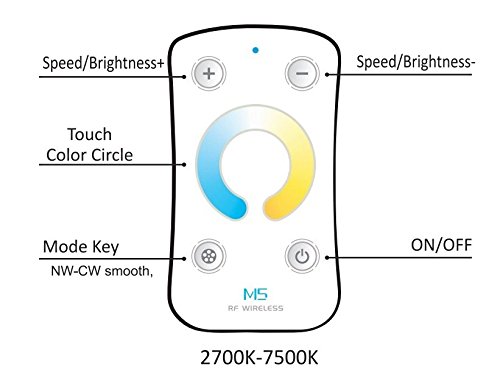

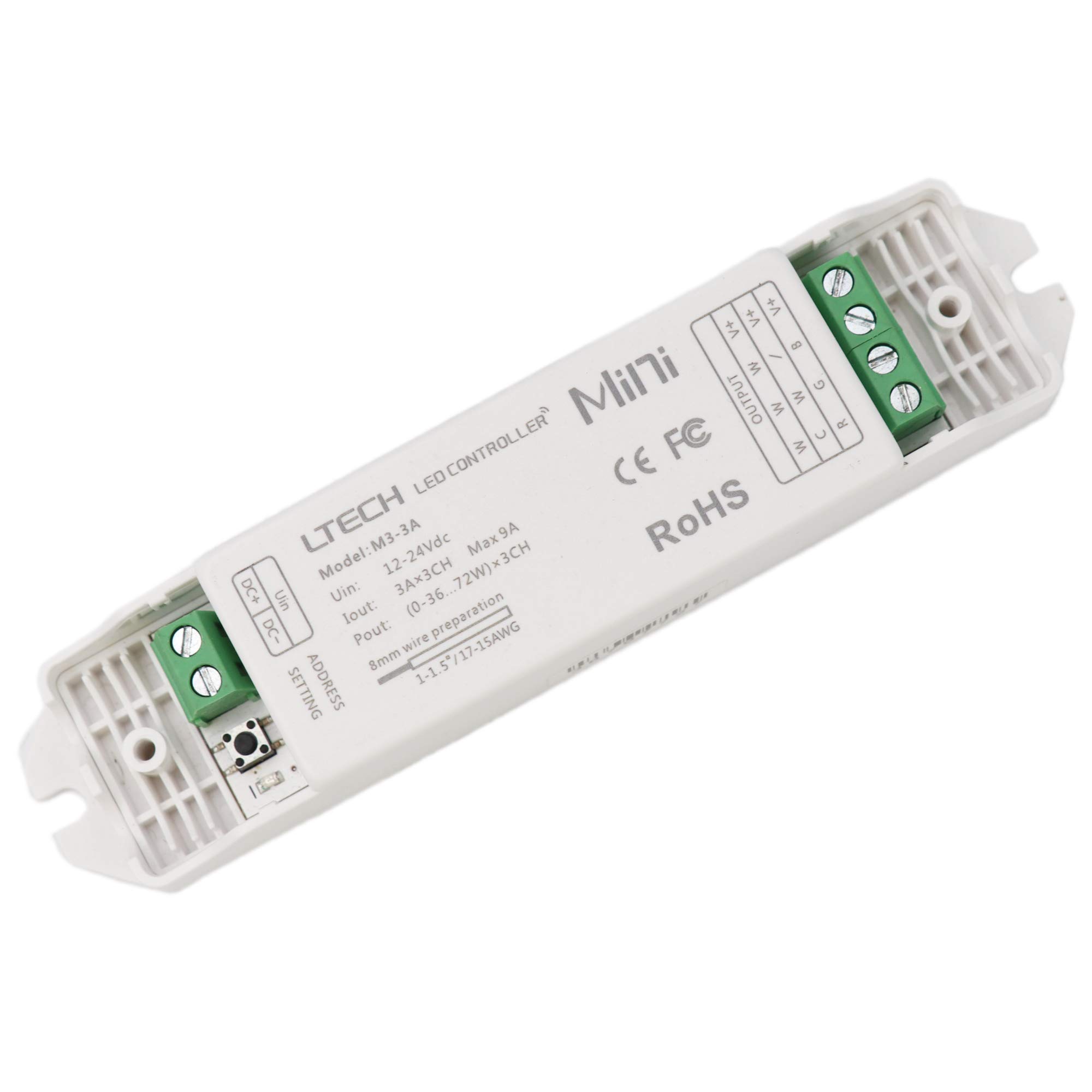

Mini series LED controller collected pithy research and development of LED controller for 12 years, abandon the past there are many disadvantages of infrared remote control, using advanced RF remote control, wireless signal with strong penetrating power, no longer restricted by all kinds of blockage. 4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design:One receiver compatible with six different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client. Mini series with high cost performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using. M5 Remote Control: Working voltage: 3V(Battery CR2032 ) Working Frequency: 433.92 MHz Remote Distance: 40-50m Working Temp.: -30℃~55℃ Dimensions: L104×W60×H9mm Weight (N.W.): 42g M3-3A Receiving controller: Power input: DC12V-DC24V Max Current load: Max 3A ×3CH Max Output power: 108W/216W (12V/24V) Compatible remote: M1/M2/M3/M5/M6/M7 Working Temp.: -30℃~55℃ Dimensions: L135×W30×H20mm Weight (N.W.): 47g One set weight (G.W.) 120g
