LTRGBW M1 LED Controller Dimmer SMD 5050 3528 Single Color LED Strip Tape Lighting Dimming (5 Year Warranty) (M1+M3-3A)

• Mini controller volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control.
• One receiver compatible 6 different functions remote controllers. Dimmer, color temperature,RGB, select what you want. Such as, M3,M6 and M7 control the receiver connected with RGB lights meanwhile, and function is 3 times than general ones.
• 1 receiver can be controlled by 10 same or different RF remote at most for dimming .
• RF radio frequency (RF) remote control, wireless signal strong penetrating power, even if there is an obstacle in front can be controlled, the partition of remote control; ID code, independent each other
• The touch color wheel remote control is used new circuit design which will be lower power consumption, Only use CR2032 button batteries, the first one in the industry, making the remote control more lighter and thinner.

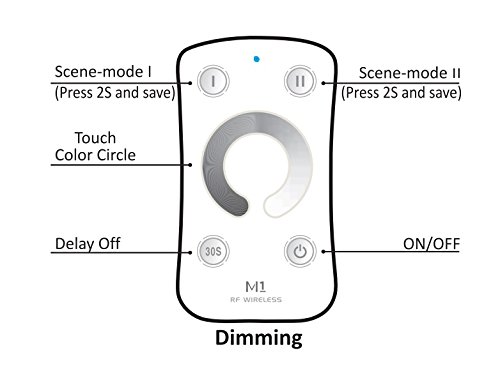

Mini series LED controller collected pithy research and development of LED controller for 12 years, abandon the past there are many disadvantages of infrared remote control, using advanced RF remote control, wireless signal with strong penetrating power, no longer restricted by all kinds of blockage. 4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design:One receiver compatible with six different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client. Mini series with high cost performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using. M1 Remote Control: Working voltage: DC3V(Battery CR2032 ) Working Frequency: 433.92 MHz Remote Distance: 40-50m Working Temp.: -30℃~55℃ Dimensions: L104×W60×H9mm Weight (N.W.): 42g M3-3A Receiving controller: Power input: DC12V-DC24V Max Current load: Max 3A ×3CH Max Output power: 108W/216W (12V/24V) Compatible remote: M1/M2/M3/M5/M6/M7 Working Temp.: -30℃~55℃ Dimensions: L135×W30×H20mm Weight (N.W.): 47g One set weight (G.W.) 120g
