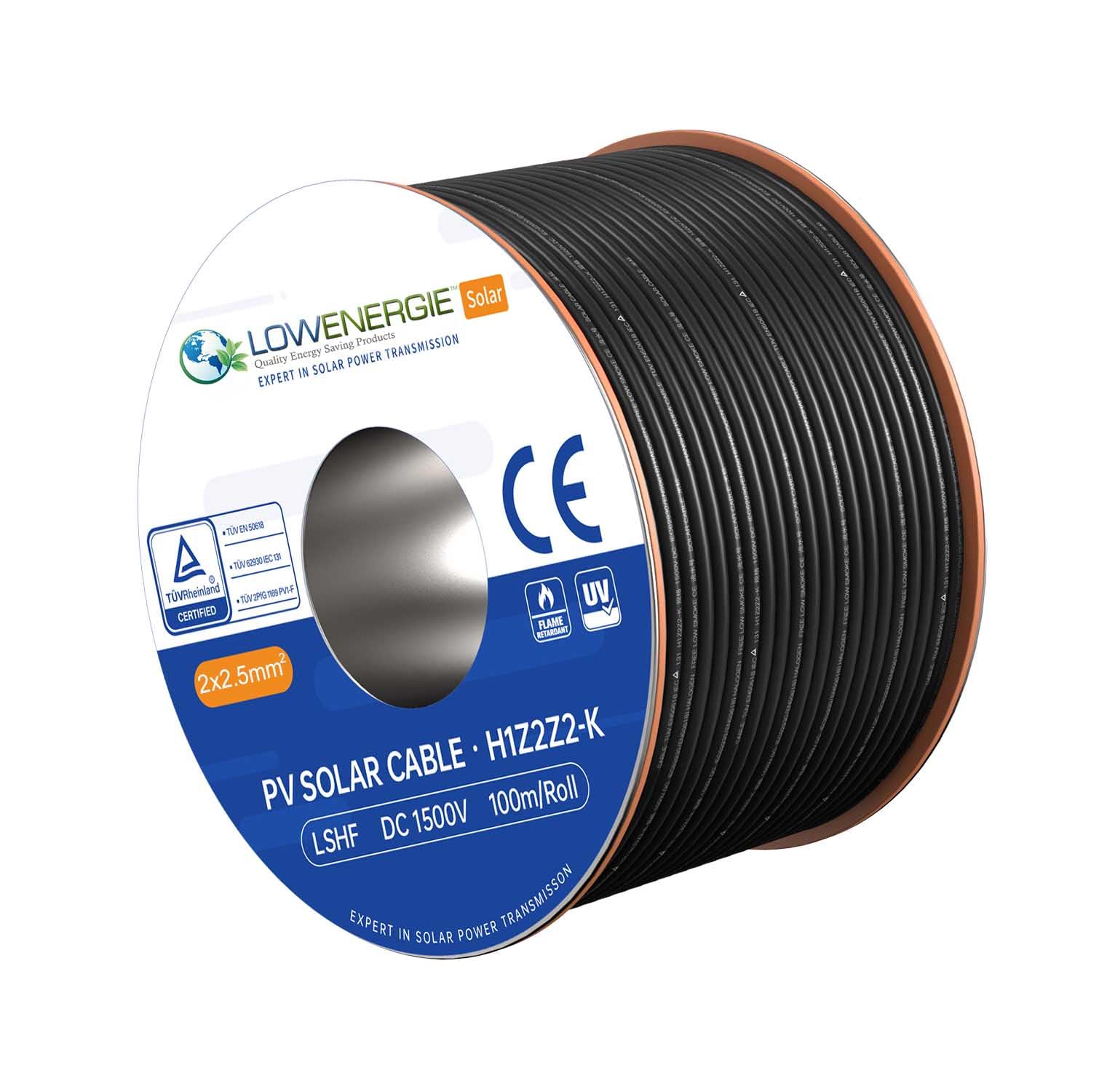

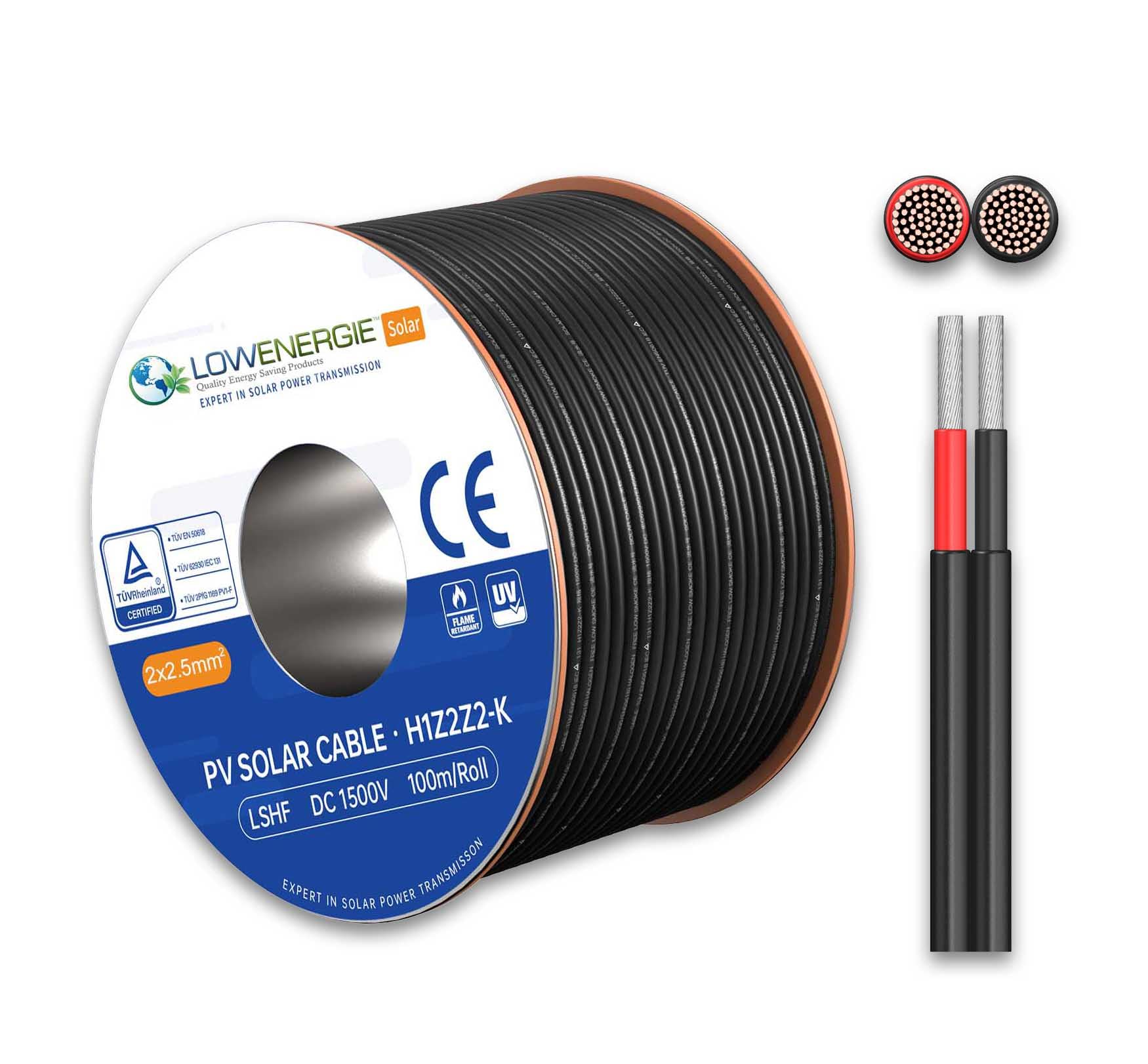

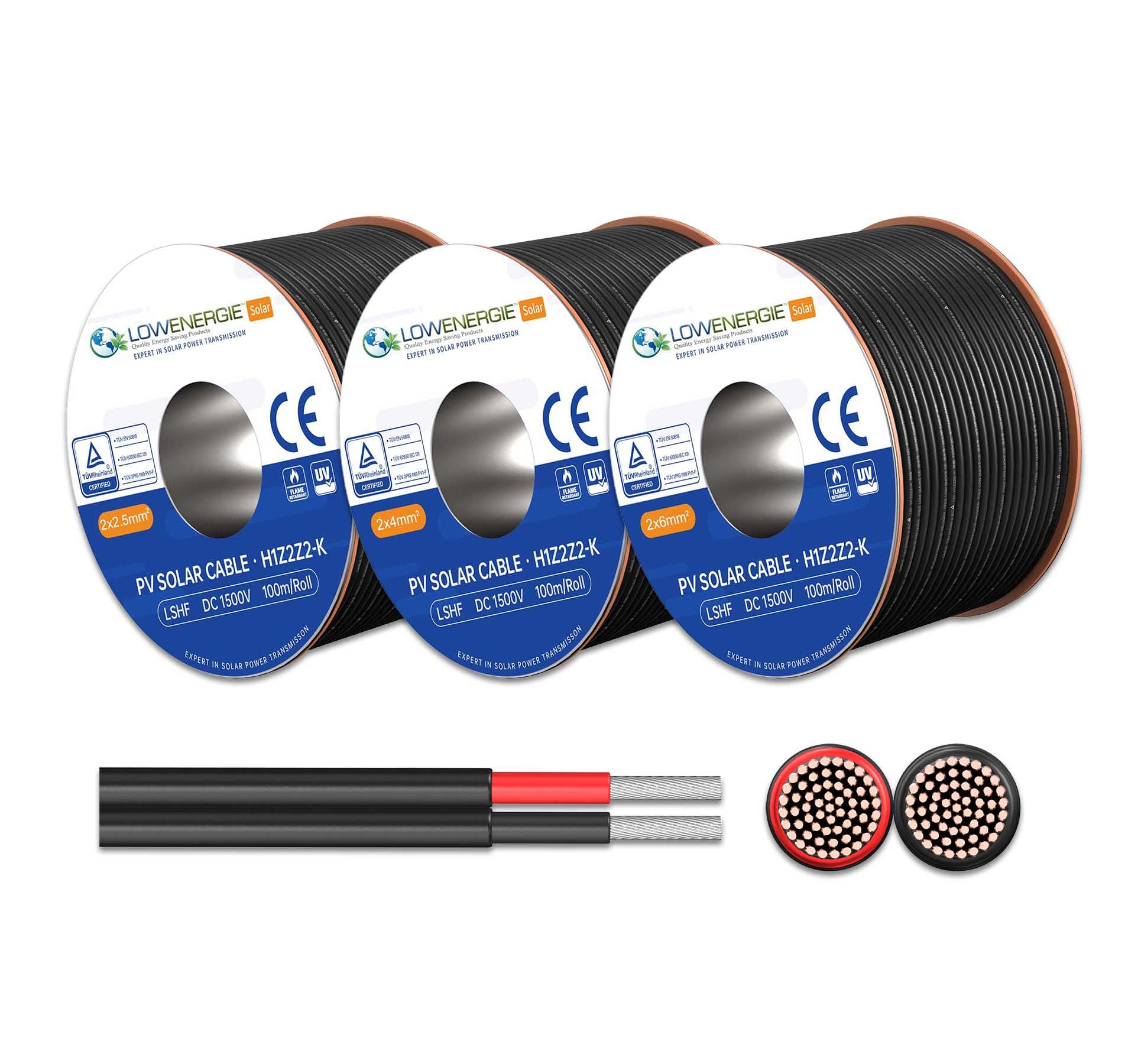

LOWENERGIE Solar Panel Cable H1Z2Z2-K Double insulated 1800V high performance Cut to Length UV Flame Ozone Heat Resistant 30 year service life 2.5mm (3)

• Package contains 1 x 3 metre length. Easy to split into two separate cables
• Reduced outer diameters enable space and weight saving installation
• Robust against mechanical impacts
• Reduction of flame propagation and of toxic combustion gases in the event of fire
• Exact quantity control during installation by meter marking on the cable sheath

Solar PV H1Z2Z2-K Cable should be used for connecting solar panels to inverters or charge controllers as this type of cable is rated to high voltage especially needed for solar panels in series. These cables are for permanent outdoor use for more than 25 years under variable demanding climate conditions. This type of solar PV cable is also well suited to small wind turbine installations where there will often be a low voltage but high current output making the power generated very susceptible to cable voltage drop even over very short distances of just 5 meters. See link below for voltage drop calculator to ensure you make the most of your generation. Your system design should try and use the highest voltage output possible from your installation (for example series solar panel wiring) as this will help to reduce voltage drop. Larger cable conductor sizes also help to reduce voltage drop. 2.5mm Twin Core Solar Cable Specification Conductor: class 5 flexible annealed stranded tinned correct Acc. to EN-IEC 60228 : 2005 Outer Insulation: Low-Smoke Zero-Halogen (LSZH), high performance E-Beam Cross-linked Compound (XLPO) Inner insulation sheath: Low-Smoke Zero-Halogen (LSZH) Flame Resistance E-Beam Cross-linked Compound (XLPO) Rated at 1500V DC, Max permitted operating voltage 1800V DC Max current rating 33 Amps (laid on surface), 29A max if the cable maybe enclosed TUV approved cable, EN50618, H1Z2Z2-K Flame Resistant cable to EN 60332-1-2 UV Resistant Cable to EN 50289-4-17 Ozone Resistant Cable to EN 50396 : 2005 RoHS passed: 2011/65/EC, Low Smoke: EN61034-2: Table 2, Halogen Free: EN50525:1 2011 Annex B Vertical flame propagation EN60332-1-2: 2004 Annex A Reaction to Fire CPR: EN 50575:2014+A1:2016 Water Resistance EN 50525-2-21 Temperature range -40 C to +90 C (Max. overload temperature: 120 C and Max. short circuit temperature 5 sec: 250 C) Expected service life 30 years
