Lowenergie Black 50w Solar Panel Kit Battery with Victron PWM Controller Cables & Lowenergie Brackets

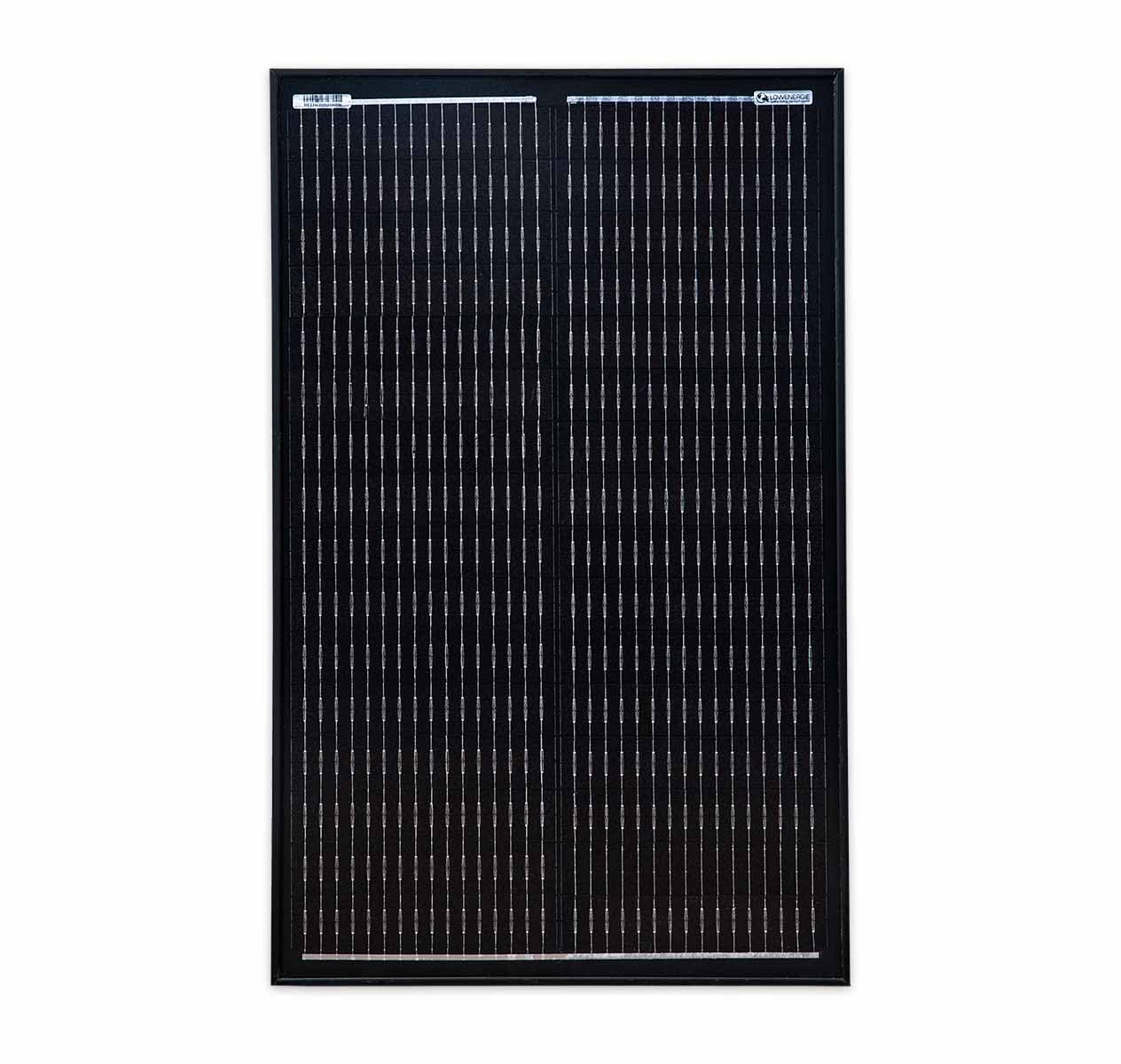

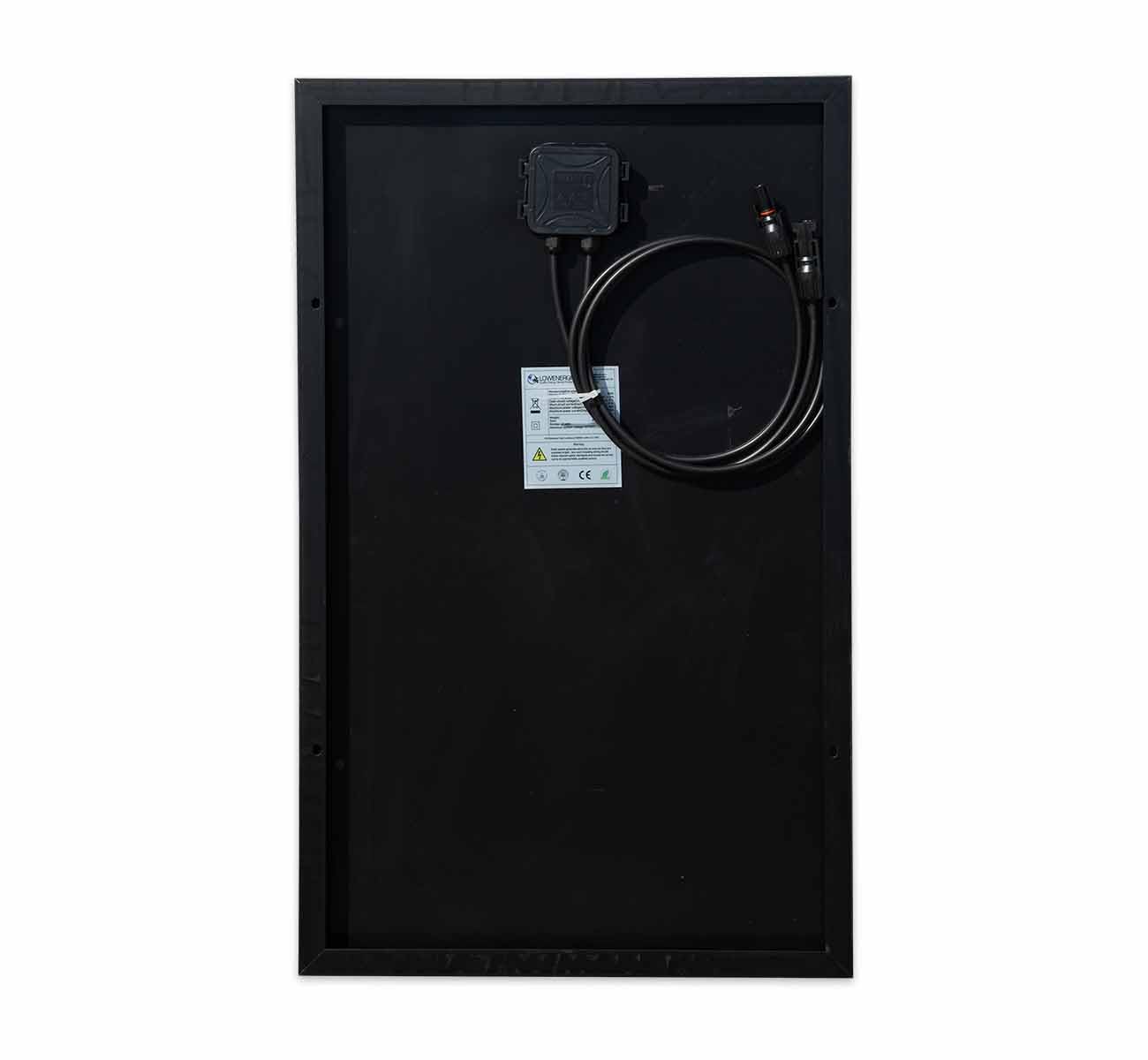

• 50w Mono Solar panel
• 1.5 Meter battery cable
• 3 Meter Solar Power Extension Cable with MC4 Connectors
• 10A PWM Victron Solar Charge Controller including USB outlet

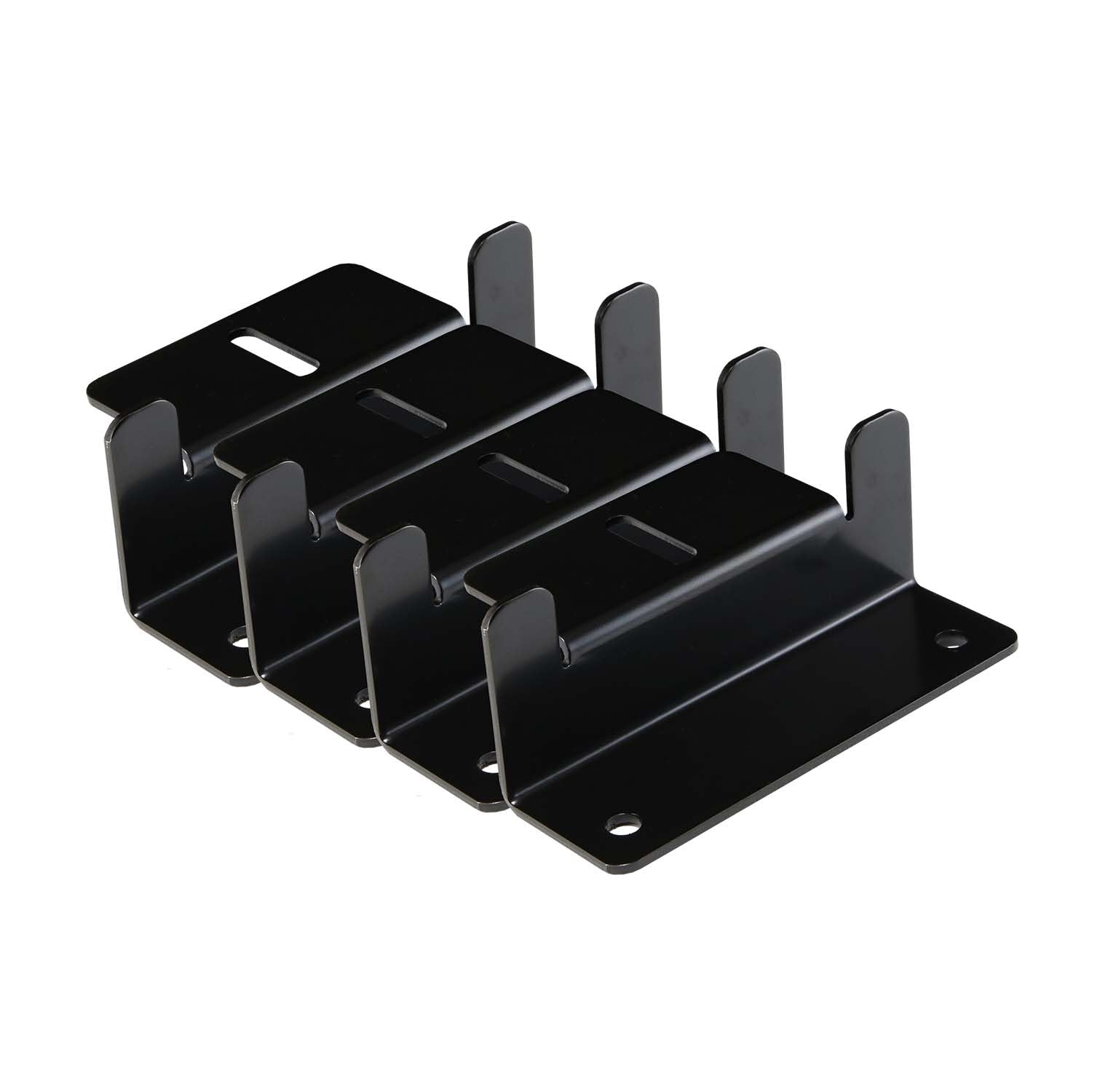

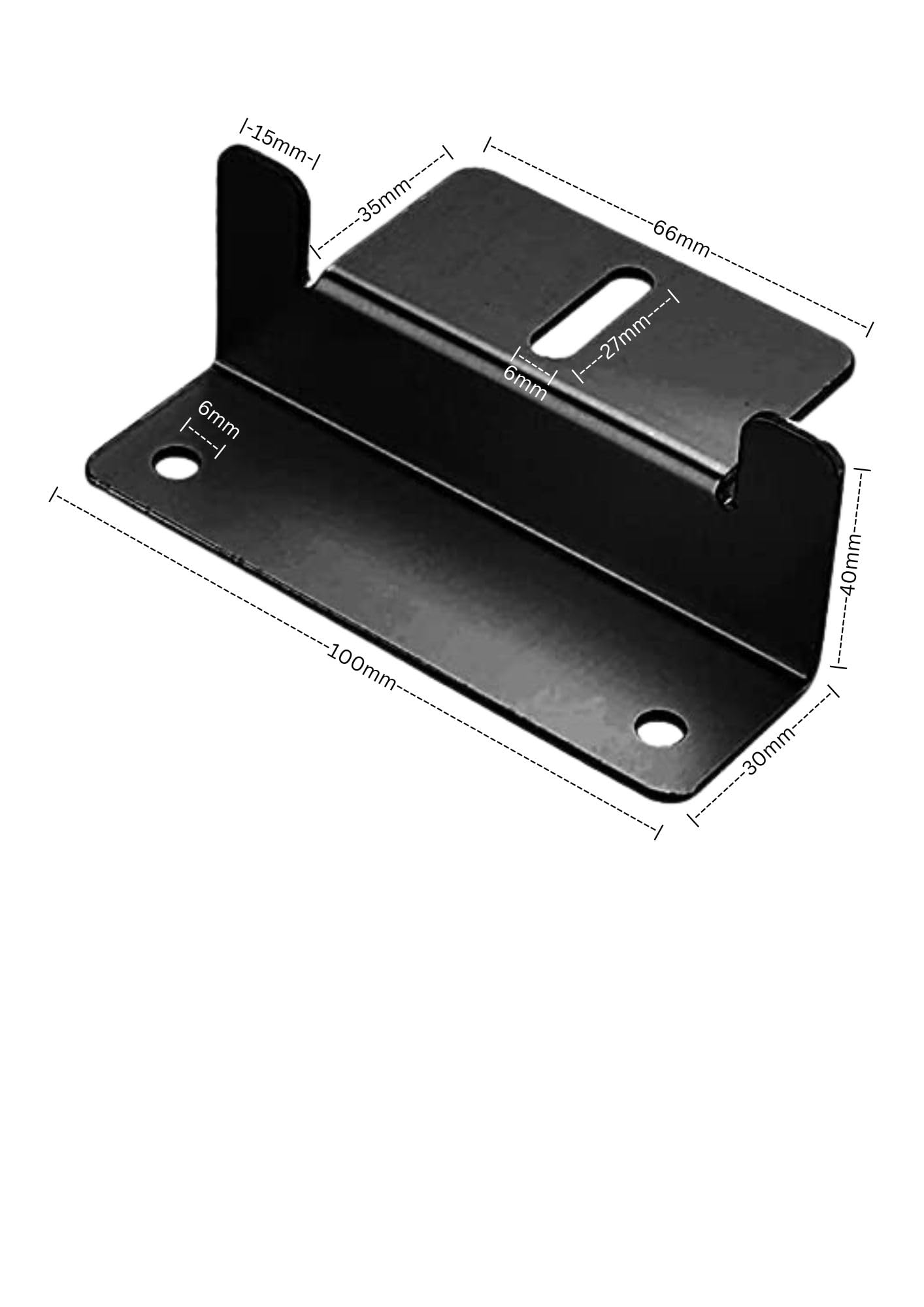

• 4 Black Aluminium Mounting Brackets
• Half cut solar cells Solar Panels with half-cut solar cells and 9 to 12 buzz bars connecting the cells are 8-10% Smaller than typical square cell panels Solar Panels with half-cut solar cells and 9 to 12 buzz bars connecting the cells are 3% higher efficiency than typical square cell panels

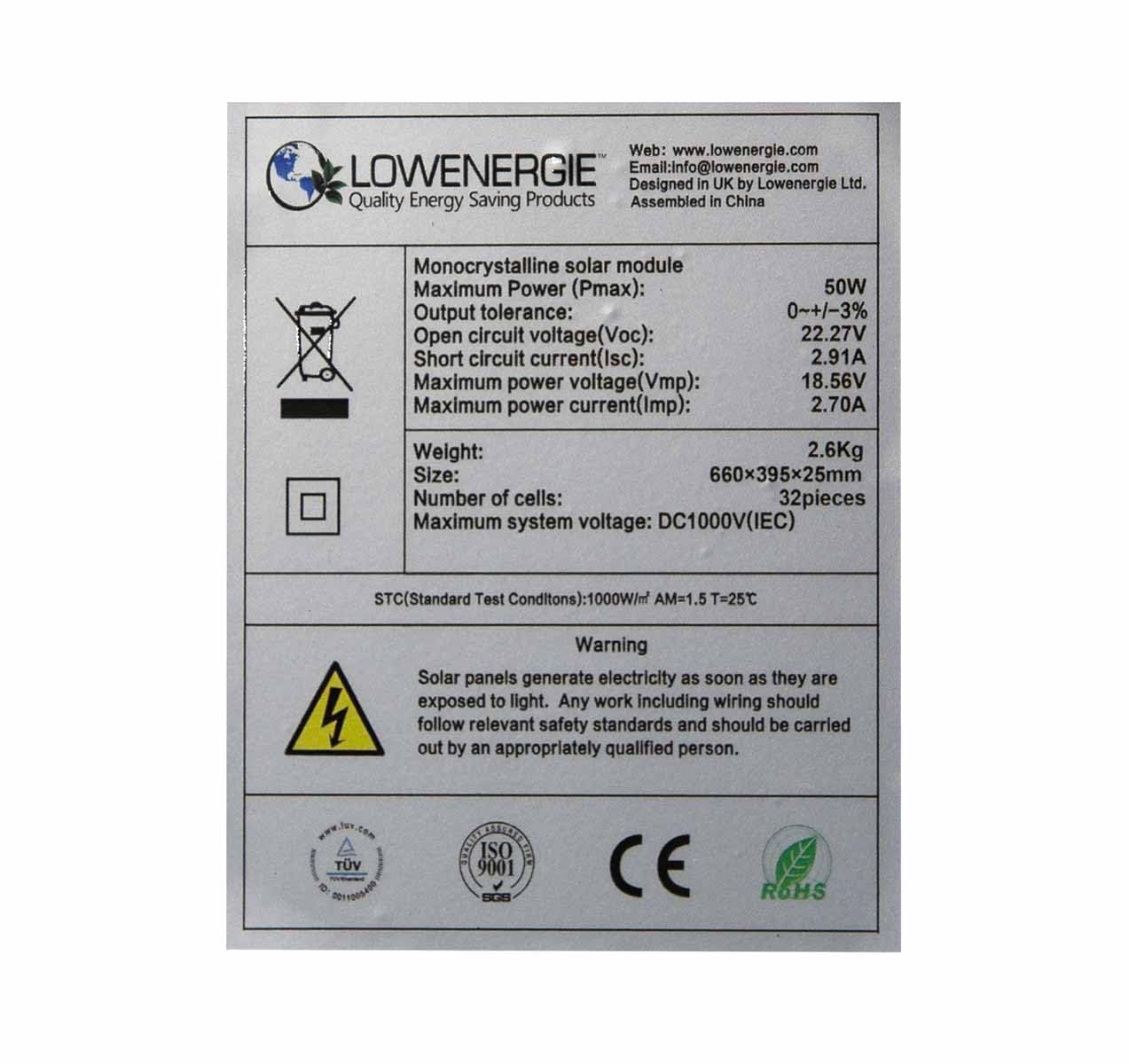

Solar Kit Contents 50w Mono Solar panel 1.5 Meter battery cable 3 Meter Solar Power Extension Cable with MC4 Connectors 10A PWM Victron Solar Charge Controller including USB outlet 4 Black Aluminium Mounting Brackets Solar Panel Technical Specification Maximum Power (Pmax): 50W Maximum Power Voltage (VMP): 18.56V Maximum Power Current (IMP): 2.70A Open Circuit Voltage (VOC): 22.27V Short Circuit Current (ISC): 2.91A Weight: 2.6 KG Size: 660 x 395 x 25mm Cell Quantity 32 Power Tolerance: +/-3% Maximum System Voltage: DC1000V In the event that the solar panel is in shade for a prolonged period, our solar panels either have one or two built-in bypass diodes which will enable the panel to continue generating. Half cut solar cells Solar Panels with half-cut solar cells and 9 to 12 buzz bars connecting the cells are 8-10% Smaller than typical square cell panels Solar Panels with half-cut solar cells and 9 to 12 buzz bars connecting the cells are 3% higher efficiency than typical square cell panels Full siliconesolar cells used to be square, sometimes with the corners cut off, but now the mainstream trend with all the big solar manufacturers is for half cut, small rectangular silicone cells, due to their higher efficiency. Solar panel technology has moved on considerably in the last few years with the introduction of half cut solar cells which can provide 2 to 3% more efficiency and higher watts per square metre. This means that the same power solar panels used in the past can now be 8-10% smaller. Alternatively you can have bigger solar panels with higher power output, but don’t take up as much space. This works by doubling the number of solar cells and increasing the number of ribbons, (BB’s / buzz bars) which connect the siliconesolar cells together within the panel. This helps to lower resistance in the panel, which in turn reduces tiny voltage drops in the many panel connections. Overall this provides more power output. The smaller cells are also less likely to have microfracture issues and with improved cloudy day performance Solar Panel Battery Charge Regulator Controller 12V / 24V Auto Switching Solar charge controllers are required to regulate the power output from the solar panels to ensure effective charge of a typical 12V or 24V lead acid battery without overload. PWM (Pulse Wave Modulation) solar charge controller provide a cost-effective solar charger for the solar panel outputs in our range. Optimised charge control which helps to prolong the life of the battery. 3-6% more effective than non-PWM charge controllers. LED indicator light to show battery state. Uses industrial grade microcontroller chip to work in a wide range of temperatures and humidity. Warning: The Connection Order Below must be followed 1, Battery Cable, 2 Load Cable, 3, Solar Panel Cable Do not install the charge controller in a sealed enclosure where battery gases can accumulate. Blue Solar PWM-LCD & USB Liquid Crystal Display Two 5 Volt USB outputs Lighting control function, fully programmable Three stage battery charging (bulk, absorption, float), fully programmable Load output with low voltage and manual disconnect (programmable) Load output protected against over load and short circuit Protected against reverse polarity connection of the solar panels and/or battery Technical Specification Charge Controller: 12/24-10 Battery Voltage 12/24 V Rated charge current 10A Automatic load disconnect Yes Maximum solar voltage 28V / 55V Self-consumption <10 mA Load output Manual control + low voltage disconnect +timer Protection: Battery reverse polarity (fuse) Output short circuit Over temperature & Overload protection Shut down after 60 s in case of 130% load Shut down after 5 s in case of 160% load Short circuit: immediate shut down Grounding Common positive Operating temp. range -35 to +60°C (full load) Humidity (non-condensing) Max 95% Battery Charge voltage ‘absorption’ Factory setting: 14,4V / 28,8V Charge voltage ‘float’ (2) Factory setting: 13,7V / 27,4V Low voltage load disconnect Factory setting: 11,2V / 22,4V Low voltage load reconnect Factory setting: 12,6V / 25,2V USB Voltage 5V Current 2A (total from 2 outputs) Enclosure Protection class IP20 Terminal size 6 mm² / AWG10 Weight 0,15kg Dimensions (h x w x d) 96 x 169 x 36 mm STANDARDS Safety EN60335-1, IEC 62109-1 EMC EN 61000-6-1, EN 61000-6-3, ISO 7637-2 1) For 12V use 36 cell solar panels , For 24V use 72 cell solar panels or 2x 36 cell in series 2) The controller switches to the lower float voltage level 2 hours after the absorption voltage has been reached. Whenever the battery voltage becomes lower than 13V, a new charge cycle is triggered.
