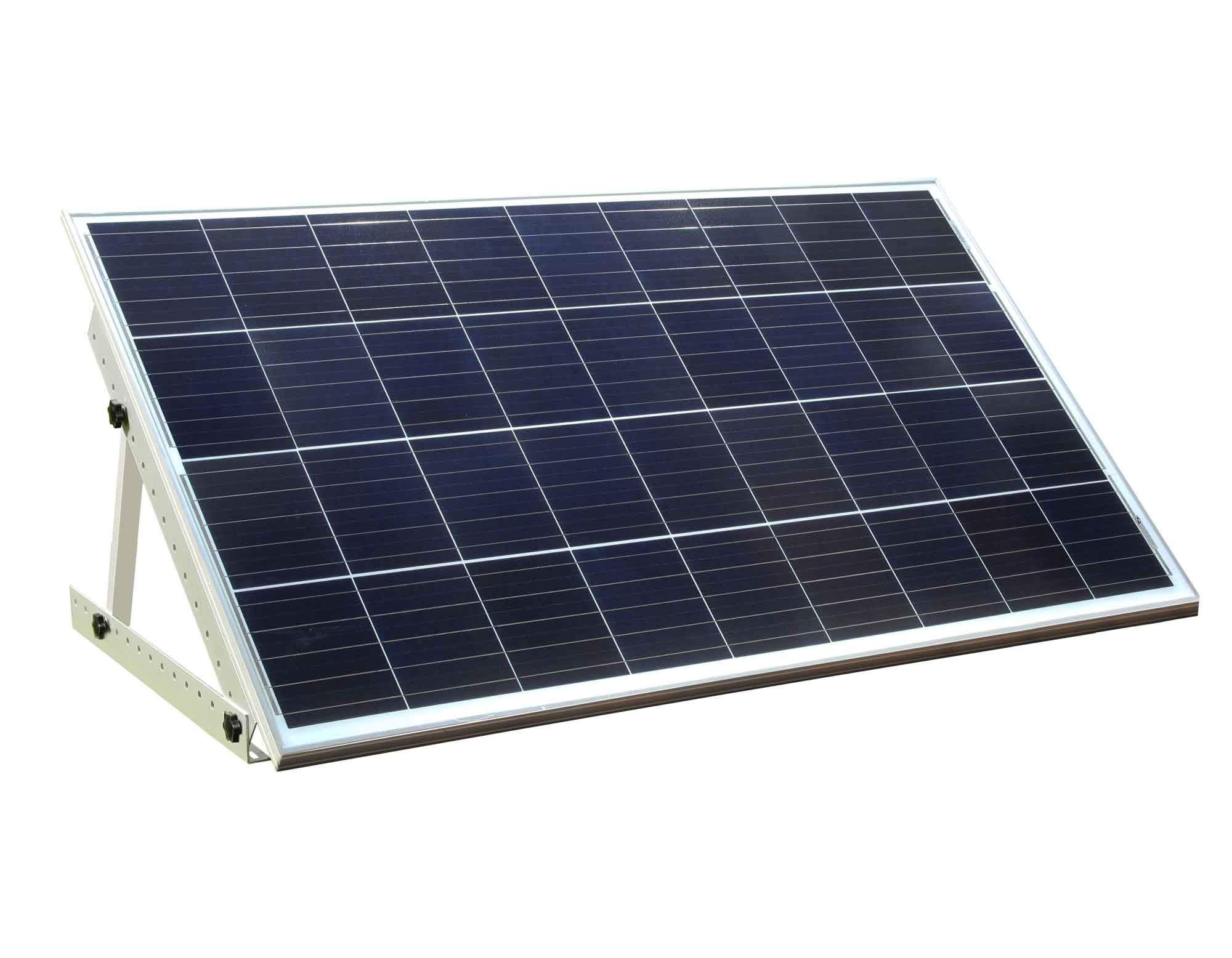

LOWENERGIE Adjustable Angle Solar Panel Mounting Brackets Frame Shed Caravan Boat or Ground Mount (For Solar Panels up to 700mm Wide)

• Gain up to 25% more solar panel efficiency by tilting your panels towards the sun instead of laying them flat. This is especially beneficial over winter months when there is less sunlight.
• Adjustable range 25 to 90 degrees.

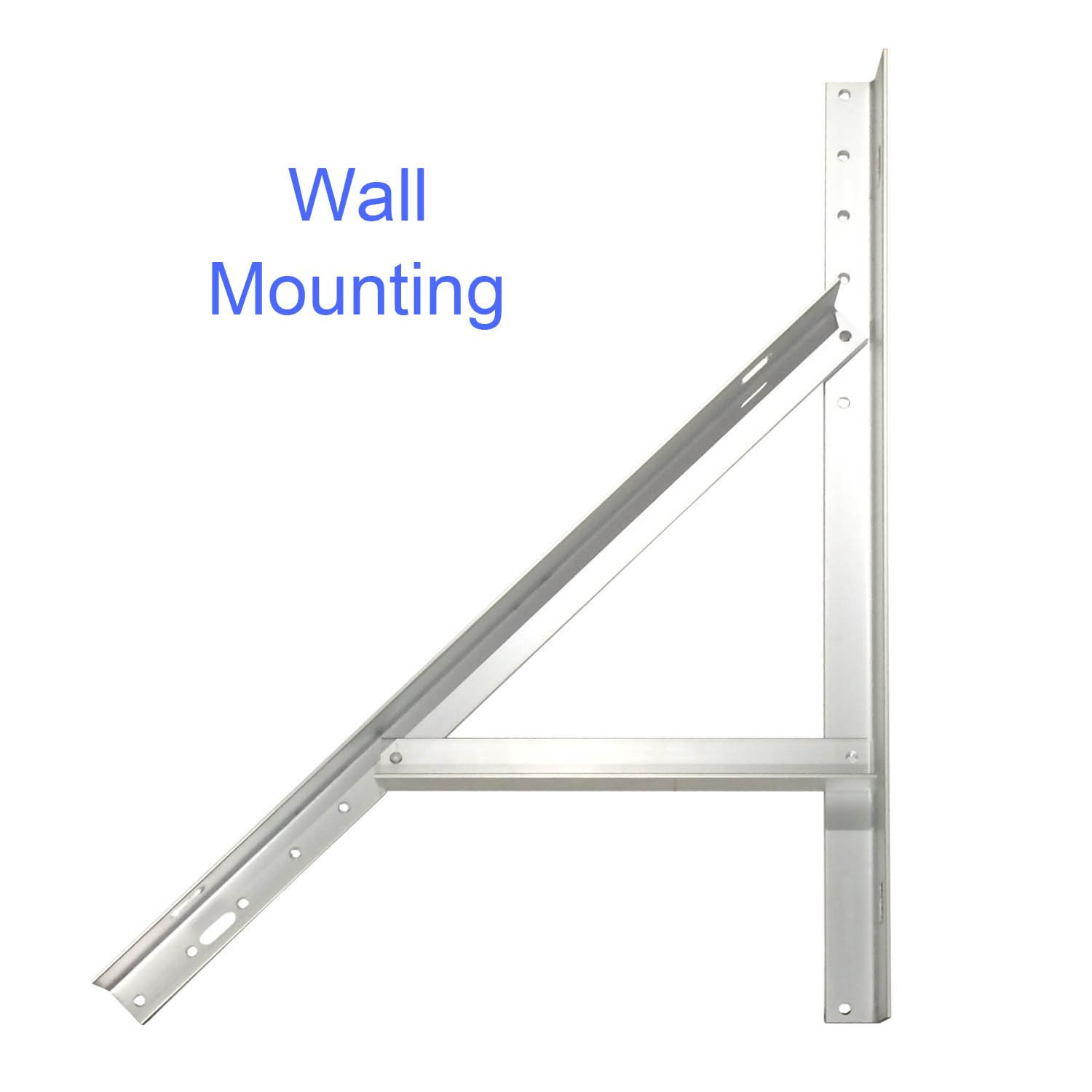

Adjustable range 25 to 90 degrees. Gain up to 25% more solar panel efficiency by tilting your panels towards the sun instead of laying them flat. This is especially beneficial over winter months when there is less sunlight. Suitable for up to 150w Solar Panels (max solar panel width around 700mm), solar panel length not relevant as the brackets can be moved further apart. Can be used on roofs, sheds, garages or other flat surfaces to tilt solar panels. Also suitable for ground mounting solar panels. To work out your optimum solar panel angle, simply take the value of your global latitude location and subtract 15 degrees. e.g. we are based 52 degrees North, 52 - 15 = 37 degrees, therefore, in this example, this solar panel would reach is best power output if it is pointed south (in the northern hemisphere) and angled at 37 degrees towards the sun. Also suitable for wall mounting. Please Note, this will require drilling one or two additional holes in the mounting frame. KIT Contents 2X Anodised Aluminium Adjustable Sections, 670mm long 2X Anodised Aluminium Adjustable Sections, 580mm long 2X Short Anodised Aluminium Triangulation Sections 335mm long 6X Thumb turn bolts, nuts and washers 4X Solar Panel Fixing nuts and bolts
