LOOTICH Fixing Screw Eccentric Cam Ø15mm and Bolts Fitting Dowels M6x40mm with Pre-Inserted Nuts M6 for Flat Pack Furniture Cabinet Locking Connecting (34 Set)

• Cam size: Ø15 x 11mm; Dowel size: Ø6 x 40mm; Pre-inserted nut size: M6 (8 x 11.5mm)
• Material: Carbon Steel, Zinc Alloy; Finish: Nickel plated
• Suitable for wood panel thickness from 16mm to 18mm
• 34 sets of cam fittings, per-insert nuts, and dowels are supplied
• The cam lock fittings are widely used for panel connecting of your panel furniture, office furniture, cabinet, wardrobe, cupboard, and bed etc.

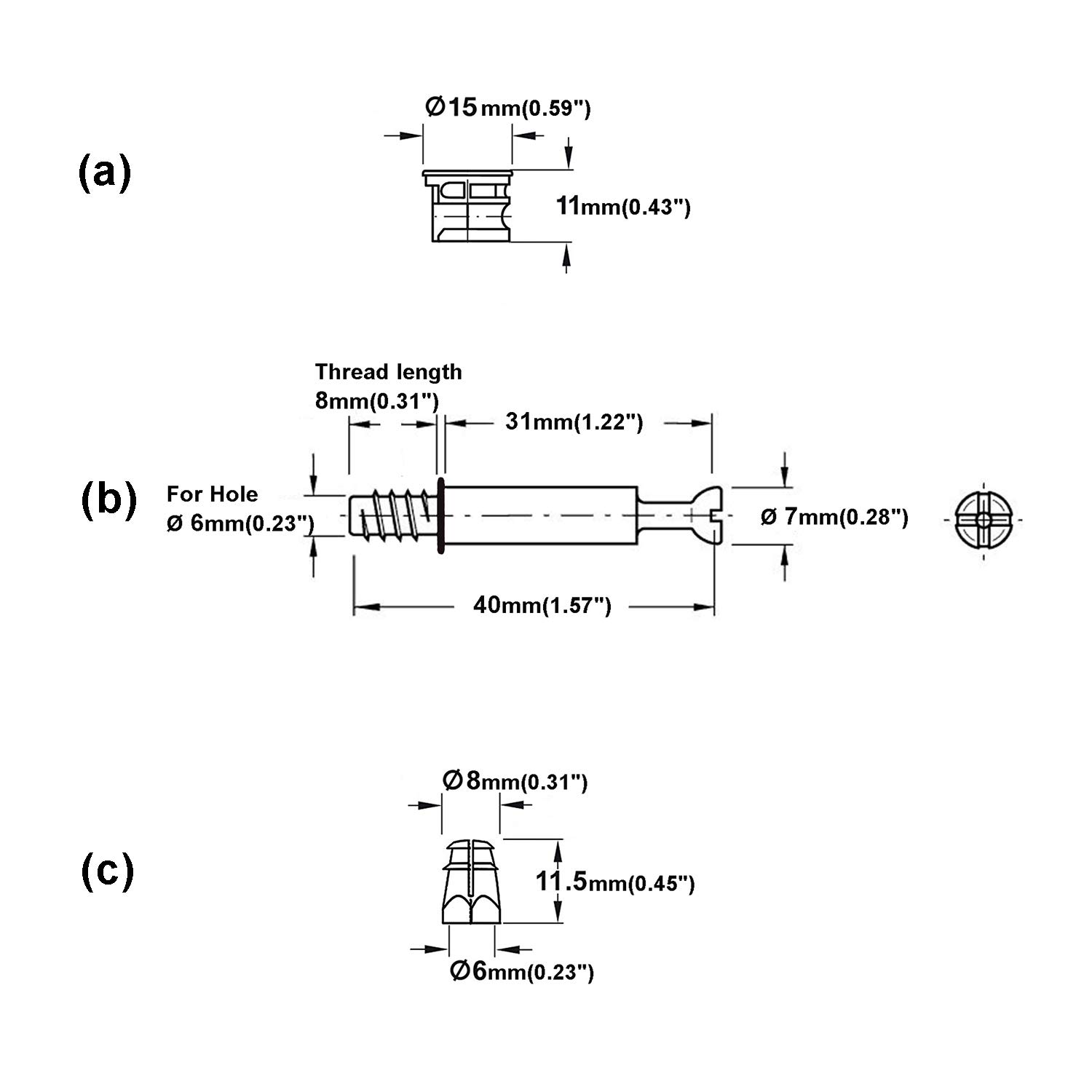

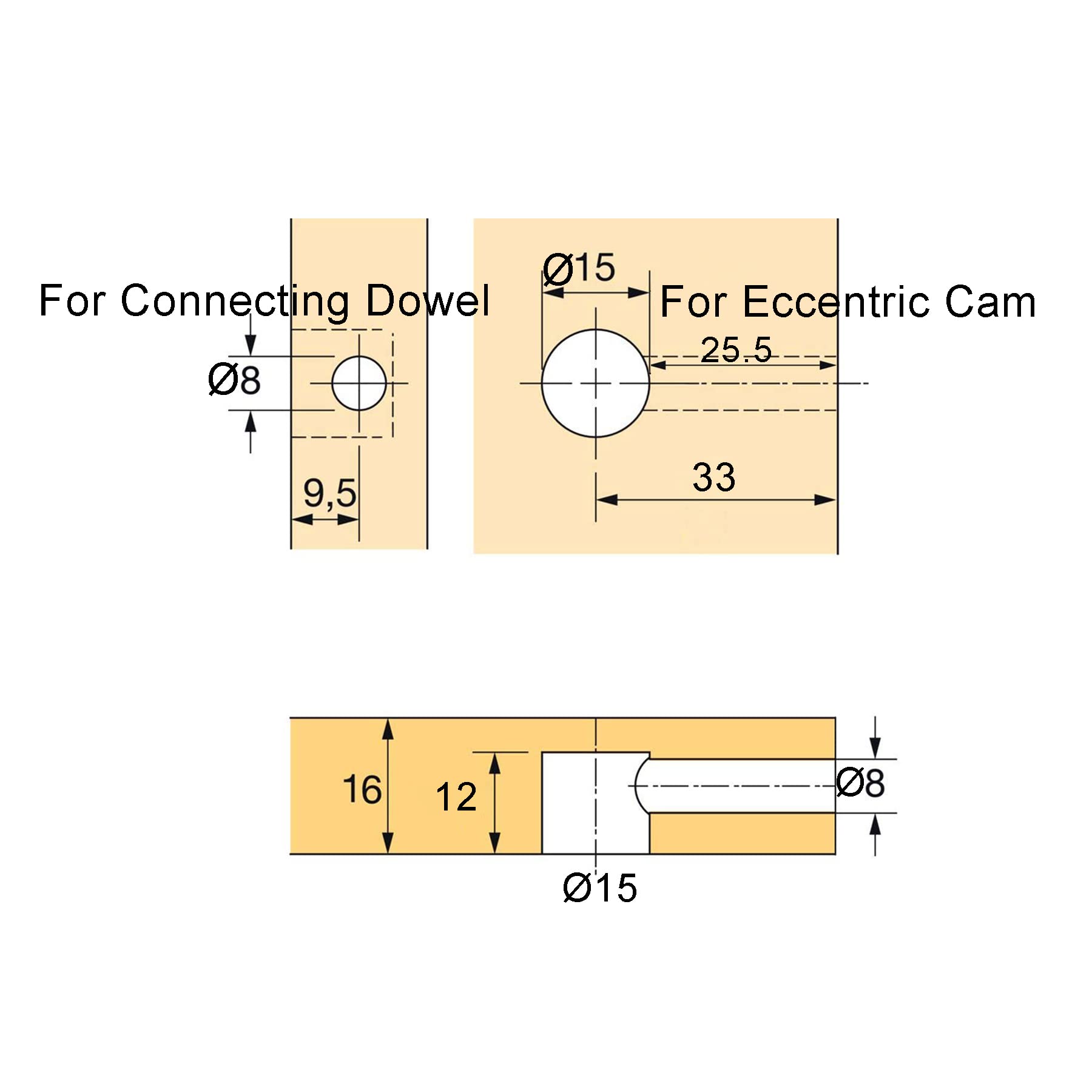

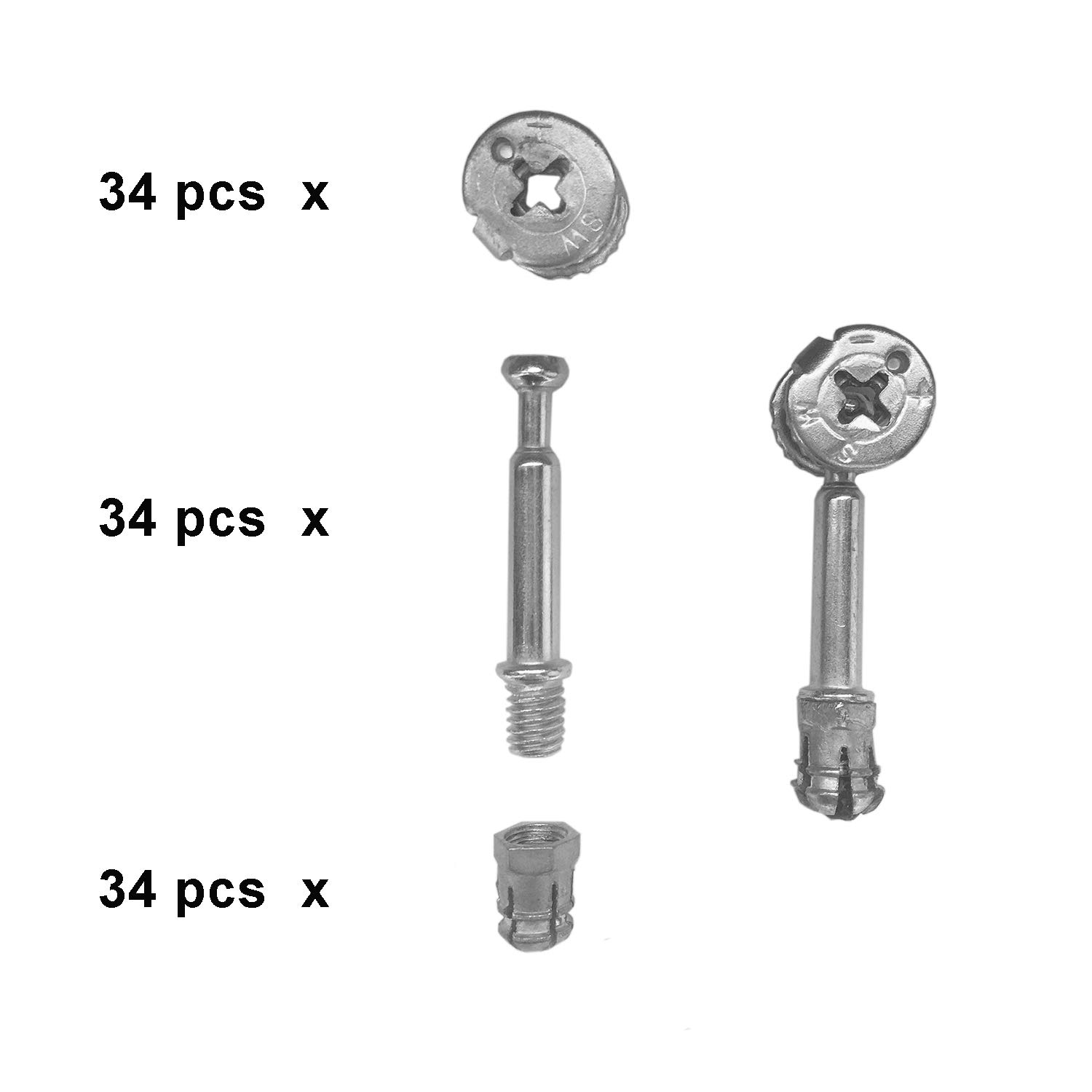

>Steady furniture connecting fittings. >Exactly the right fastener to replace some broken connectors in furniture assemble. >Cam Bolts and Dowel Fittings commonly used in flat pack furniture and kitchen cabinets. >The dowel body length is 31mm (exclude thread part), this is the amount of dowel protruding when it is fully screwed into the wood, requires a Ø8mm diameter hole >The cams are 11mm thick and 15mm in diameter, cams are suitable for wood thickness from 16mm. Items Demension (a)Eccentric cam size: Ø15 x 11mm(0.59" x 0.43")(Dia.*H) (b)Connecting dowel size ------Dowel thread Dia.: 6mm (0.24") ------Dowel thread length: 8mm (0.31") ------Dowel full length: 40mm (1.57") ((From one end to the other)) (c)Metal pre-inserted nut size: Ø8 x M6 x 11.5mm (0.31"x0.24"x0.45")(Outer Dia.*Inner Dia.*H) >Material: Carbon Steel, Zinc Alloy >Main Color: Silver >Net weight: 462g Package Content >34 Pcs x cam fittings >34 Pcs x steel bolts >34 Pcs x metal pre-inserted nuts
