LOOTICH 95 Degree Inset 40mm Soft Close Hinges with Hydraulic Damper for Kitchen Cabinet Cupboard Wardrobe Heavy Thick Door Hinges with Cushioning Buffering Mechanism Pack of 8

• Quick Clip on installation and integrated soft closing system
• Heavy and strong stainless steel concealed cup hinges with Higher Load-bearing capacity
• For door thickness 16-25 mm; Hinge cup Diameter Ø40 mm (NOT standard size 35mm); Cup depth 12.8 mm
• Quick release mechanism, for easy removal of doors at the press of a button
• These silent hinges are an essential for constructing cabinets or replacement solution the worn out ones

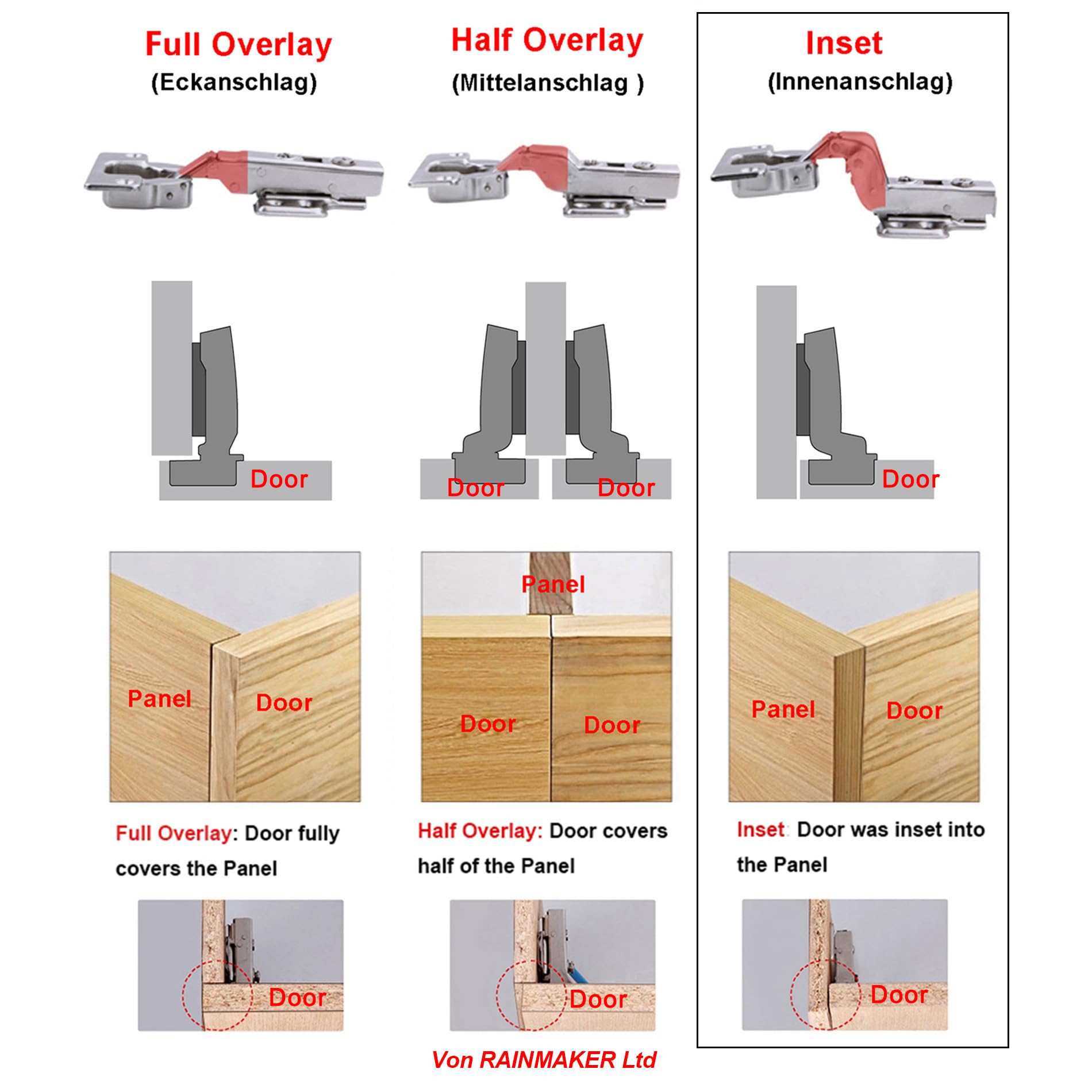

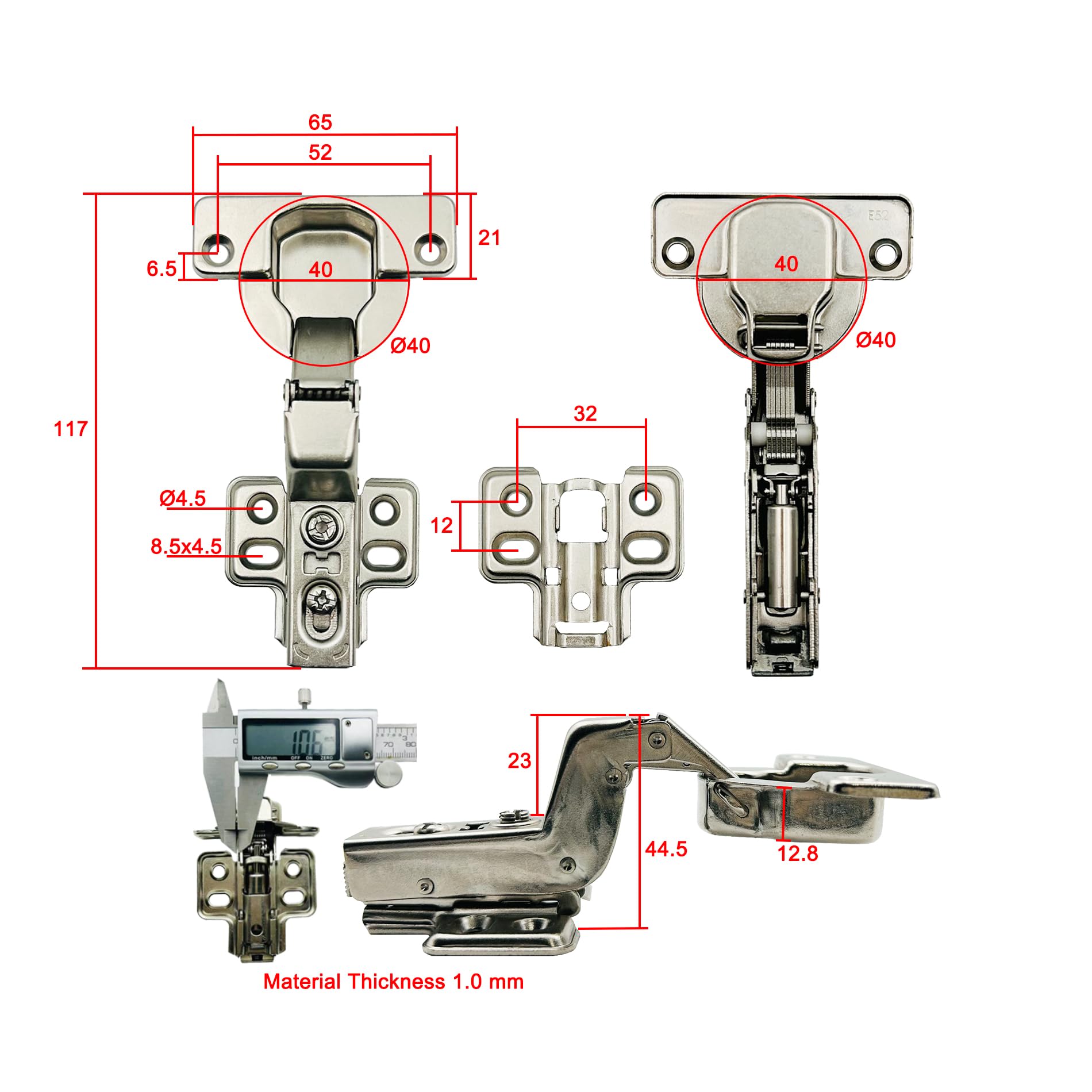

Product Details >Type: LOOTICH inset mounting, Automatic soft closing hinges >Opening angle: 95 – 105 degree >Drilling cup diameter: Ø 40mm (NOT standard hinge cup with 35mm) >Drilling Depth Hinge cup min.: 12.8 mm >Drilling dimensions for cup fixing : Drilling pattern (52mm / 6.5mm) >For door thickness: 16 mm (min.) - 25 mm (max.) >Hinge Cranking: 23 mm >Cup mounting: For screw fixing >Hinge arm, Quick fixing >Material: Stainless Steel >Finish: Nickel plated pressed steel cup and arm >Door mounting option: Inset Application >Cover cap for carcass: No >Screw size: M4 x16mm >Adjustment: Side adjustment ± 2.5 mm, Height adjustment ± 2 mm, Depth adjustment 0.6 mm to + 3 mm Package Contents >Cabinet hinges: Pack of 8 >with fixing screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
