LOOTICH 95 Degree 3-Way Adjustment Clip-on Full Overlay 35mm Soft Close Hinge with Hydraulic Damper for Kitchen Cabinet Cupboard Wardrobe Door Hinges with Drilling Template Pack of 8

• Quick Clip on installation and upgraded integrated soft closing damper, Full Overlay Application
• Heavy and sturdy steel concealed cup hinge with 3-Way Adjustment mounting plate
• For door thickness 16-24 mm; Cup diameter Ø 35mm (standard size); Cup depth 11.5 mm
• With LOOTICH drilling Jig for all standard concealed Ø 26mm and Ø35mm hinges; Quick release mechanism, for easy removal of doors at the press of a button
• These silent hinges are an essential for constructing cabinets or replacement solution for the old ones

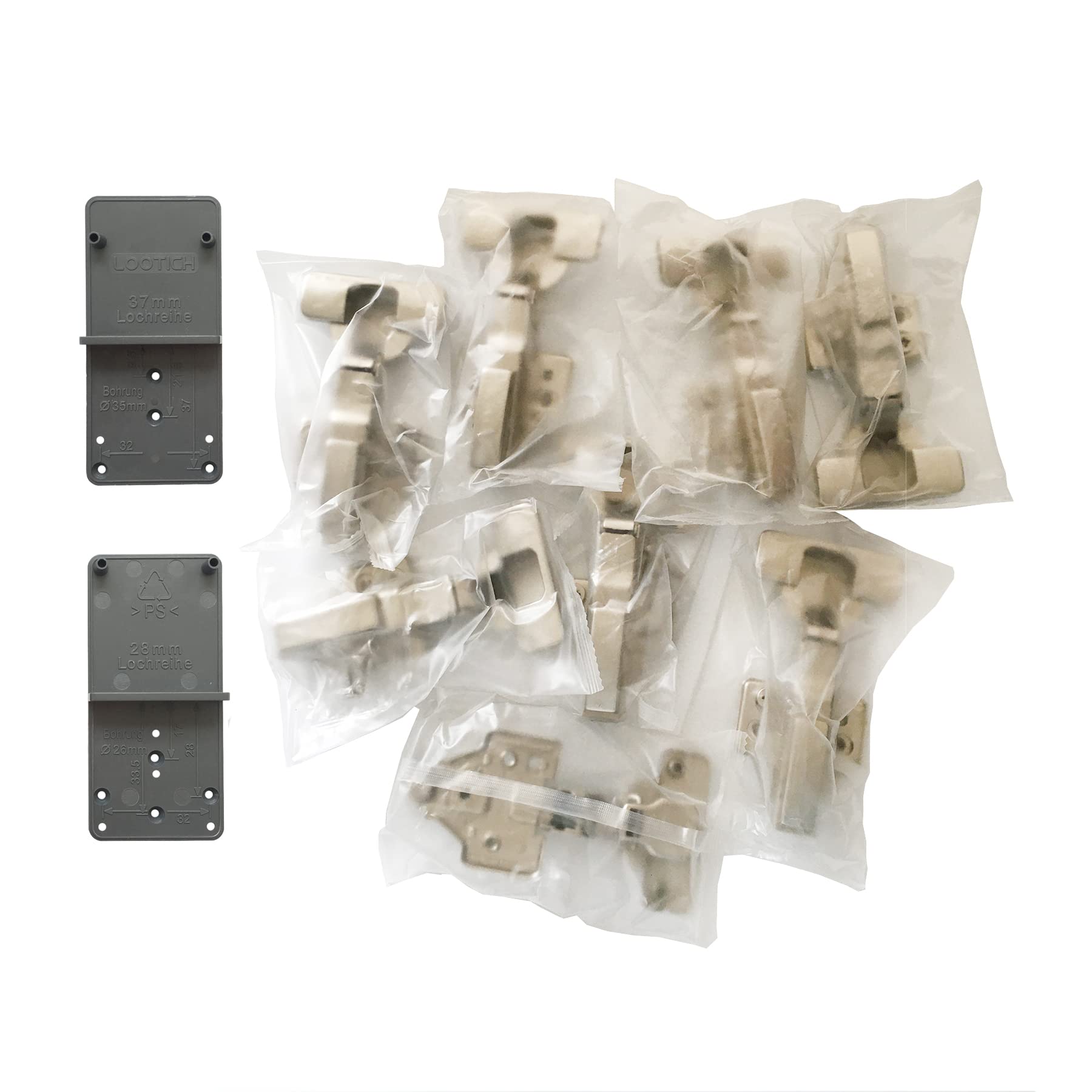

Product Details >Type: LOOTICH Full overlay mounting, Automatic soft closing hinges >With automatic built-in hydraulic soft closing (damper) >Small angle soft closing >Opening angle: 95 degree >Drilling cup diameter: Ø 35mm (standard size) >Drilling Depth Hinge cup min.: 11.5 mm >Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) >For side panel thickness: 16 mm (min) - 18 mm (max) >For door thickness: 16 mm (min) - 24 mm (max) >Hinge Cranking: 0 mm >Hinge base height: H=0mm >Detachable base >Material: Cold-rolled steel >Door mounting option: Full Overlay / Corner stop >Cover cap for carcass: No >3-Way Adjustment: Side adjustment ± 2.5 mm, Height adjustment ± 2 mm, Depth adjustment -2 mm to +2 mm >With this LOOTICH marking-off template, a hole line inside of the cabinet or the drill holes for a mounting plate (at a distance of 32mm) can be marked in the easiest way. Mounting Plate >3 Dimensional Adjustment of the cabinet doors in depth, width, and height >with pre-mounted special screws >Screw spacing: 32mm Package Contents >Hinges: Pack of 8 >with cross mounting plate and screws >Drilling jig: 2 piece Important >Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0mm
