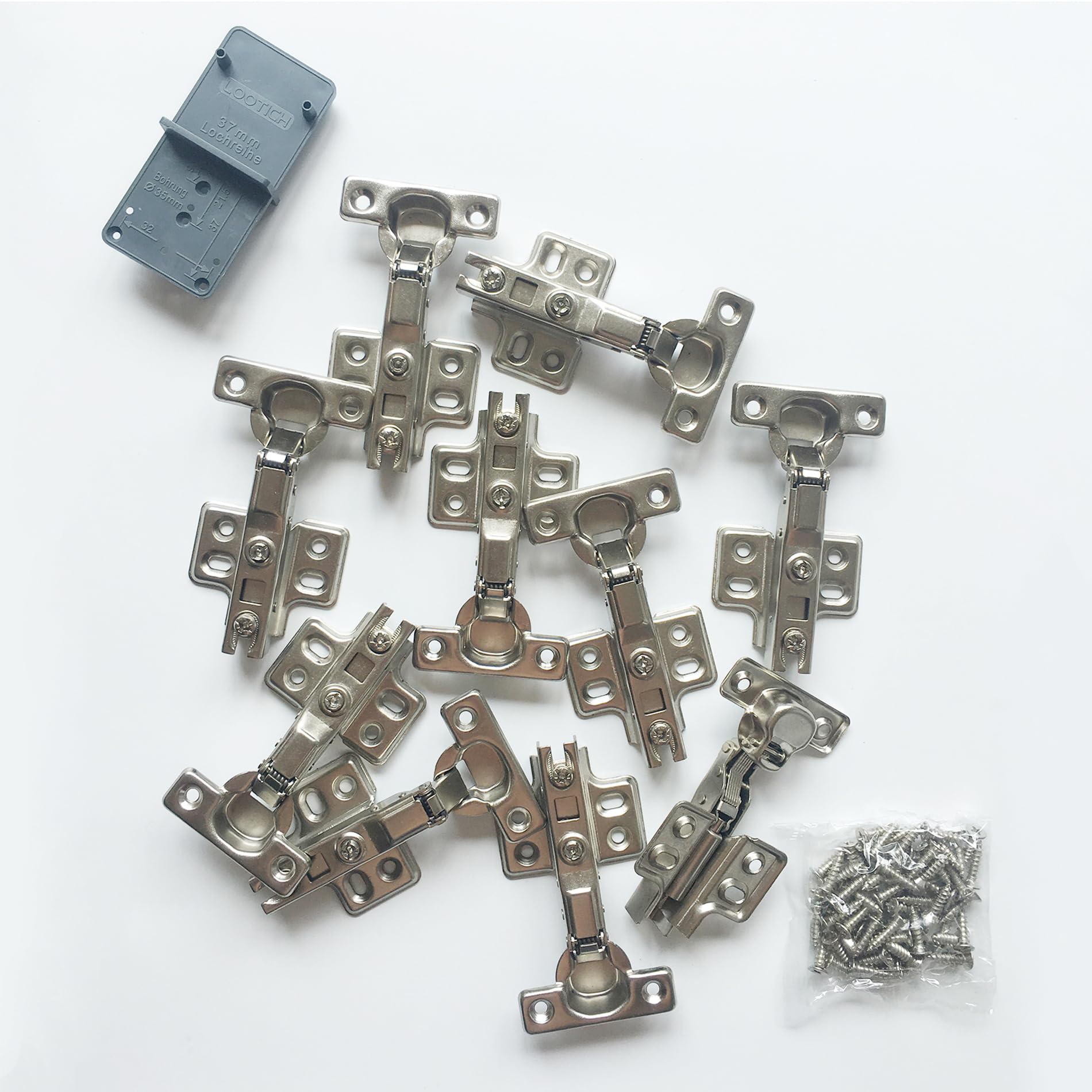

LOOTICH 90 Degree Half Overlay 26 mm Soft Close Hinge with Hydraulic Damper for Kitchen Cabinet Cupboard Wardrobe Light Door Automatic Hinges with Cushioning Pack of 10 with Drilling Template

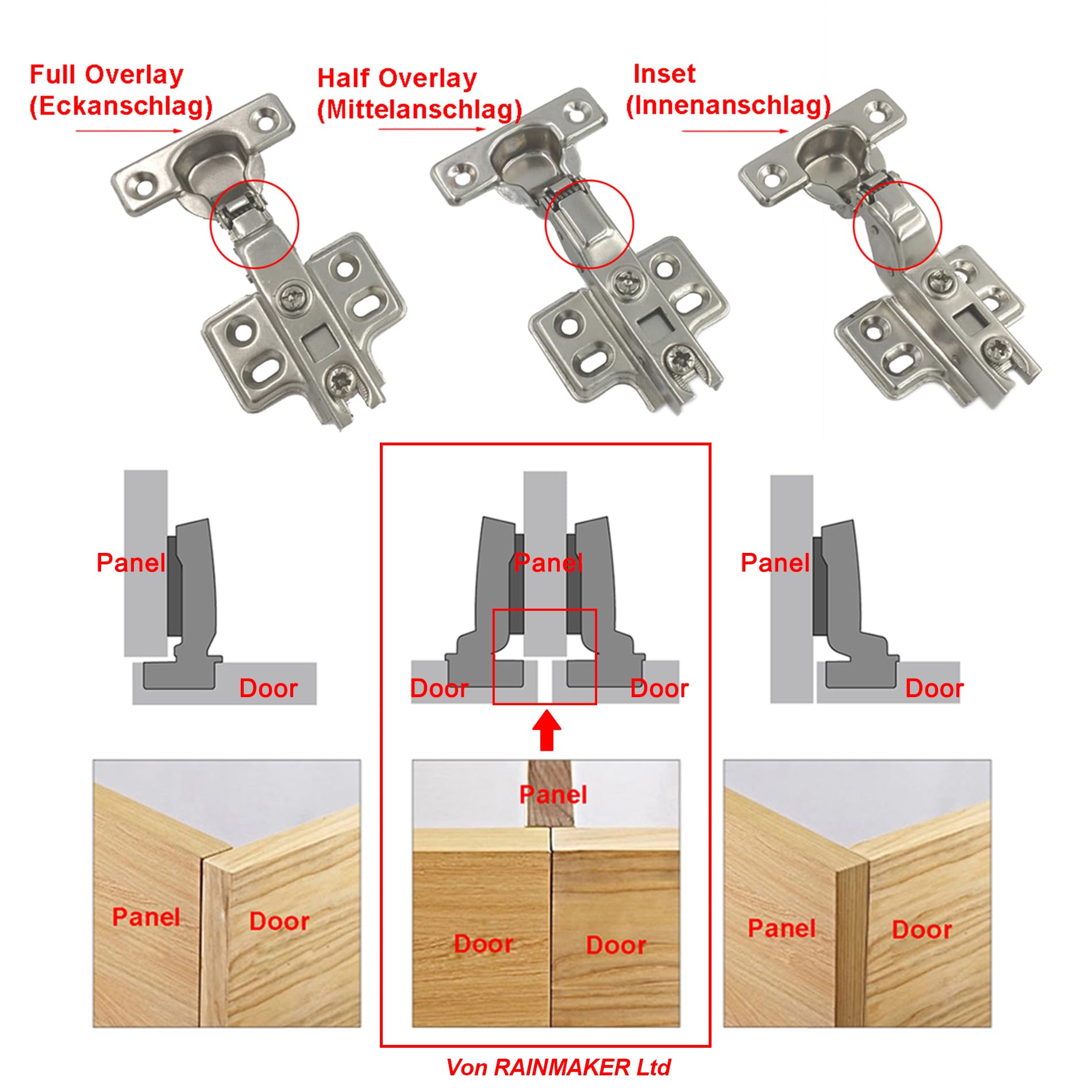

• Concealed Cup Hinge; Half Overlay Mounting; with Ø 26 mm Cup; Sprung

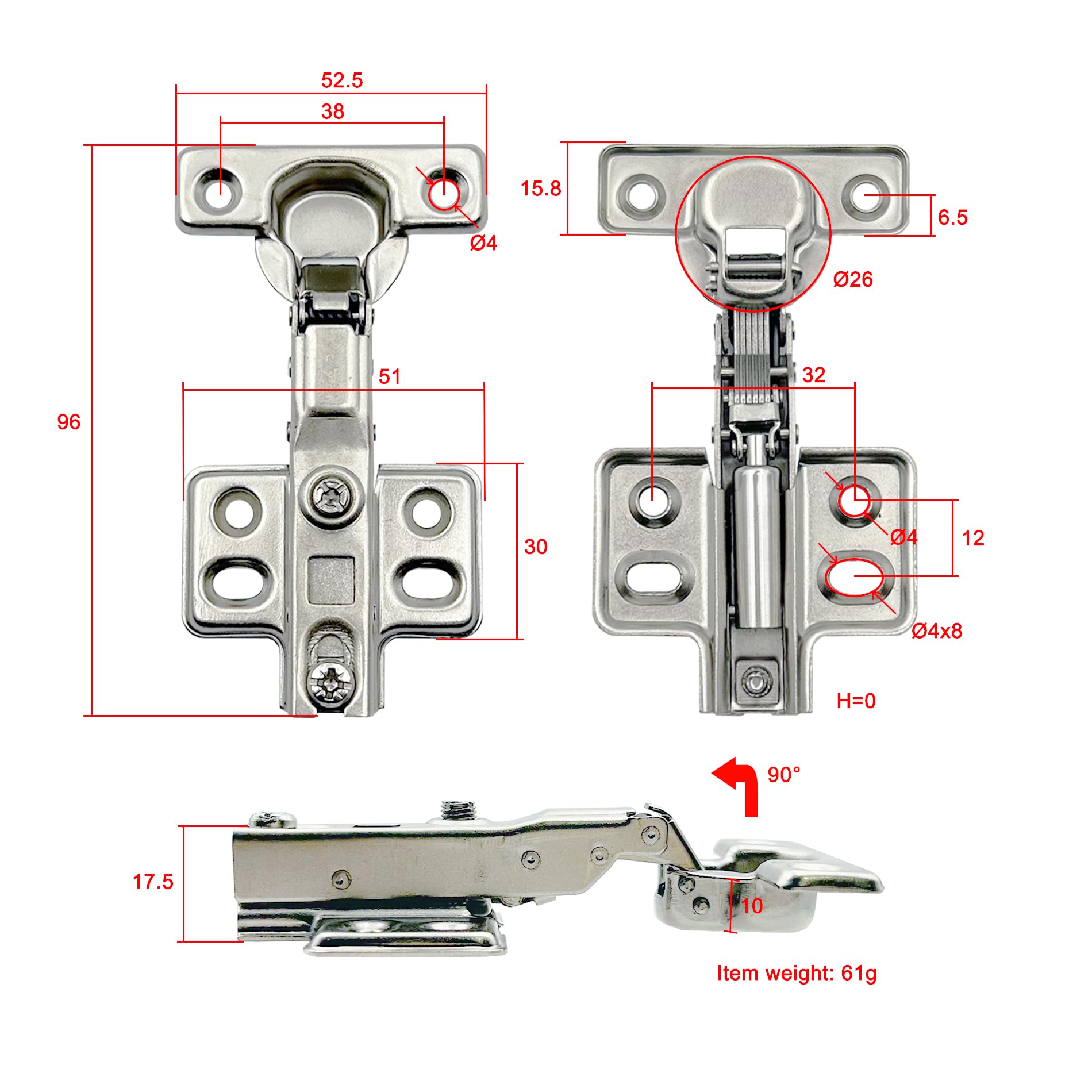

• Fixed mounting plate and integrated Soft Close damper; For door thickness: 12-16 mm; Cup diameter Ø 26 mm; Cup depth: 10 mm; Default hinge base: H=0

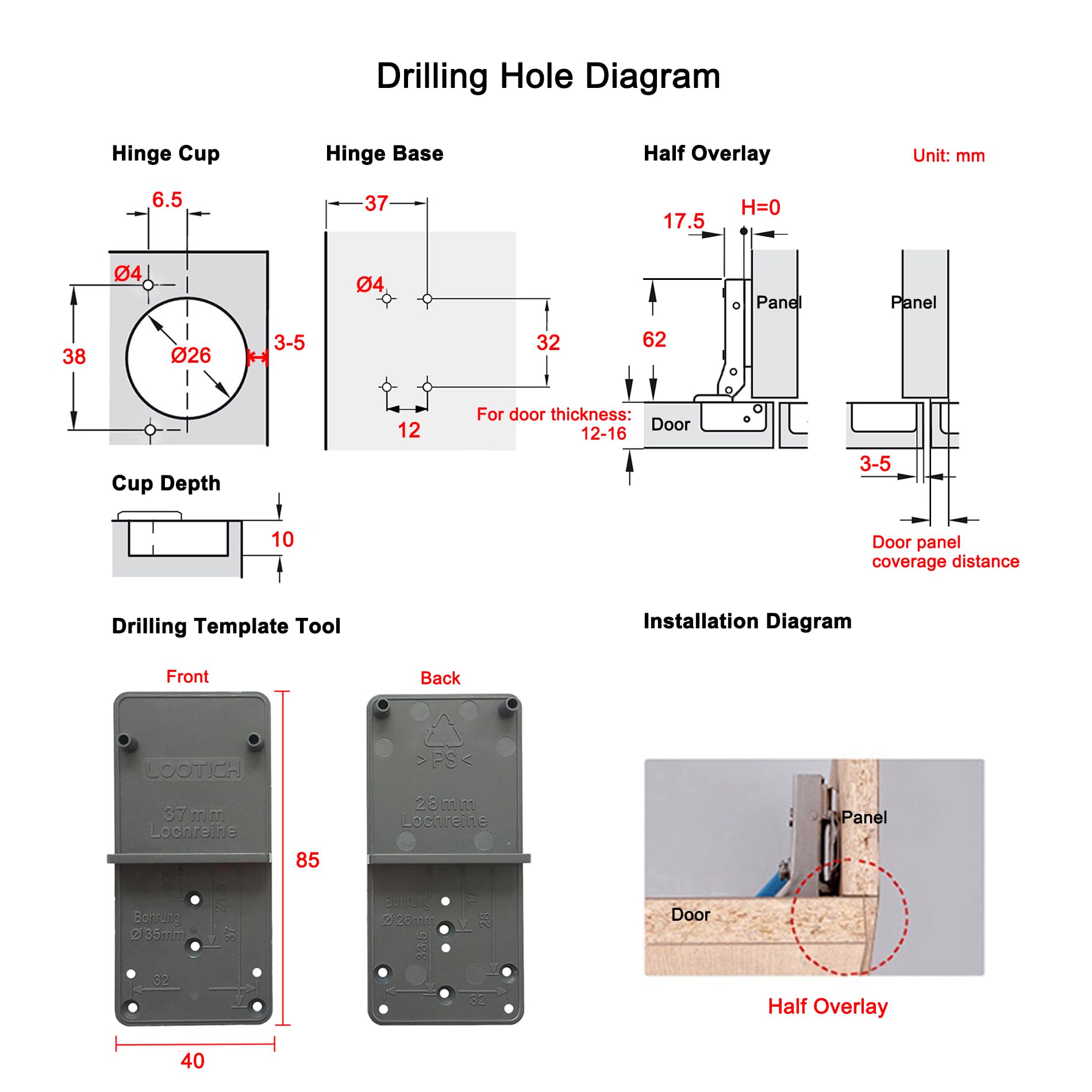

• With LOOTICH drilling Jig for all standard concealed Ø 26 mm and Ø 35 mm hinges
• Hinge is suitable for frame and panel doors with narrow stiles, or for glass doors
• These silent hinges are an essential for constructing cabinets or replacement solution for the old ones

With this LOOTICH marking-off template, a hole line inside of the cabinet or the drill holes for a mounting plate (at a distance of 32 mm) can be marked in the easiest way. Note 1) Ø 26 hinges are mainly for light and thin door use (e.g. door thickness 12-16 mm) 2) Incompatible with standard Ø 35 and Ø 40 hinge cups 3) For use as hinge replacement, please check your existing hinge hole and size before purchasing 4) Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm Product Details Type: LOOTICH Half overlay mounting, automatic soft closing hinges With automatic soft closing (damper) Material: Steel Finish: Nickel plated pressed steel cup and arm Opening angle: 90 degree Cup diameter: Ø 26 mm Drilling Depth Hinge cup min.: 11 mm Default hinge base: H=0 Loading capacity for 2 hinges: about 3-4 kg Drilling dimensions for cup fixing: Drilling pattern (38 mm / 6.5 mm) For side panel thickness: 12 mm (min.) – 16 mm (max.) For door thickness: 12 mm (min.) – 16 mm (max.) Cup mounting: For screw fixing Door mounting option: Dual / Half Overlayapplication Cover cap for carcass: No Package Contents Hinges: Pack of 10 with fixing screws Drilling jig: 1 piece
