LOOTICH 90 Degree Full Overlay 26mm Soft Close Mini Compact Face Frame Hinge with Hydraulic Damper for Kitchen Cabinet Cupboard Door Automatic Hinges with Buffering Pack of 8

• Suitable for narrow cabinet and frame, specially customized for insufficient installation space
• Integrated soft close damper with fixed mounting plate; Full Overlay Mounting

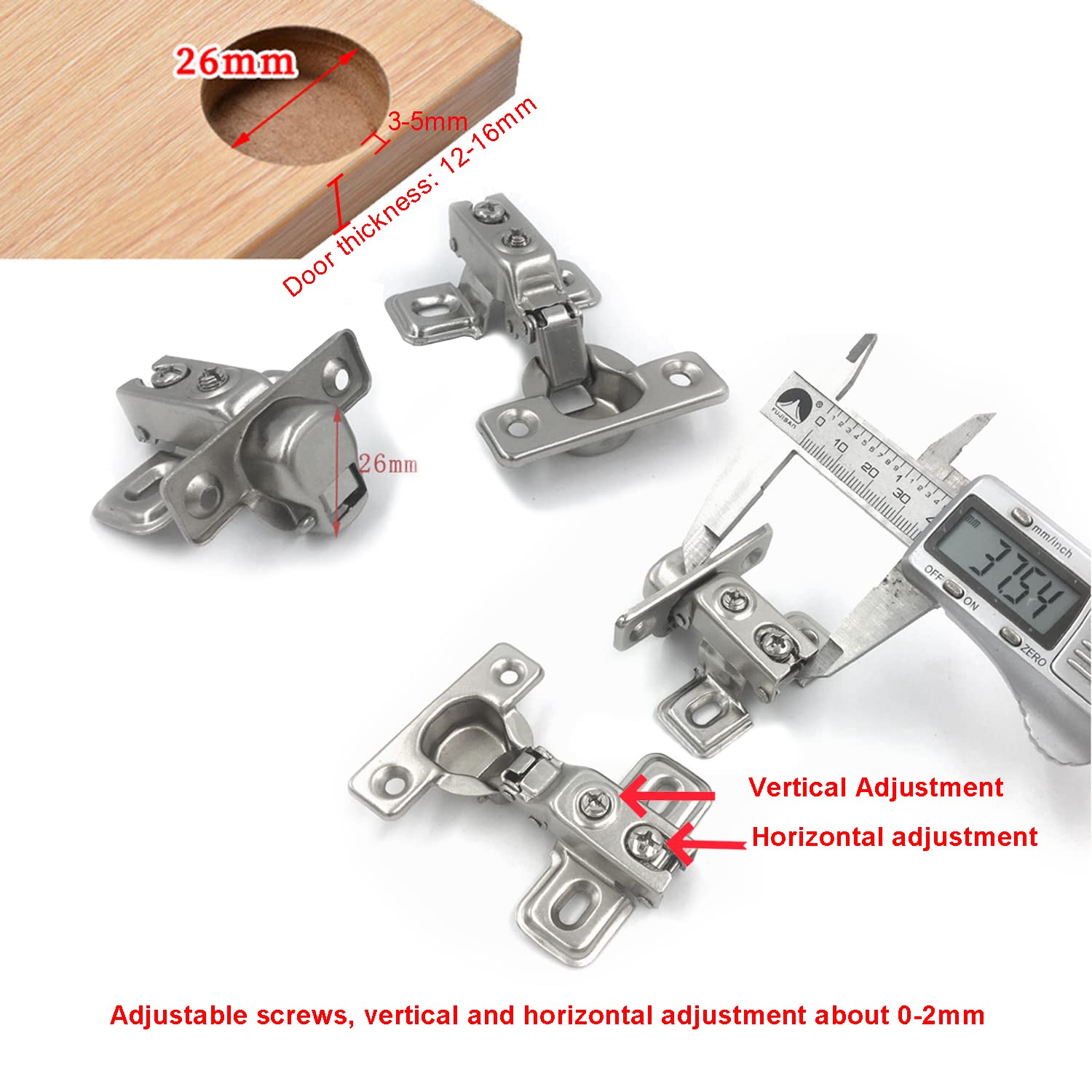

• For door thickness 12-16 mm; Cup diameter Ø26mm; Cup depth: 10mm
• Mini hinge is perfect for frame and panel doors with narrow stiles, or for glass doors
• These silent hinges are an essential for constructing cabinets or replacement solution for the old ones

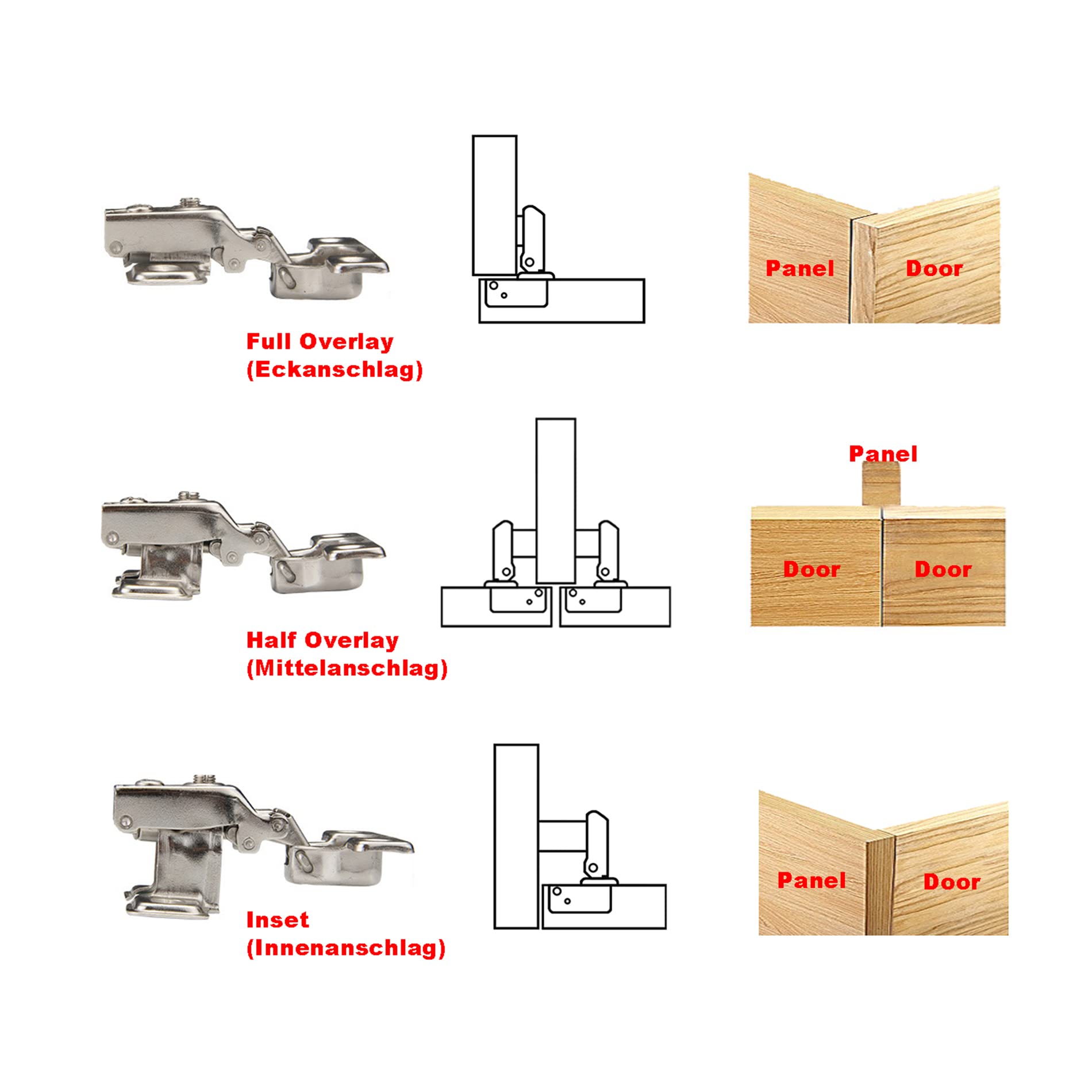

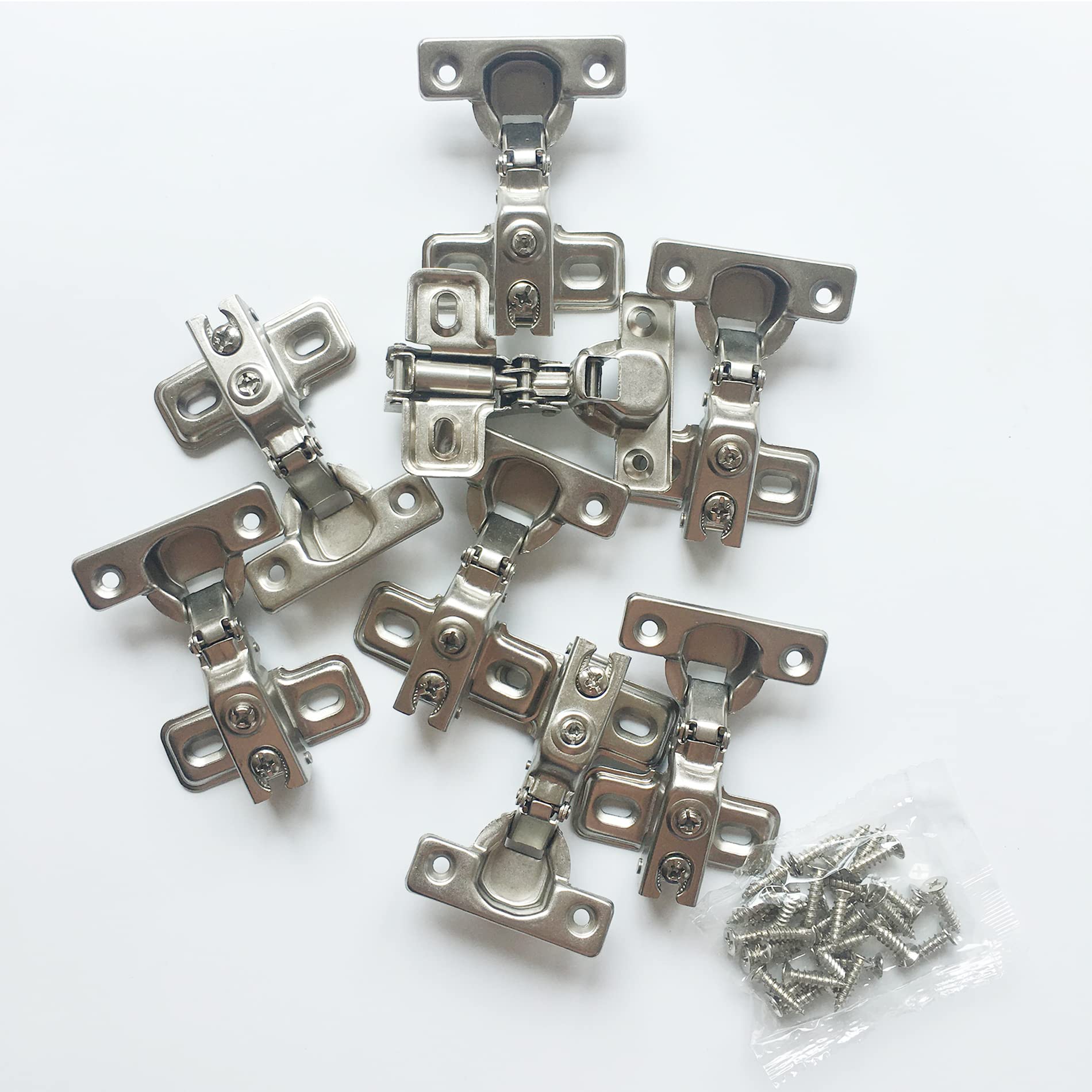

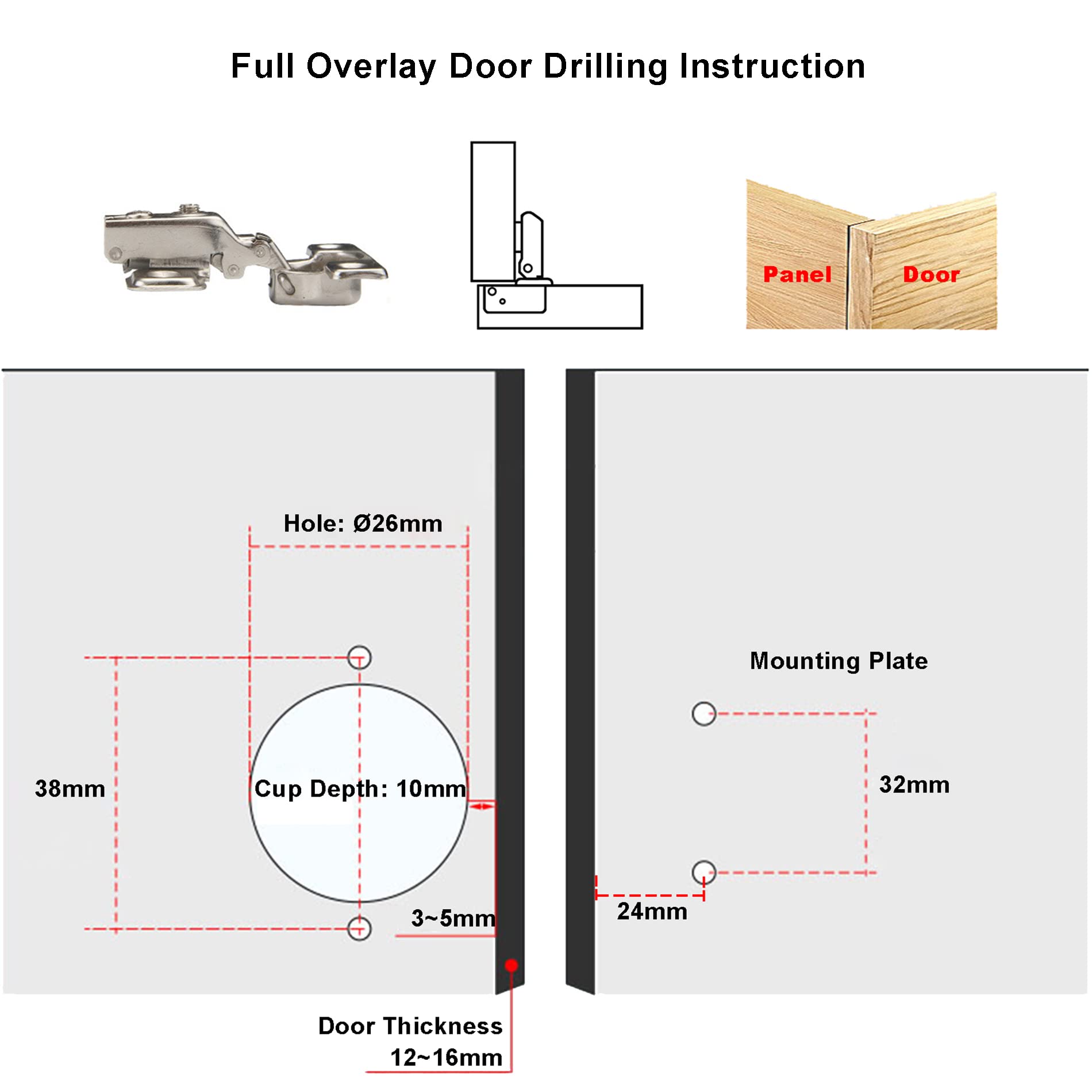

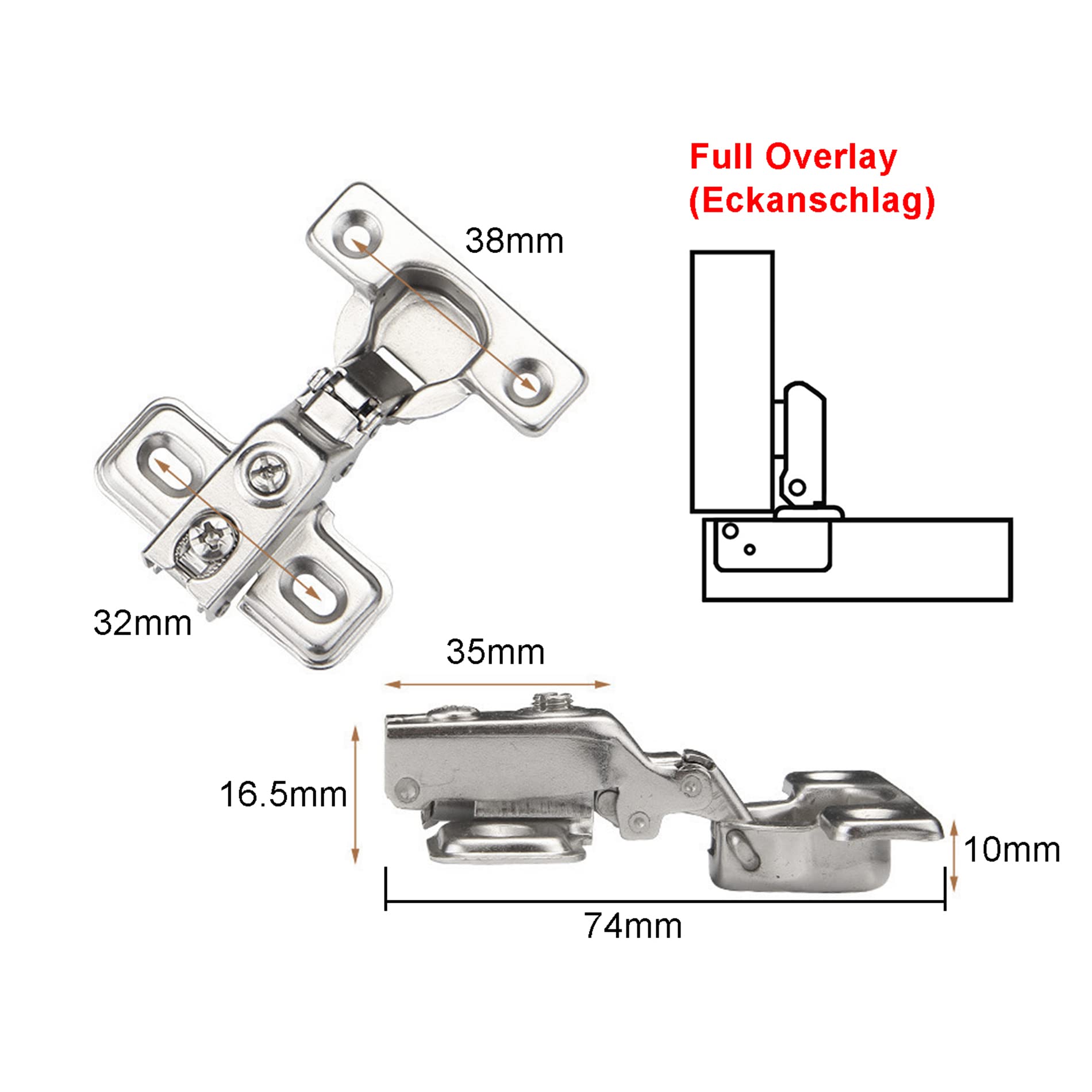

Product Details >Type: LOOTICH Full overlay mounting, Automatic soft closing compact Mini hinge >With automatic soft closing (damper) >Opening angle: 90 degree >Drilling cup diameter: Ø 26mm >Drilling Depth Hinge cup min.: 11mm >Drilling dimensions for cup fixing : Drilling pattern (38mm / 6.5mm) >For depth of cabinet min.: 38mm >For side panel thickness: 12mm (min.) - 16mm (max.) >For door thickness: 12 mm (min.) - 16 mm (max.) >Material: Steel >Finish: Nickel plated pressed steel cup and arm >Door mounting option: Full Overlay/ Corner stop >Cover cap for carcass: No Package Contents >hinges: Pack of 8 >with screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
