LOOTICH 60N Automatic Lid Stay Support Kitchen Cabinet Cupboard Door Toy Box Hydraulic Spring Gas Strut Piston Soft Opening Hinges for Flap Fittings Pack of 4

• Strong gas strut stay lift support cabinet cupboard door soft opening hinges
• Full stage spring damper, Silent operation
• Force: 60N (6kgf) (13.5 lbf). One piece of 60N piston can load door weight of 6kg

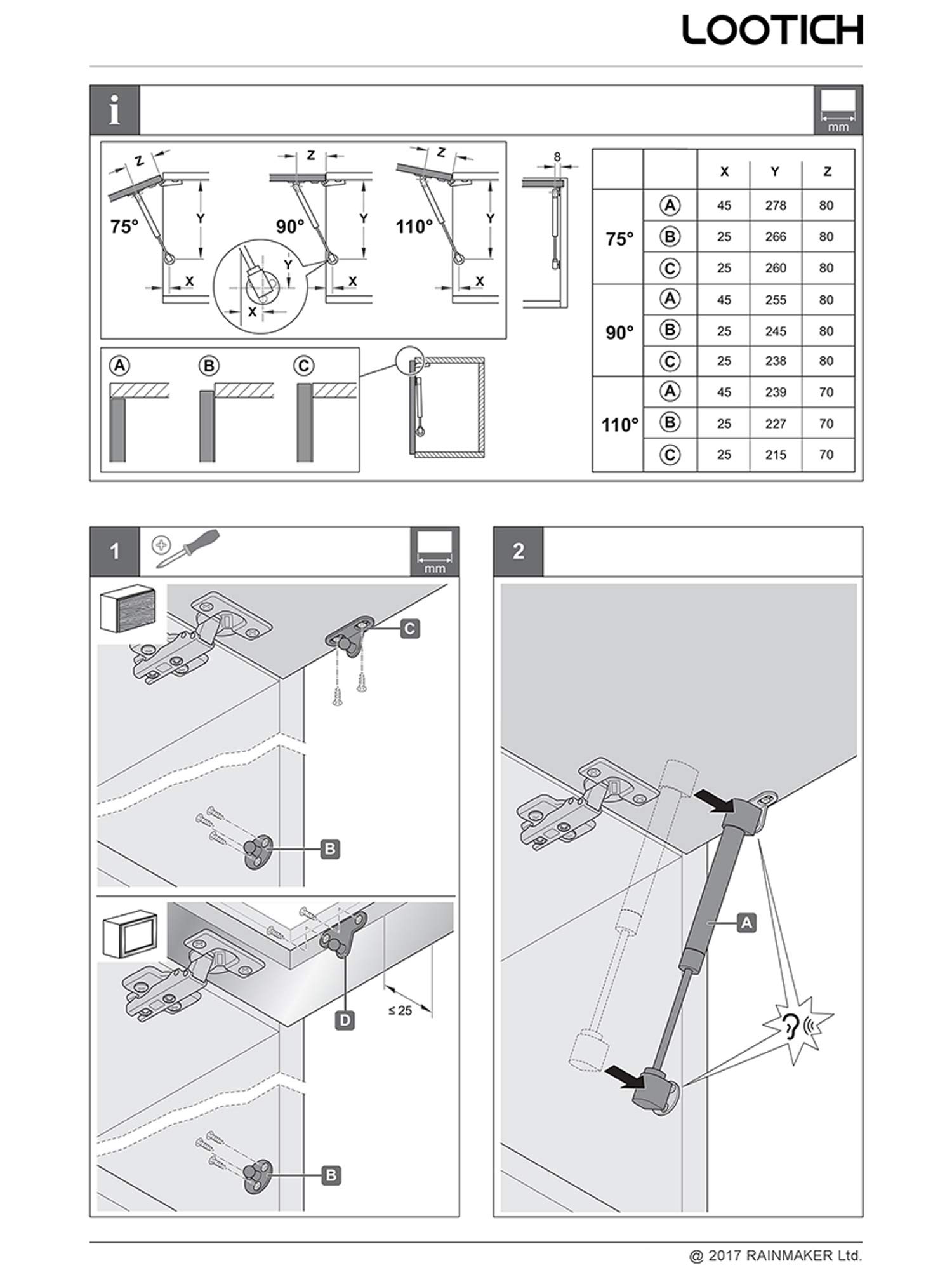

• Clip-mounting on pre-mounted screw fixing brackets, no tools require
• Suitable for all types of wooden and aluminum frame doors (choice of 3 brackets supplied)

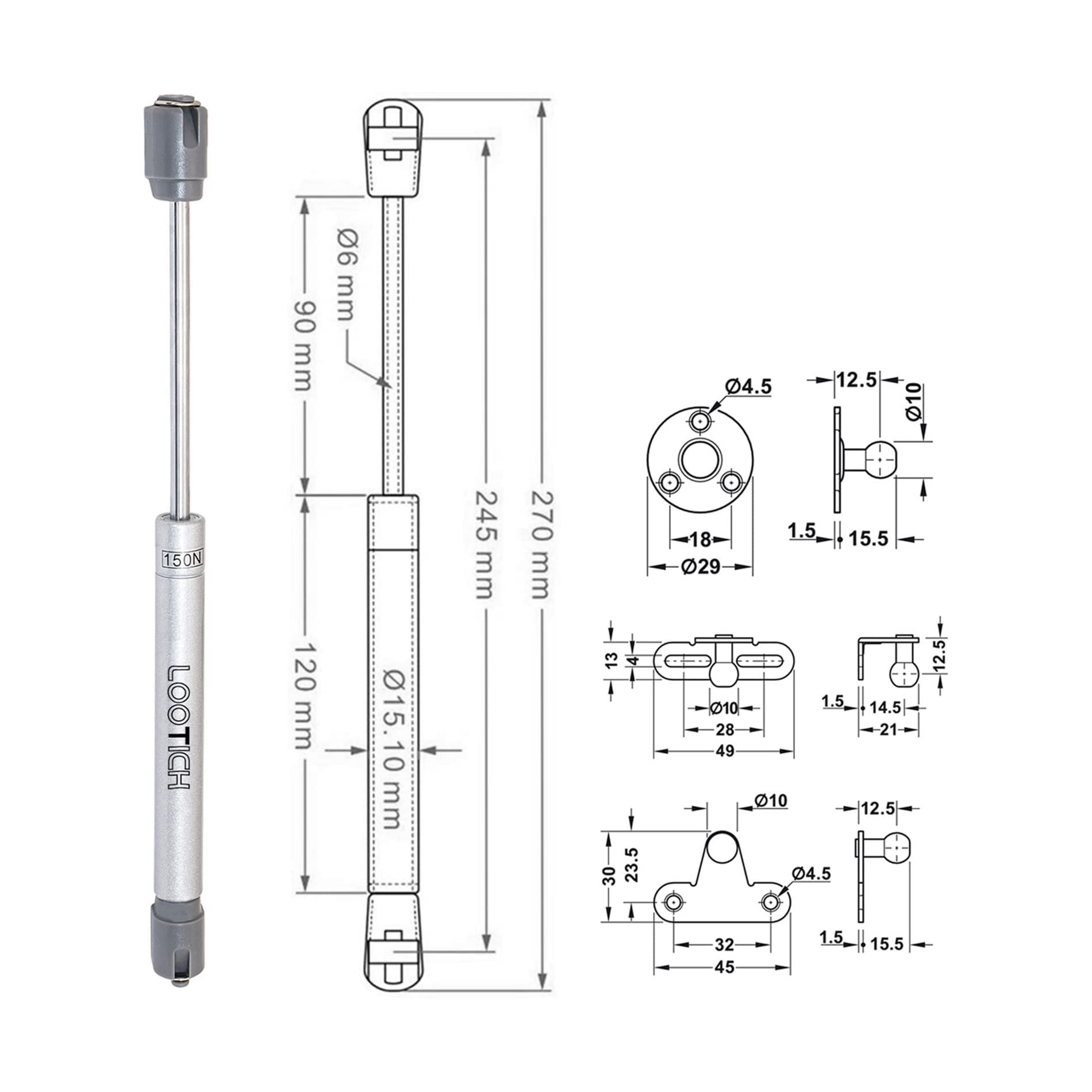

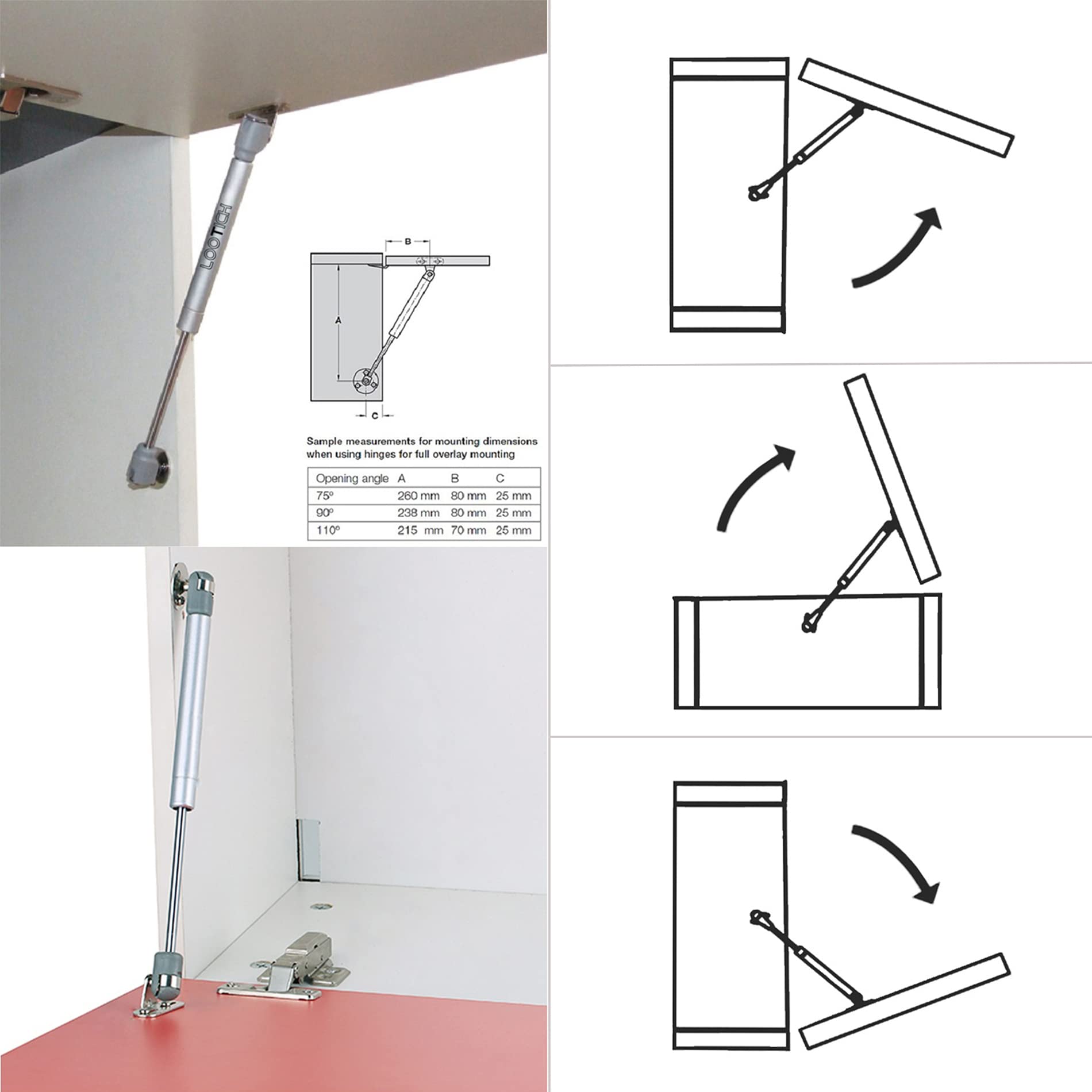

Simple tips for you to choose the right force of gas piston Please measure the weight of your cabinet door first and then see the loading capability as blow. 60N=6kg, 80N=8kg, 100N=10kg, 120N=12kg, 150N=15kg, 200N=20kg, 250N=25kg (The load bearing capacity double when using 2 gas pistons. E.g. 2 pieces of 100N = 20kg) Product Features >This Lid/Flap support can be used for toy box, cabinet door, piano frame, container, bed etc. >Soft opening system offers an automatic opening effect as you lift, and locks in place when stopped >These gas struts pistons are the best way to operate your overhead cabinets allowing you the best access into the cabinet Product Details >LOOTICH Automatic Opening Lid Stay (Flap Lift) >Spring Force Model: 60 N (6kgf) (13.5lbf) >Dimension: 260 x 15 x 15 mm >Opening angles: 75, 90 or 110 degree (according to the installing position) >Installation: Clip-mounting on pre-mounted screw fixing brackets, no tools required >Application: Suitable for wooden and aluminium frame doors (choice of brackets supplied) >Material: Steel, Plastic >Finish: (Body: Polished chrome plated; Brackets: Nickel plated) >Colour: Silver colour painted Package Contents >Gas struts: Pack of 4 >Each lid stay with 3 different brackets, installation instructions, and mounting screws Important Note The Sample Measurements Table (in the photo) applies to ONE gas-filled lid stay. The load bearing capacity double when using 2 gas-filled lid stays. It is recommended to use 2 gas filled lid stays for parallel and synchronized opening action of large lids
