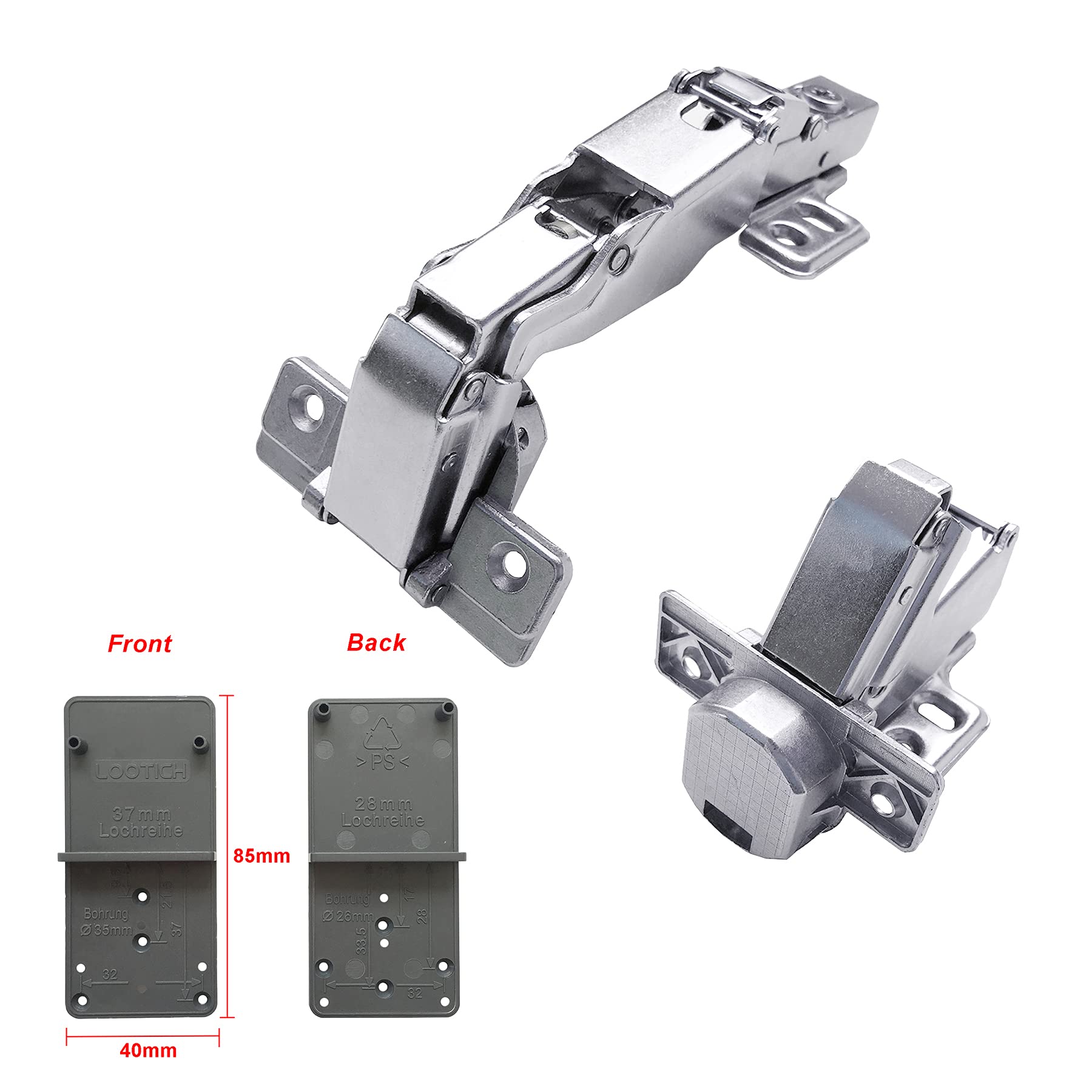

LOOTICH 165 Degree Full Overlay 35mm Hinges with Hydraulic Damper for Kitchen Cabinet Cupboard Wardrobe Door Metal Soft Close Hinge with Cushioning and Buffering Pack of 2

• Soft Close: High quality damper which can make the door open softly and close for a smooth silent motion
• With integrated shock absorber; Clip-on mounting option; Full Overlay Application
• For door thickness 16 - 25 mm; Cup diameter Ø 35mm (standard size); Cup depth 11.5 mm
• These hinges are essential for constructing cabinets or replacement solution for the worn out hinges; With LOOTICH drilling Jig for all standard concealed Ø26 and Ø35mm hinges
• Applicable: panel furniture cabinet, wardrobe, TV cabinet, shoe cabinet, cupboard, closet, and other furniture

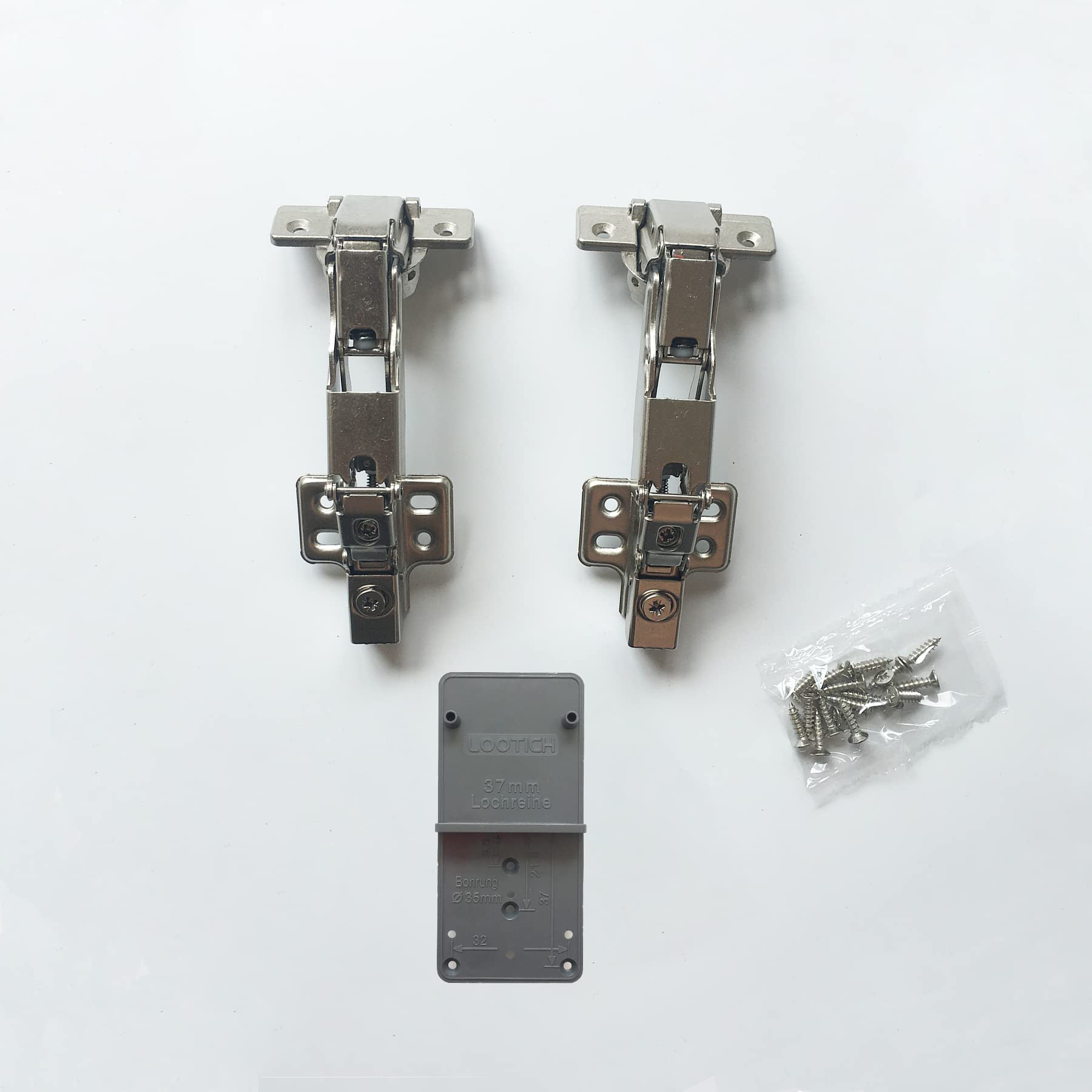

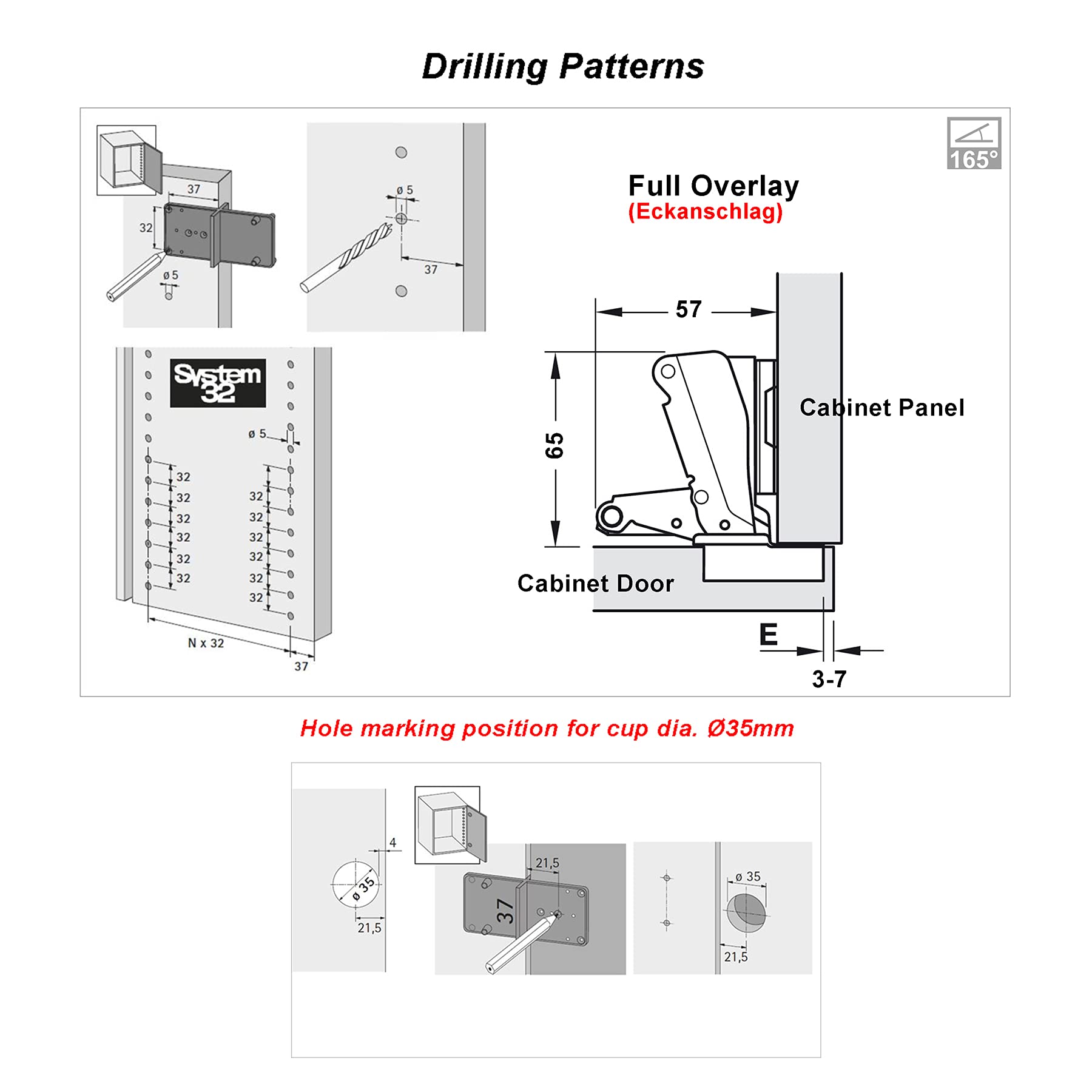

>With this LOOTICH marking-off template, a hole line inside of the cabinet or the drill holes for a mounting plate (at a distance of 32mm) can be marked in the easiest way. Product Details >Type: LOOTICH Full overlay mounting, SOFT CLOSE hinge >Opening angle: 165 - 170 degree >Drilling cup diameter: Ø35mm >Drilling Depth Hinge cup min.: 11.5 mm >Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) >For side panel thickness: 16 mm (min) - 18 mm (max) >For door thickness: 16 mm (min) - 25 mm (max) >Hinge Cranking: 0 mm >Cup mounting: For screw fixing >Material: Zinc Alloy >Finish: Nickel plated pressed steel cup and arm >Door mounting option: Full Overlay >Cover cap for carcass: No >Adjustment: Side adjustment -4mm to +1mm, Height adjustment ±1 mm, Depth adjustment -0.5mm to +2mm Package Contents >Cabinet hinges: Pack of 2 >with mounting screws >Drilling jig: 1 piece Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
