LOOTICH 135 Degree Special Folding Corner Concealed Hinge for Kitchen Cabinet Cupboard Wardrobe Combination Angle Doors Pack of 4 Silver

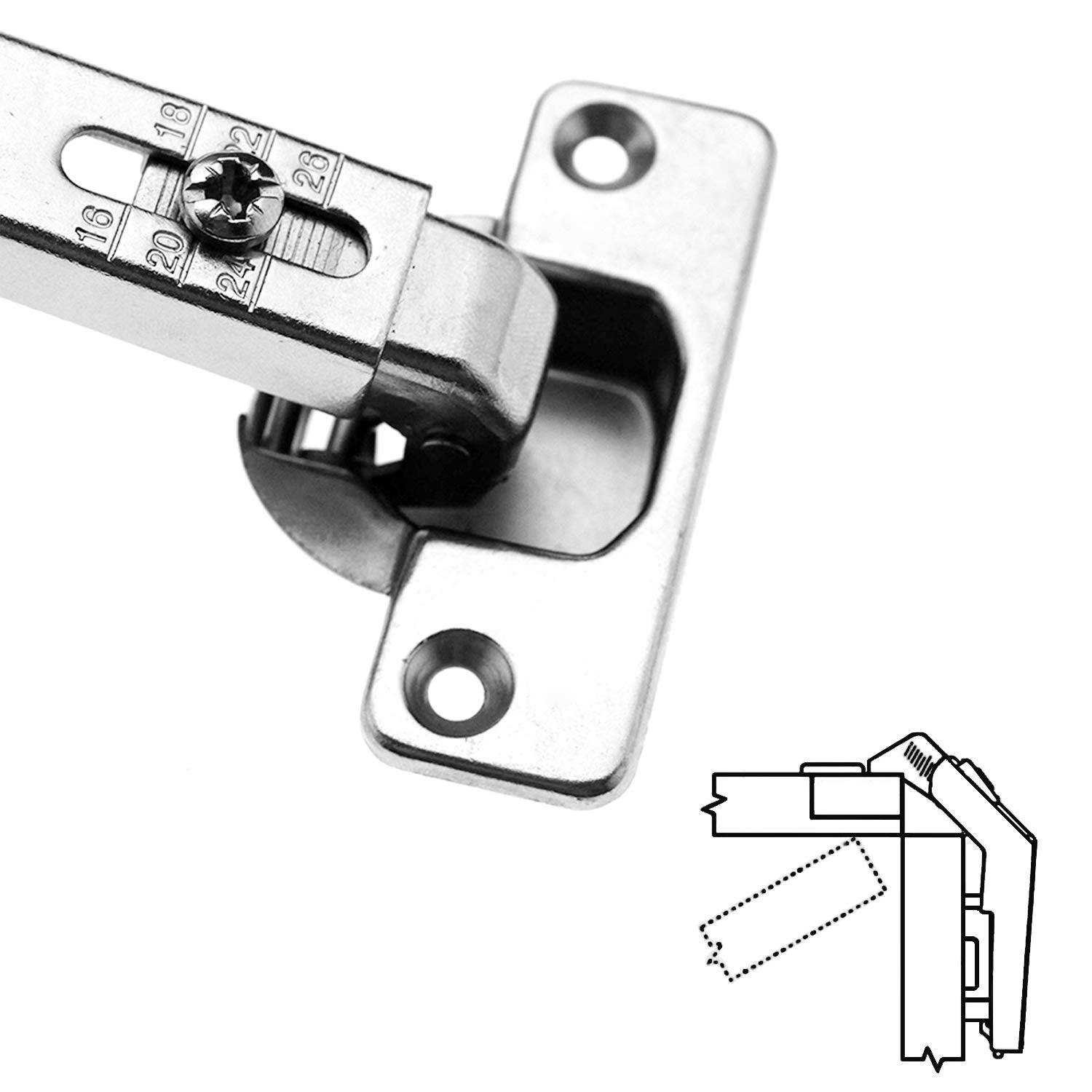

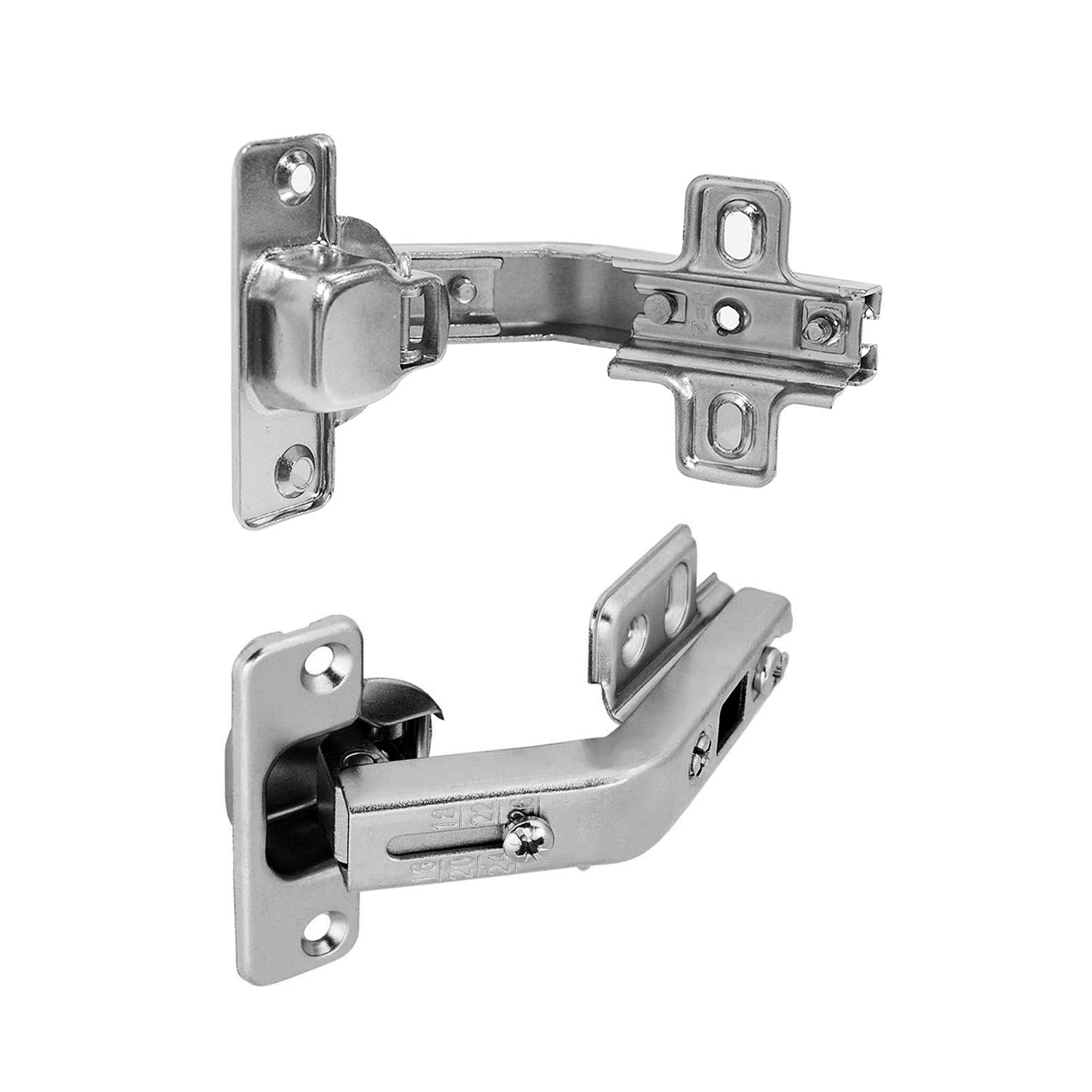

• 135 degree opening angular hinge especially for corner folding cabinet door
• Made of steel and zinc alloy; Sturdy and durable construction; Nickel plated
• For door thickness 14-22 mm; Cup diameter Ø 35mm (standard size); Cup depth 11.3 mm
• Application: furniture panel, wardrobe, TV cabinet, shoe cabinet, cupboard, closet, and other furniture

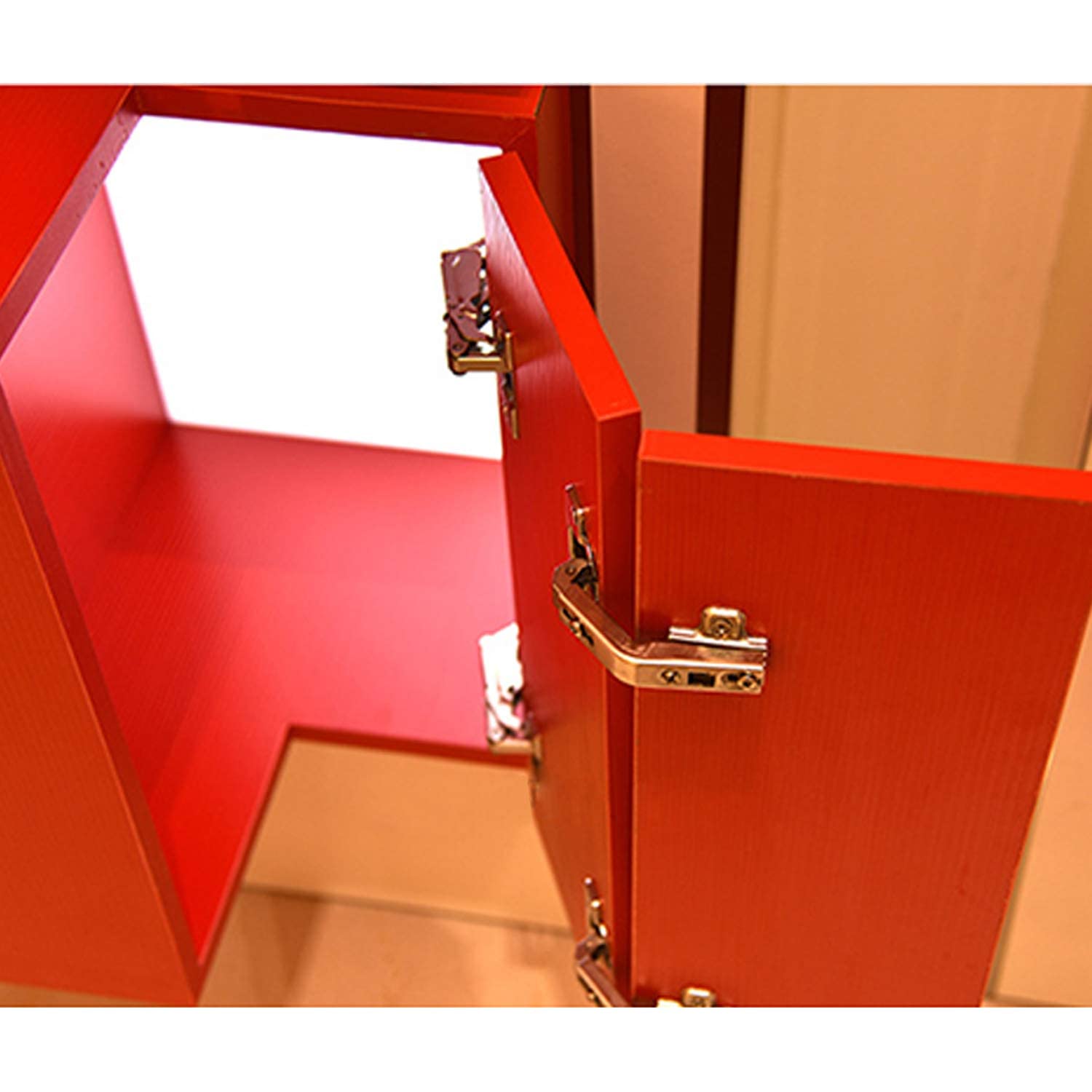

• This hinge should be used with LOOTICH 165° hinge with hydraulic damper for combined cupboard angle door

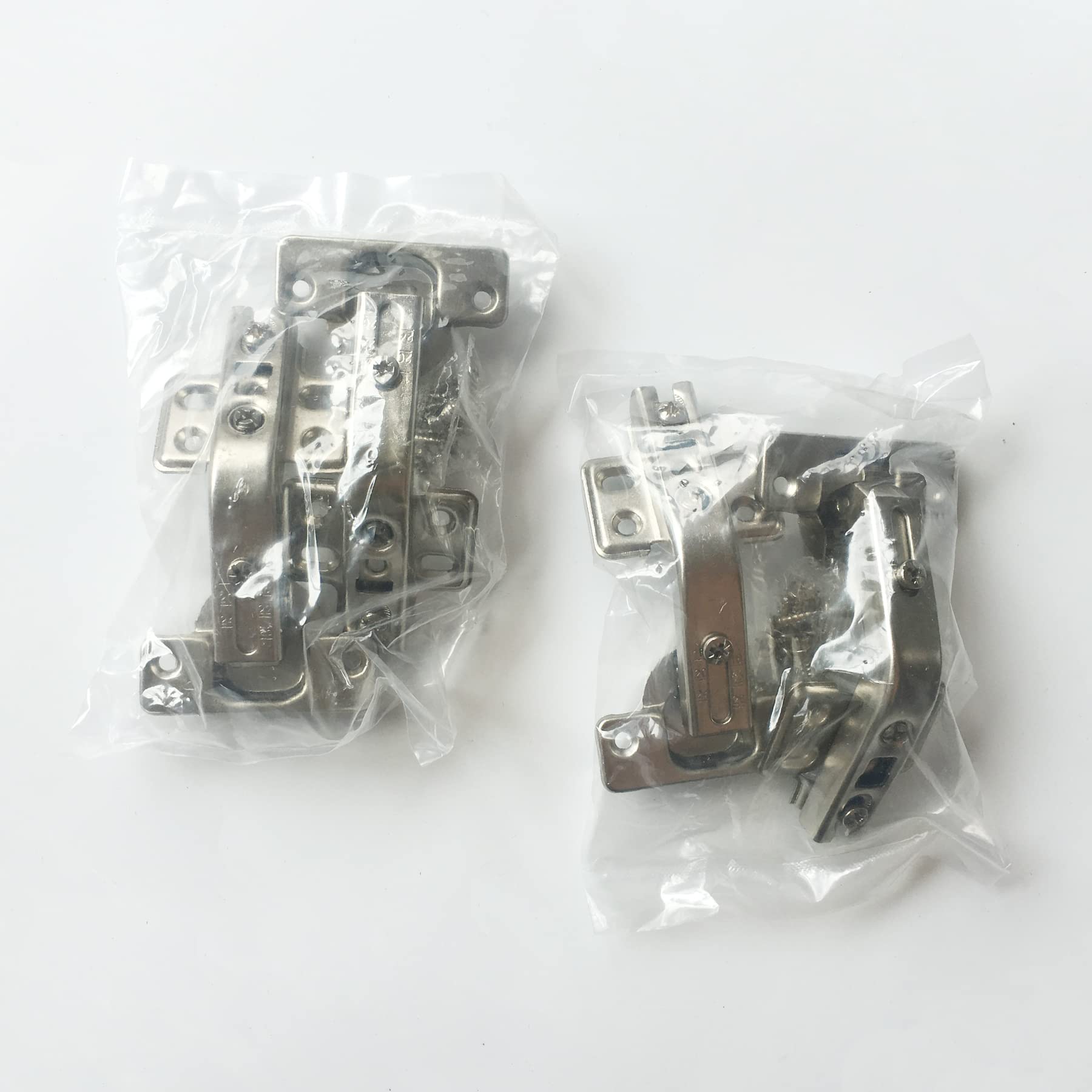

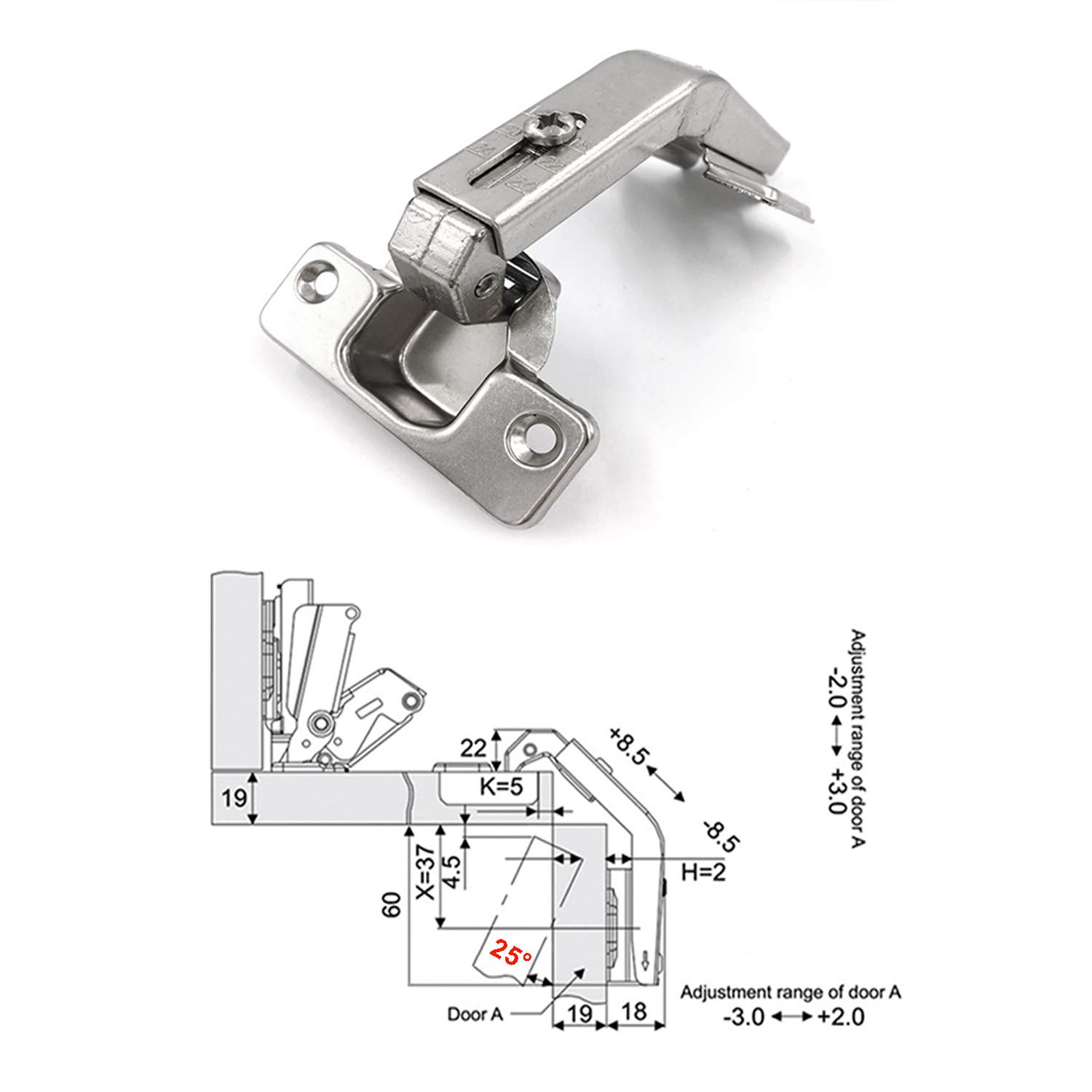

Product Details >Opening angle: 135 degree >Drilling cup diameter: Ø 35mm >Drilling Depth Hinge cup min.: 11.5mm >Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) >For door thickness: 14 mm (min) - 22 mm (max) >Cup mounting: For screw fixing >Material: Zinc alloy and Steel >Finish: Nickel plated pressed steel cup and arm >Cover cap for carcass: No Package Contents >135-degree hinges: Pack of 4 >with mounting screws Important >This hinge is not suitable for big and heavy doors. It may not work well for door over 25lbs (12kg) due to the length of screws and structure of this hinge.
