LOOTICH 135 Corner Hinge and 165 Degree Full Overlay Soft Close Hinge with Hydraulic Damper for Kitchen Cabinet Cupboard Wardrobe Combined Angular Folding Doors Pack of 4

• Soft Close: High quality damper which can make the door open softly and close for a smooth silent motion

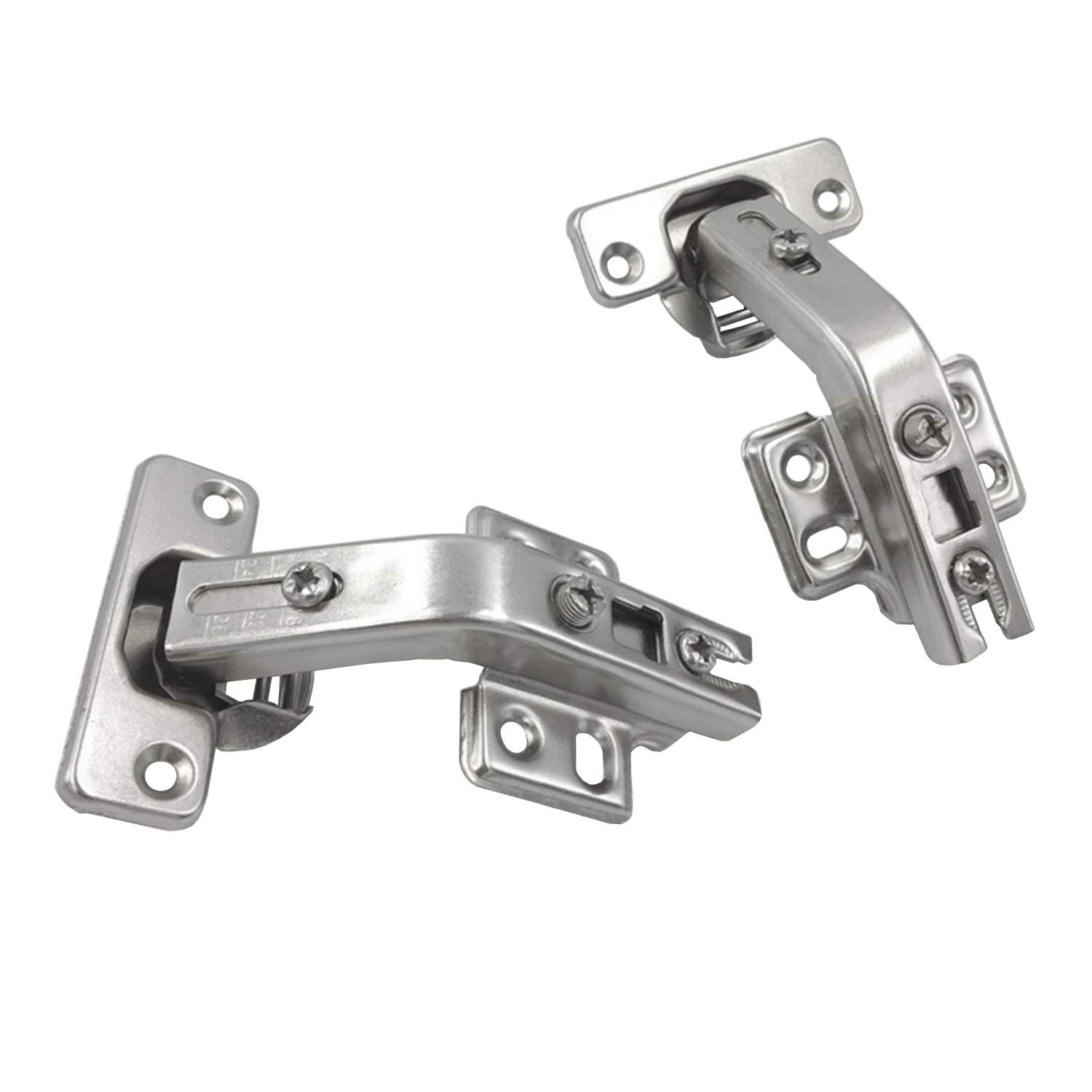

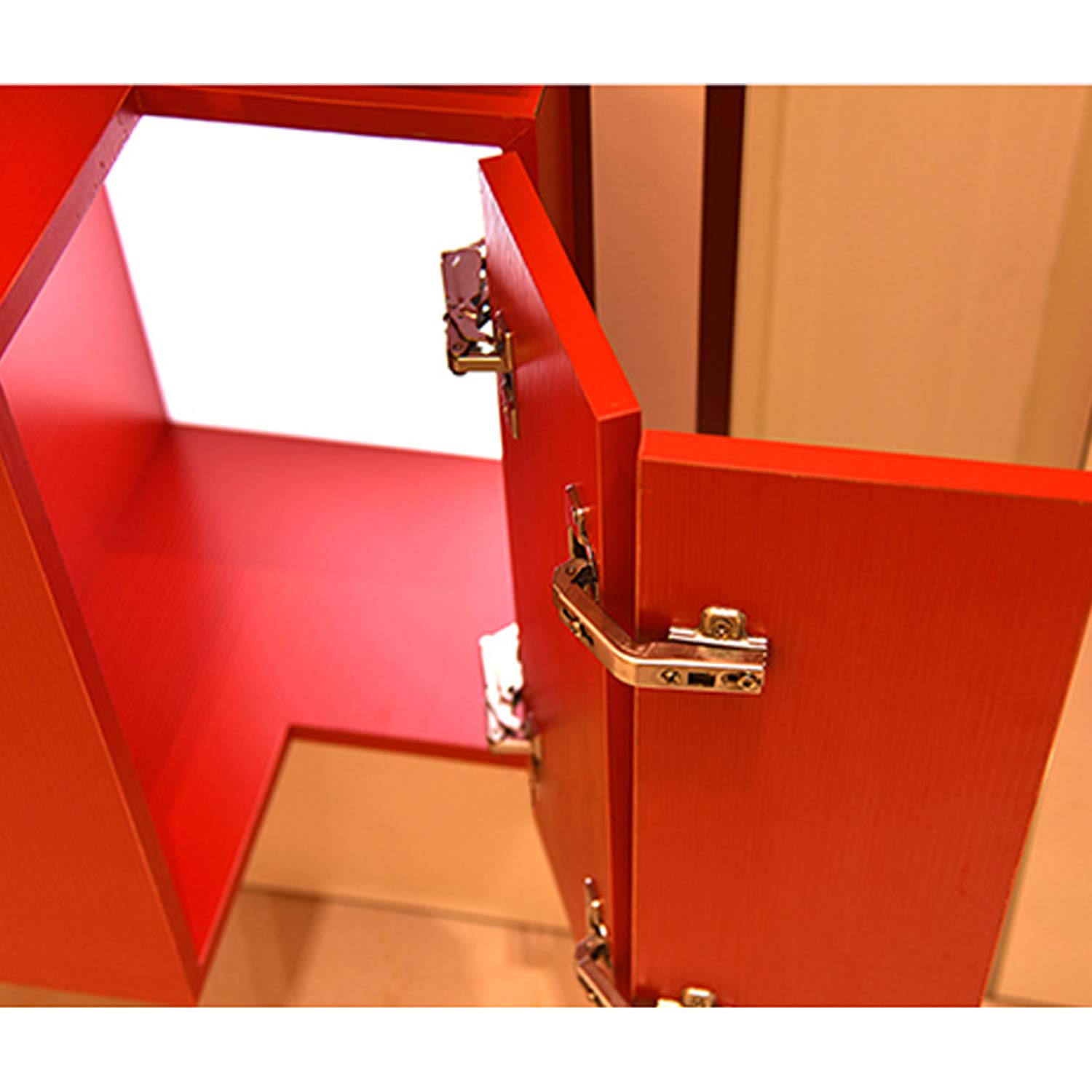

• 135-degree opening angle hinge especially for corner folding cabinet door
• With integrated shock absorber; Clip-on mounting option: Full Overlay Application
• For door thickness 16 -25 mm; Cup diameter Ø 35mm (standard size); Cup depth 11.5 mm
• Applicable: furniture panel, wardrobe, TV cabinet, shoe cabinet, cupboard, closet, and other furniture

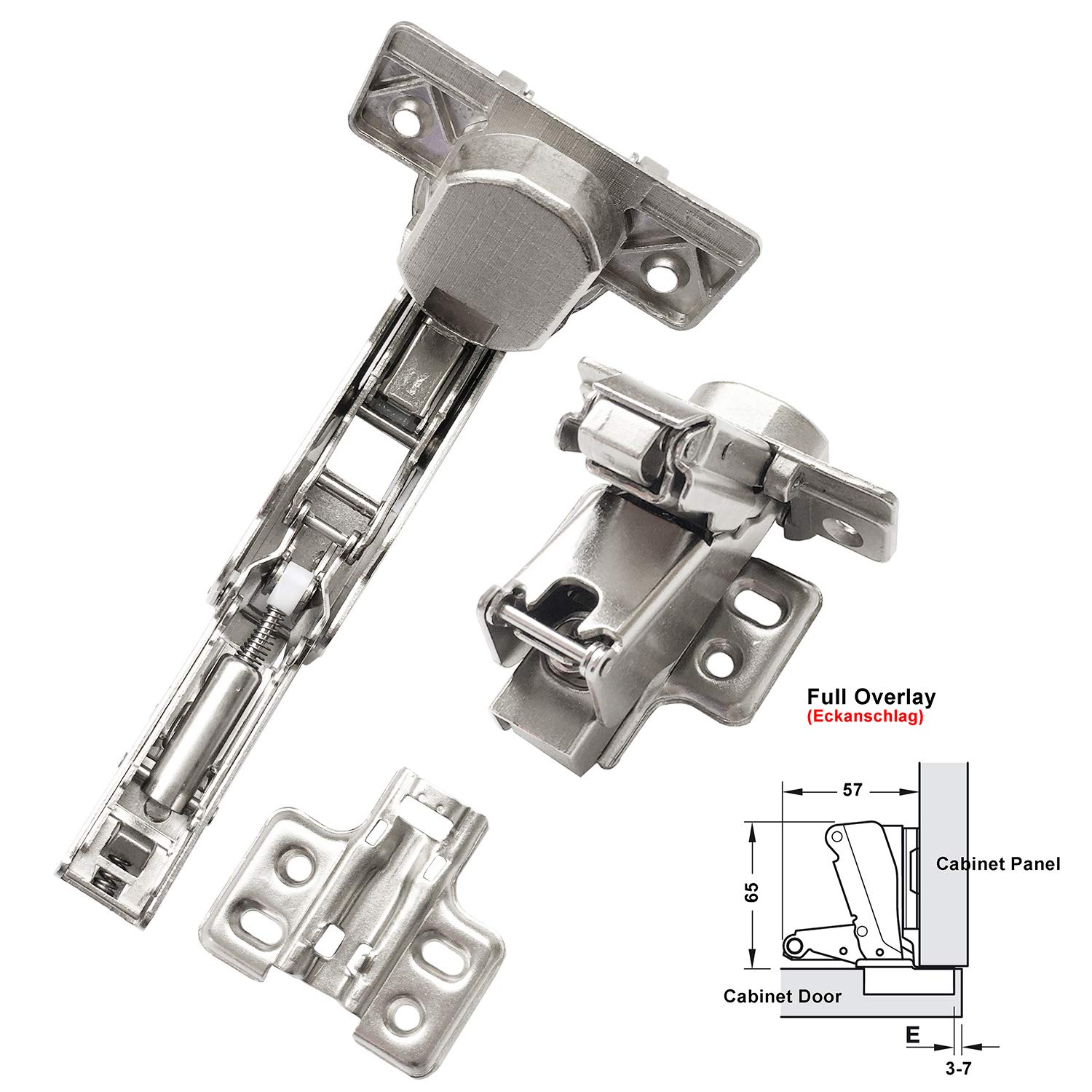

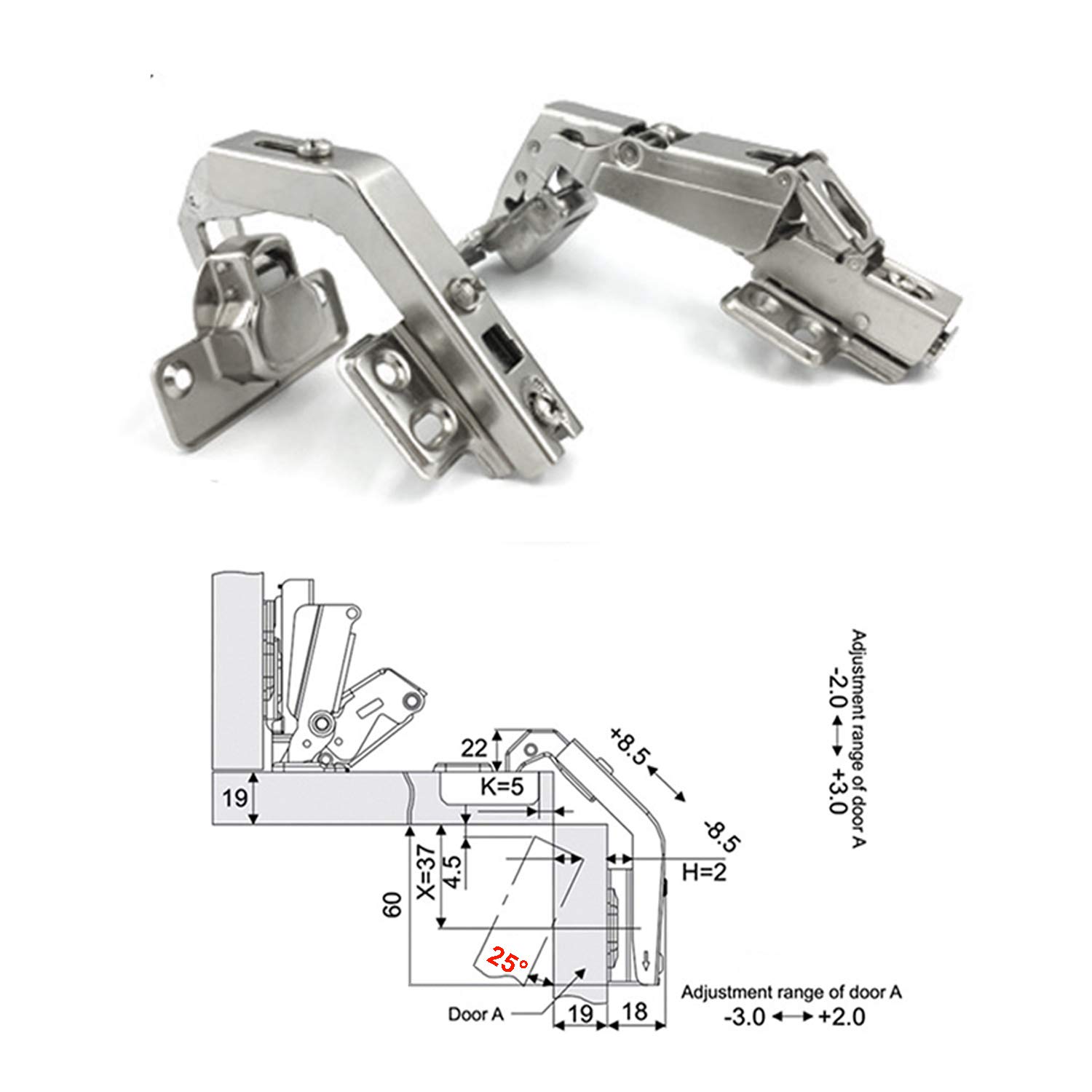

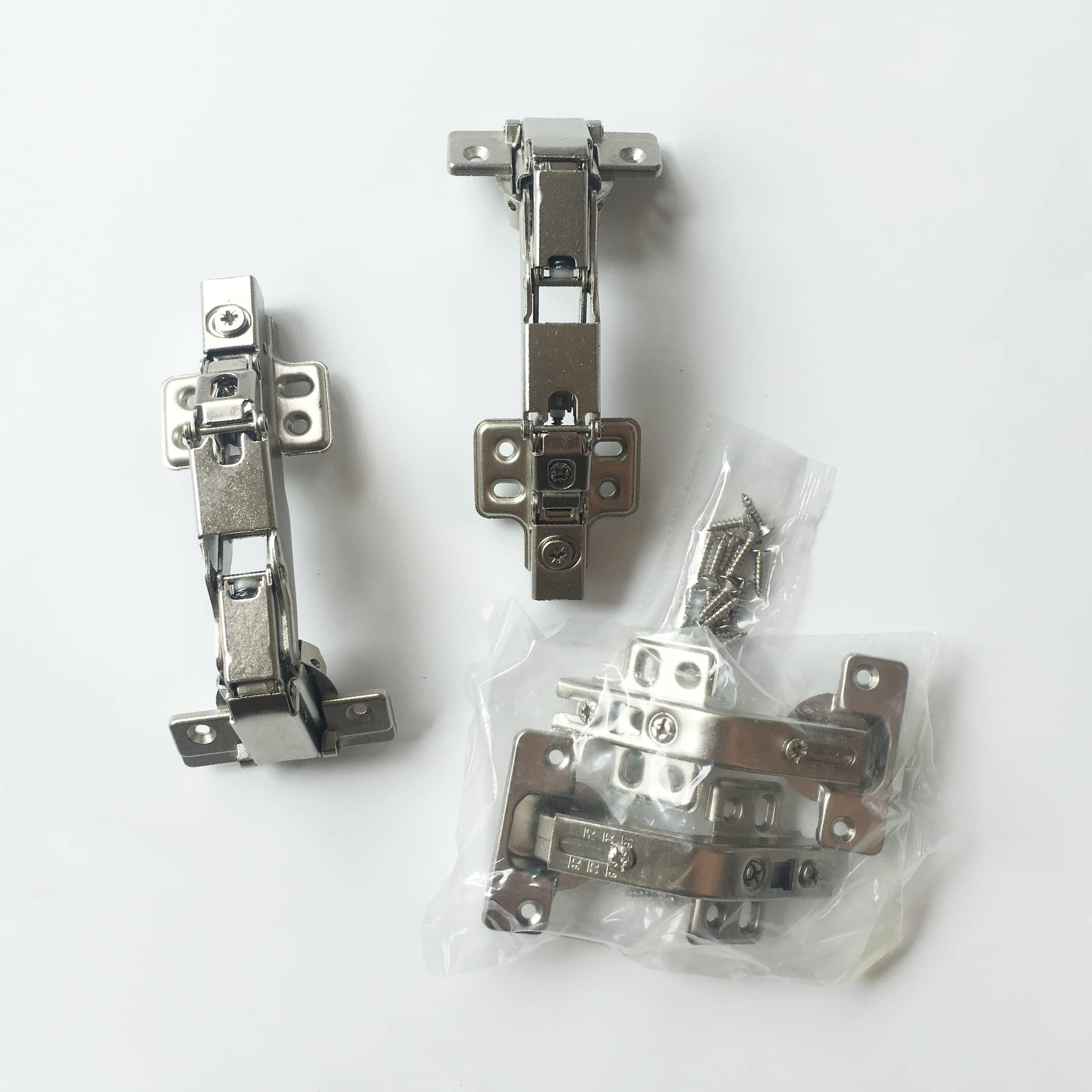

Product Details >Type: LOOTICH Full Overlay mounting, SOFT CLOSE 165-degree hinge combined with 135-degree corner hinge >Opening angle: 165 degree / 135 degree >Drilling cup diameter: Ø35mm >Drilling Depth Hinge cup min.: 11.5 mm >Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) >For side panel thickness: 16mm (min.) - 18mm (max.) >For door thickness: 16 mm (min) - 25 mm (max) >Cup mounting: For screw fixing >Material: Zinc alloy and steel >Finish: Nickel plated pressed steel cup and arm >Door mounting option: Full Overlay / Corner Stop >Cover cap for carcass: No >Adjustment: Side adjustment -4mm to +1mm, Height adjustment ±1mm, Depth adjustment -0.5mm to +2mm Package Contents >165-degree hinges: 2 pieces >135-degree hinges: 2 pieces >with mounting screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
