LOOTICH 110 Deg Kitchen Units Concealed Cabinet Door Mute Hinges 35mm Soft Close Half Overlay Mounting 8 Piece (Include Drilling Jig)

• Material: soft close concealed hinges are made of high-quality sturdy steel
• Easy installation: Half overlay door installation. We offer drill jig for drill positioning for all standard concealed Ø 26mm and Ø 35mm hinges
• Our drilling jig can enable the door drill and installation become more correctly and easily
• Widely Use: Suitable for most of furniture doors, such as kitchen cabinets, bathroom cabinets, mirror cabinets, bedroom wardrobes, shoe cabinets, sideboards, and so on

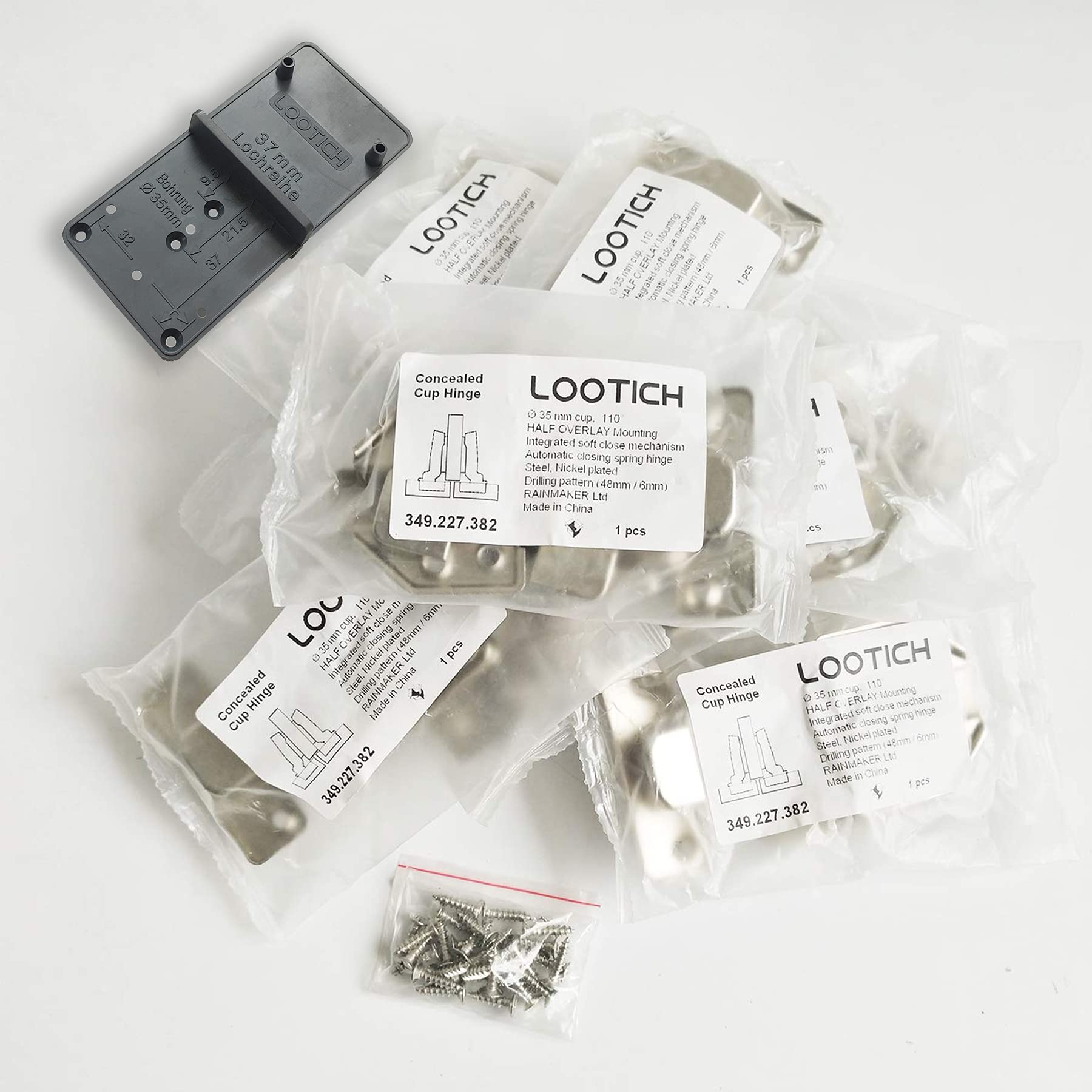

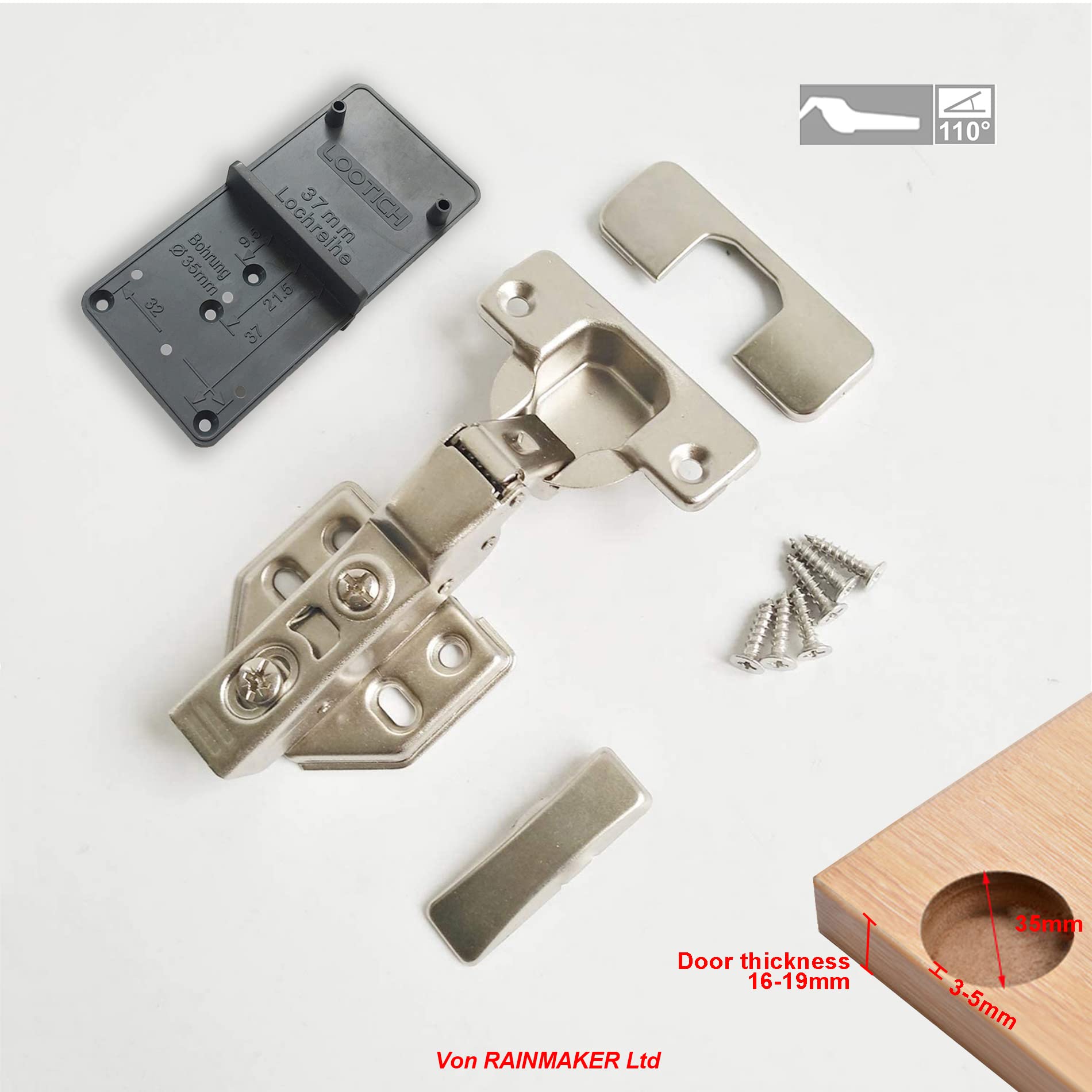

• Package: 8 hinges with fixing screws and 1 drilling template

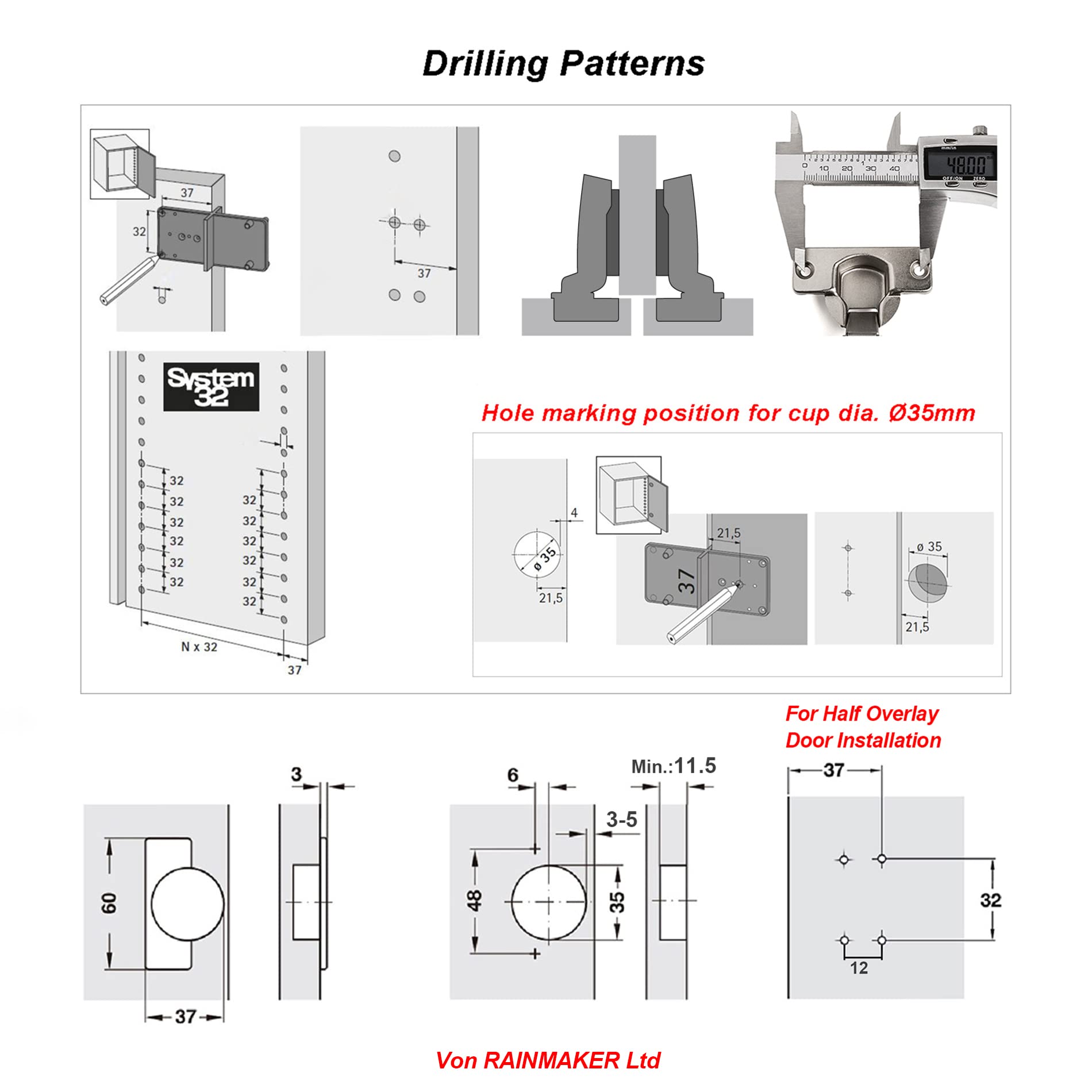

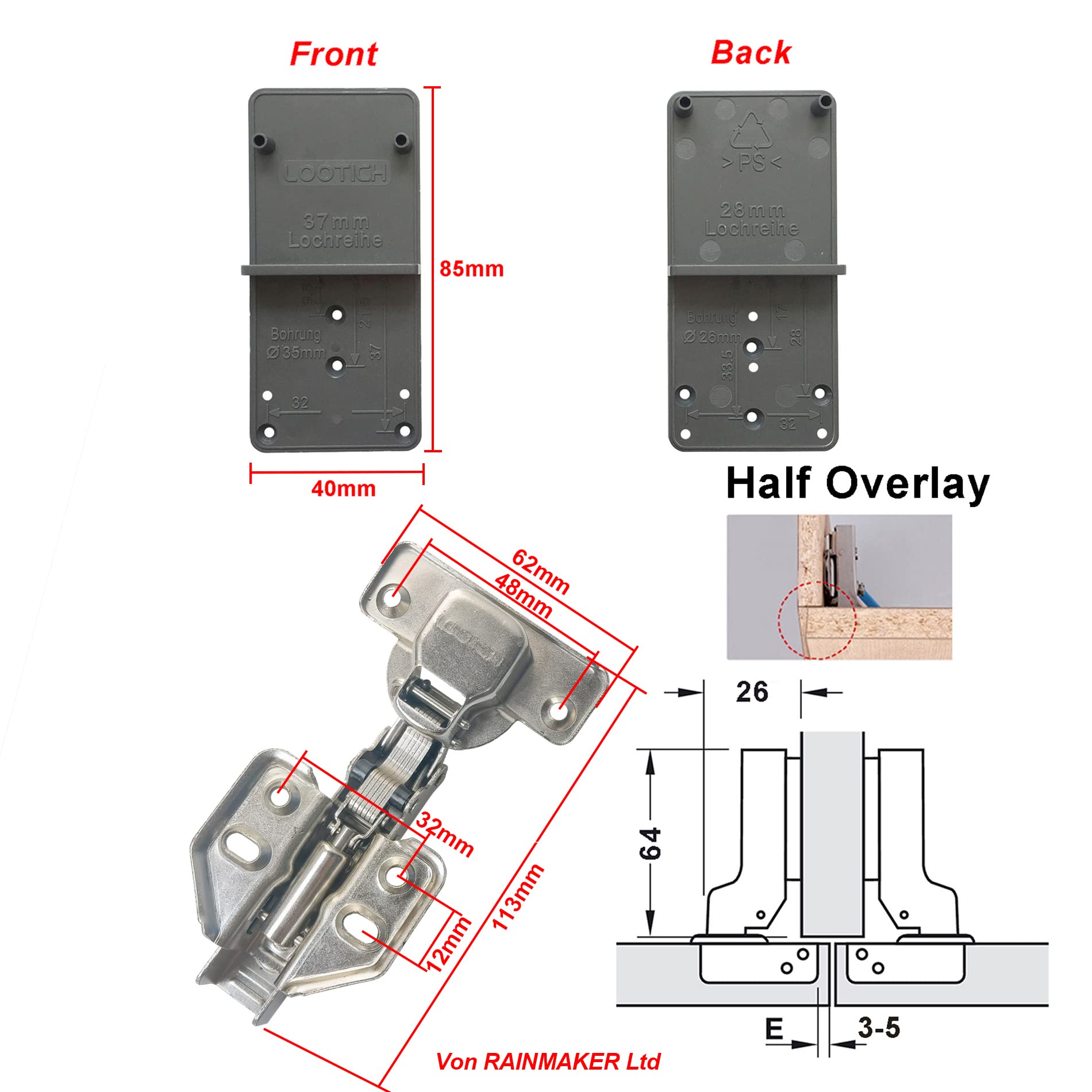

Specifications Hinge are used for side panel thickness from 16mm to 19mm and for door thickness from 16mm to 19mm, Hinge cup dia. is 35mm, Cup depth is about 11.5mm Opening angle is 110 degrees Drilling pattern: 48mm / 6mm Hinge cranking: 7mm Device adjustment: Side adjustment ± 2.0 mm, Height adjustment ± 2.2 mm, Depth adjustment -1mm to + 2mm Package included >Hinges are in pack of 8 pieces >with countersunk fixing screws >Drilling jig: 1 piece Product Features Name: cupboard half overlay door hinge, soft closing hinge The hinge arm and mounting plate are integral and non-detachable Material: Steel Surface treatment: Nickel plated Door installation: Half Overlay Provide cover cap for carcass and cup With the help of our LOOTICH marking-off template, a hole line inside of the cabinet or the drill holes for a mounting plate (at a distance of 32mm) can be marked in the easiest way.
