LOOTICH 110 Degree Full Overlay 35mm Soft Close Hinge with Hydraulic Damper for Kitchen Cabinet Cupboard Wardrobe Door Hinges with Drilling Template European Type Pack of 2

• Quick Clip on installation and integrated soft close damper, Full Overlay application
• Heavy and sturdy steel concealed cup hinge with 3D adjustment mounting plate
• For door thickness 16-19mm; Cup diameter Ø 35mm (standard size); Cup depth 11.5 mm
• With LOOTICH drilling Jig for all standard concealed Ø26 and Ø35mm hinges; Quick release mechanism, for easy removal of doors at the press of a button
• These silent hinges are an essential for constructing cabinets or replacement solution for the old ones

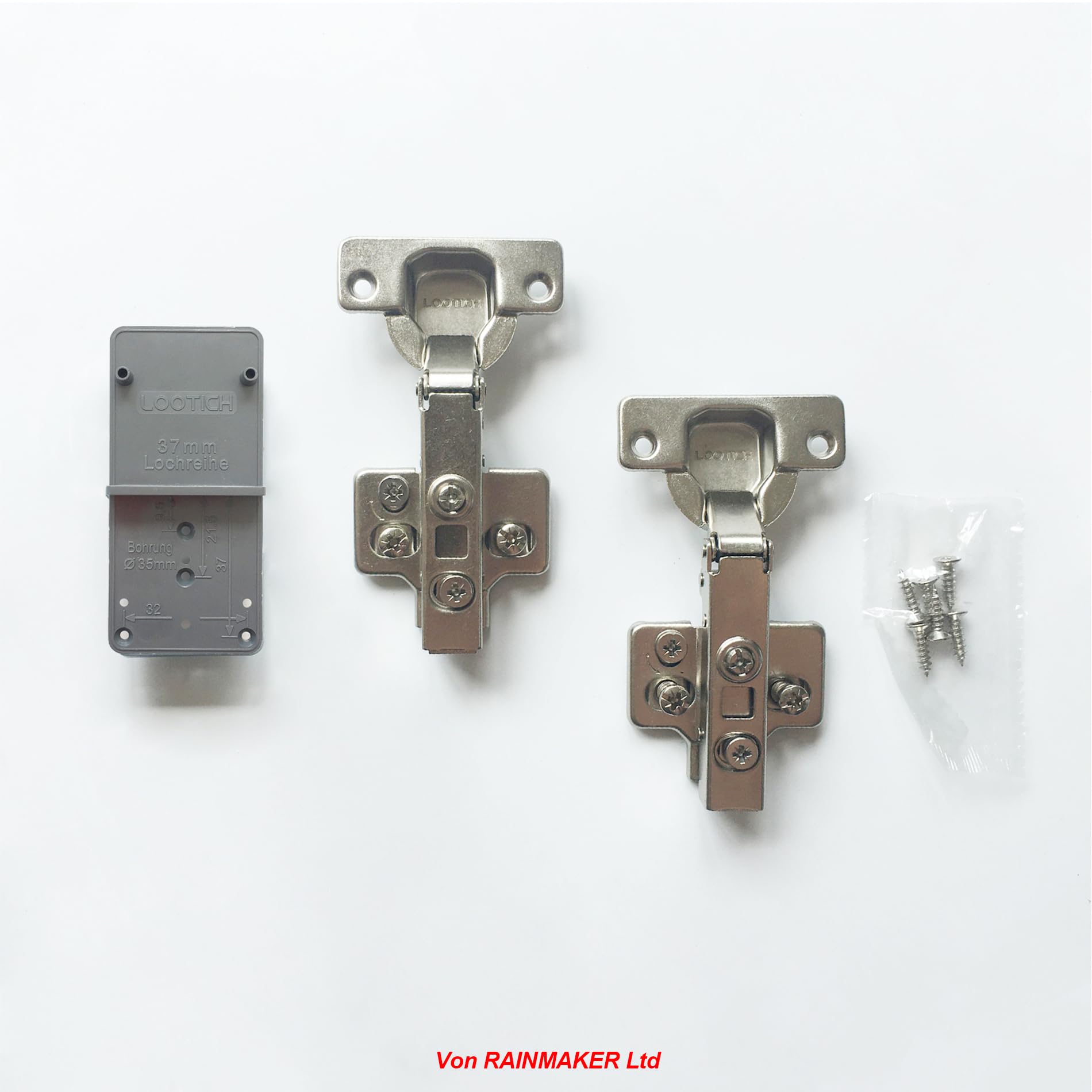

Product Details >Type: LOOTICH Full overlay mounting, Automatic soft closing hinges for European type >With automatic soft closing (damper) >Opening angle: 110 degree >Drilling cup diameter: Ø 35mm (standard size) >Drilling Depth Hinge cup min.: 11.5 mm >Drilling dimensions for cup fixing : Drilling pattern (48mm / 6.5mm) >For side panel thickness:16mm (min.) - 19mm (max.) >For door thickness: 16mm (min.) - 19mm (max.) >Hinge Cranking: 0 mm >Material: Stainless Steel >Finish: Nickel plated pressed steel cup and arm >Door mounting option: Full Overlay/ Corner stop >Cover cap for carcass: No >Adjustment: Side adjustment ± 2.5 mm, Height adjustment ± 2 mm, Depth adjustment -2 mm to +2 mm >With this LOOTICH marking-off template, a hole line inside of the cabinet or the drill holes for a mounting plate (at a distance of 32mm) can be marked in the easiest way. Mounting Plate >3-dimensional adjustment of the cabinet doors in depth, width, and height >with pre-mounted special screws >Screw spacing: 32mm Package Contents >hinges: Pack of 2 >with cross mounting plate and screws >Drilling jig: 1 piece Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
