LOOTICH 110 Deg Kitchen Units Concealed Cabinet Door Mute Hinges 35mm Soft Close Inset and Embed Mounting 2 Piece (Include Drilling Jig)

• Material: soft close concealed hinges are made of high-quality sturdy steel
• Easy installation: Embed or Inset door installation. We offer drill jig for drill positioning for all standard concealed Ø 26mm and Ø 35mm hinges
• Our drilling jig can enable the door drill and installation become more correctly and easily
• Widely Use: Suitable for most of furniture doors, such as kitchen cabinets, bathroom cabinets, mirror cabinets, bedroom wardrobes, shoe cabinets, sideboards, and so on

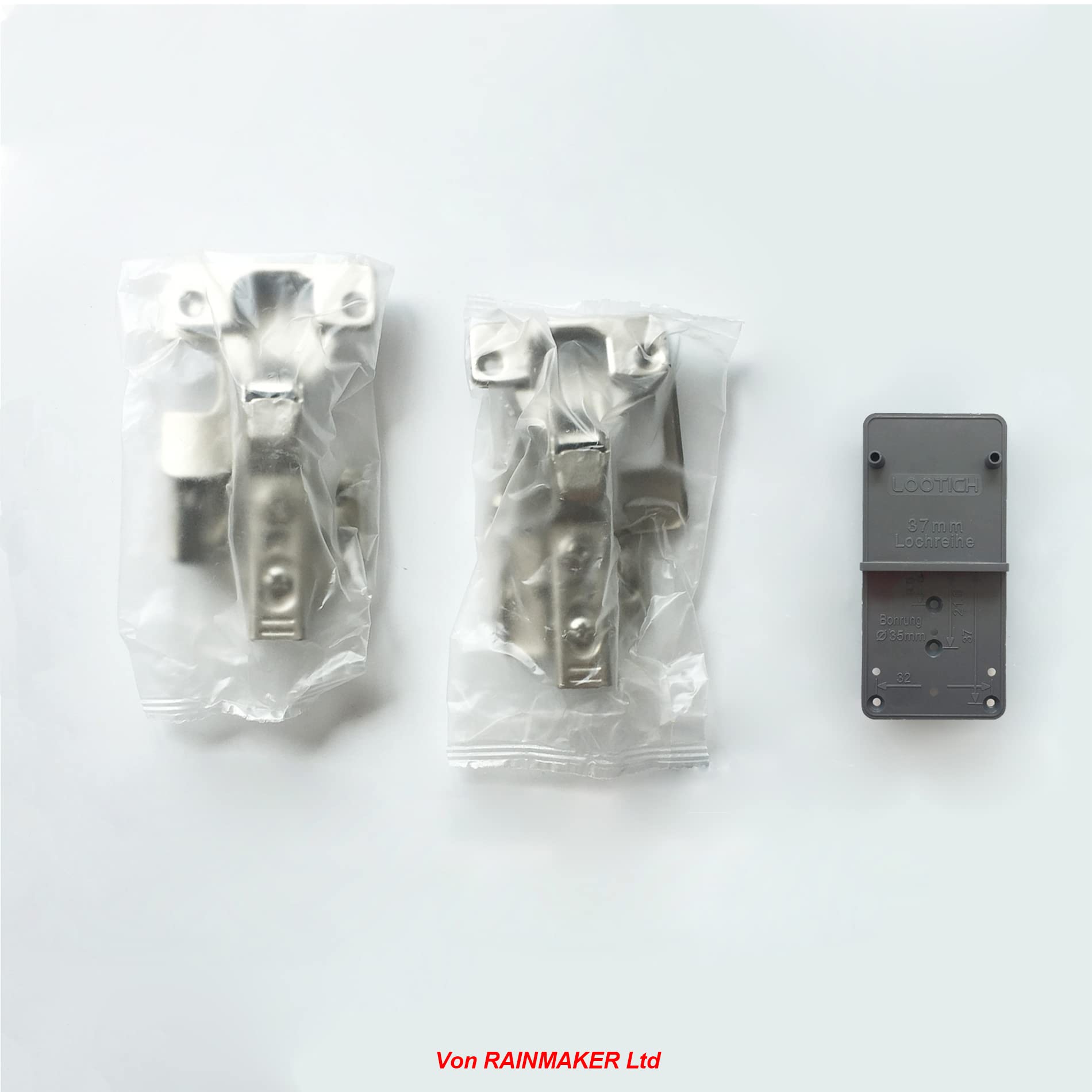

• Package: 2 hinges with fixing screws and 1 drilling template

Specifications Hinge are used for door thickness from 16 to 19mm; Hinge cup dia. is 35mm, Cup depth is about 11.5mm Opening angle is 110 degrees Drilling pattern: 48mm / 6mm Hinge cranking: 15mm Device adjustment: Side adjustment ± 2.0 mm, Height adjustment ± 2.2 mm, Depth adjustment -1mm to + 2mm Package included >Hinges are in pack of 2 pieces >with countersunk fixing screws >Drilling jig: 1 piece Product Features Name: cupboard inset / embed door hinge, soft closing hinge The hinge arm and mounting plate are integral and non-detachable Material: Steel Surface treatment: Nickel plated Door installation: Inset / Embed Provide cover cap for carcass and cup With the help of our LOOTICH marking-off template, a hole line inside of the cabinet or the drill holes for a mounting plate (at a distance of 32mm) can be marked in the easiest way.
