LOOTICH 105 Degree Fixed-On Inset Hinges for Kitchen Cabinet Cupboard Wardrobe Door Hinge with Integrated Soft Closing Mechanism Hydraulic Hinge Buffering with Drilling Template Pack of 8

• Embed Mounting; Integrated hydraulic soft close system; Heavy and sturdy steel concealed cup hinge
• For door thickness 16-20mm; Cup diameter Ø 35 mm (standard size); Cup depth 11.5 mm
• With LOOTICH drilling Jig for all standard concealed Ø 26mm and Ø 35mm hinges
• It can be used in bedroom, kitchen, bathroom, living room and any other where have a cabinet door
• These silent hinges are an essential for constructing cabinets or replacement solution for the old ones

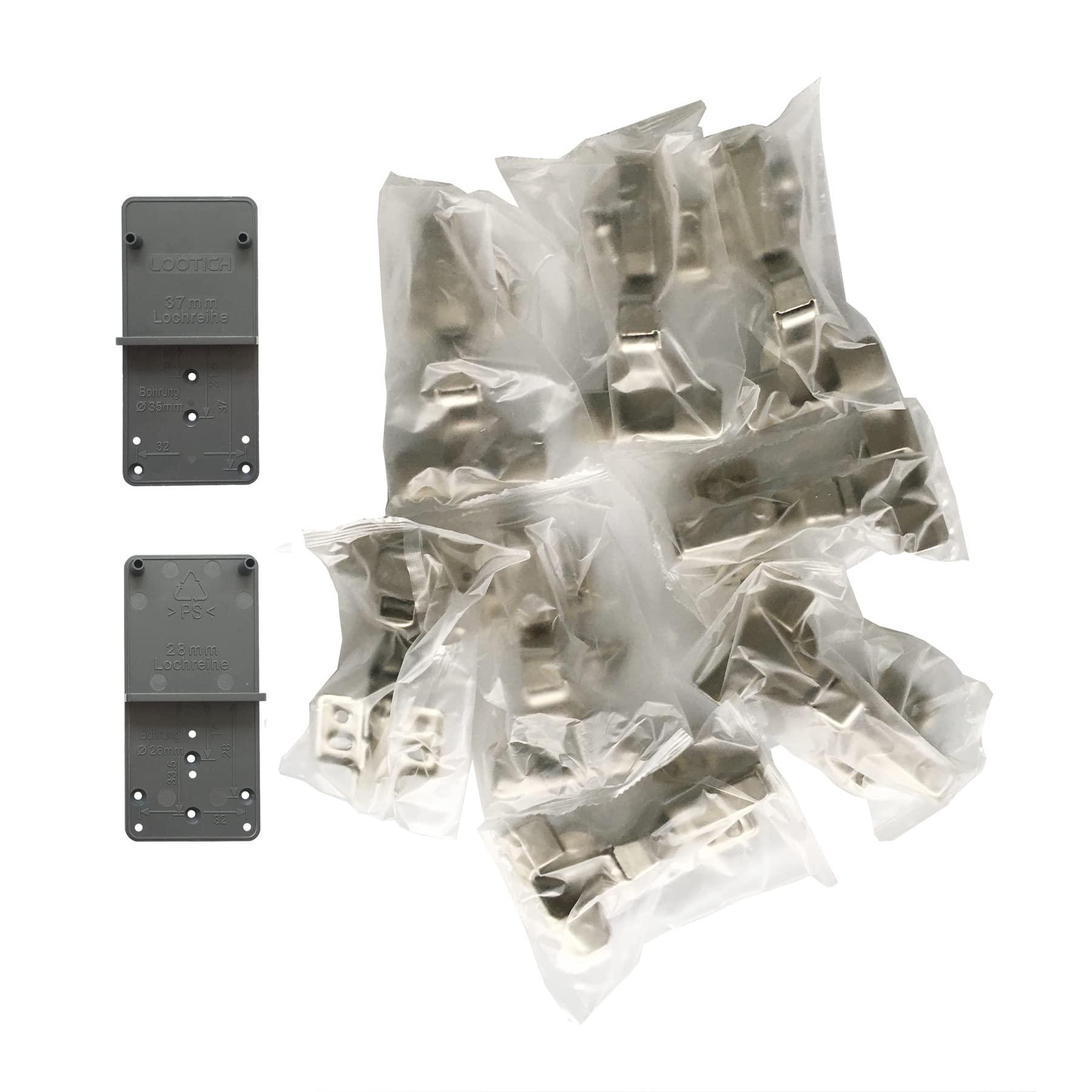

Product Details >Type: LOOTICH embed mounting, Automatic soft closing hinges >The hinge and adapter plate are integral and Non-detachable >Opening angle: 105 degree >Cup diameter: Ø 35mm >Drilling Depth Hinge cup min.: 11.5 mm >Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) >For door thickness: 16 mm (min) - 20 mm (max) >Hinge Cranking: 16 mm >Hinge base height: H=0mm >Cup mounting: For screw fixing >Material: Cold-rolled steel >Door mounting option: INSET / EMBED >Cover cap for carcass and cup: Yes >Hinge Base Detachable: NO >Adjustment: Side adjustment ± 2.5 mm, Height adjustment ± 2 mm, Depth adjustment -1 mm to + 3 mm >With this LOOTICH marking-off template, a hole line inside of the cabinet or the drill holes for a mounting plate (at a distance of 32mm) can be marked in the easiest way. Package Contents >Cabinet hinges: Pack of 8 >with countersunk fixing screws >Drilling jig: 2 pieces Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
