Lock for Recessed Interior Door AGB series PATENT GRANDE. (Fr. 18x238, In. 90, En. 50, Qu. 8., KEY SCROCCO CATENACCIO, MATT CHROME)

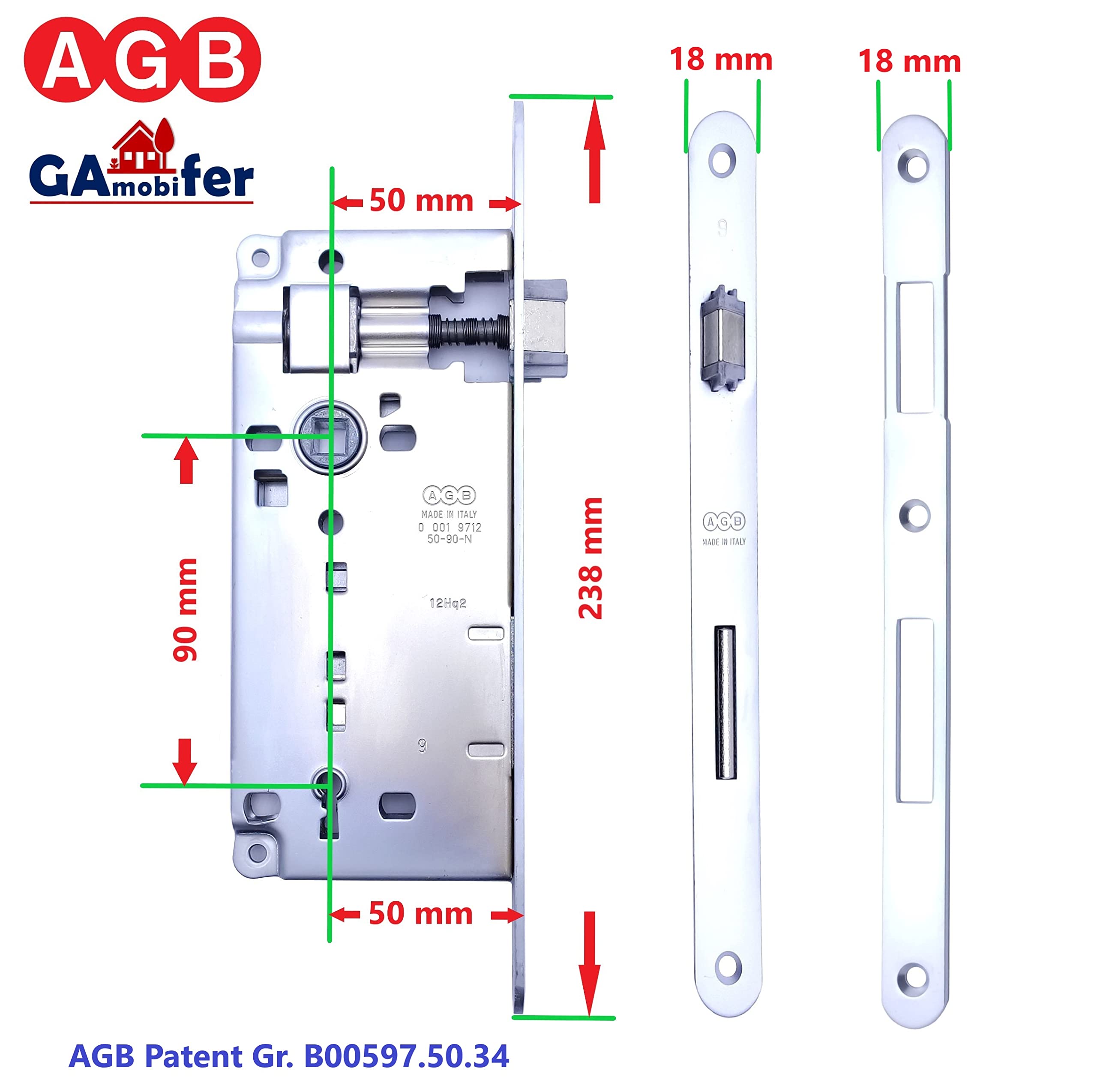

• AGB lock, Round edge. Front 18x238, Wheelbase 90, Entry 50, Picture 8.
• Recessed Lock for Internal Flush or Swing Doors. Particularly suitable for small thickness doors. Version with Key, Latch and Clasp.
• Prepare on the panel a quarry and a milled with the dimensions shown in the drawing (Photo n° 3). Secure the lock with two screws of 4.5x25 mm.
• The rounded latch on both sides to avoid shaking of the door, is reversible for right and left door. To turn the latch turn it out from the front of the lock, pushing on the rear screw and rotate (see photo n° 4).

AGB Lock Rounded Edge Front: 18 x 238 cm, Distance 90, Entrance 50, Frame 8. Includes counter plate, key and 5 locking screws for recessed or double doors. Especially suitable for small thickness leaves. Design with key, latch and latch. Attach a buttonhole and a milling cutter to the dimensions indicated in the drawing (photo no. 3) on the plate. Attach the lock with two 4.5 x 25 mm screws.
