Lock for Interior Door AGB series PATENT GRANDE Door Latch (Fr. 22x238, In. 90, En. 50, Qu. 8., KEY CATENACCIO, NICKELATE)

• AGB lock, Round edge. Front 22x238, Wheelbase 90, Entry 50, Framework 8.
• Recessed lock for internal flush or swing doors. Version with Key, Latch and Latch.

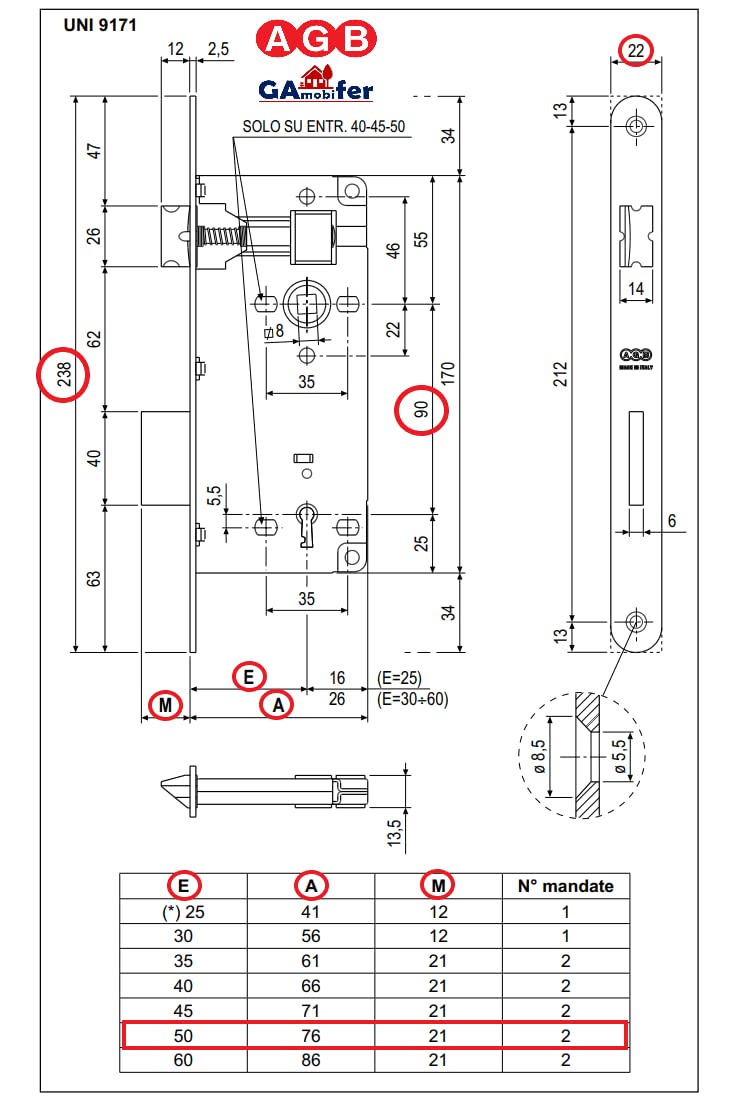

• Set on the panel a hollow and a milled with the dimensions shown in the drawing (Photo n° 3). Secure the lock with two 4.5x25 mm screws.
• The Domed latch on both sides to prevent door shaking, is Reversible for right and left doors. To turn the latch pull it out of the front of the lock, pushing on the rear screw, and rotate (See photo n° 4).

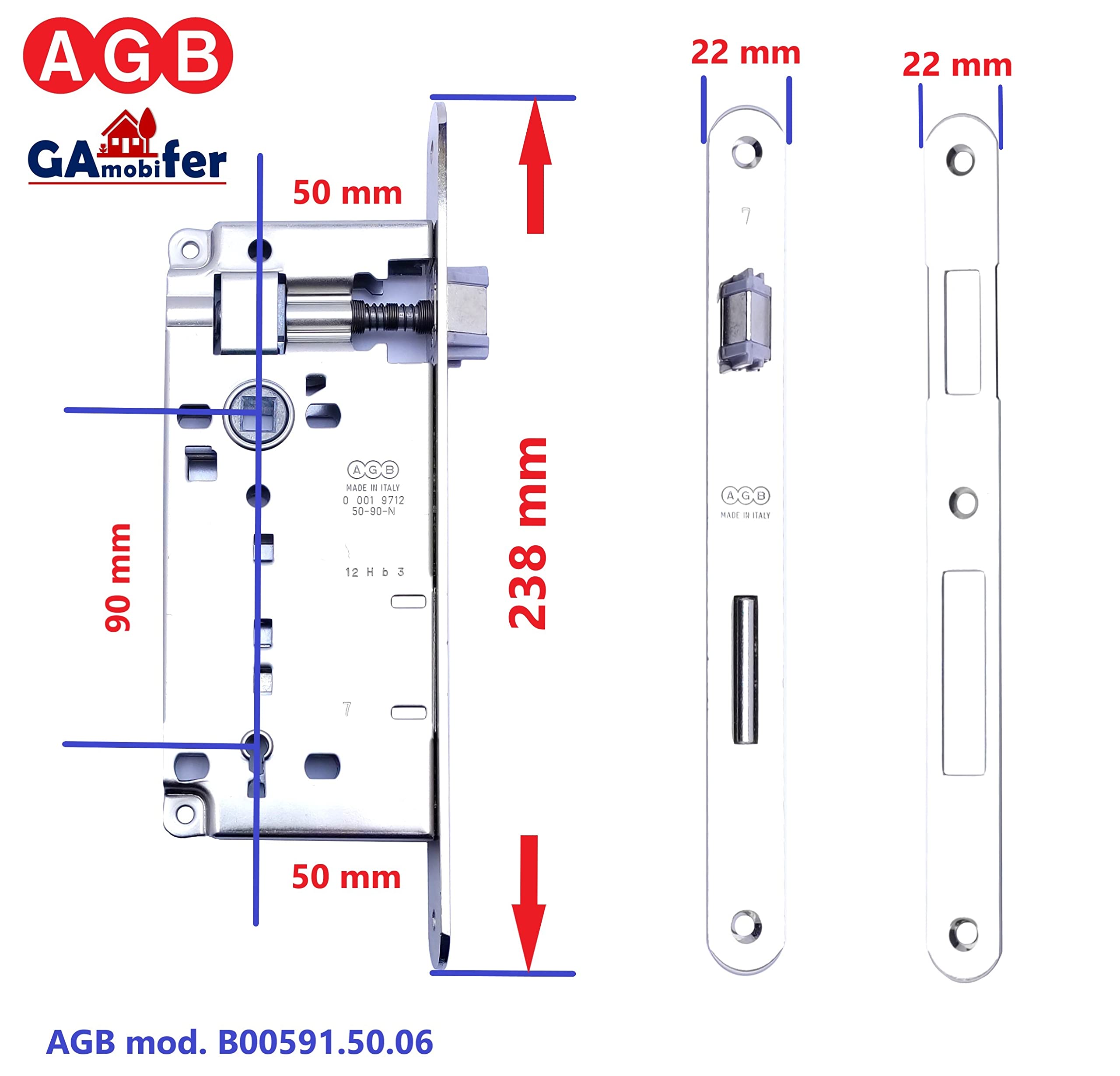

• ATTENTION! Check measurements and model before buying (Photo No. 2 and 3)

Door lock for interior door series GTC patent large. (Fr. 22 x 238 cm. 90, En. 50, Qu. 8. Key chain, nilled) AGB lock, round edge. Front: 22 x 238, Step 90, Input 50, Frame 8. Mortice lock for flush or double doors version with key, lock and lock. Prepare a recess and a milling cutter with the dimensions indicated in the drawing (photo no. 3). Attach the lock with two 4.5 x 25 mm screws. Dome lock on both sides to prevent the door from shaking is reversible for right and left door. To turn the lock, pull it off from the front of the lock by pressing and turning the rear screw (see photo #4). Please note: Please check the size and model before purchase (photo #2 and 3)
