Lock for Interior Door AGB series PATENT GRANDE. (Fr. 18x238, In. 90, En. 50, Qu. 8., KEY CATENACCIO, BRONZED PAINTED)

• AGB lock, Round edge. Front 18x238, Wheelbase 90, Entry 50, Framework 8. Including Meeting Plate, Wrench and 5 Bronze Screws
• Recessed lock for internal flush or swing doors. Particularly suitable for small thickness doors. Version with Key, Latch and Latch.

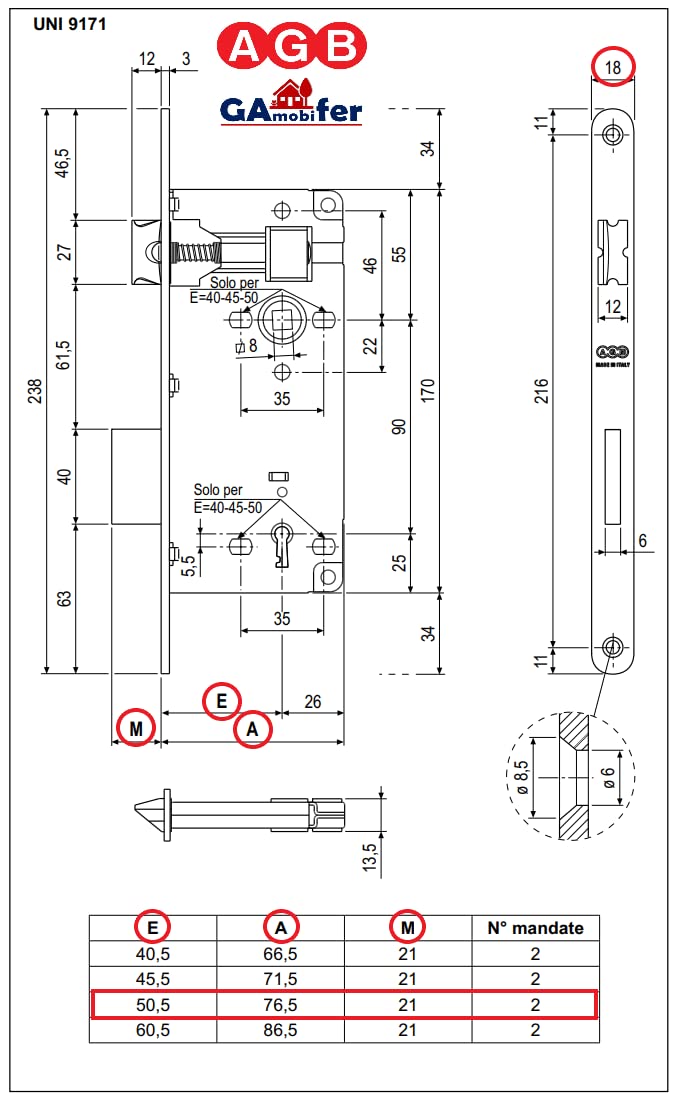

• Set on the panel a hollow and a milled with the dimensions shown in the drawing (Photo n° 3). Secure the lock with two 4x25mm screws (Included in the package).
• The Double-component Domed latch (Nylon - Metal) on both sides to prevent shaking of the door, is Reversible for right and left doors. To turn the latch pull it out of the front of the lock, pushing on the rear screw, and rotate (See photo n° 4).

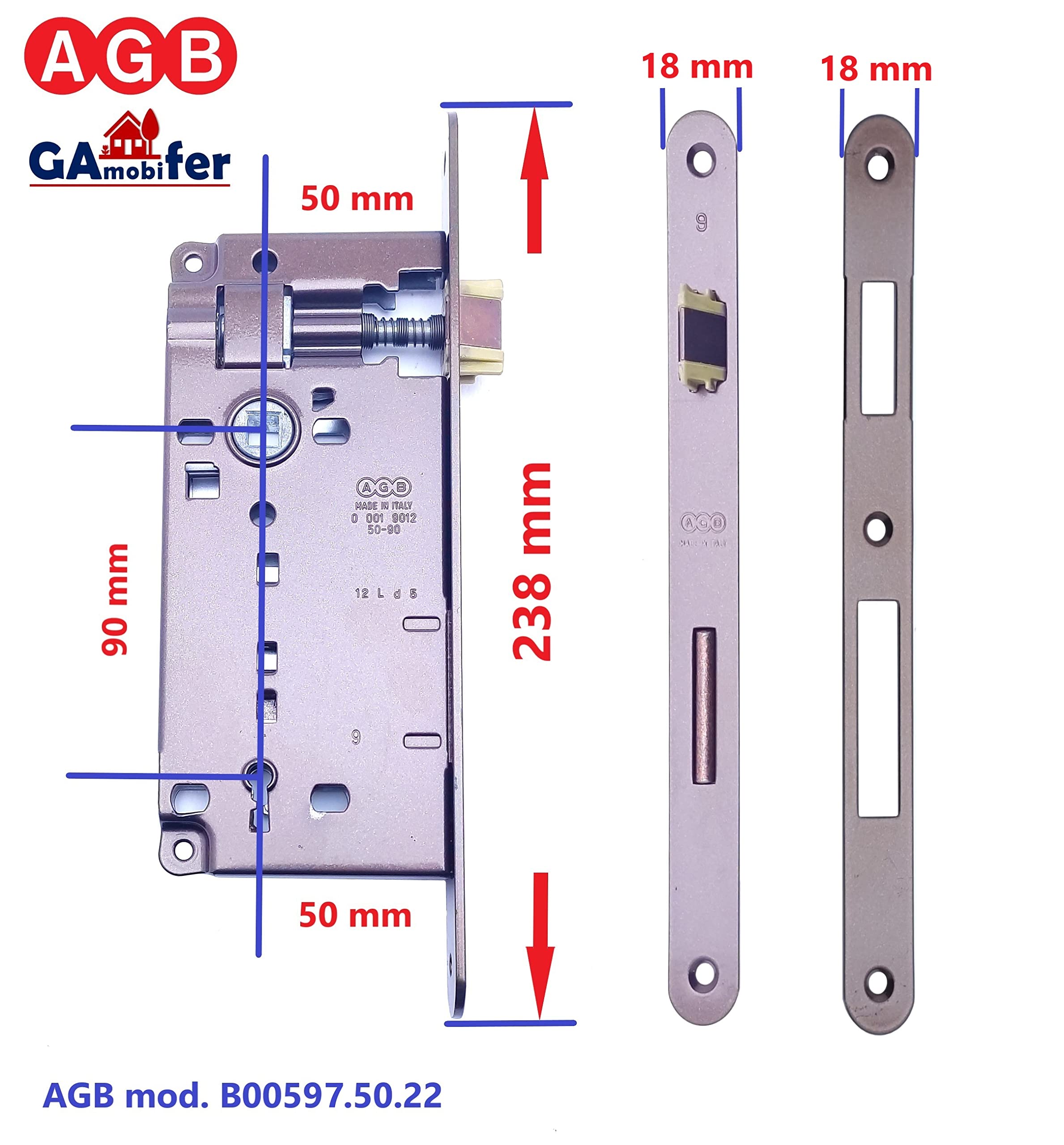

• Given the various sizes and models, check well (photo 2 and 3) before purchase.

Door lock for interior door series GTC patent large. (Fr. 18 x 238 cm. 90, En. 50, Qu. 8. Chain key, bronze painted) AGB lock, round edge. Front: 18 x 238, Step 90, Input 50, Frame 8. Includes meeting plate, key and 5 bronze screws, mortise lock for interior doors with wire or double doors. Especially suitable for doors with small thickness. Version with key, lock and lock. Prepare a recess and a milling cutter with the dimensions indicated in the drawing (photo no. 3). Attach the lock with two 4 x 25mm screws (included). The two-component arched lock (nylon metal) on both sides to prevent vibration of the door, is reversible for left and right doors. To turn the lock, pull it off from the front of the lock by pressing and turning the rear screw (see photo #4). Please check the dimensions and models before purchasing.
