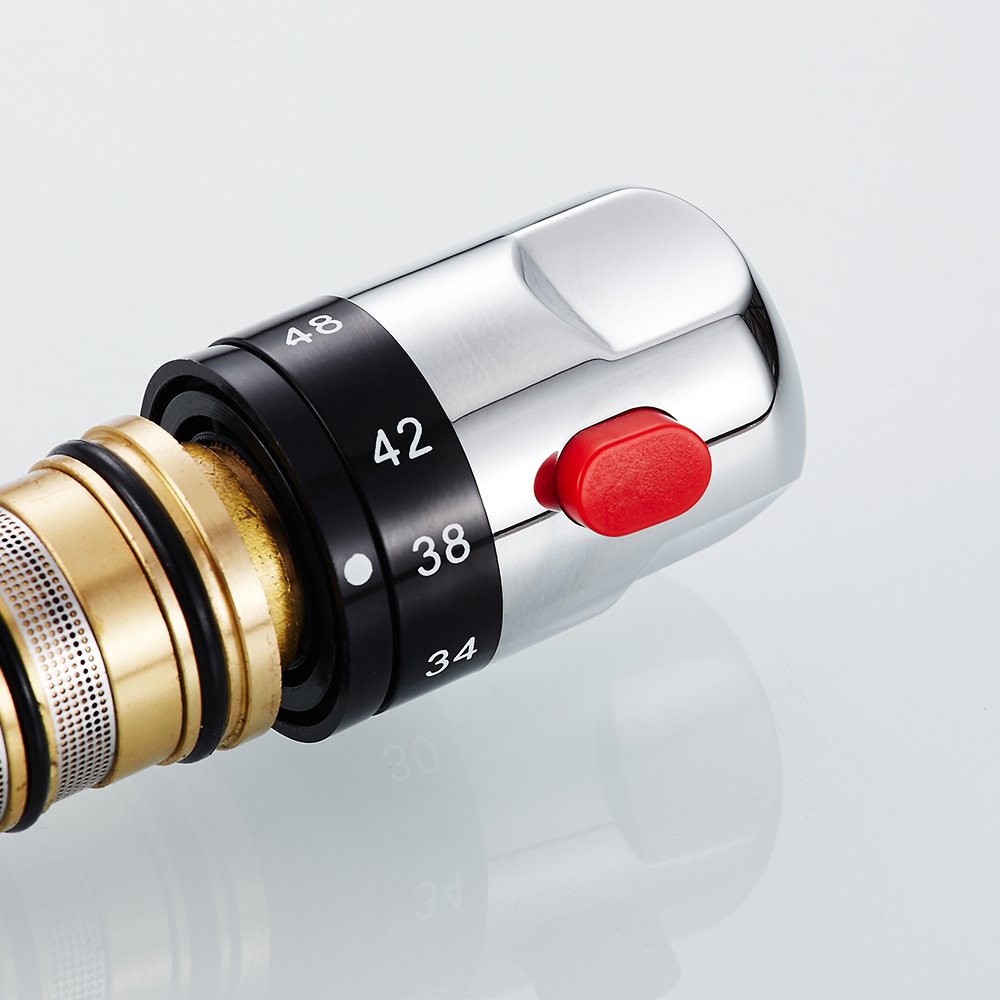

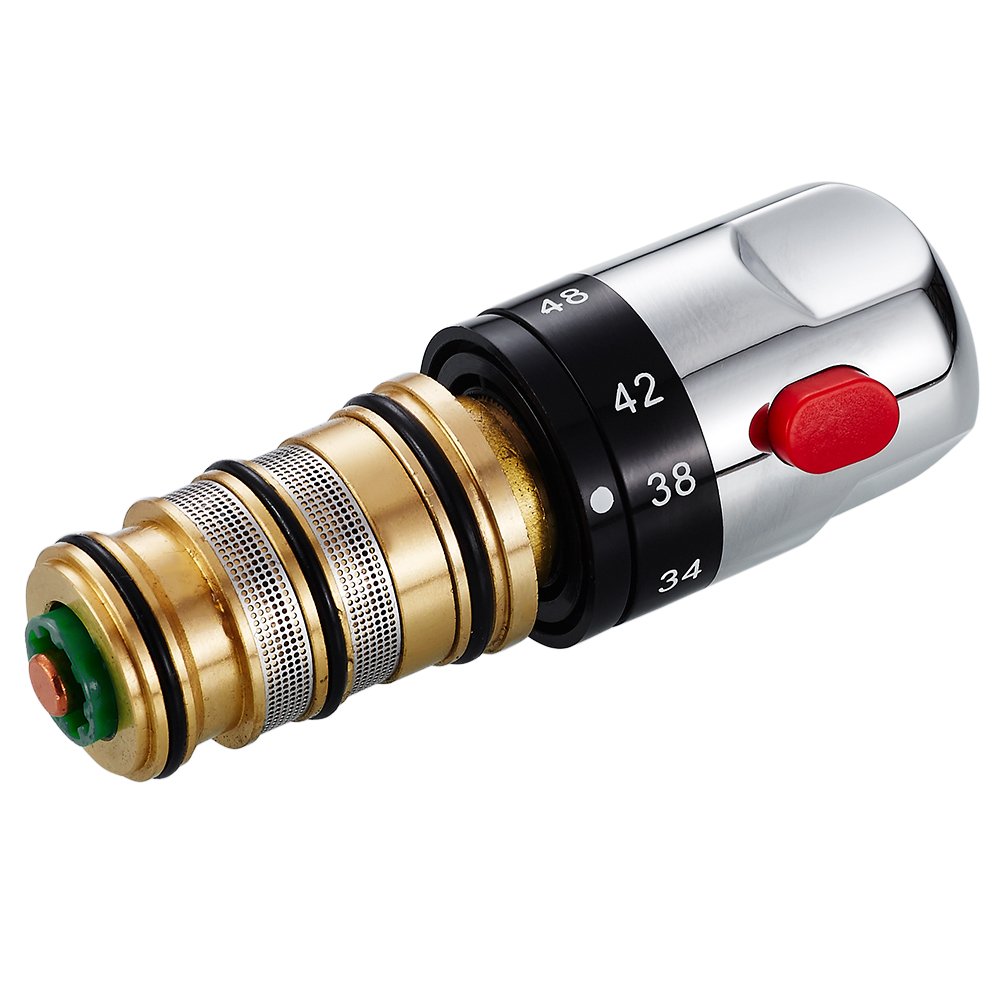

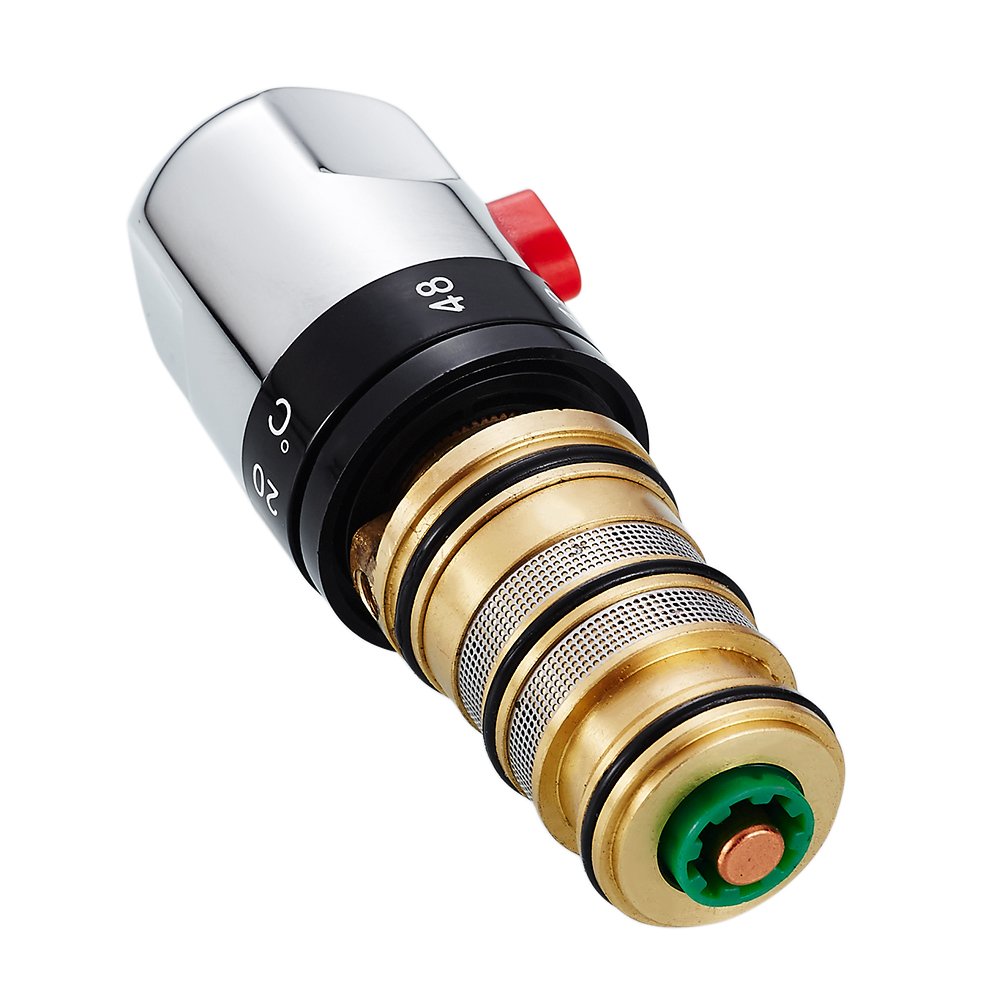

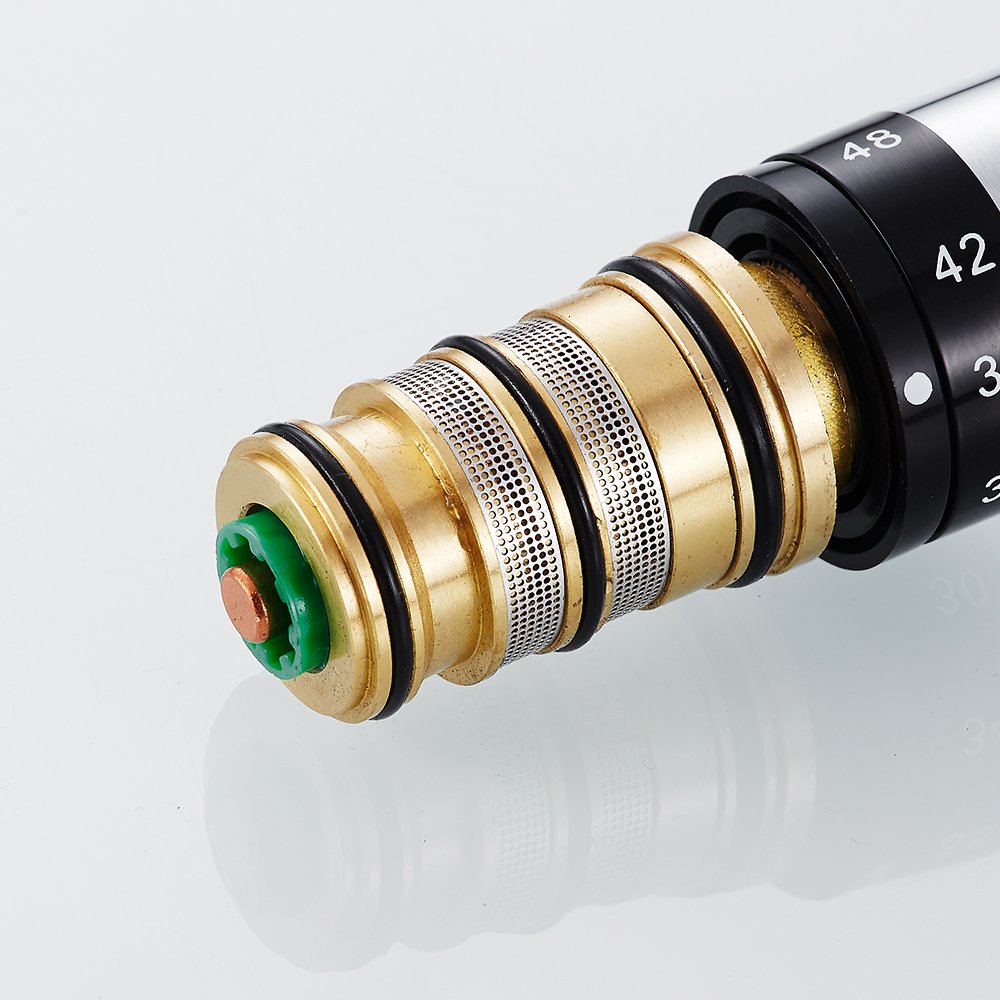

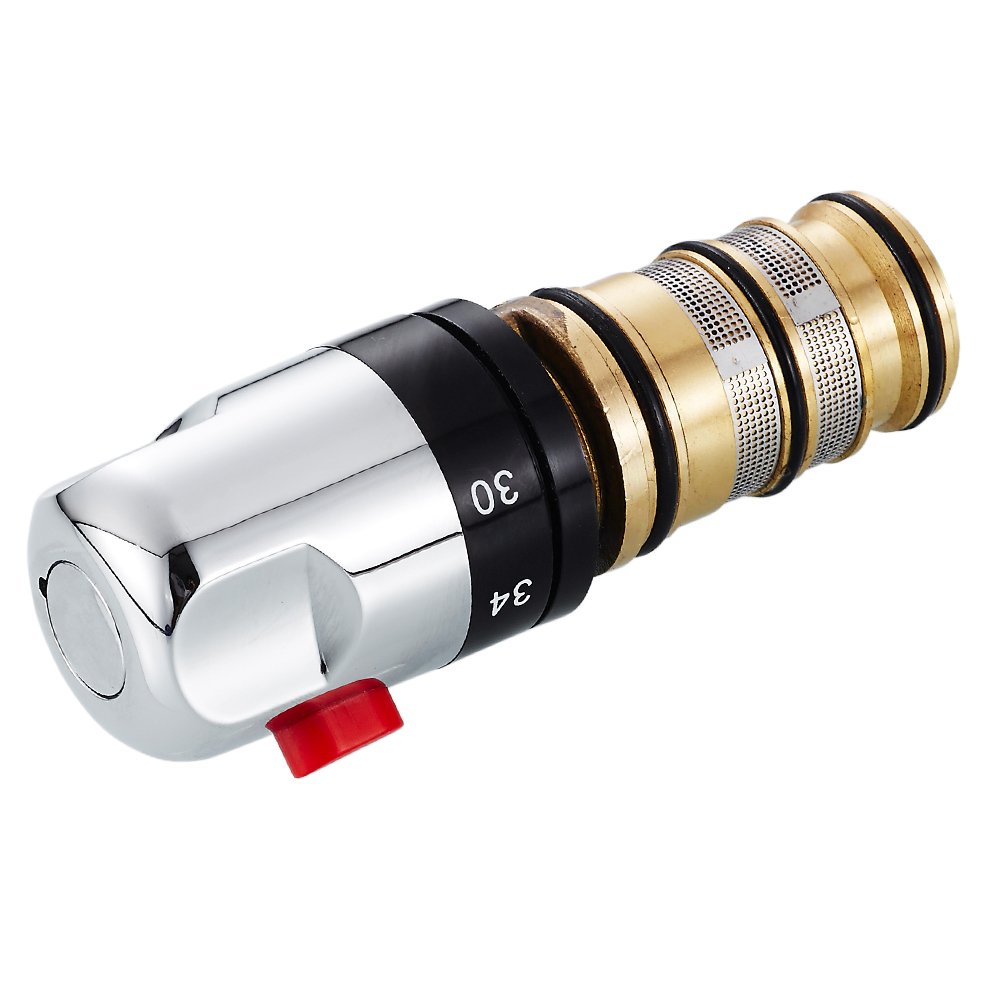

Littleduckling Thermostatic Bath Mixer Tap Shower Valve Handle Spare Repair Kit Cartridge Constant Temperature Control Brass

• The operating Temperature range is between 20 to 48 Degrees C, with safety override button at the 38 Degrees C position. The cartridge comes calibrated to 38 Degrees C with the handle and safety 'stop ring' already attached.
• To install it with a Bath Mixer Tap or Torpedo style Bar Shower valves, all you have to do is remove the grub screw on the body underneath (3mm Allen key is commonly required) and push it into place.
• With the concealed shower valves, the handle has to be removed and then the cartridge fitted separately. Lubrication may well be needed around the black rubber seals. Always ensure your water is off when fitting!!
• This is thermostatic for comfort and safety, and there is an override stop button set at 38 Degree C
• Material:chrome plated solid brass

Specifications Finish : Chrome Stylish : Modern Security stop : 38°C Tap Type : Single Lever Sub-Type : Thermostatic Mixer Material : chrome plated solid brass Recommended pressure: 0.1-0.5Mpa Cold water supply temperature : 8-29°C Hot water supply temperature : 55-85°C Outlet water temperature range : 20-50°C Features *Spool Built-in thermal components, using copper precision made, effectively inhibit bacterial growth. Spool control precision, good stability, and durability *Thermostatic Mixer, Simple operation, Easy to use, Saving water and energy. Avoid water temperature the peaks and valleys *This is thermostatic for comfort and safety, and there is an override stop button set at 38°C *Temperature range 20 – 50 degree C *To install it with a Bath Shower Mixer Tap valves, all you have to do is remove the grub screw on the body underneath (3mm Allen key is commonly required) and push it into place *With the concealed shower valves, the handle has to be removed and then the cartridge fitted separately *Lubrication may well be needed around the black rubber seals. Always ensure your water is off when fitting *In mixing water outlet of thermostatic Mixer, equipped with a heat-sensitive element, Control valve moving. Closure or open import and export of hot or cold water *When the thermostat knob to set certain temperature, the Thermostatic Mixer by adjusting the ratio of the inlet and outlet of the hot and cold, make outlet water temperature is always maintained constant *Principally made from brass, this generic Thermostatic Cartridge is suitable for many manufacturers, and some of the types of Taps and Showers that we sell are shown in the Picture gallery above. Package Thermostatic Mixer Valve Repair Kit x1 Screw x1 Wench x1
