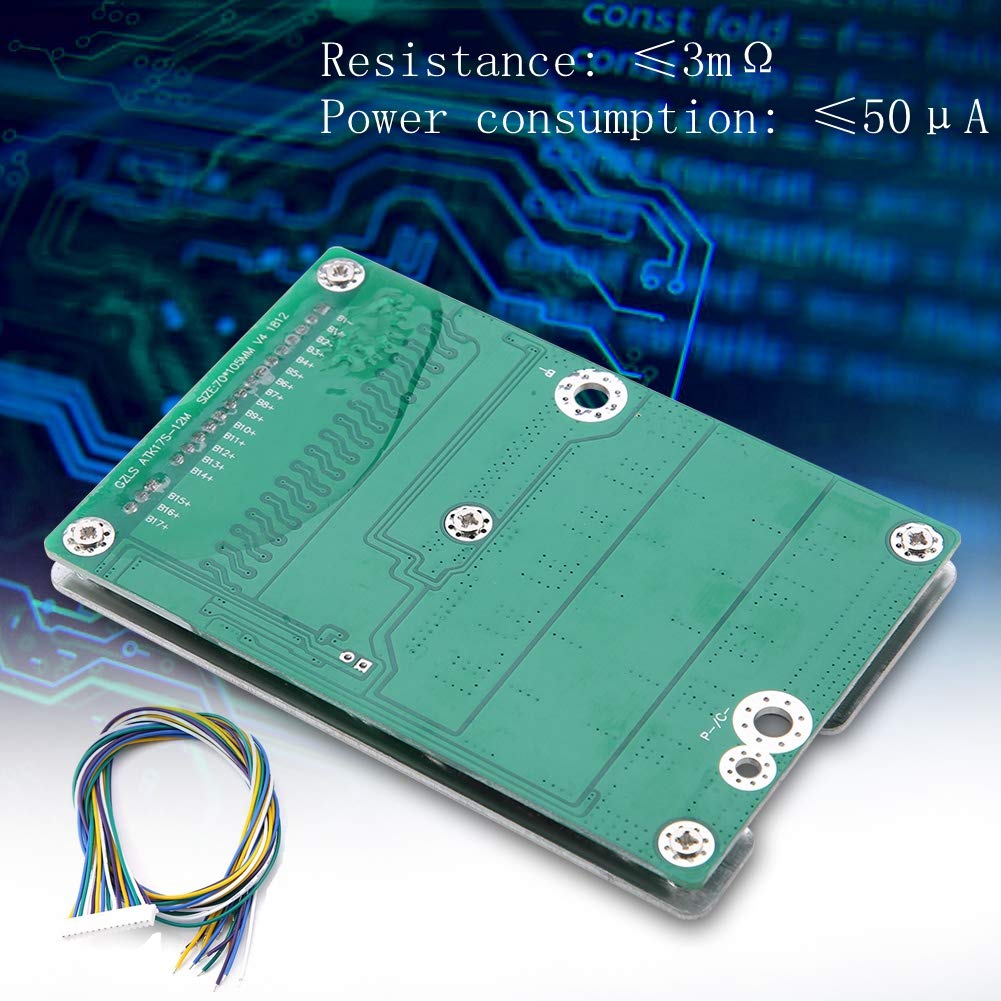

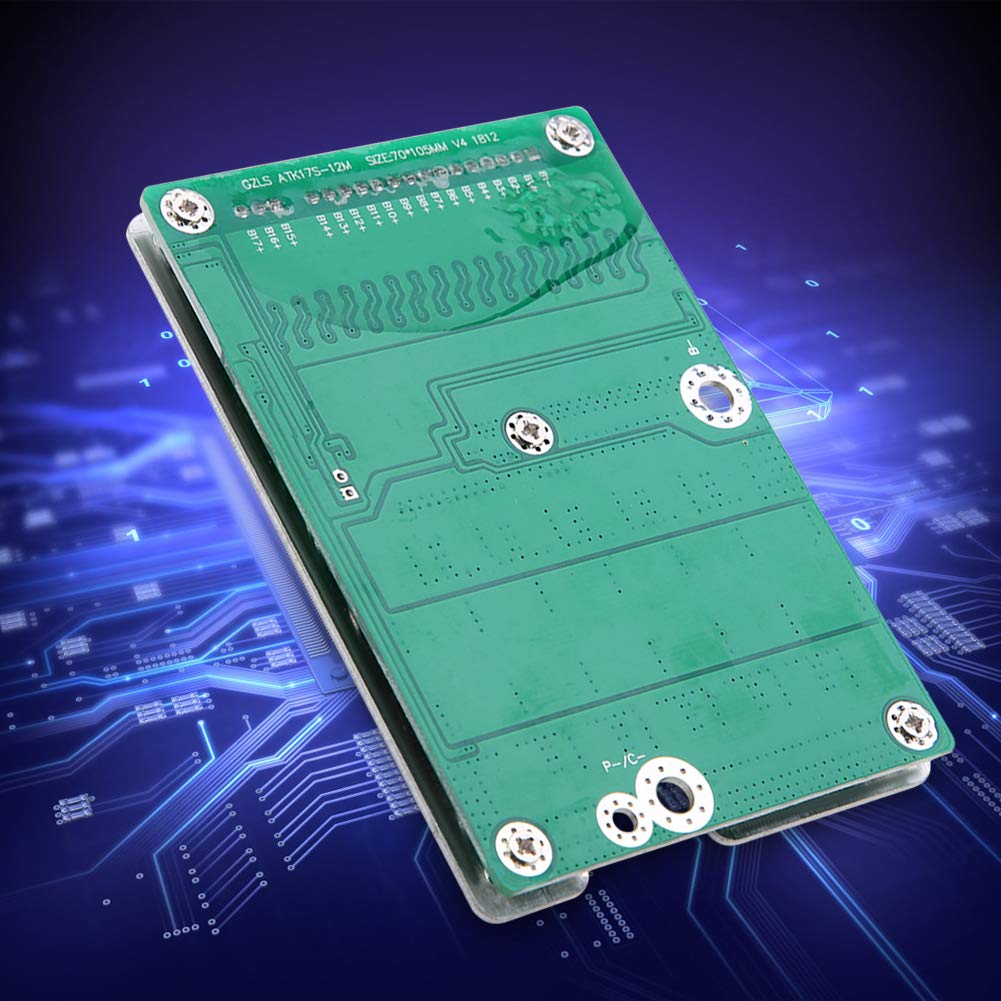

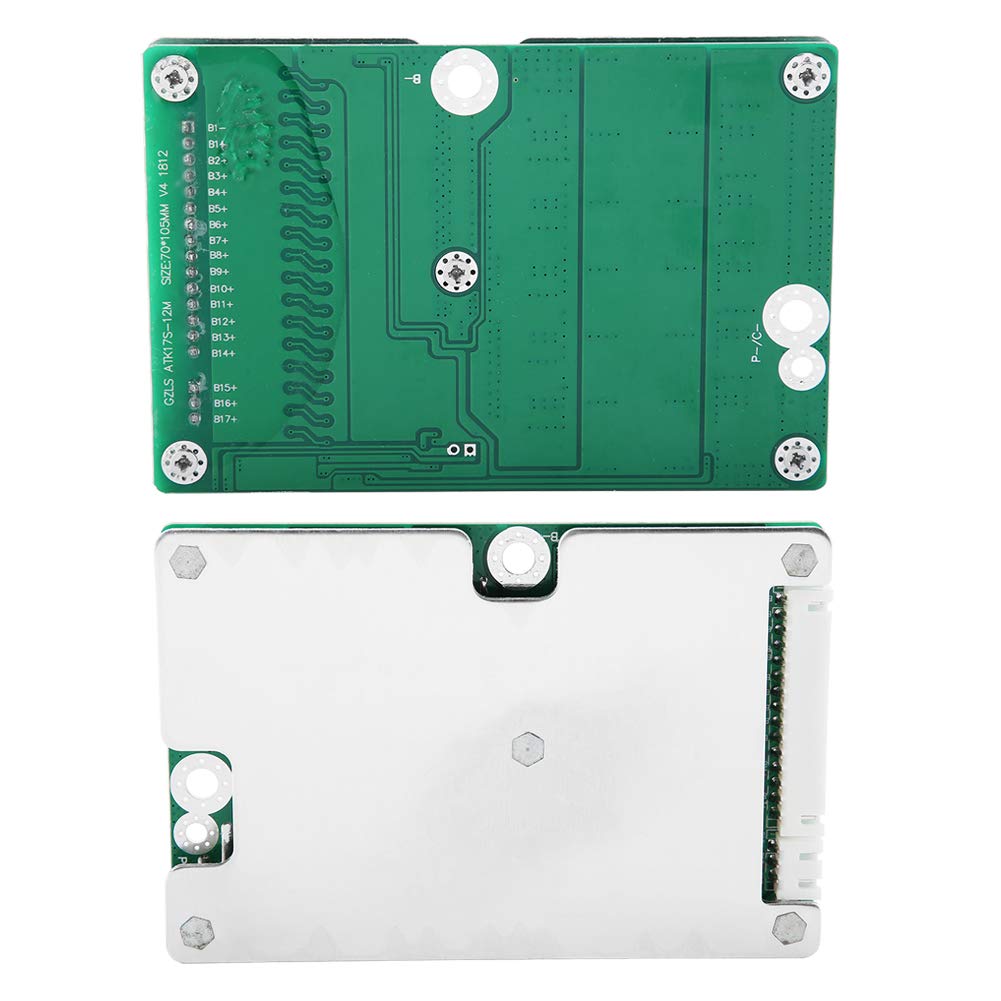

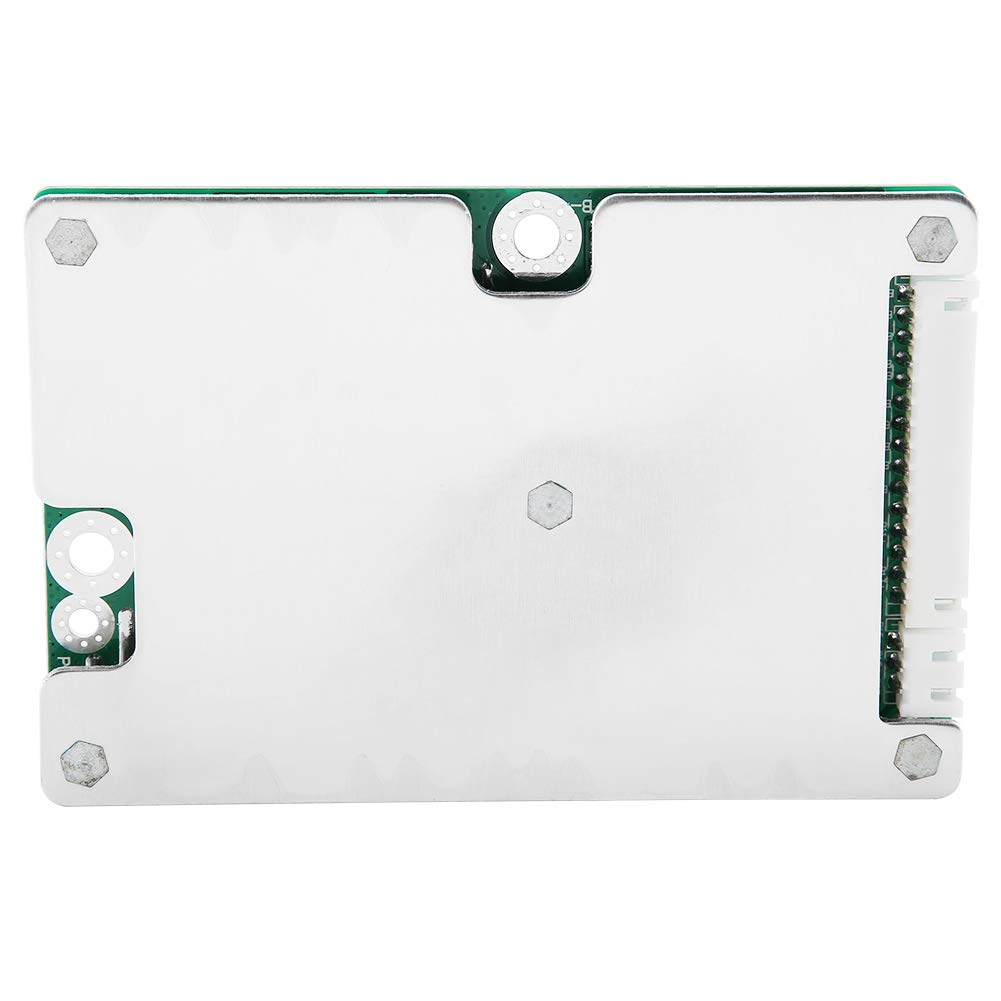

Lithium Battery Board, 17s 60V 50A PCB Li-ion Battery Charging Board with Balance Function

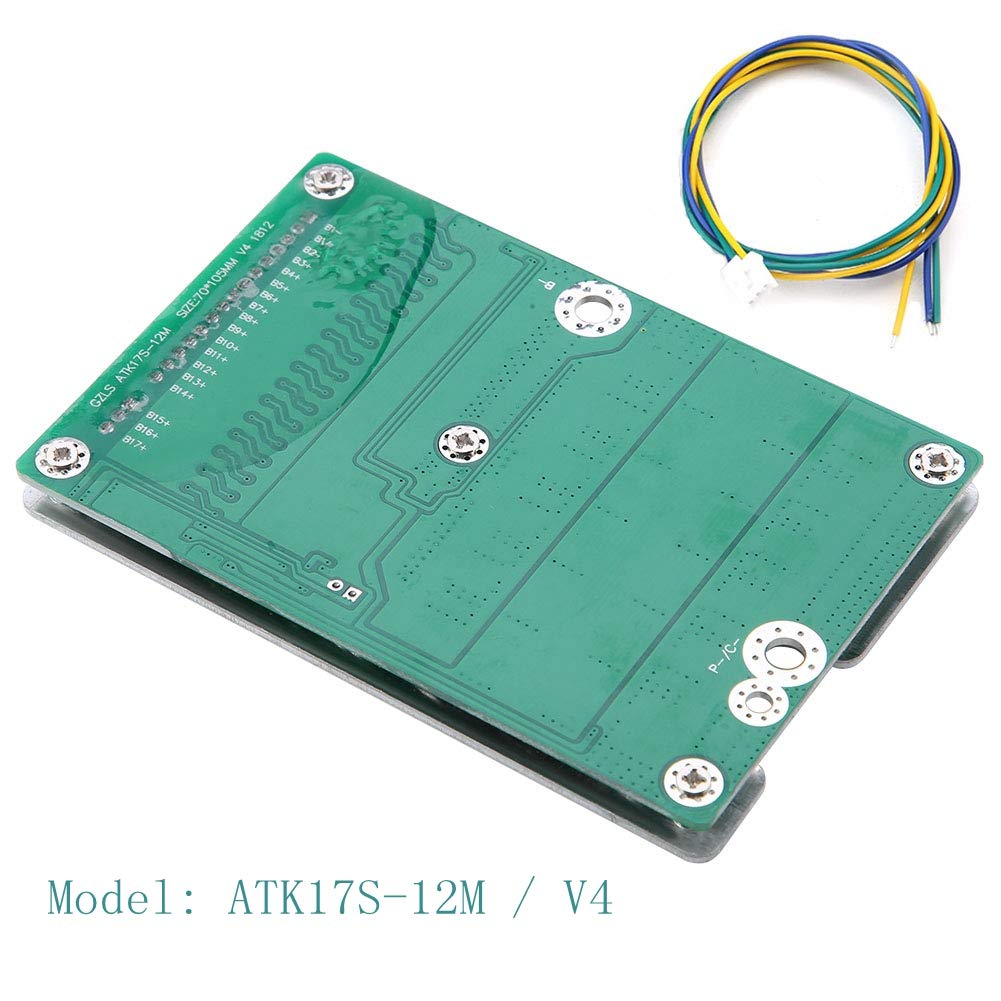

• ➣➣➣ Model: ATK17S-12M / V4; Resistance: Electrical consumption: ≤50μA; Nominal discharge current: ≤50A
• ➣➣➣ Model: ATK17S-12M / V4; Resistance: Electrical consumption: ≤50μA; Nominal discharge current: ≤50A
• ➣➣➣ Good Performance: Internal resistance at low conduction, high current, high voltage discharge MOSS.

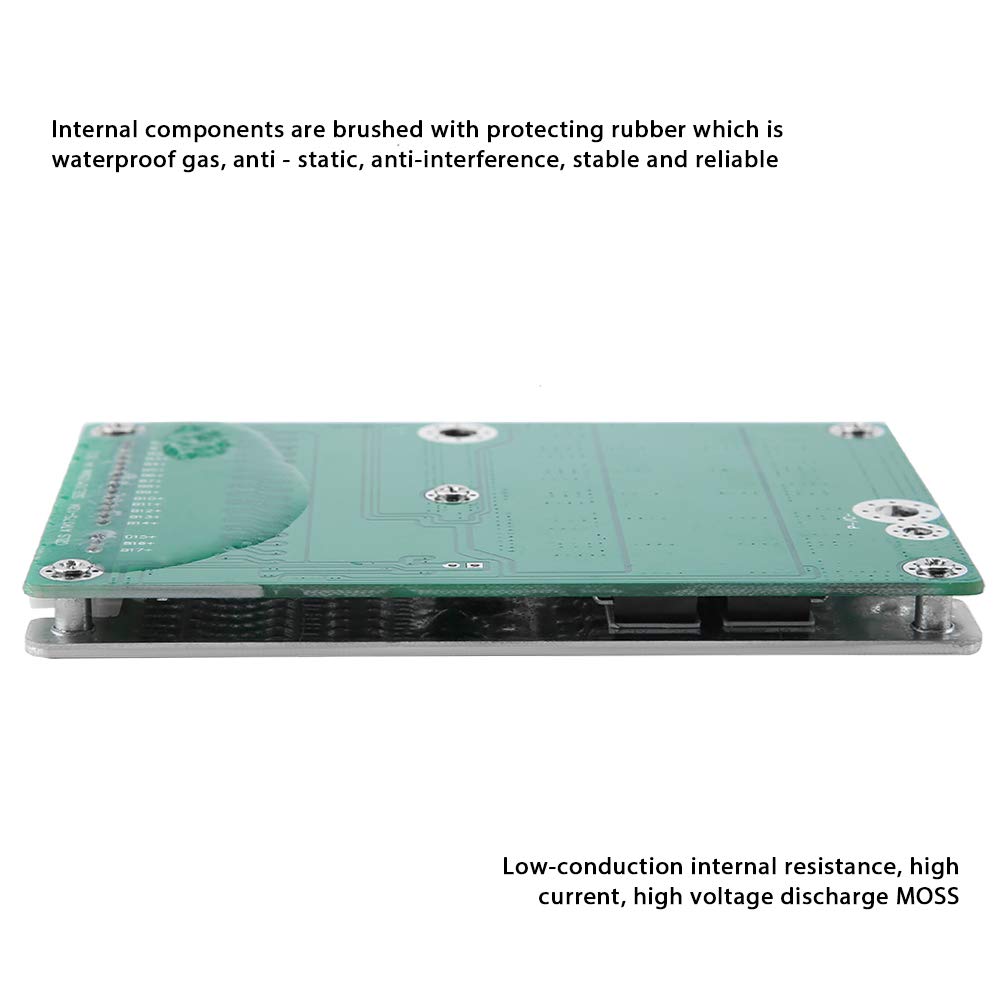

• ➣➣➣ and Internal components are covered by protective rubber, which is a waterproof, anti-static, anti-parasitic, stable and gas.
• ➣➣➣ Application: rechargeable lithium ion batteries, polymer lithium ion batteries. Suitable for lithium batteries with nominal voltage of 3.7 V series 13-17.

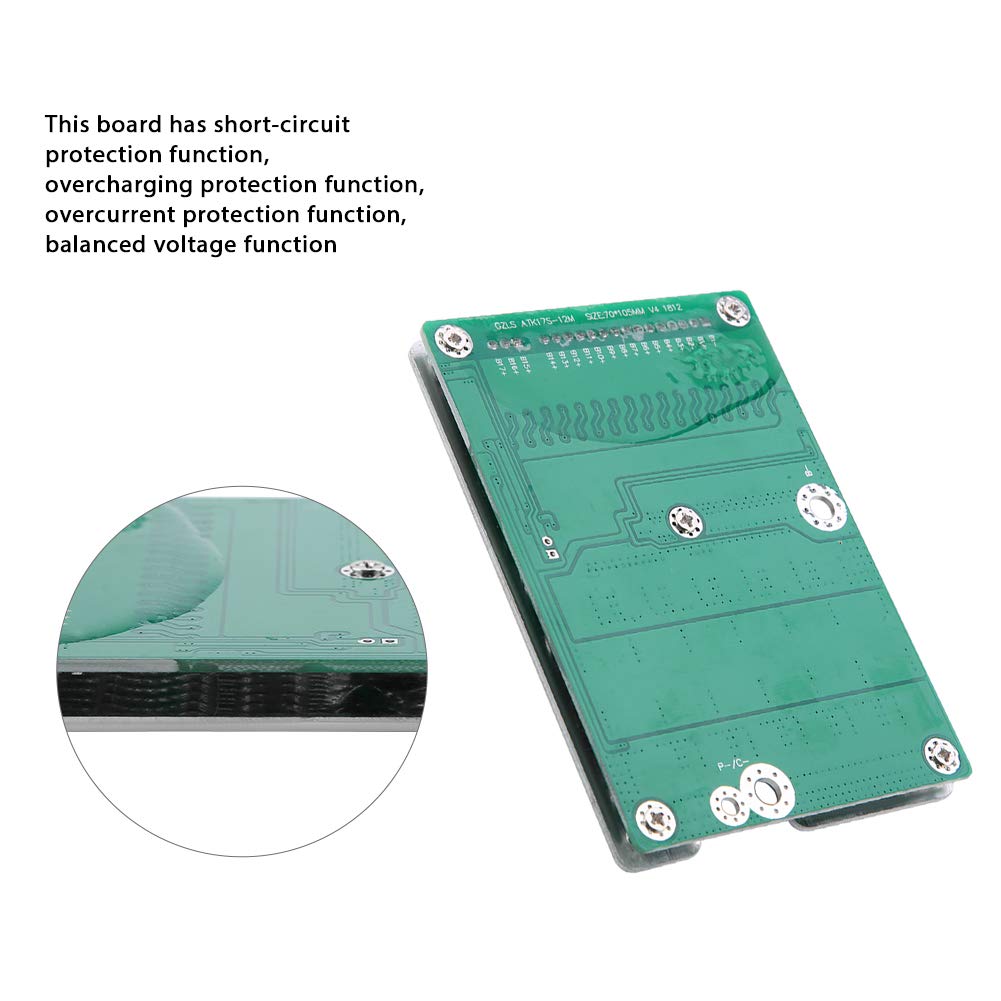

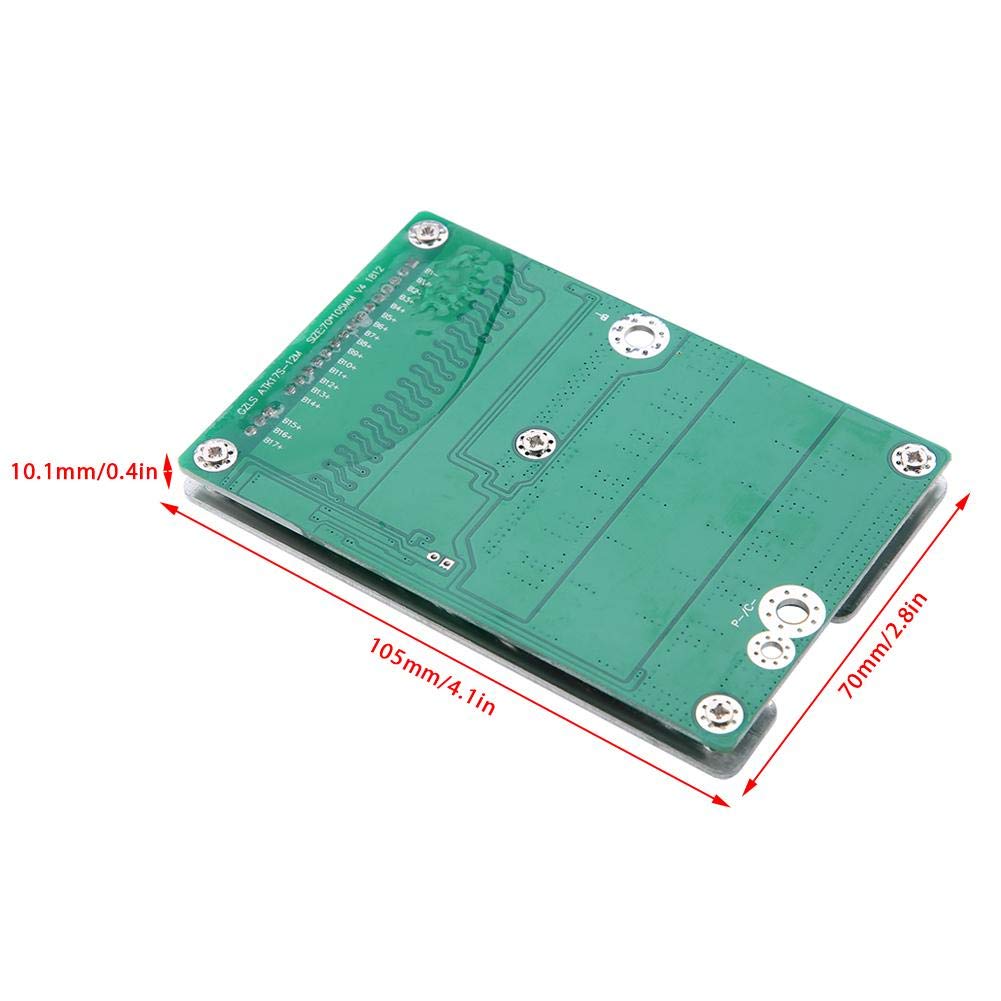

Description Features: This board has short-circuit protection function, overcharging protection function, overcurrent protection function, balanced voltage function. Low-conduction internal resistance, high current, high voltage discharge MOSS. Internal components are brushed with protecting rubber which is waterproof gas, anti - static, anti-interference, stable and reliable. Application: rechargeable lithium ion battery, lithium ion polymer battery. Suitable for lithium batteries with nominal voltage of 3.7v 13-17 series. Specification: Model: ATK17S-12M/V4 Weight: 136g/4.8oz Monomer overcharge protection voltage: 4.25±0.025V Monomer overcharge release voltage: 4.19±0.05V Rated charging current: ≤50A Monomer over-discharge protection voltage: 2.8±0.08V Monomer over-discharge release voltage: 3.0±0.08V Rated discharge current: ≤50A Discharge protection current: 150±10A Short circuit protection or not: Yes Short circuit protection condition: disconnect the load Balanced voltage: 4.25V Equilibrium current: ≤13MA Resistance: ≤3mΩ Power consumption: ≤50μA Size: 70*105*10.1mm/2.8*4.1*0.4inch Package List: 1 x Lithium Li-ion Battery Protection Board
