LitaElek LED Strip Controller with RF Wireless Remote Control DC 5-24V 5A Mini LED Dimmer for 2 pin Monochrome COB LED Strip and SMD 5050 3528 2835 5630 LED Tape LED Ribbon LED Rope LED String Light

• Mini LED strip controller with RF wireless remote control for COB LED strip and SMD 5050 3528 5630 2835 single colour LED strip lights.
• 8 dynamic effects, 10 stage dimmer, 256 degree PWM.
• The brightness is adjustable in static mode, the speed is adjustable in dynamic mode.
• Input Voltage: DC5V-24V; Rated Output Current: 5A
• Remote Control: RF Wireless Remote distance: > 10 m.

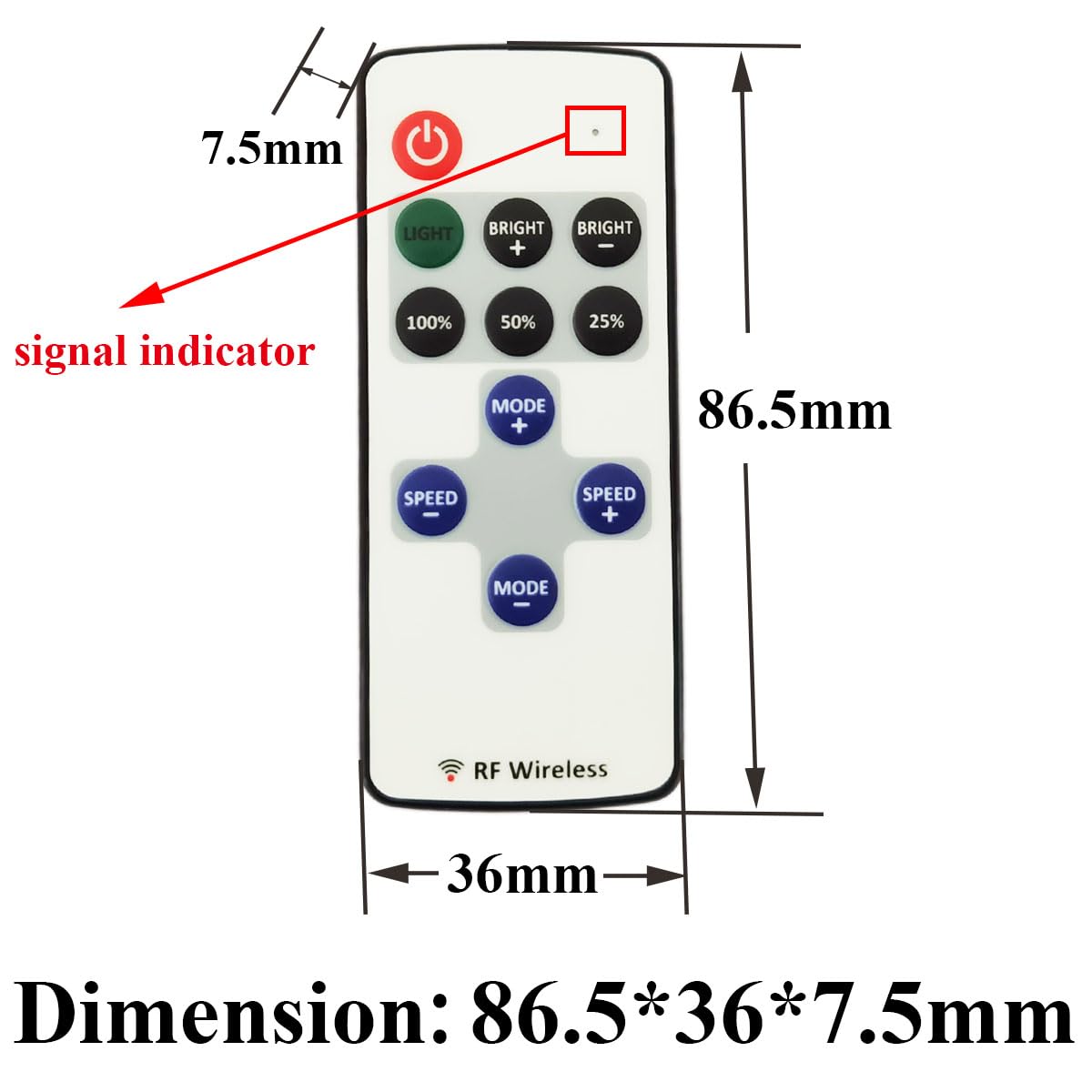

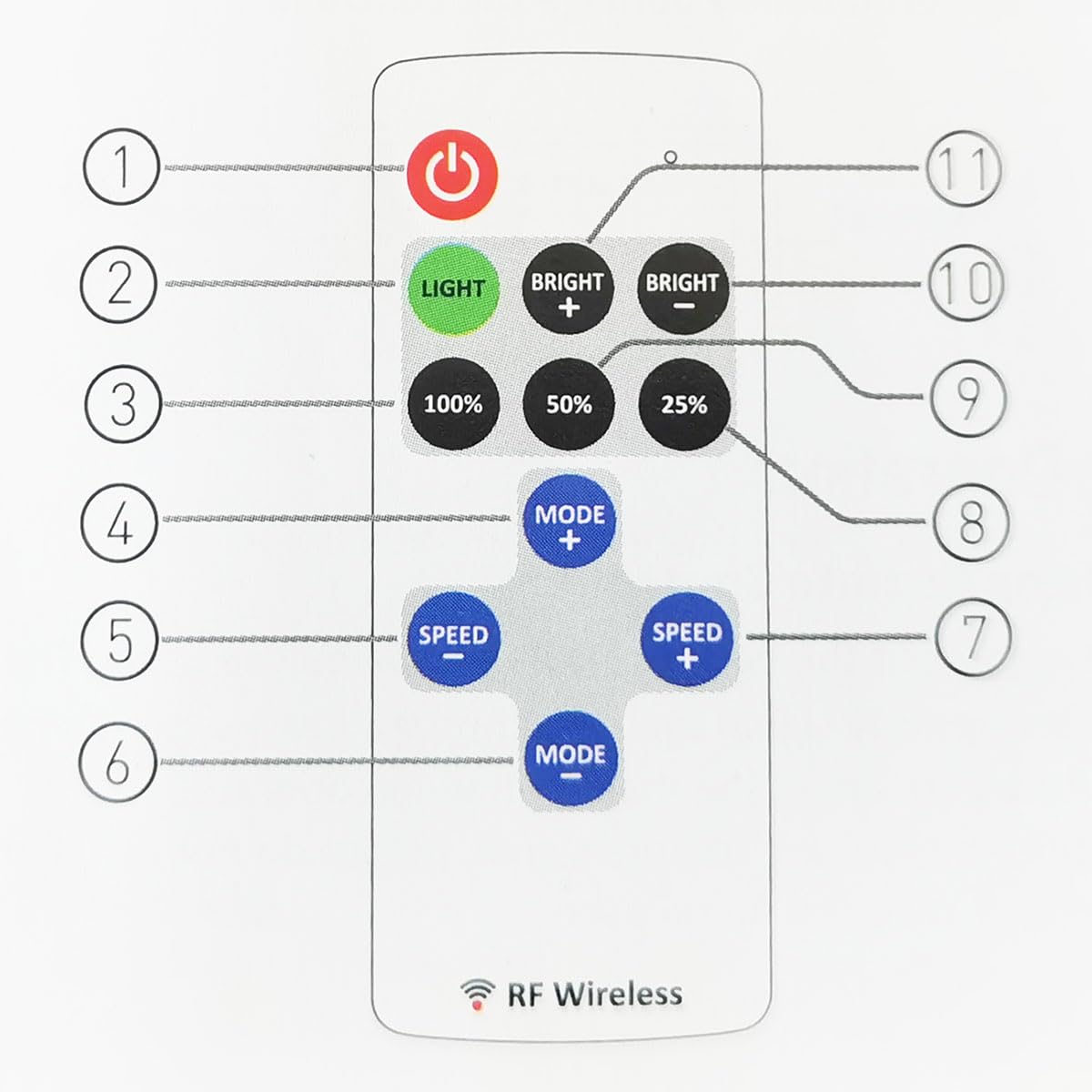

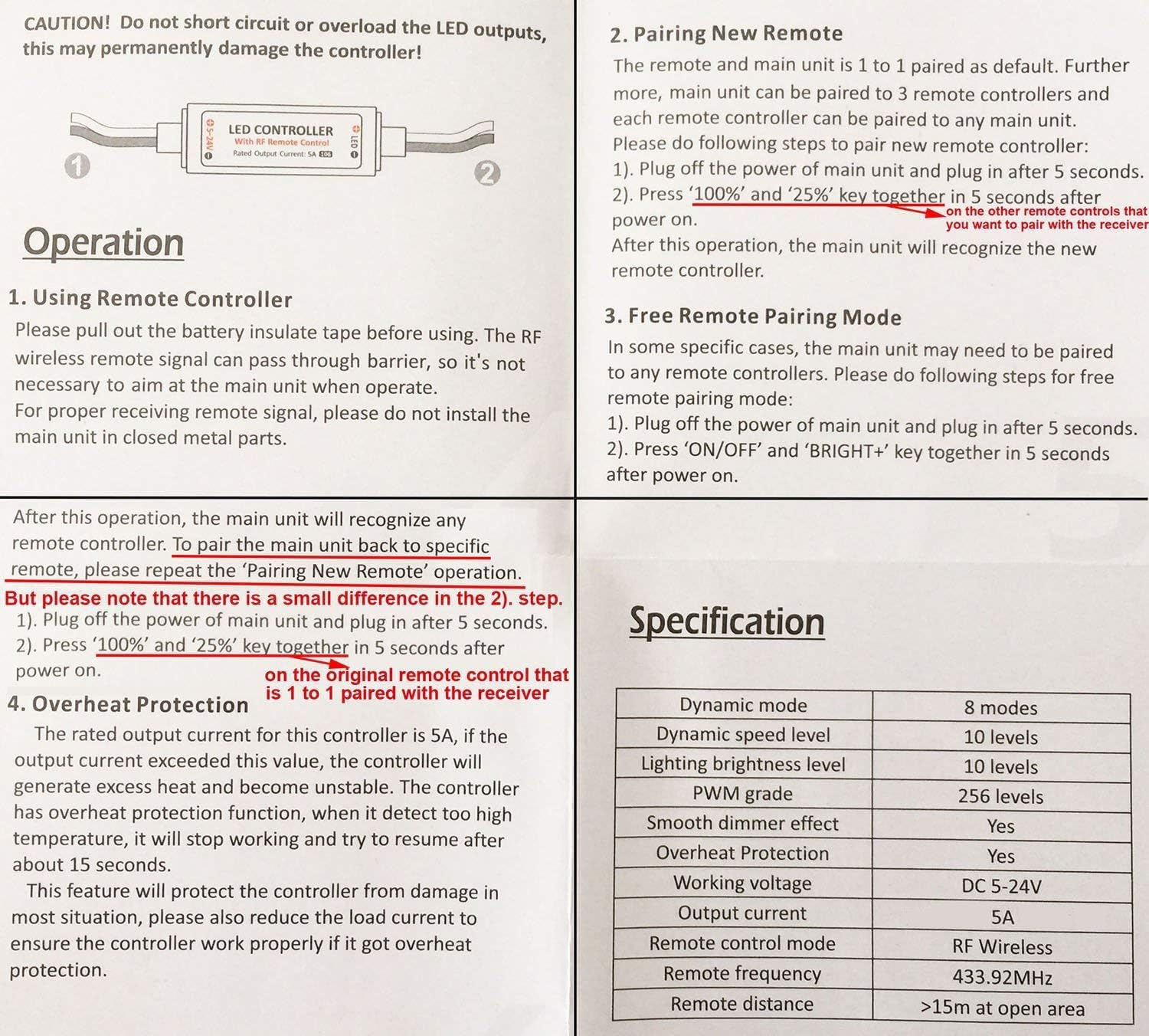

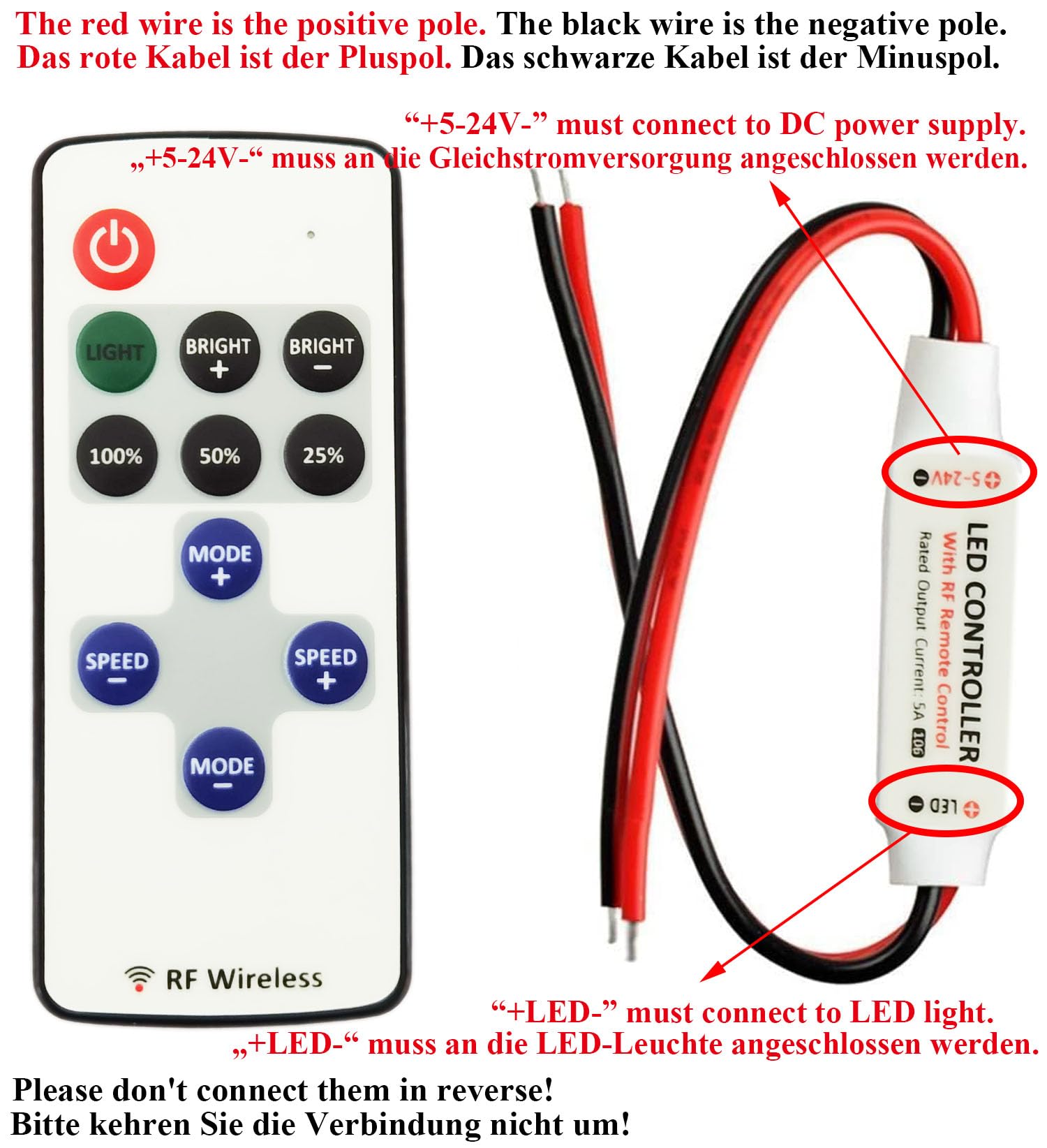

This is a mini LED controller with an 11 key RF remote control. The RF signal is able to go through the barrier and gets a longer control range, and it is not necessary that you point the remote directly to the receiver/controller during operation. About the mini controllers: Input voltage: 5 V – 24 V. Rated Output Current: 5A Working temperature: -20 to +60 °C. Dimensions: 86.5 (L) x 36 (W) x 7.5 (H) mm. Problems and solutions: If you are using this LED controller for the first time and there is no response to pressing a button on the remote control, please try the following: 1. Please check the two ends of the receiver, one end labeled "5-24V" is for connecting the power supply, the other end labeled "LED" is for connecting the LED light. Please do not connect the two ends of the receiver incorrectly, otherwise the remote will not work. 2. Please make sure the positive pole is connected to the positive pole and the negative pole is connected to the negative pole. The red cable is the positive pole and the black cable is the negative pole. 3. Make sure you have removed the insulation film on the battery in the remote control. 4. Take out the battery from the remote control, put the battery back in and press the red button on the remote control to turn on the remote control, and try a few times. 5. Press one of the buttons on the remote control. If the indicator light on the remote control flashes three times or is very low, it means that the battery power is too low. In this case, the remote control may not work properly, and you need to replace the battery with a new battery. Package includes: 1 x RF wireless remote control (battery is included). 1 x mini receiver
