LitaElek 10pcs RGB 5050 LED Strip Corner Connector 10mm 4 pin L-Shape Connector Splitter Ribbon Right Angle Adapter for SMD 5050 RGB LED Tape, White

• Thanks to the L-Form cleanly laid, no twisting or damage to your LED lighting strip, particularly when installing over an edge.
• Easy to install, no tools, easy to assemble and ready.
• The installation of LED strips over corner has never been so easy and never so good.
• Simple and cost effective plug-in connector for mounting lights around any corner.

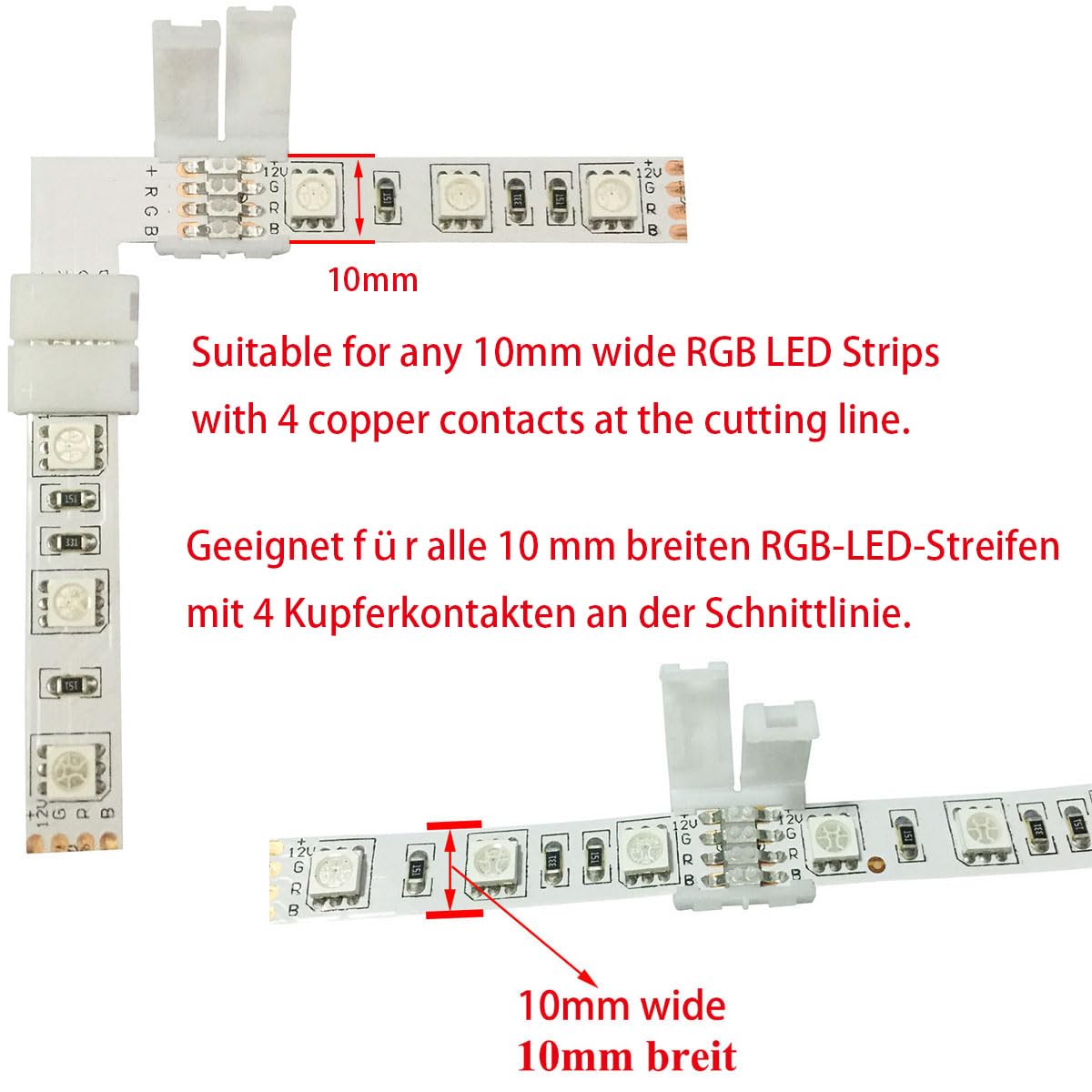

• Suitable for 10 mm wide 4-pin RGB LED strip with 4 copper contacts on the intersection line, set of 10 L-shaped and 20 quick connectors.

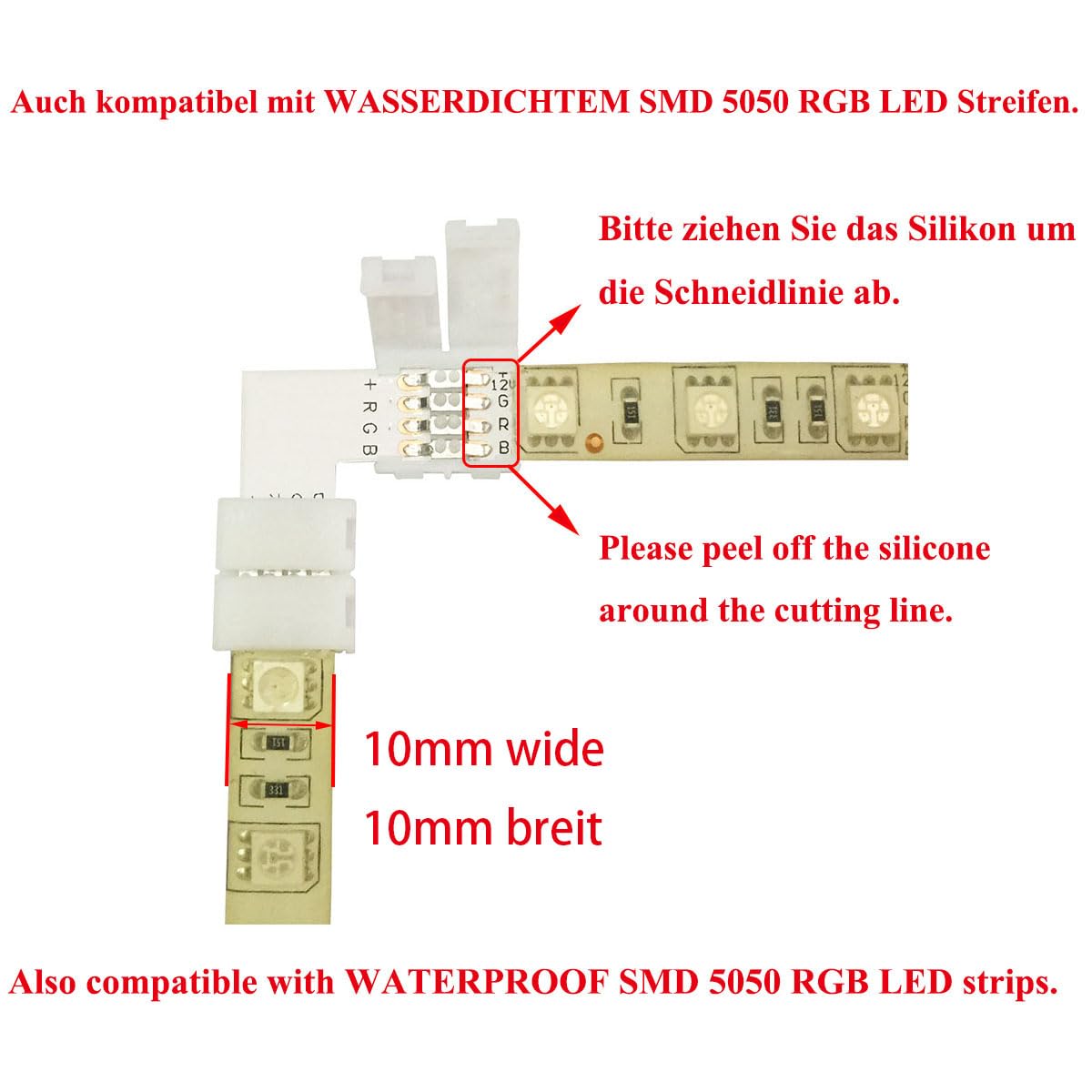

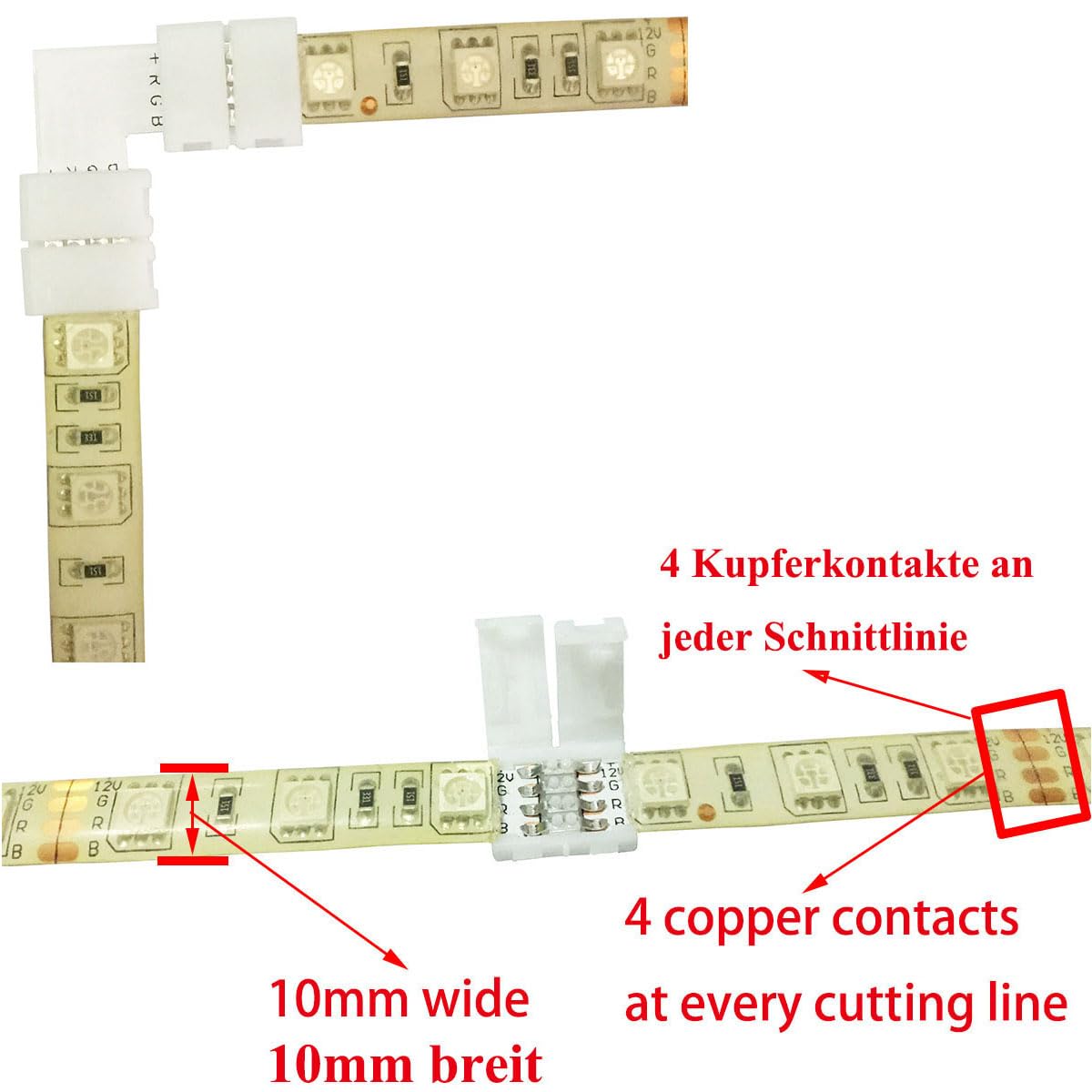

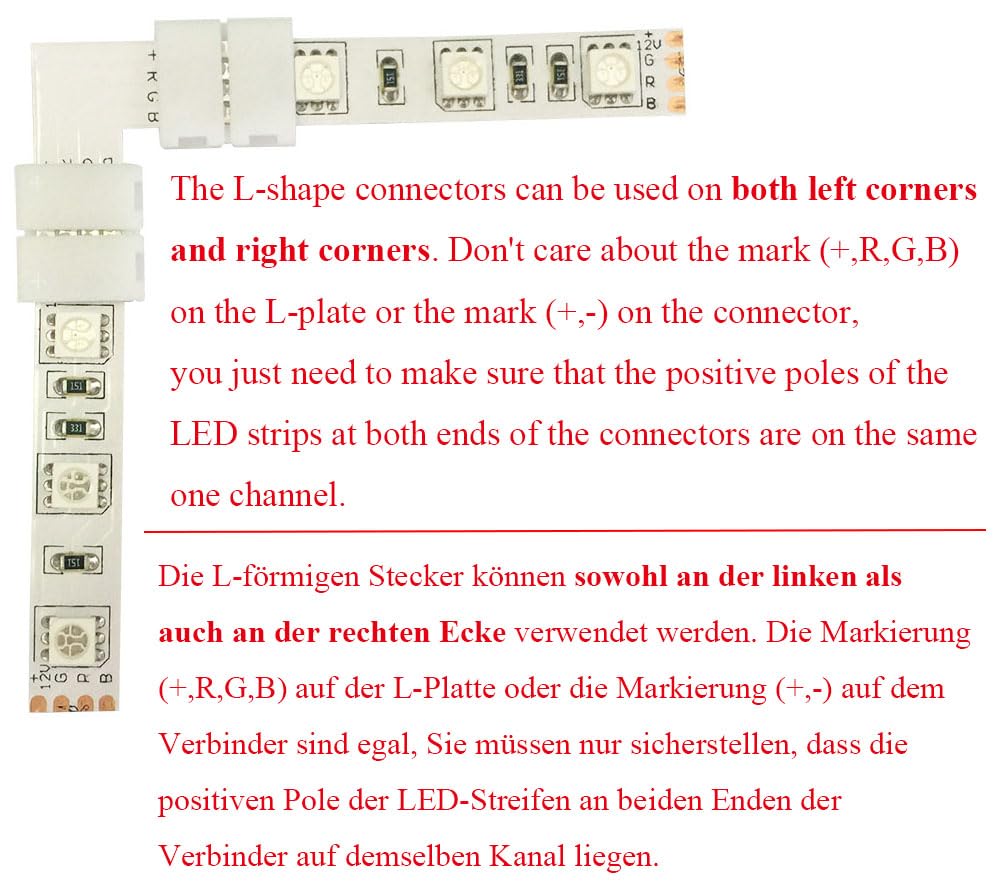

Installation Instructions: 1. Ensure your LED strip is 10mm wide and has 4 copper contacts at the cutting line. 2. Carefully cut your LED strip along the cutting line. Do not tear off the paper on the back of the LED strip before finishing the connection. Just insert the paper and the LED strip together into the connector. This will be easier to insert the LED strip into the connector without bending the LED strip into damage, and the connection will also be more stable. 3. Open the cap of the connector. 4. If you use a non-waterproof LED strip, please insert the LED strip into the connector. Make sure the 4 copper contacts on the LED strip are under the 4 electrical conductors in the connector; If you use a waterproof LED strip, please first remove the waterproof silicone around the cutting line, then insert the LED strip into the connector. Make sure the 4 copper contacts on the LED strip are under the 4 electrical conductors in the connector. 5. Close the cap, and check whether the connector works well. 6. Tear off the paper on the back of the LED strip to stick the LED strip, but please reserve the paper that has already been in the connector. Tips: The L-shape connectors can be used on both left corners and right corners. Don't care about the mark (+,R,G,B) on the L-plate or the mark (+,-) on the connector. You just need to make sure that the positive poles of your LED strips at both ends of the connector are on the same one channel. Note: Please make sure that the positive poles of your LED strips at both ends of the connector are on the same one channel. Please make sure the arrow marks on your cable, your LED strip and your controller are on the same one channel. Solutions: If the LED strips flicker or do not light up, please follow these steps: 1. Take off the LED strip from the connector. 2. Open all caps on the connector. 3. Use a thin and hard object to simultaneously press hard on both ends of each electrical conductor in the connector, to bring the electrical conductor down to the lowest position. Make sure the electrical conductor can touch the surface of the bottom of the connector without any pressure. In this way, the 4 electrical conductors in the connector can fully touch the 4 copper contacts on the LED strip, ensuring good electrical conductivity. 4. Insert the LED strip into the connector. Package includes: 10pcs corner connectors for 10mm wide RGB LED strip with 4 copper contacts at the cutting line.
