LitaElek 20pcs LED Strip Connector - 2 Pin 8mm Wide Monochrome SMD 3528 2835 LED Tape Adapter Extender

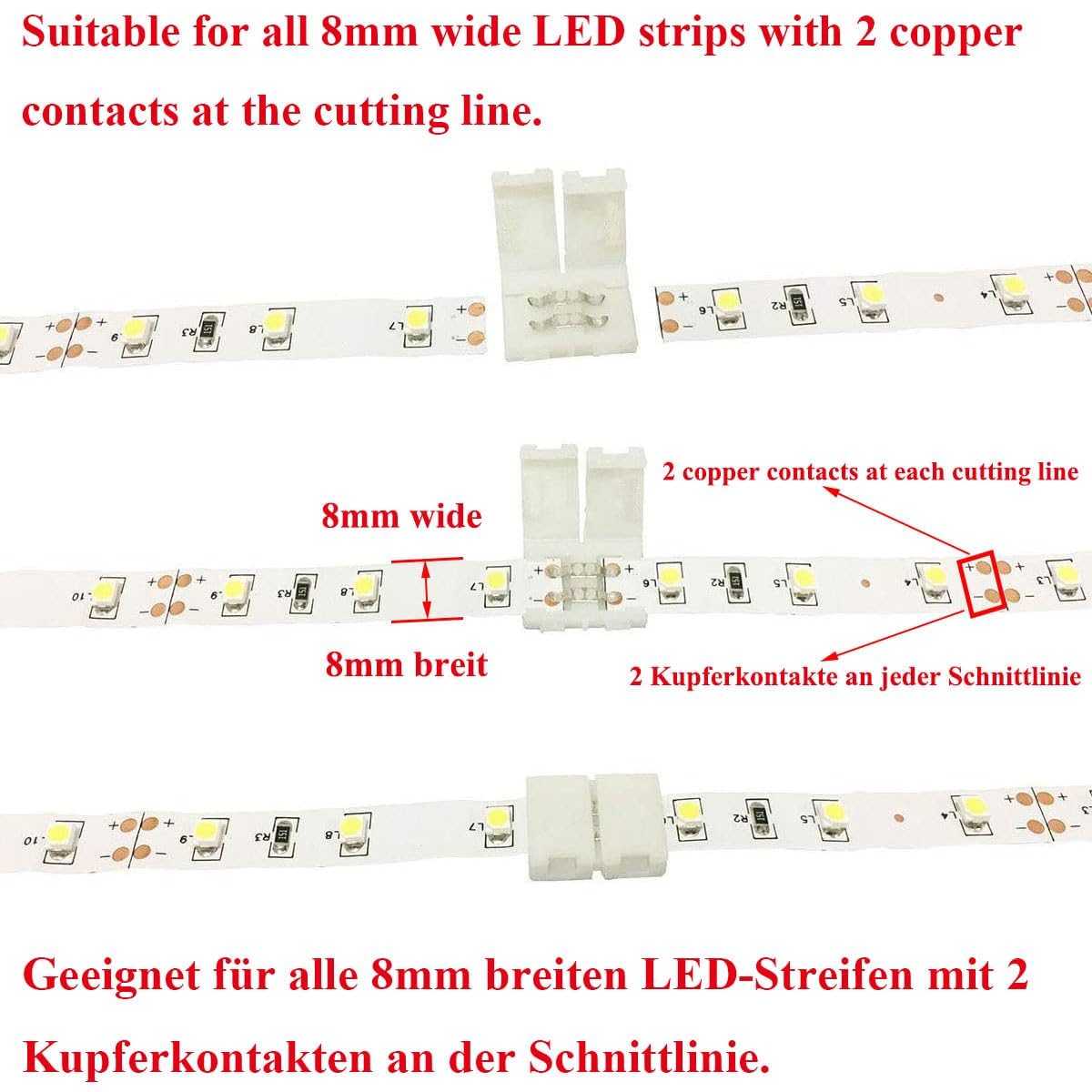

• These snap connectors are only suitable for 8mm wide monochrome LED strips with 2 copper contacts on each cut line. For example, SMD 3528/ 2835 single color LED strips. NOTE: These connectors are NOT suitable for 10mm wide monochrome LED strips.
• Application: Connect 2pcs LED strips together.
• Easy installation - No need to solder. Only need to clamp the LED strips into the connector.
• Provide seamless and good-looking connection for your LED strip lights.
• The package contains 20pcs connectors.

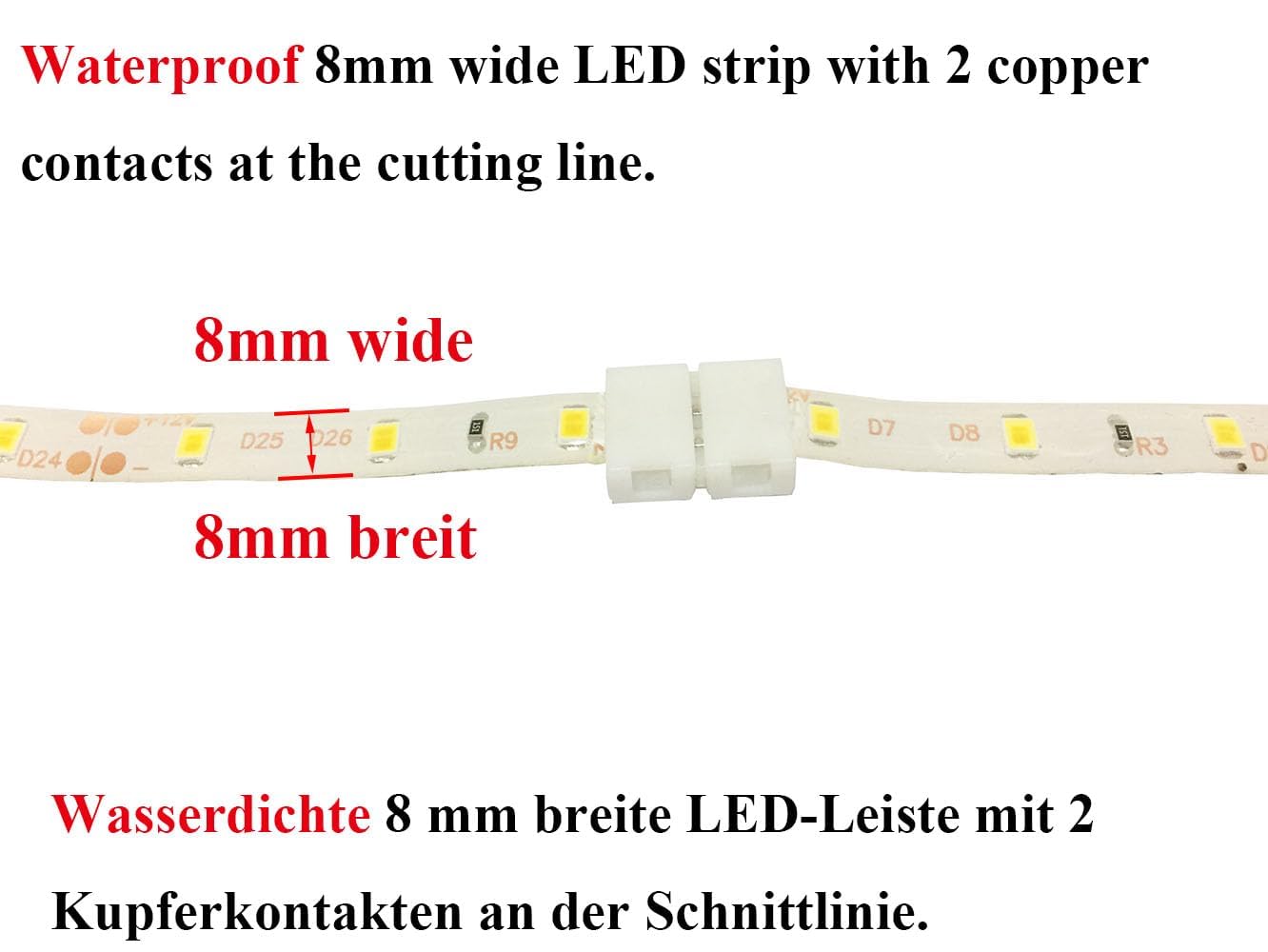

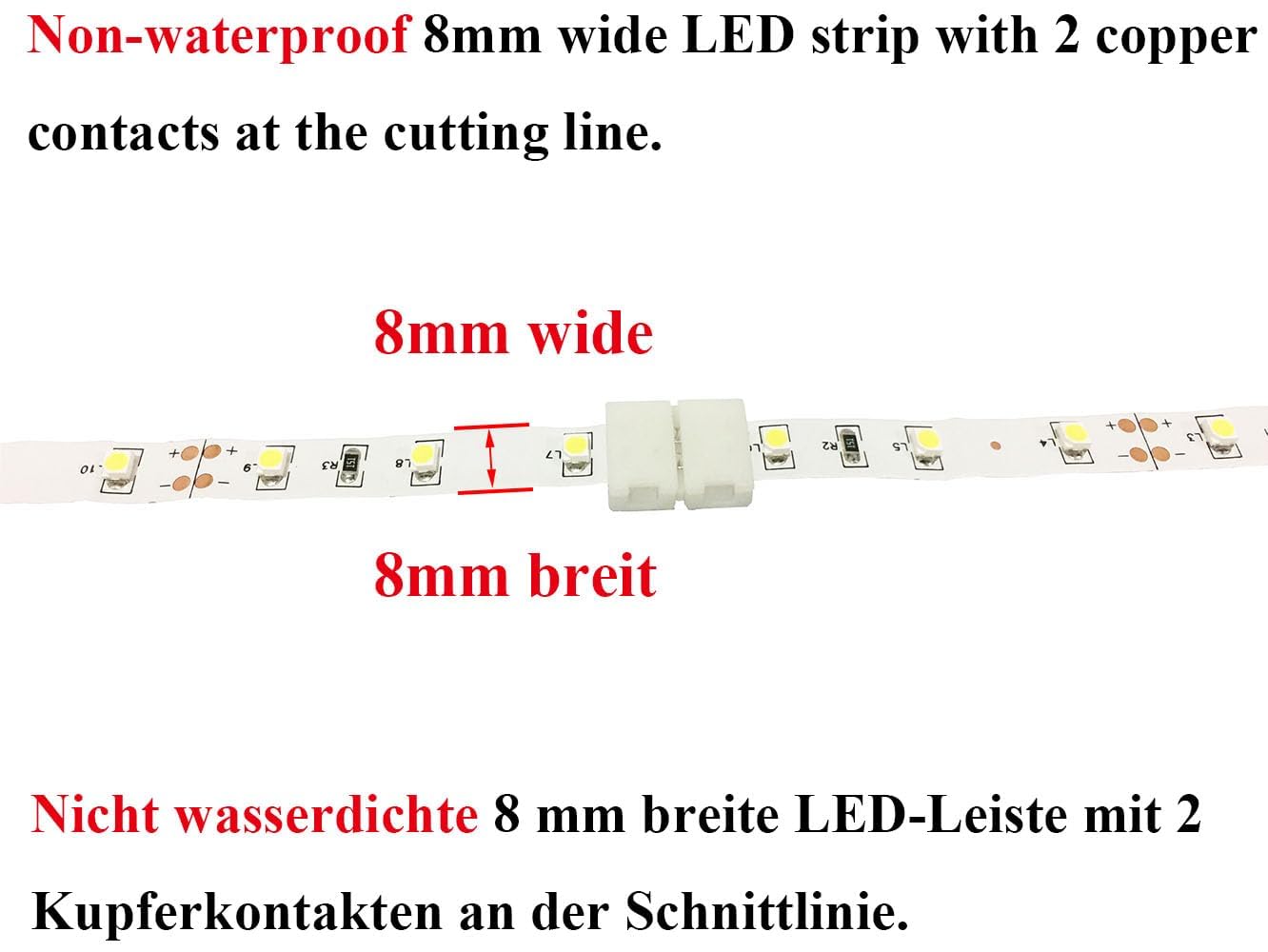

Installation Instructions: 1. Ensure your LED strip is 8mm wide and has 2 copper contacts at the cutting line. 2. Carefully cut your LED strip along the cutting line. Do not tear off the paper on the back of the LED strip before finishing the connection. Just insert the paper and the LED strip together into the connector. This will be easier to insert the LED strip into the connector without bending the LED strip into damage, and the connection will also be more stable. 3. Open the cap of the connector. 4. If you use a non-waterproof LED strip, please insert the LED strip into the connector. Make sure the 2 copper contacts on the LED strip are under the 2 electrical conductors in the connector; If you use a waterproof LED strip, please first remove the waterproof silicone around the cutting line, then insert the LED strip into the connector. Make sure the 2 copper contacts on the LED strip are under the 2 electrical conductors in the connector. 5. Close the cap, and check whether the connector works well. 6. Tear off the paper on the back of the LED strip to stick the LED strip, but please reserve the paper that has already been in the connector. Note: Please make sure that the positive poles of your LED strips at both ends of the connector are on the same one channel. Solutions: If the LED strips flicker or do not light up, please follow these steps: 1. Take off the LED strip from the connector. 2. Open all caps on the connector. 3. Use a thin and hard object to simultaneously press hard on both ends of each electrical conductor in the connector, to bring the electrical conductor down to the lowest position. Make sure the electrical conductor can touch the surface of the bottom of the connector without any pressure. In this way, the 2 electrical conductors in the connector can fully touch the 2 copper contacts on the LED strip, ensuring good electrical conductivity. 4. Insert the LED strip into the connector. Package includes: 20pcs snap connectors for 8mm wide monochrome LED strip that has 2 copper contacts at each cut line.
