LITAELEK 10x RGB 5050 LED Quick Connector 4-Pin Connection Cable LED Strip Connector Adapter Corner Connector for 10 mm Wide RGB 5050 LED Strip to LED Strip or LED Controller 17 cm

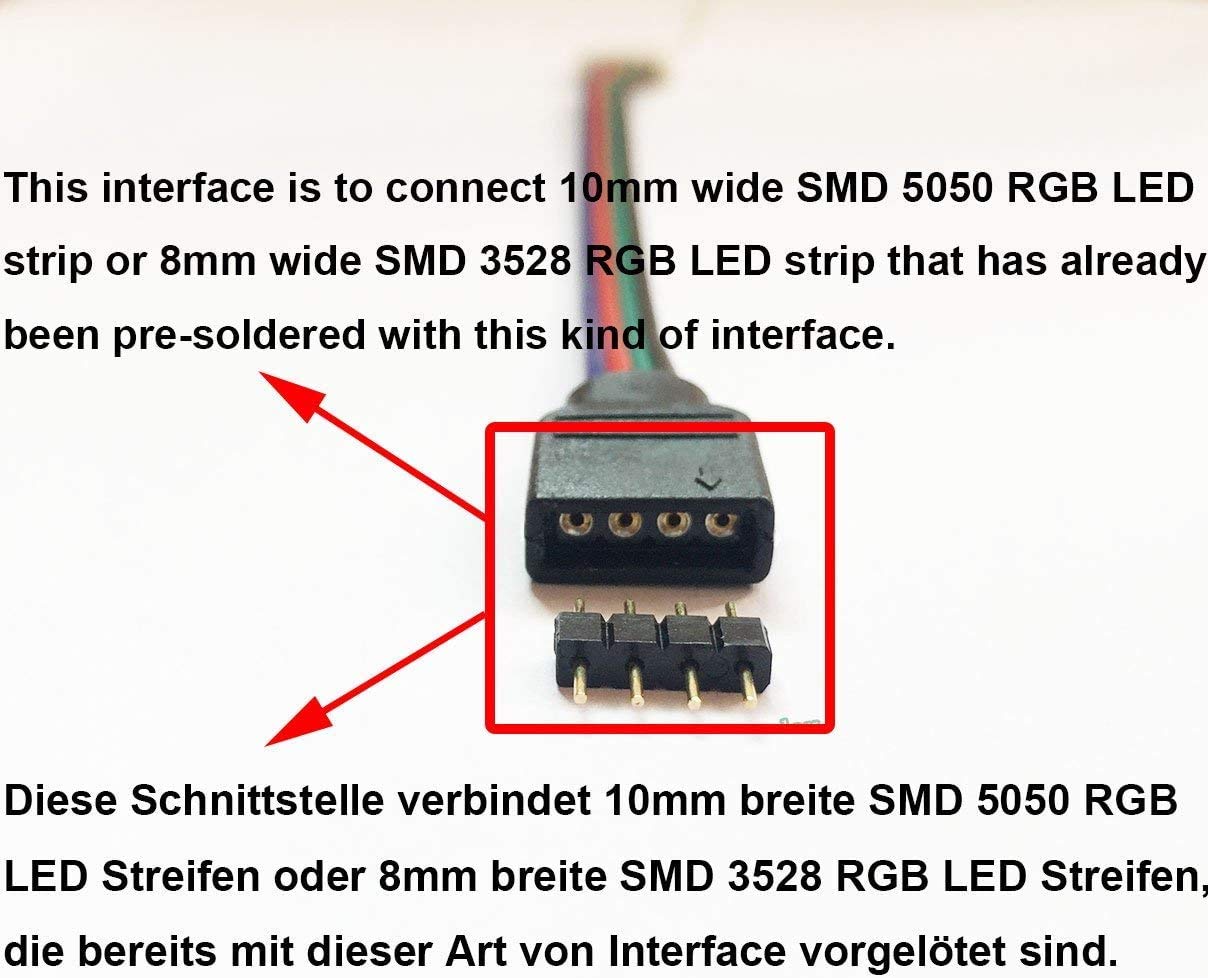

• 4-pin LED connector cable to connect RGB 5050 LED strips to LED controller or to LED strip.
• Easy installation: No need to solder. Only need to clamp the LED strips into the connector.
• Flexible and durable: The tinned pure copper wires stranded inside, so it can take a lot of bending without breaking. Pure copper wires electroplated with tin can prevent oxidation, which ensures flexibility, durability and a longer service life.
• Working voltage: DC 5V-24V. Working current: 3A max.
• Good for DIY projects. If you don't need the plugs on both ends, you can cut them off and solder the cable.

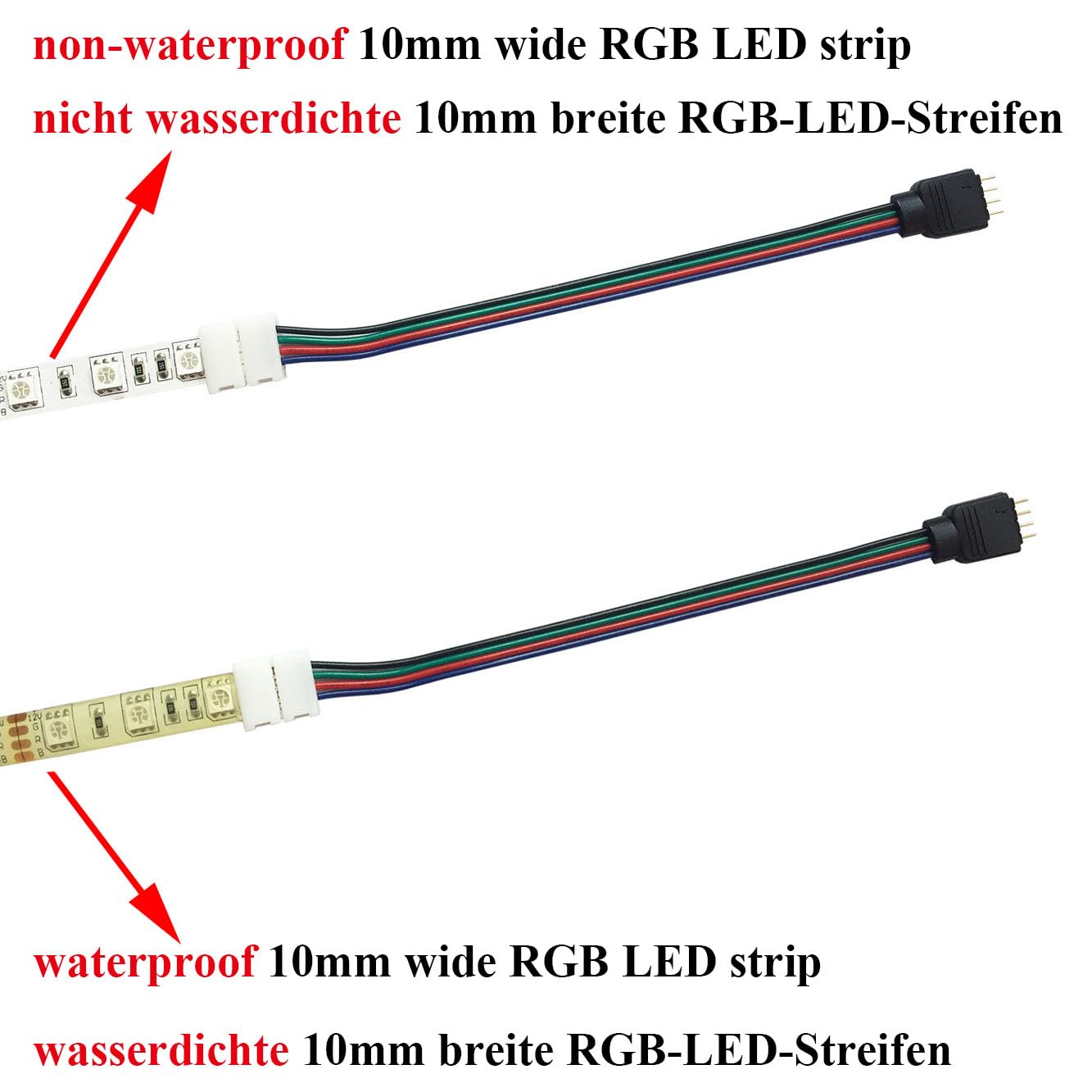

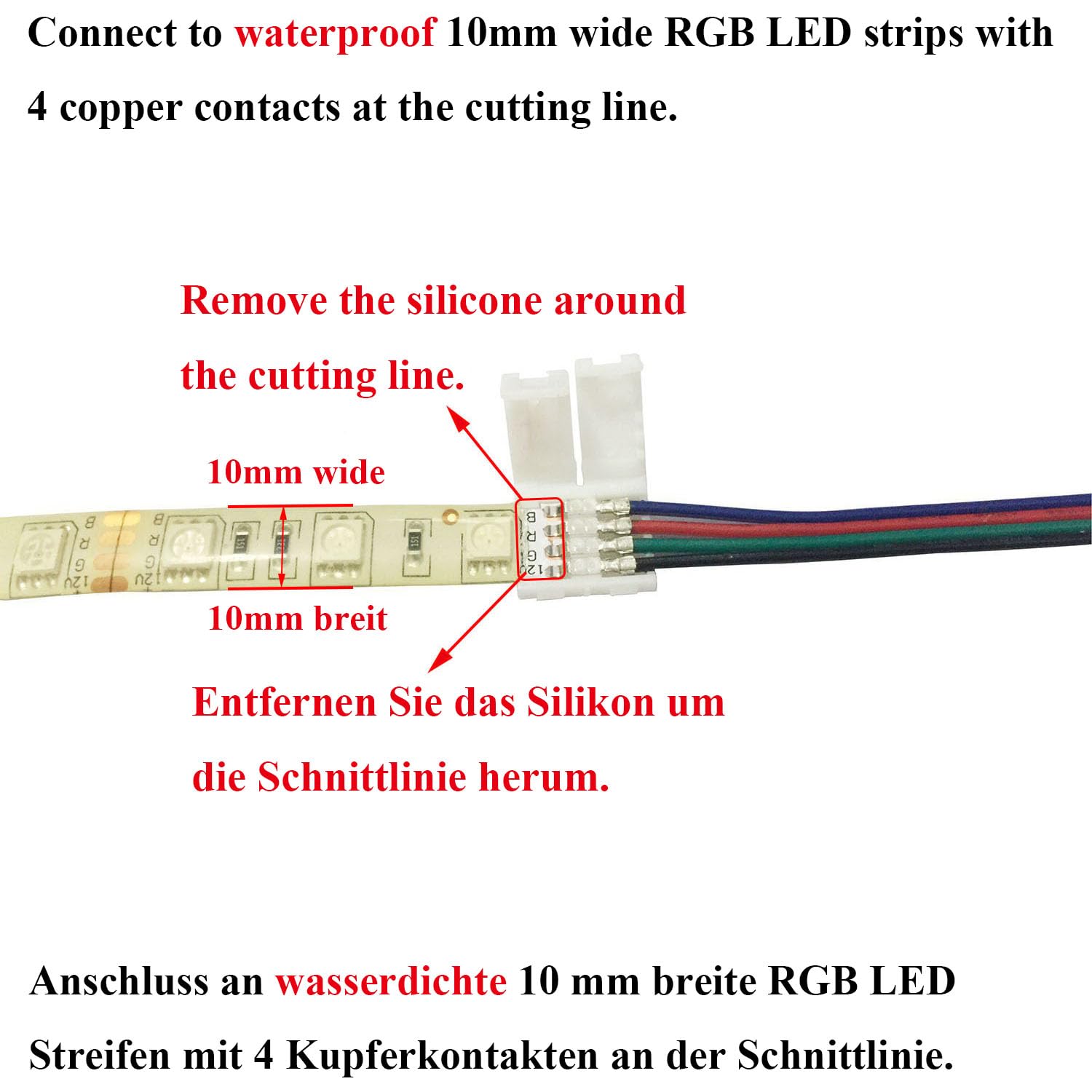

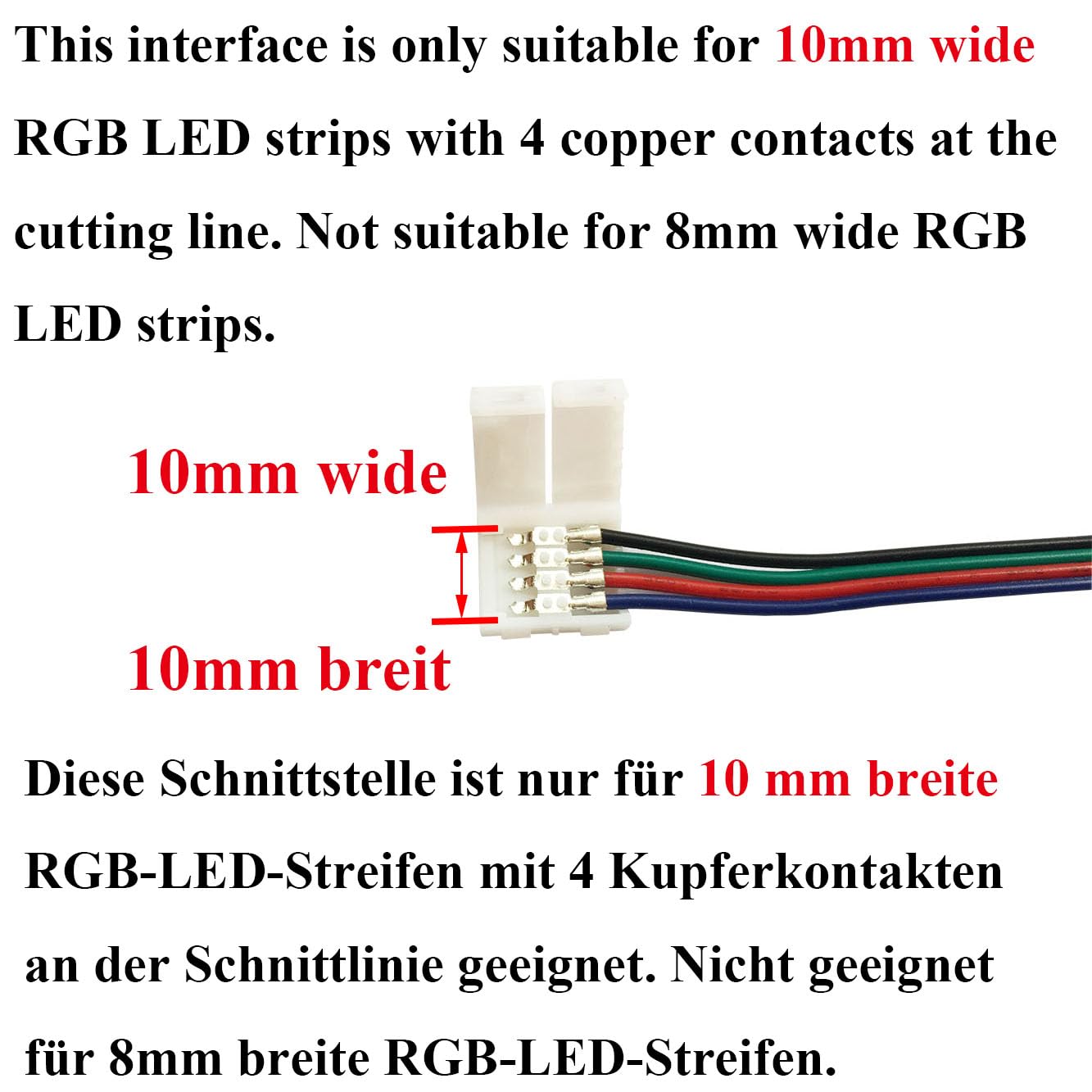

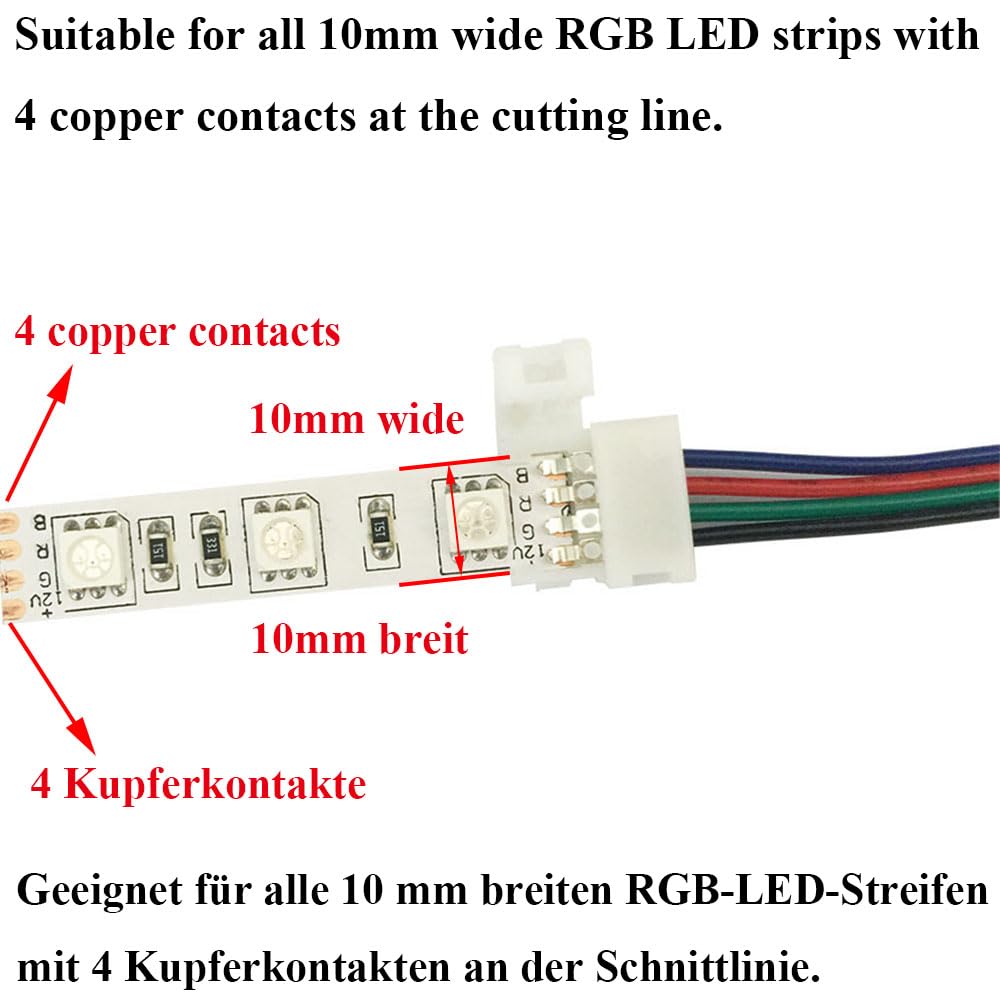

Installation Instructions: 1. Ensure your LED strip is 10mm wide and has 4 copper contacts at the cutting line. 2. Carefully cut your LED strip along the cutting line. Do not tear off the paper on the back of the LED strip before finishing the connection. Just insert the paper and the LED strip together into the connector. This will be easier to insert the LED strip into the connector without bending the LED strip into damage, and the connection will also be more stable. 3. Open the cap of the connector. 4. If you use a non-waterproof LED strip, please insert the LED strip into the connector. Make sure the 4 copper contacts on the LED strip are under the 4 electrical conductors in the connector; If you use a waterproof LED strip, please first remove the waterproof silicone around the cutting line, then insert the LED strip into the connector. Make sure the 4 copper contacts on the LED strip are under the 4 electrical conductors in the connector. 5. Close the cap, and check whether the connector works well. 6. Tear off the paper on the back of the LED strip to stick the LED strip, but please reserve the paper that has already been in the connector. Note: Please make sure that the positive poles of your LED strips at both ends of the connector are on the same one channel. Please make sure the arrow marks on your cable, your LED strip and your controller are on the same one channel. Solutions: If the LED strips flicker or do not light up, please follow these steps: 1. Take off the LED strip from the connector. 2. Open all caps on the connector. 3. Use a thin and hard object to simultaneously press hard on both ends of each electrical conductor in the connector, to bring the electrical conductor down to the lowest position. Make sure the electrical conductor can touch the surface of the bottom of the connector without any pressure. In this way, the 4 electrical conductors in the connector can fully touch the 4 copper contacts on the LED strip, ensuring good electrical conductivity. 4. Insert the LED strip into the connector. Package includes: 10pcs connector cable, 17cm long 10pcs male to male 4-pin plugs
