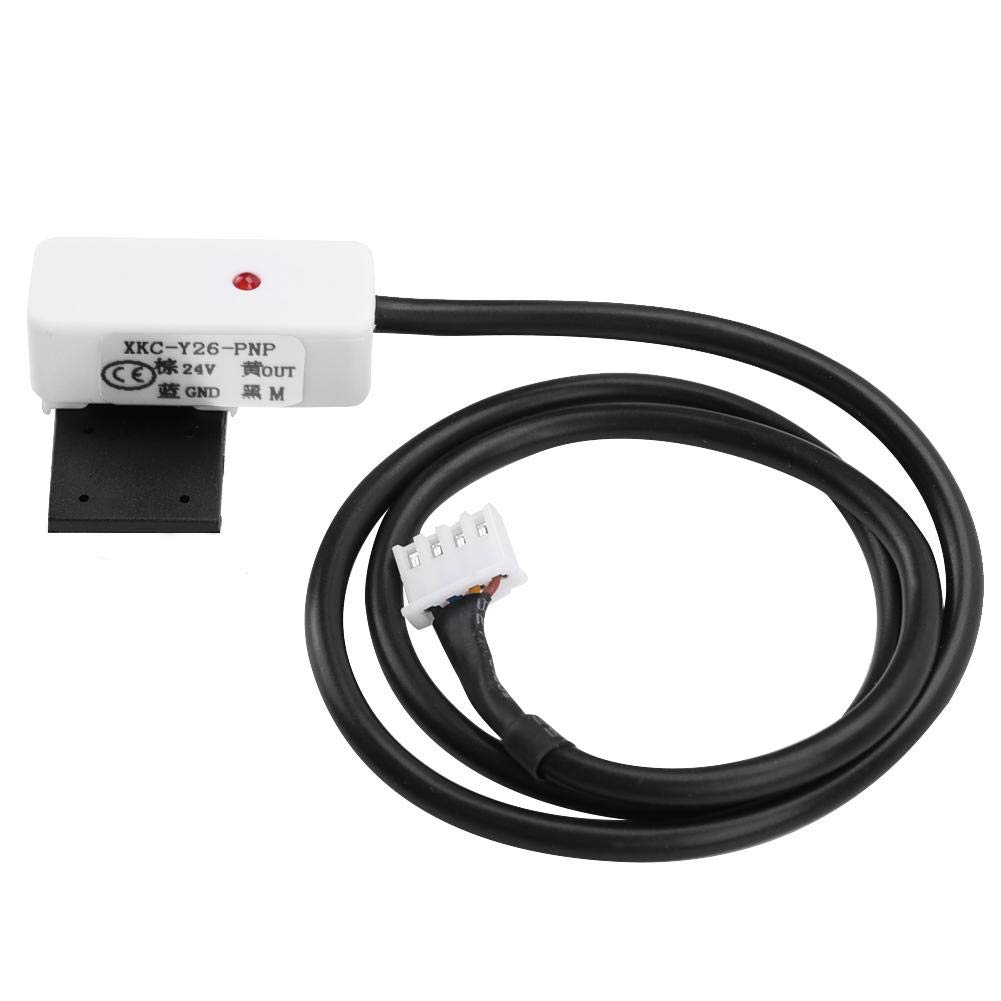

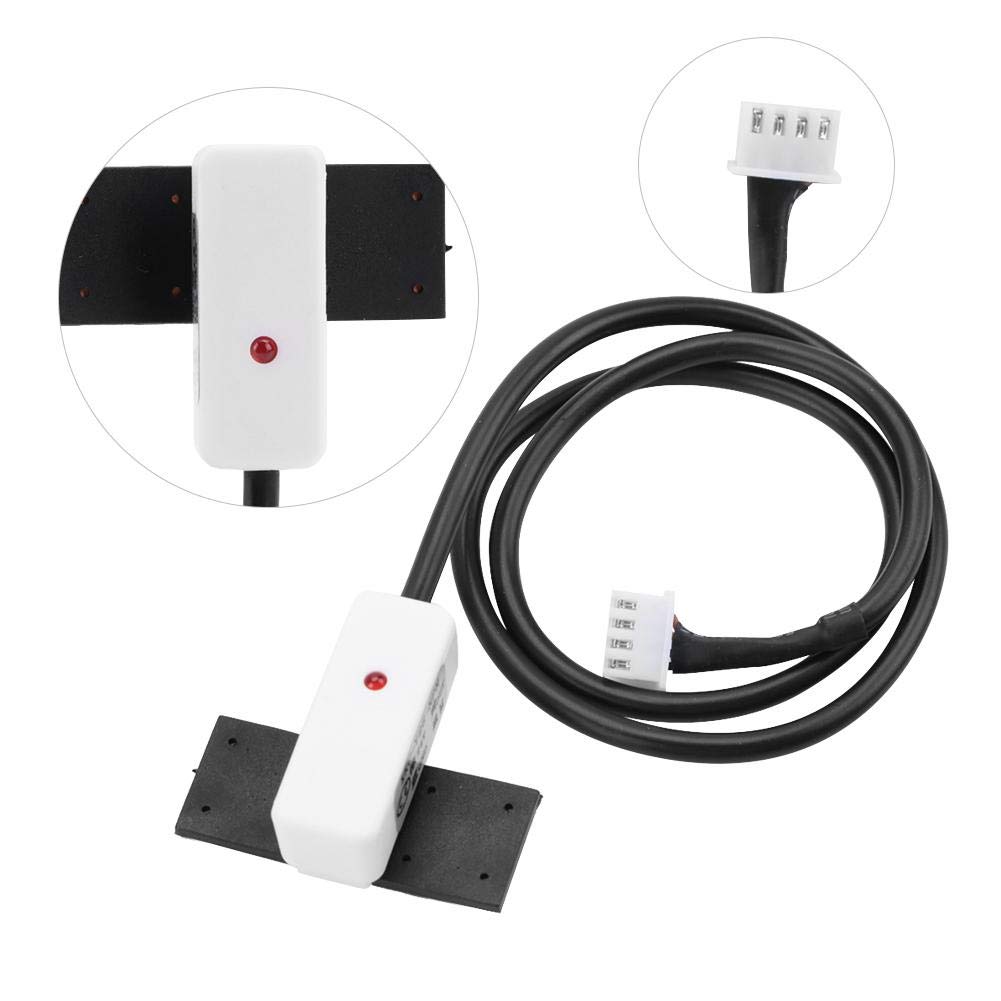

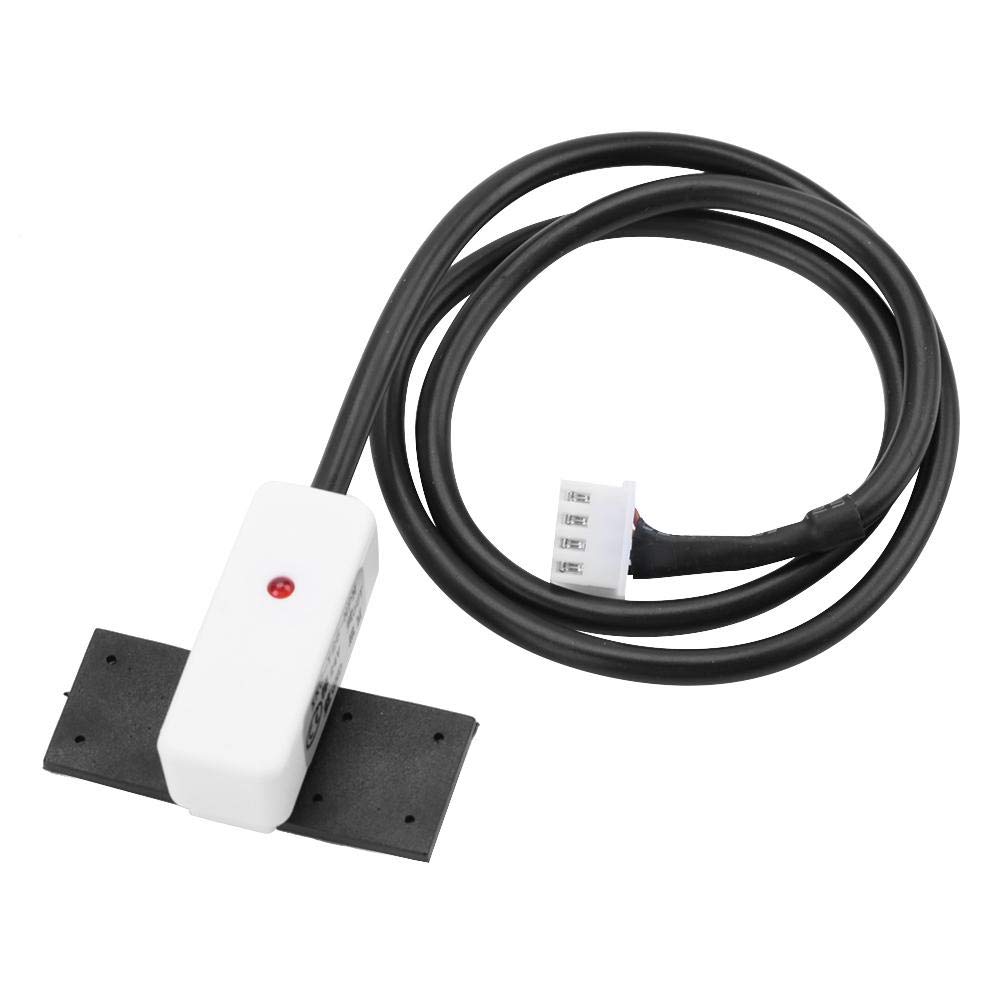

Liquid Level Sensor, Non-Contact Water Level Sensor for Connecting Various Circuits and Product Applications(XKC-Y26-PNP 24V)

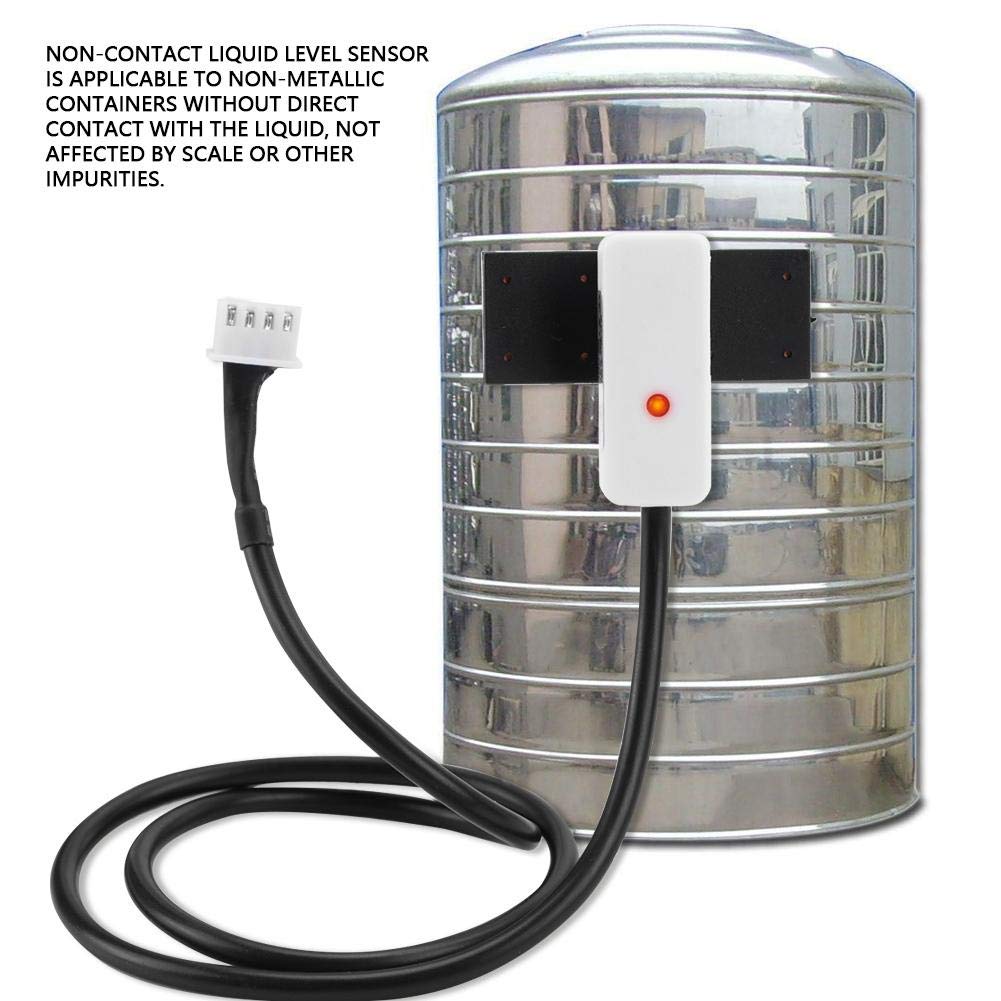

• 【EXCELLENT LIQUID LEVEL SENSOR】- This is a non-contact liquid level sensor, applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
• 【EXCELLENT LIQUID LEVEL SENSOR】- This is a non-contact liquid level sensor, applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
• 【SPECIFICATION】- Operating voltage: 24 (V); Output type: PNP / NPN; Port type: 2.54 general terminal head; Installation type: 4-conductor shielded wire
• 【FEATURE】- Intelligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connections.
• 【NICE PERFORMANCE】- With an induction distance of 20mm. High stability, high sensitivity, strong anti-interference ability ensure it is not affected by the electromagnet, specially designed to handle the power frequency interference and common mode interference.

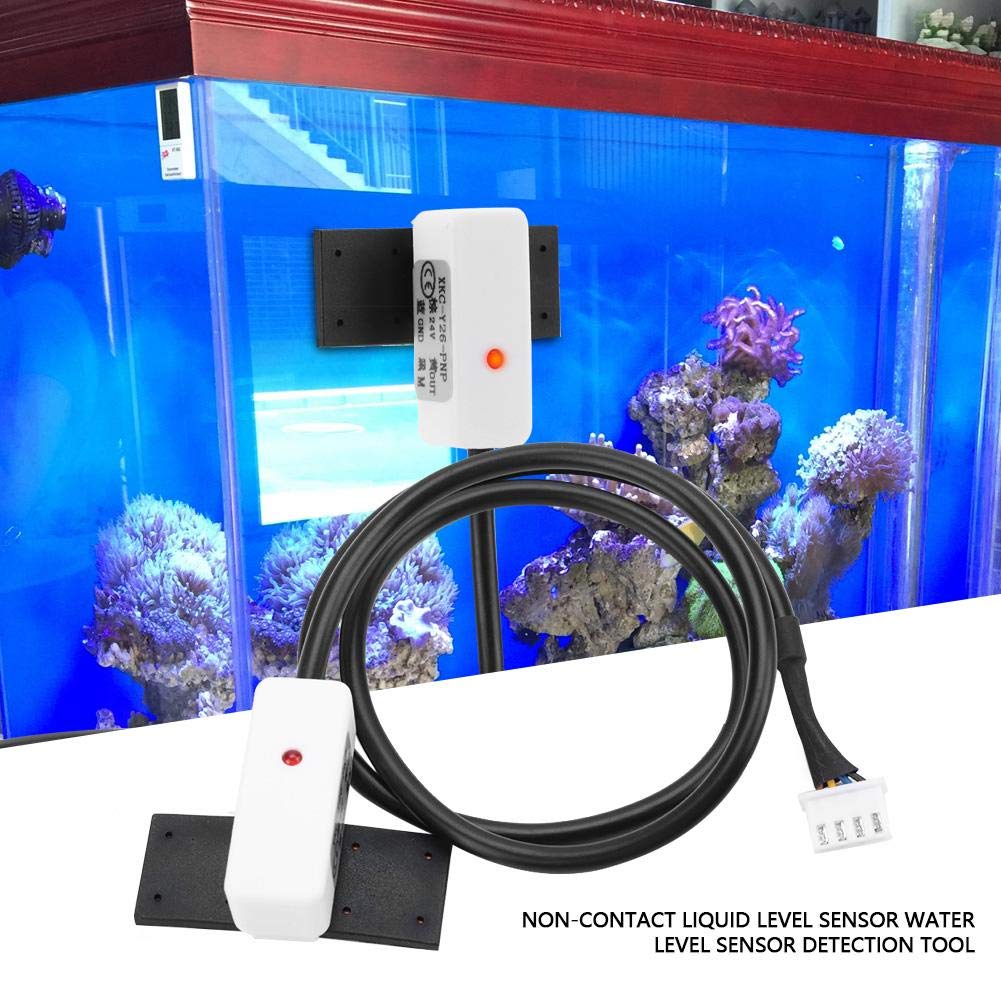

• 【APPLICATION】- Compatible with most 5 ~ 24V power supplies, suitable for connecting various circuits and product applications. Suitable for all kinds of curved surface, arc, cylindrical container or pipe liquid level detection. Strong compatibility with a variety of containers of non-metallic materials, such as plastic, glass, ceramic etc.

Features: Non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities. Intelligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connection. Electronic circuit structure rather than machinery ensures stable performance, durability and a long service life. High stability, high sensitivity, strong anti-interference ability make sure it won't be affected by electromagnet, special designed to deal with power frequency interference and common mode interference. Compatible with most 5 ~ 24V power adapter. Strong compatibility through a variety of non-metallic material containers, such as plastic, glass, ceramics etc, with a 20mm induction distance. Suitable for all kinds of curved surface, arc, cylindrical container or pipeline liquid level detection. Wide voltage range (5~24V), suitable for connecting various circuits and product applications. Specification: Model: XKC-Y26-NPN, XKC-Y26-PNP(Optional) Operating voltage: 24 (V) Output type: PNP/NPN Rated current: 1-100mA Switch actuated liquid level: PNP/NPN Port type: 2.54 general terminal head Type of installation: 4-core shielded wire Weight: Approx.23g/0.8oz Package list: 1 x Non-Contact Liquid Level Sensor
