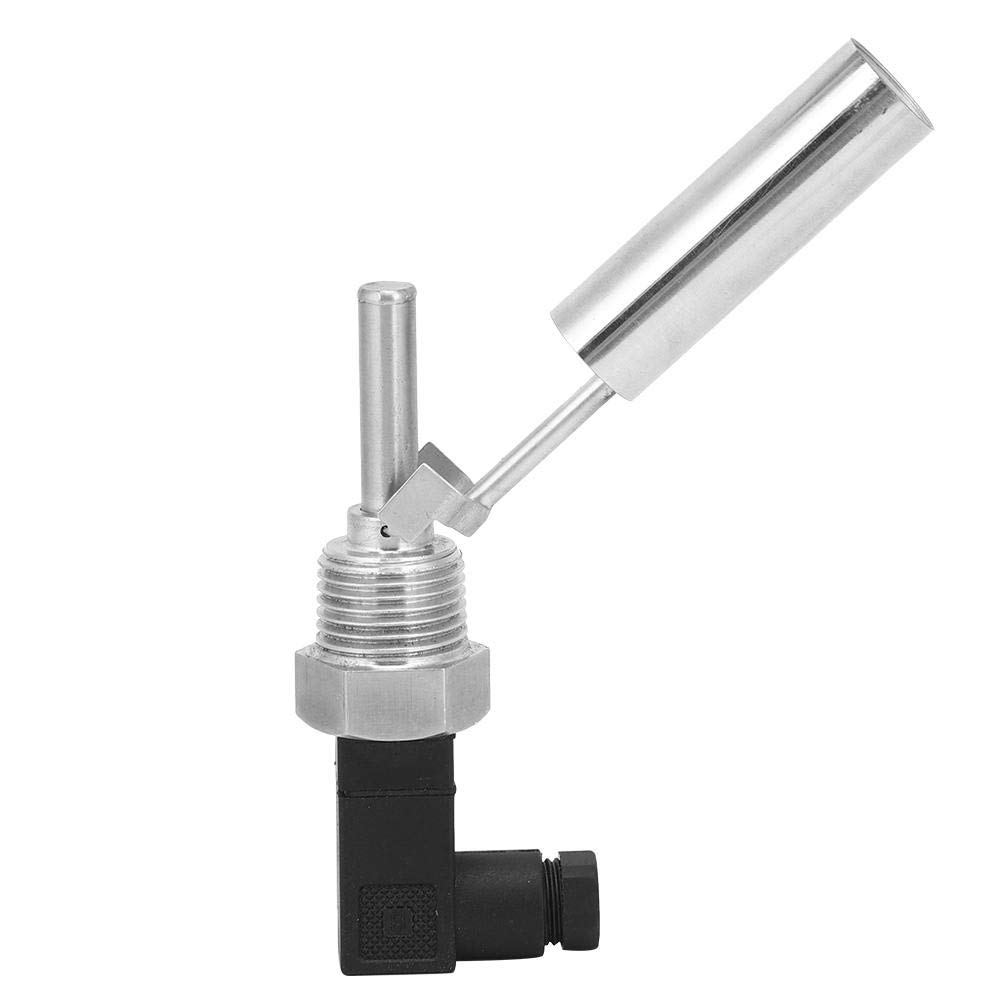

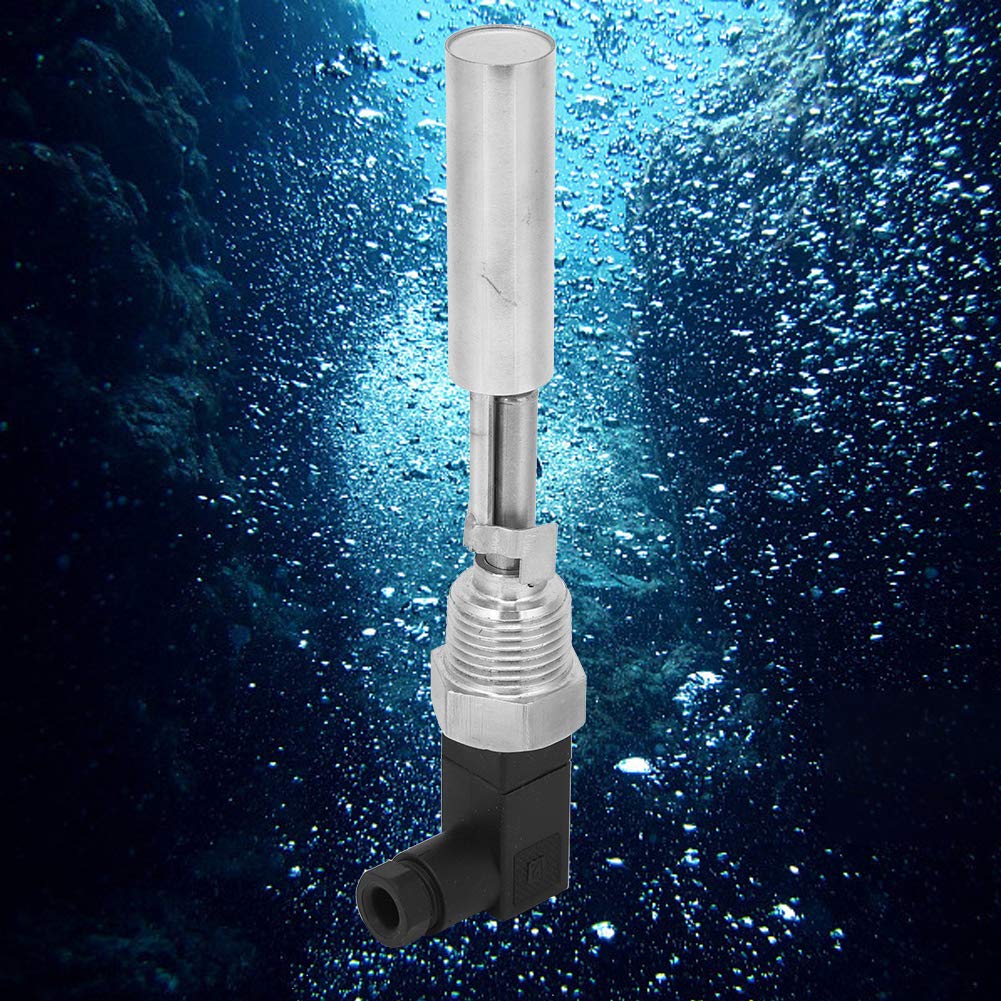

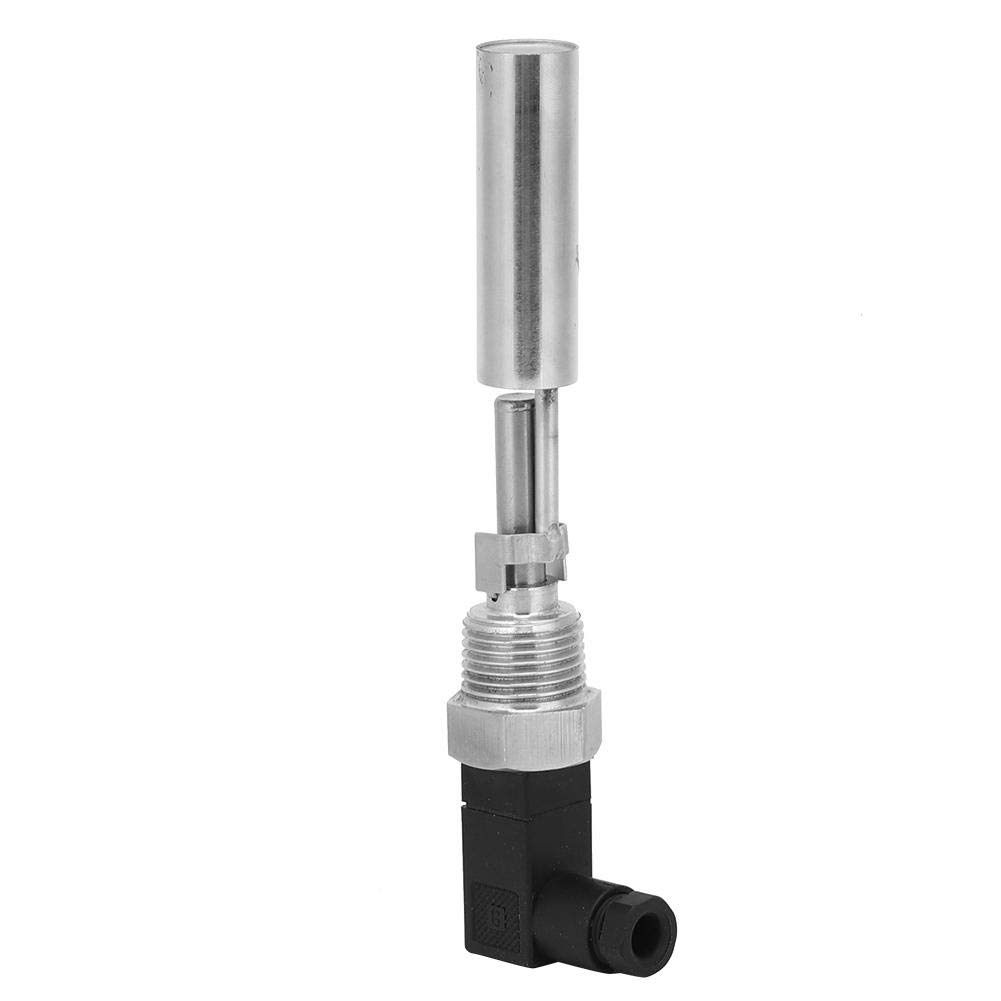

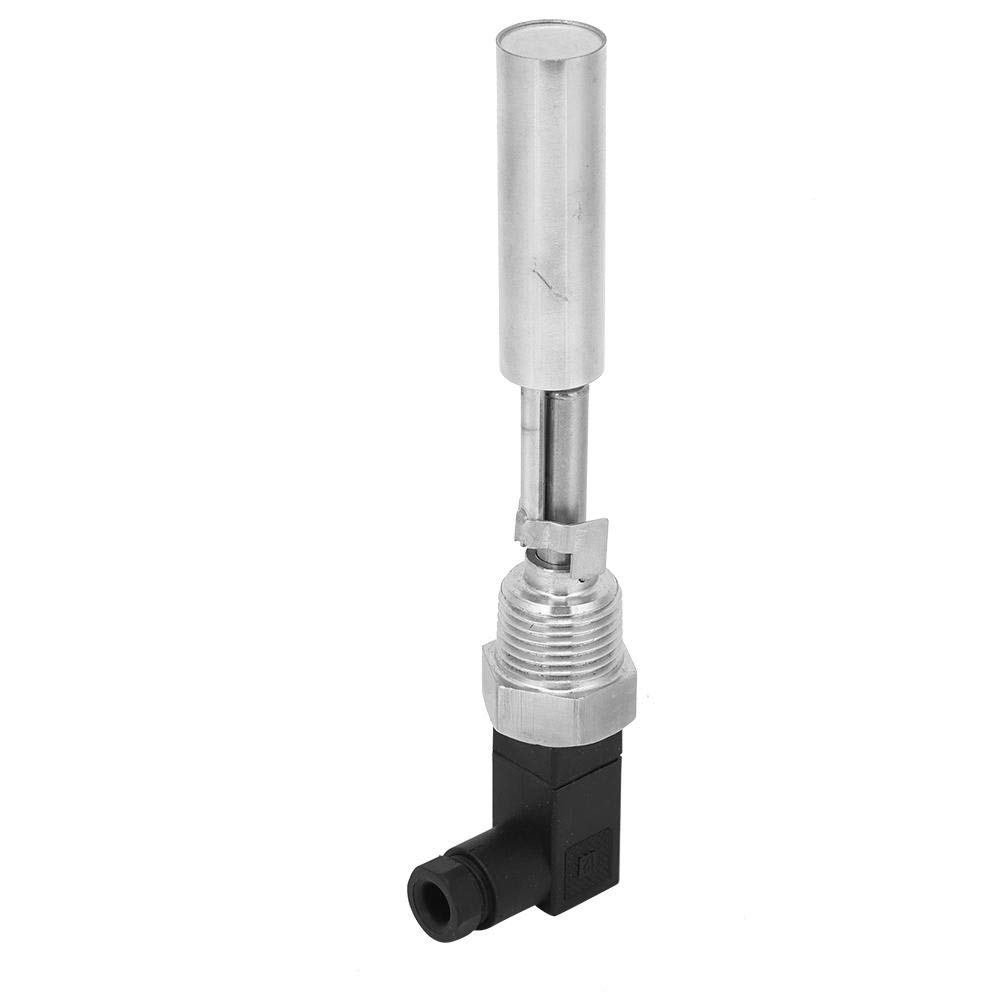

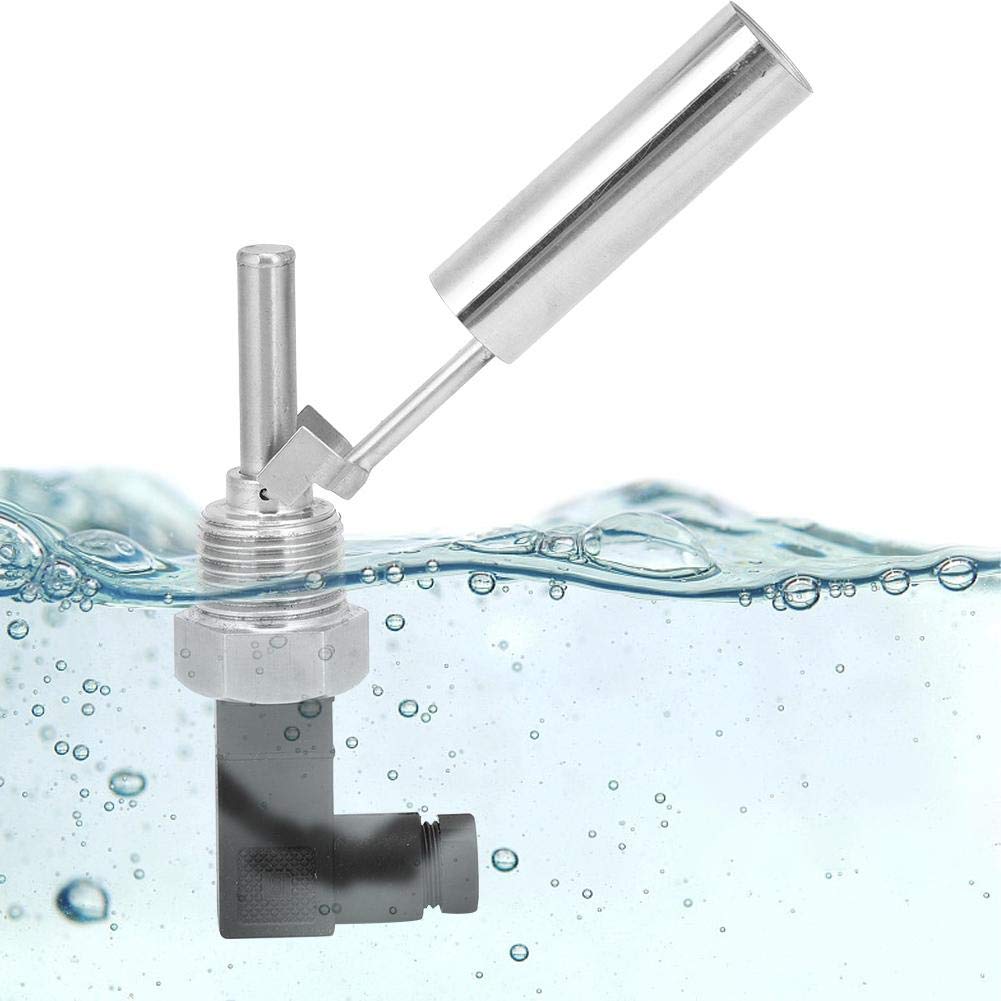

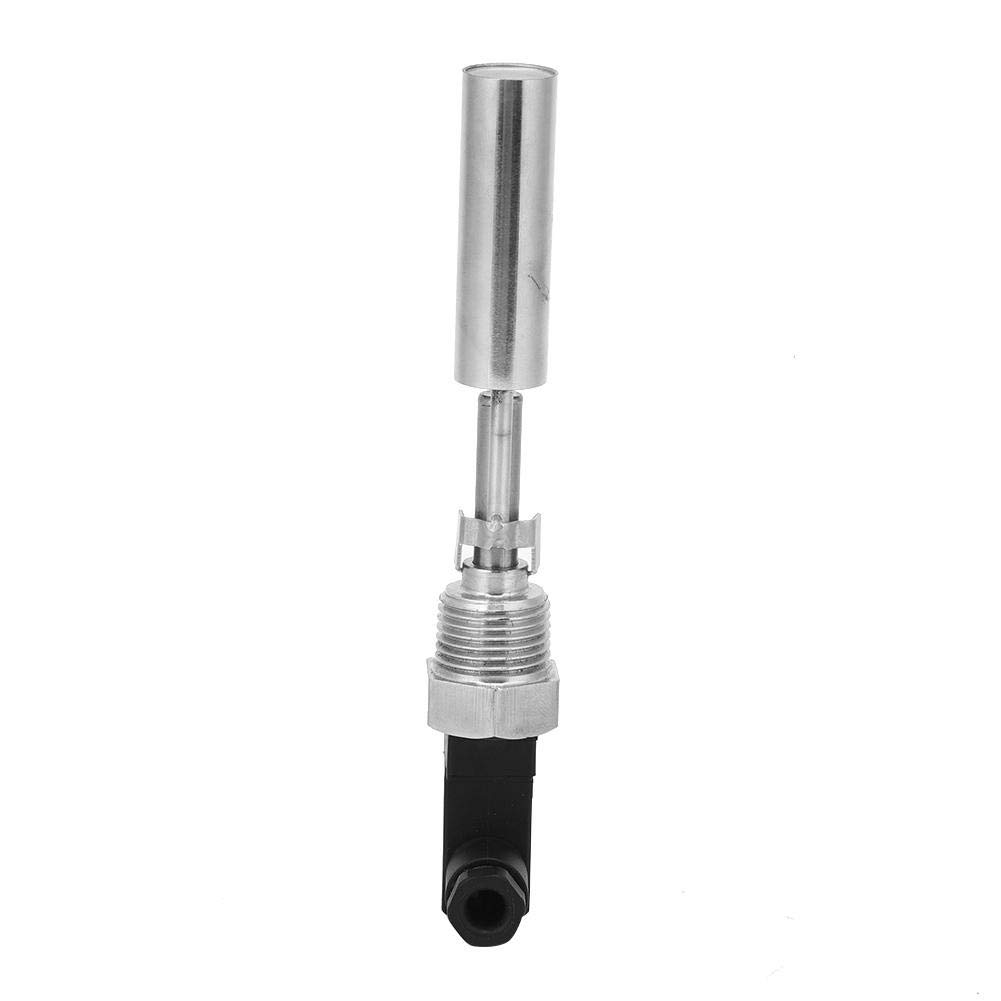

Liquid Level Sensor, G1/2" DC0-220V 304 Stainless Steel Water Liquid Level Sensor Duckbill Float Switch, G1/2" Duckbill Float Switch

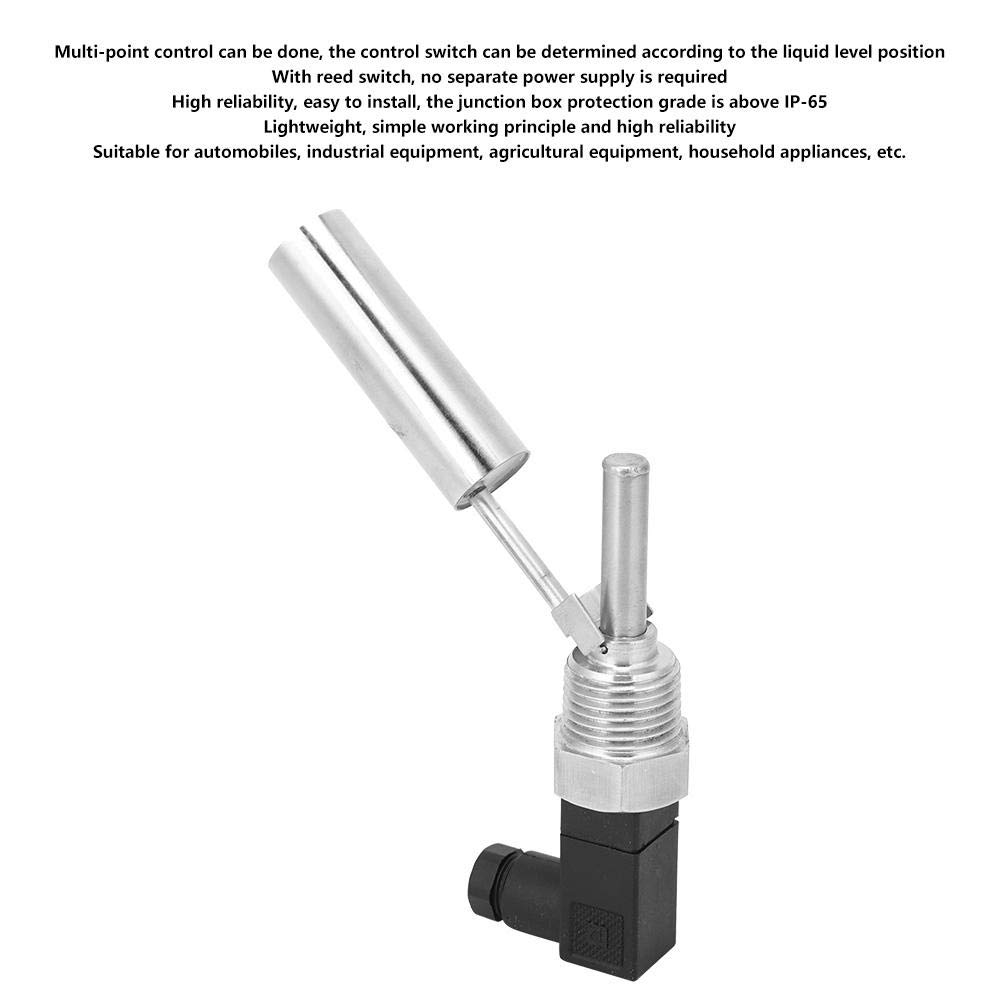

• [Multi-point control] Multi-point control can be done, the control switch can be determined according to the liquid level position.
• [Reed switch] With reed switch, no separate power supply is required.
• [High performance] Lightweight, simple working principle and high reliability. High reliability, easy to install, the junction box protection grade is above IP-65.
• [Stainless Steel Material] The material is stainless steel SUS304, can be used in high temperature and high pressure places, suitable for different density, different acid and alkali, different pressure and temperature.
• [Application] The switch is suitable for automobiles, industrial equipment, agricultural equipment, household appliances, etc.

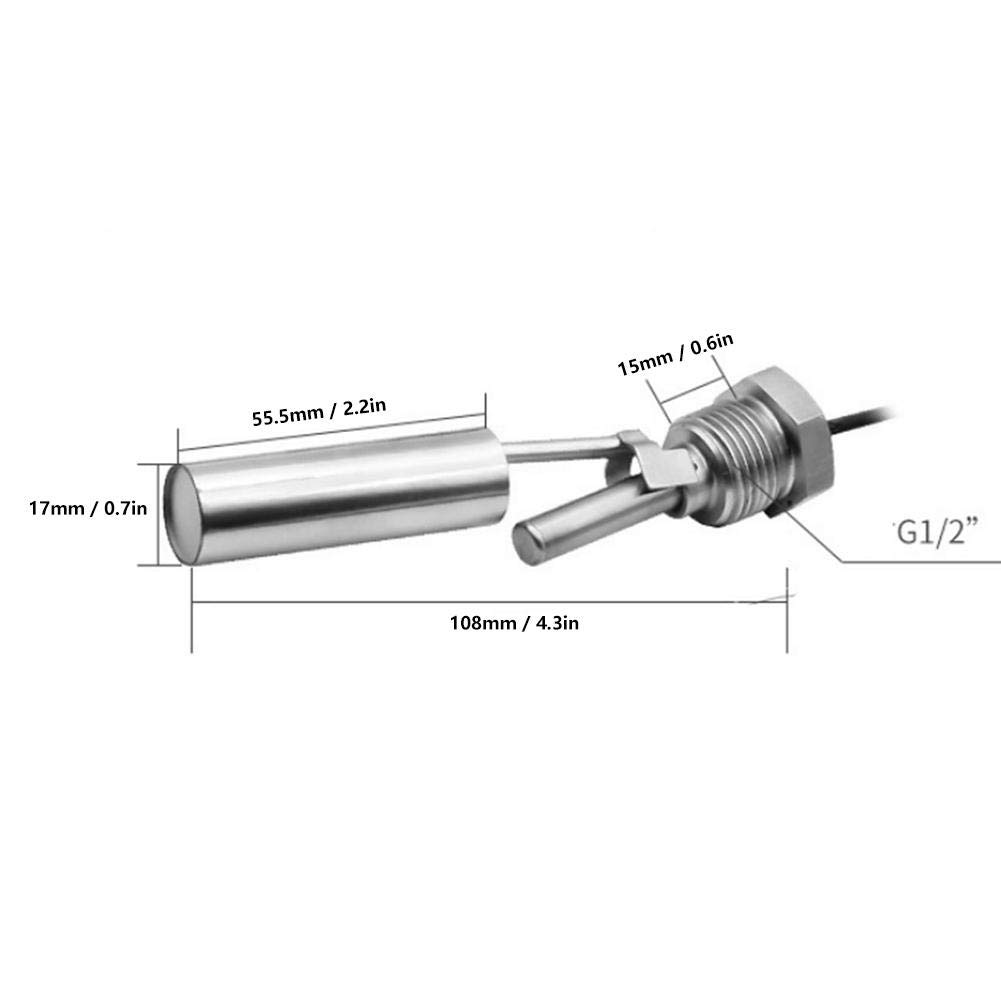

Feature: 1. Suitable for automobiles, industrial equipment, agricultural equipment, household appliances, etc. Specification: Item Type: Duckbill Float SwitchContact Capacity: 10W (low pressure) / 50W (high pressure) Working Voltage: 0-220 (V) Working Current: 0.5-1.5 (A) Maximum Temperature Resistance: 120(℃) Maximum Withstand Voltage: 0.2(Mpa) Material: 304 stainless steel Thread: G1/2"Size: Approx. 108 x 17 x 55.5mm / 4.3 x 0.7 x 2.2in 15mm / 0.6in Working Principle: The small float switch, small liquid level controller and liquid level sensor are mainly composed of a magnetic reed switch and a float. There are magnetic materials in the float. When the float moves up and down with the measured liquid level, the magnetic reed switch is touched to detect the liquid level position. Package List: 1 x Duckbill Float Switch
