LINKUP - Internal 16G U.2 Cable (85Ω 85ohm PCIe Gen 4 Mini SAS HD to U.2/SFF-8643 to SFF-8639 Cable) with SATA Power - 1.2 meters/4 feet

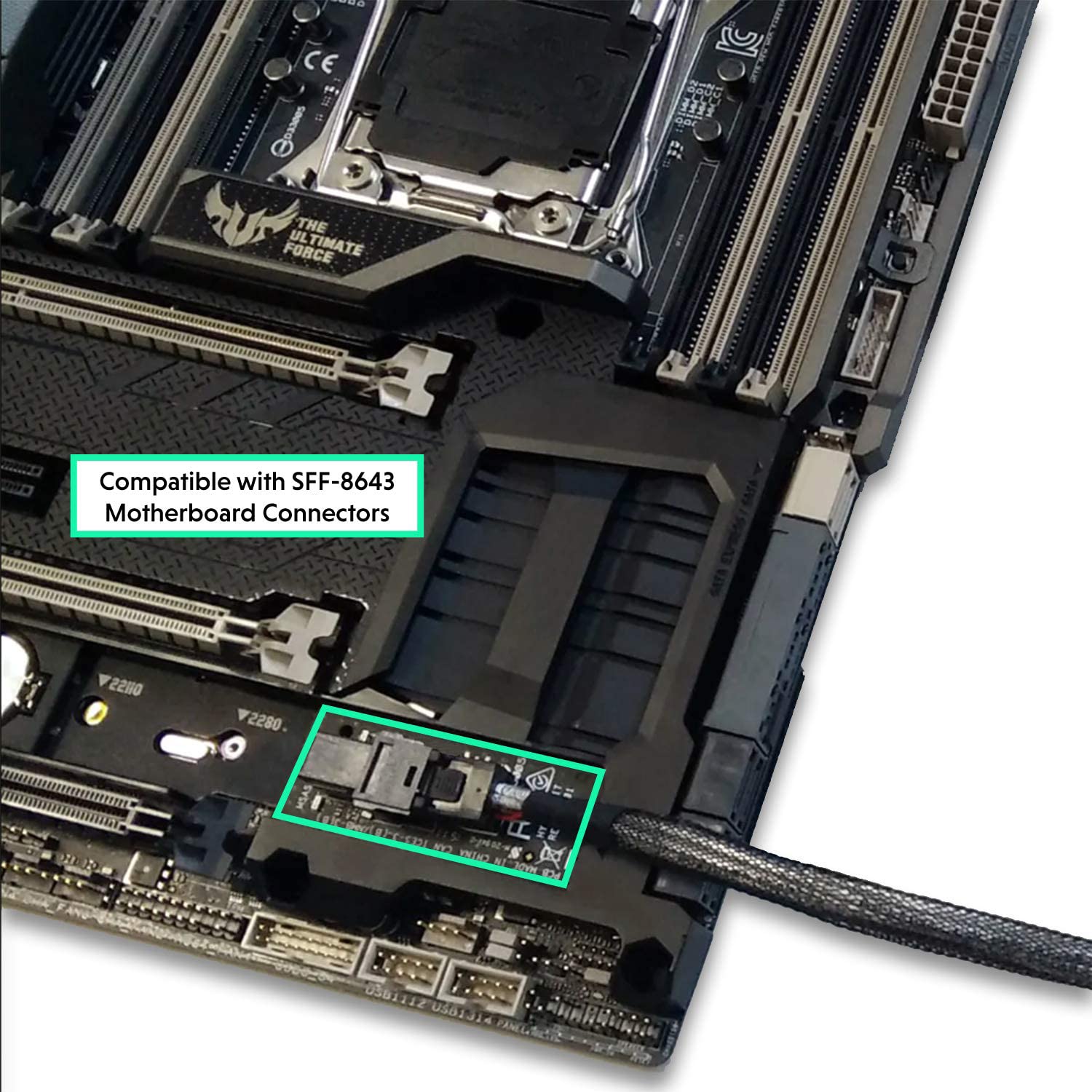

• 【True NVMe Speed】Blazing fast 16G NVMe SSD speeds made possible with LINKUP SFF 8643 to SFF 8639 cables. Specifically designed to connect a high performance NVMe SSD to an onboard SFF-8643 Mini-SAS HD port or to a M.2 to U.2 Add-On card; a perfect solution when a PCIe slot is unavailable.
• 【Quality Construction】85Ω impedance twinaxial SAS cables offer PCIe 4.0 (3.0 backward compatible) specifications for true M.2 NVMe and U.2 SSD (16G) speeds. Flexible braided heavy-duty cable with 18AWG wires and individual laneway shielding allow for the best versatile connections.
• 【SATA Powered】Integrated SATA power connects U.2 PCIe 4.0 (3.0 backward compatible), 4-Lane connection to the computer power supply to power the NVMe SSD with 3.3V 12V.

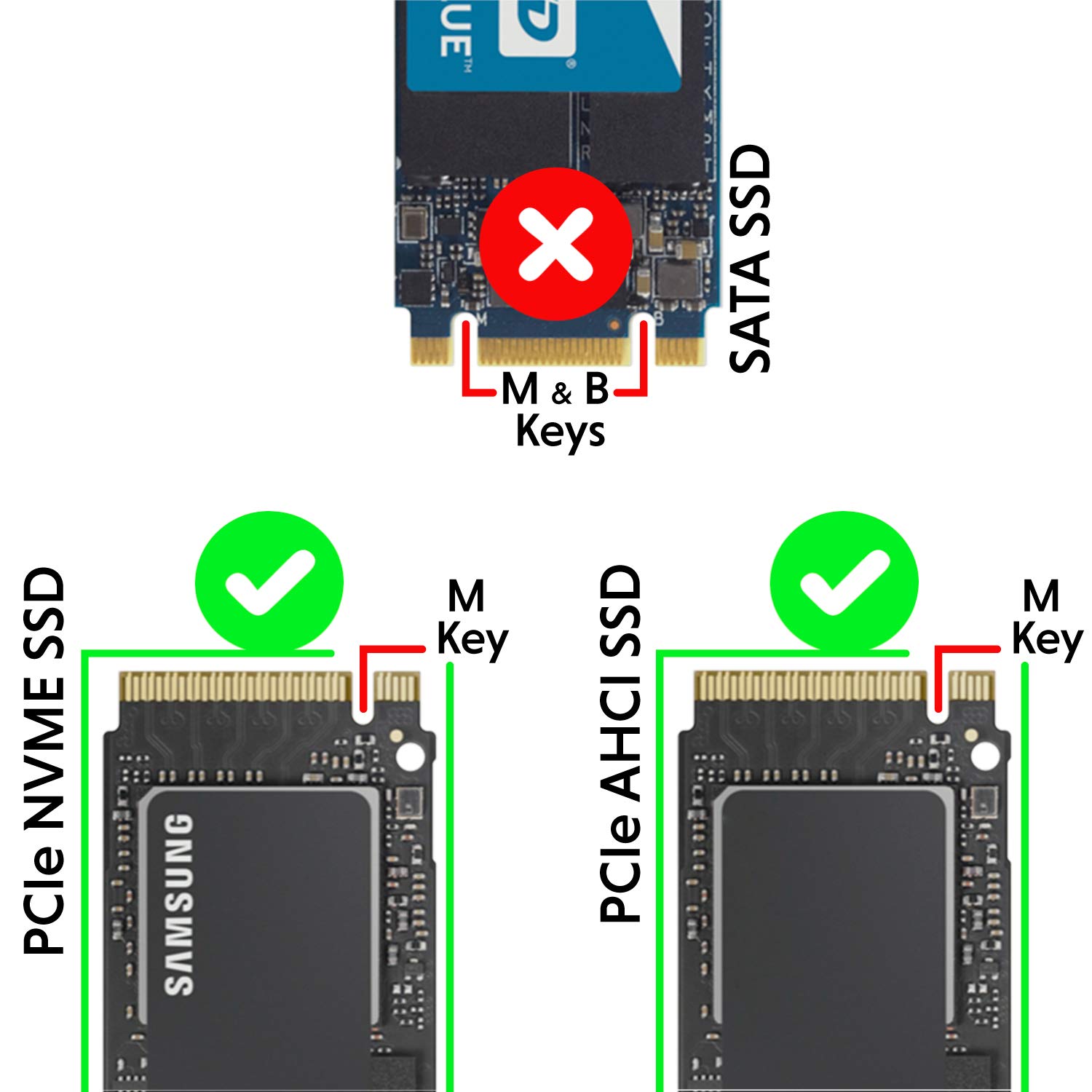

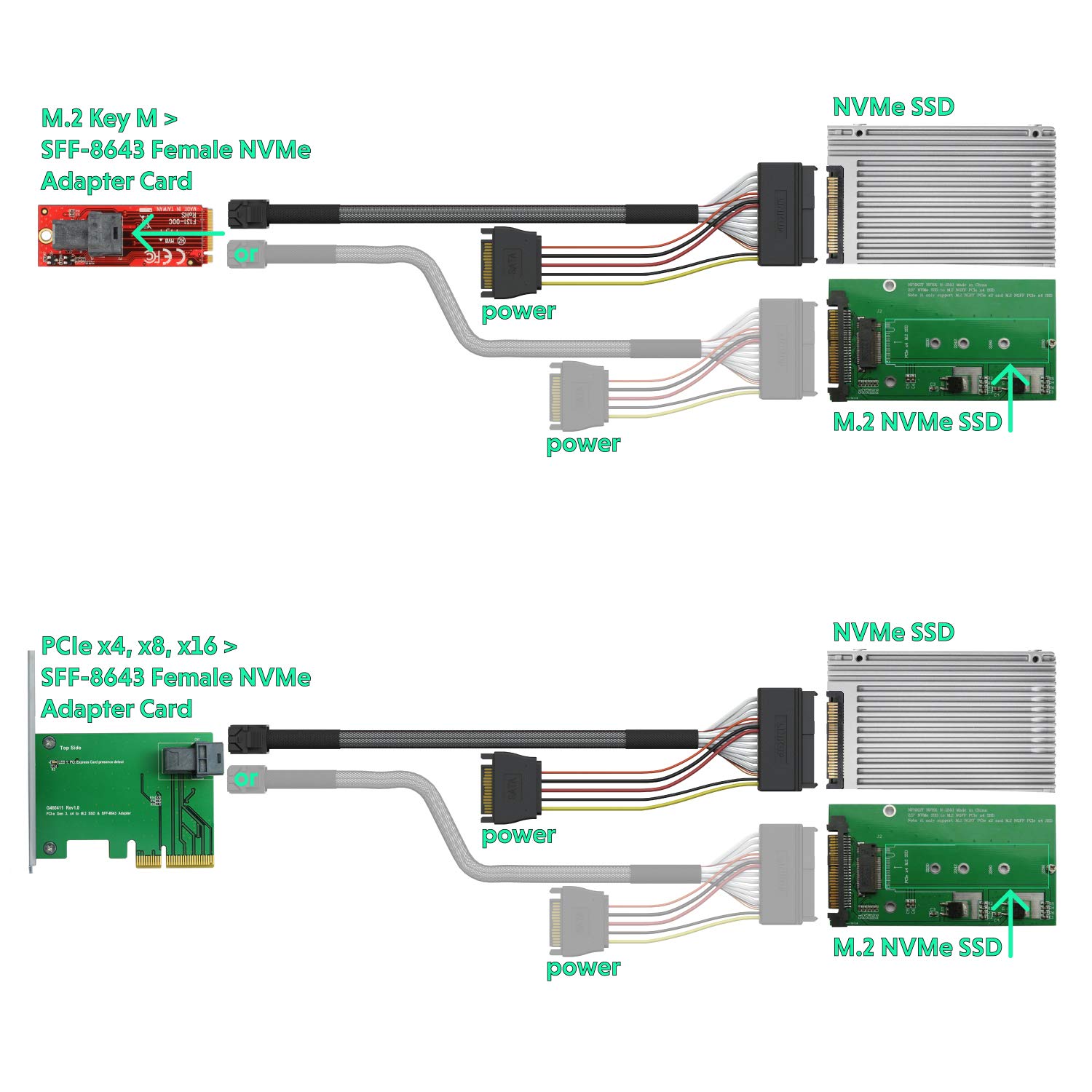

• 【Compatibility】Adapt an M.2 SSD with adapters such as Ableconn M.2 NVMe SSD to U.2 SSD Adapter. Compatible with U.2 Add-On card. Compatible with M.2 to U.2-Mini-SAS Add-In Card. Compatible with Accessory Hyper Kit Expansion Card M.2 to Mini SAS HD.

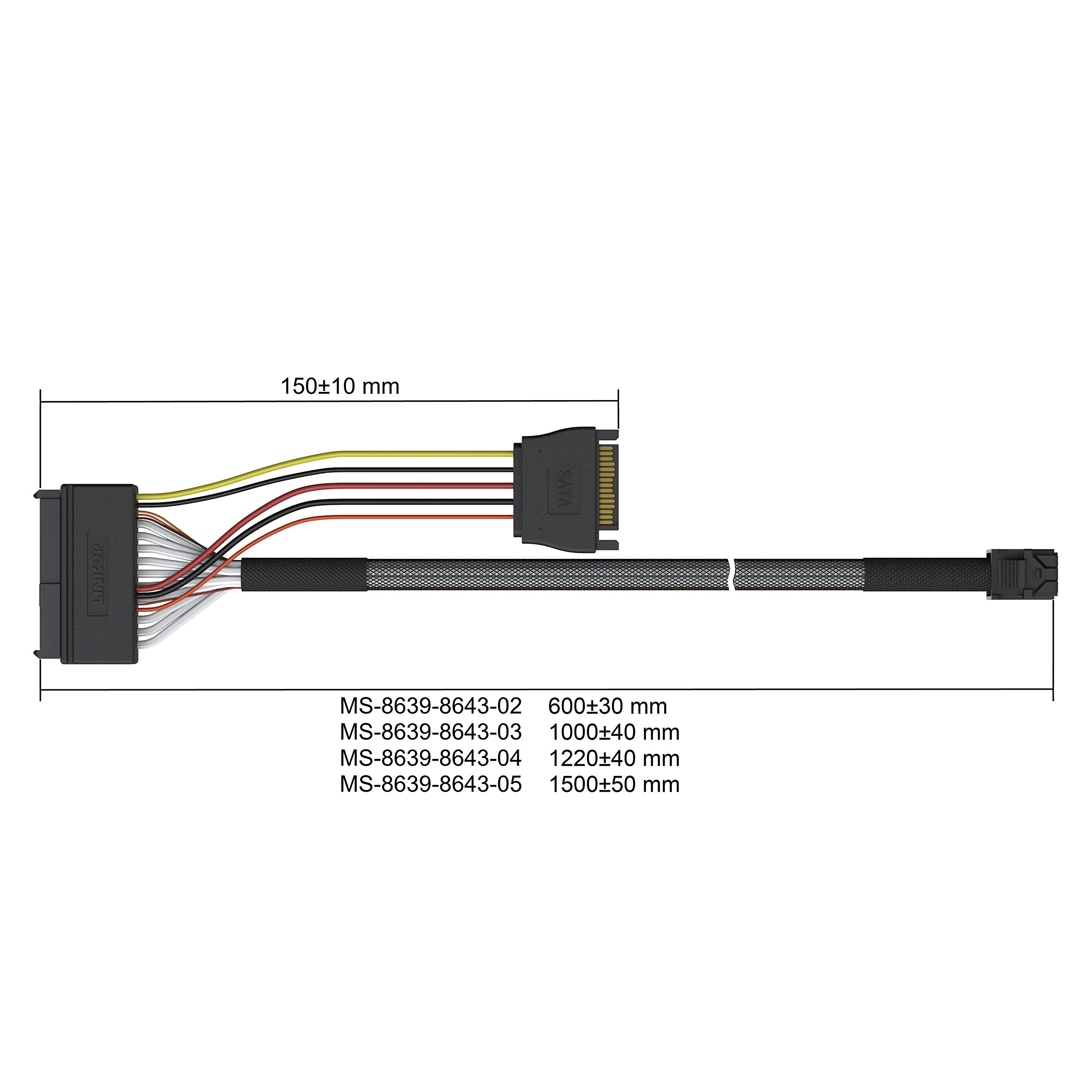

• 【LINKUP Cares!】Backed by a LINKUP Limited 1-Year Warranty and complimentary premium online support. Available in 2ft, 3ft, 4ft, and 5ft lengths.

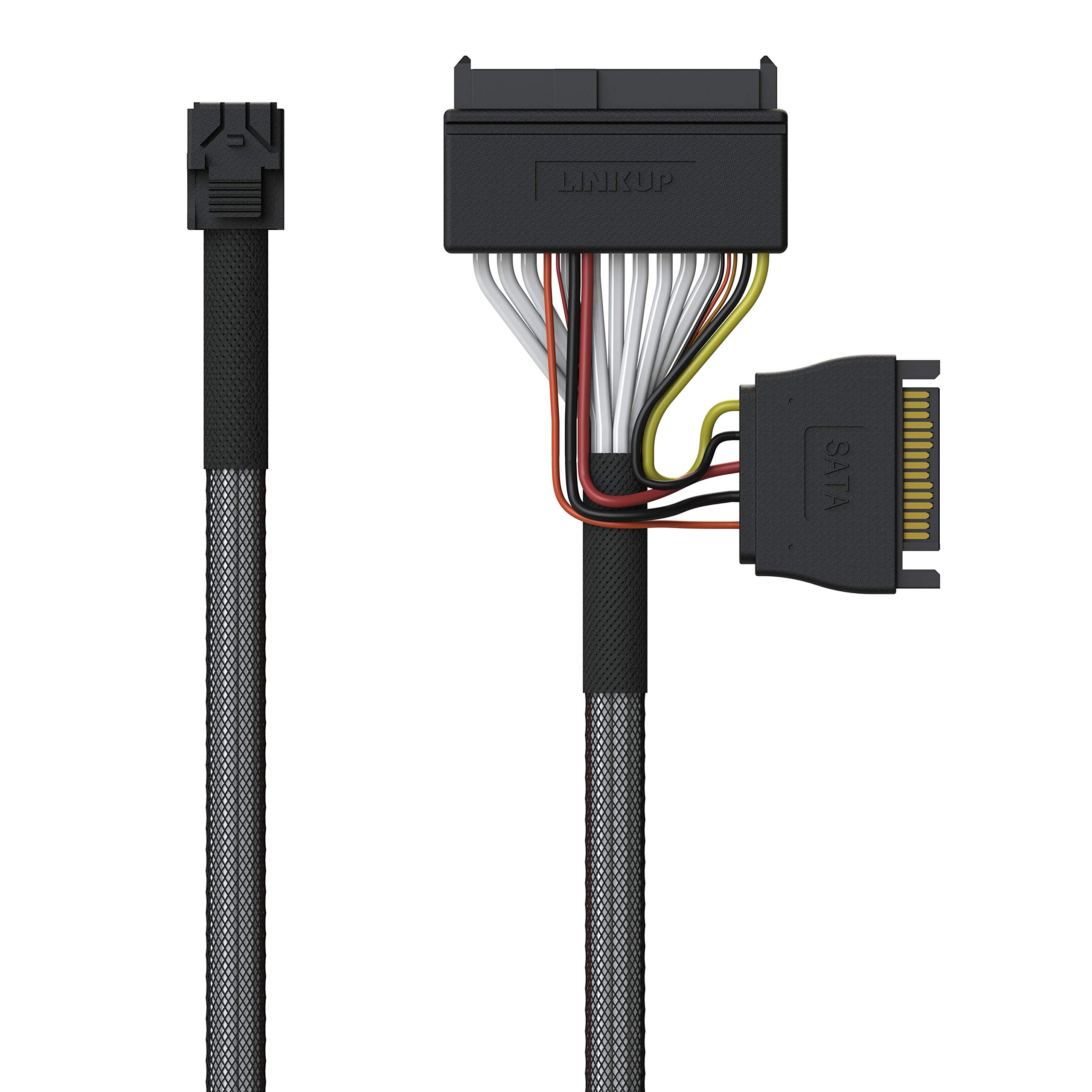

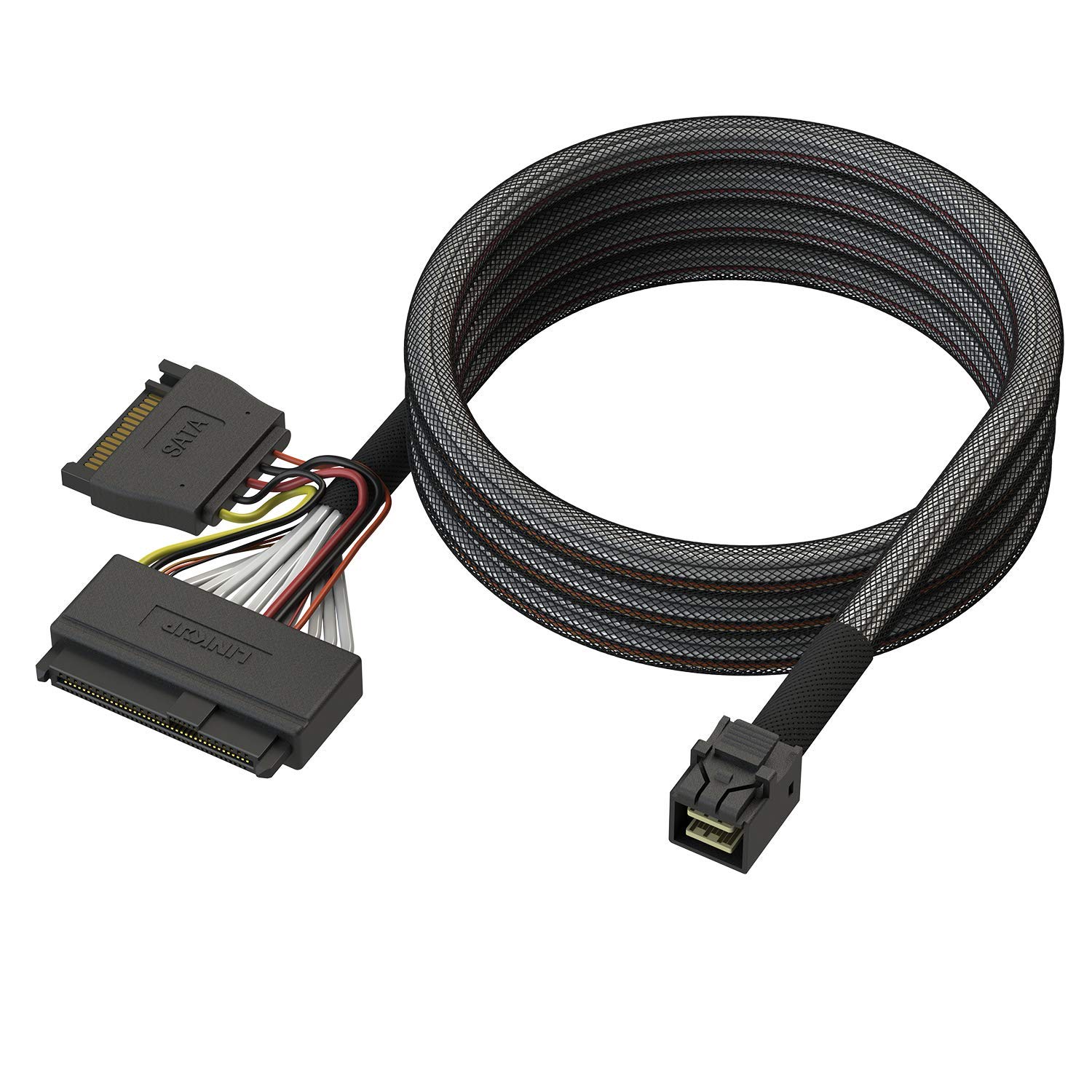

Connect and Perform The LINKUP Internal SAS SFF-8643 to U.2 SFF-8639 with SATA Power Cable makes it possible to upgrade a computer to U.2 NVMe SSD speeds. Capable of performing 5x faster than its SATA SSD counterparts, these cables allow the connection of U.2 NVMe SSDs even when a U.2 port is not available. Heavy-duty flexible cables with mesh sheath and the high-quality individual laneway shielding provides secure, reliable connections. Available in 2ft, 3ft, 4ft, and 5ft lengths. Note - M.2 to U.2 adapter required to use a M.2 SSD. Cable Specifications - Internal Connector A: 1 x 36-pin HD Mini-SAS SFF-8643 male with latch - Internal Connector B: 1 x 68-pin U.2 SFF-8639 male - Power Connector: 15-pin SATA receptacle - RoHS compliant Warranty Limited 1-Year Warranty and premium online support.
