LINK PACK 100 CONNECTORS 8 POLES CAT 6 SCREENED RJ45 WITH INSERT FOR FLEXIBLE CABLE

• Plug for category 6 networks shielded
• Pack of 100 pieces
• Packing size: 4.06 L x 12.95 H x 12.7 W (centimeters)
• Made in Italy

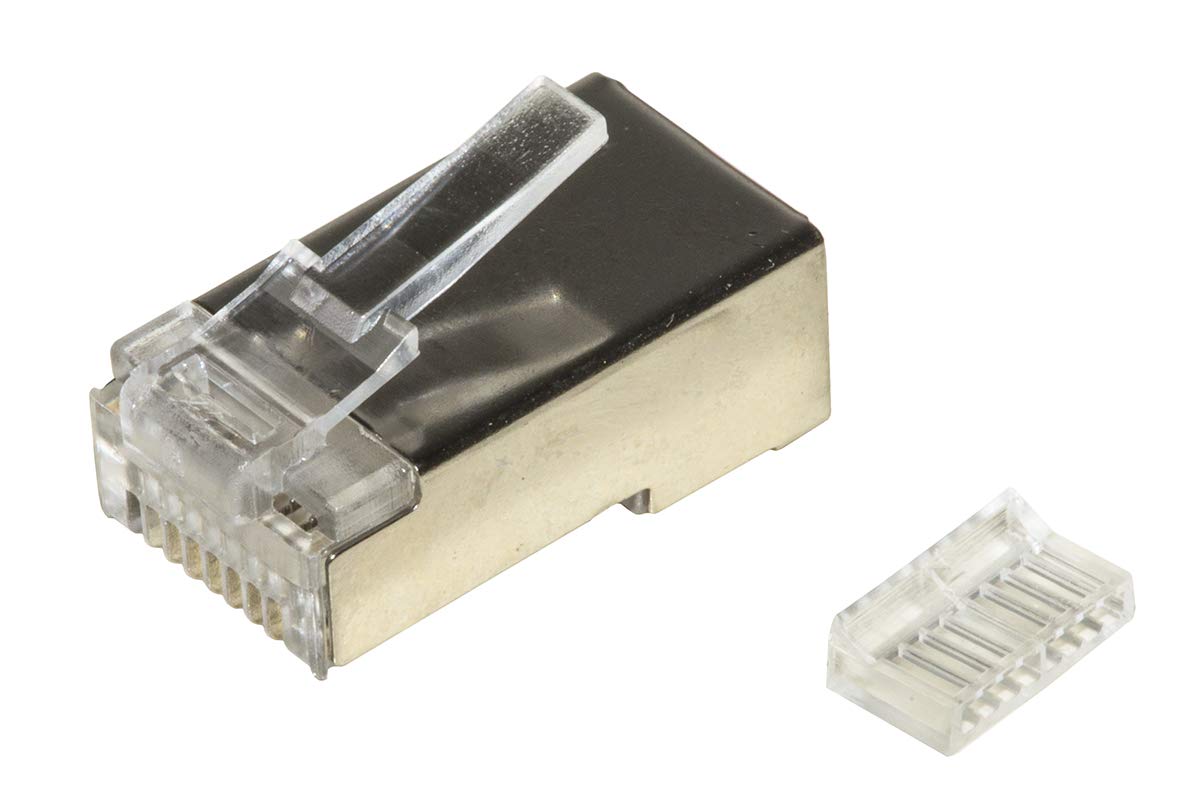

Shielded RJ45 8P8C Category 6 Network Plug with external insert to facilitate the insertion of wires into the connector. Solves the problem of threading the wires of the network cable into the connector in the right sequence, requiring compliance with cable performance. First you place the wires in the outer insertor in the desired sequence, then thread the insertor into the connector and crimp with pliers. It is much easier than inserting the conductors into the connector one by one. Connectors to assemble Category 6 network cables, telephony, etc. For flexible cable (multi-wire conductors), also for POE use. Coupler Cycles: Greater 750 Insertion Force: Minor 20N Contacts Material: Phosphor Bronze Contact Coating: Nickel, Gold Plated Connector Body Material: Polycarbonate, Transparent Copper Conductor Diameter: AWG (27/7 ... 24/7) Temperature Range: -40°C ... +80°C Outer Coating Diameter: 3.0°C 2 ... 0.0. 217 in Current load: 1.5 A to 50 °C Easy assembly with modular clamp LKCRIM
