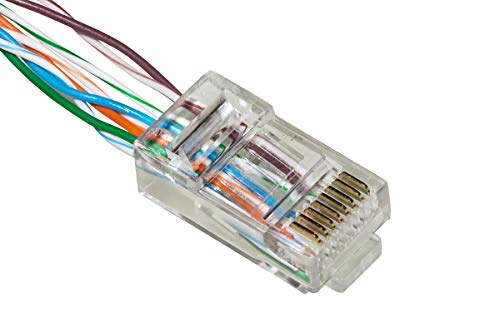

LINK LKPL85I Connector 8 Poles Rj45

• Plug for network category 5E RJ45 8P8C unshielded UTP
• To assemble network cables
• Solves the problem of putting the network cable wires into the connector in the right sequence

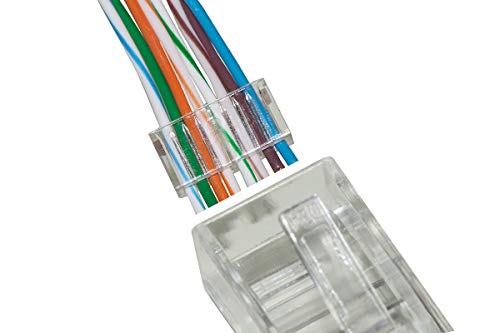

RJ45 8P8C Unshielded UTP Category 5E Network Plug with external insert for easy insertion of wires into the connector. Solves the problem of plugging the wires of the network cable into the connector in the right sequence, which is necessary for the performance of the cable. First place the wires in the outer inserter in the desired sequence, then insert the inserter into the connector and crimp with the pliers. It is much easier than inserting the conductors into the connector one by one. Connectors for assembling Category 5e network cables, telephony etc. For flexible cable (multi-wire conductors), also for POE use. Coupling cycles: greater 750 insertion force: lower 20N Contact material: phosphorous bronze Contact coating: Nickel, gold plated Connector body material: Polycarbonate, transparent Copper conductor diameter: solid AWG (27/7 ... 24/7) Temperature range: -40°C ... +80°C Outer coating diameter: 3.2 ... 5.5 mm Current load: 1.5 A to 50°C Easy mounting with LKCRIMP modular pliers
