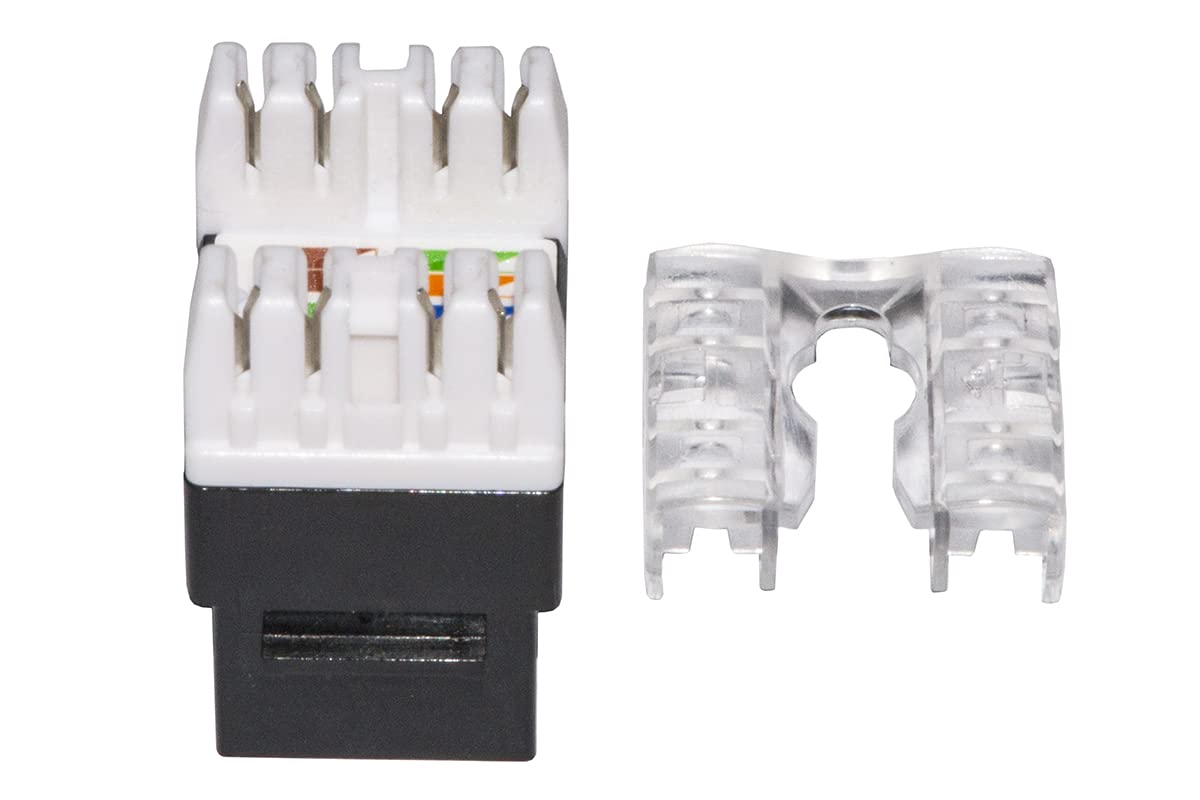

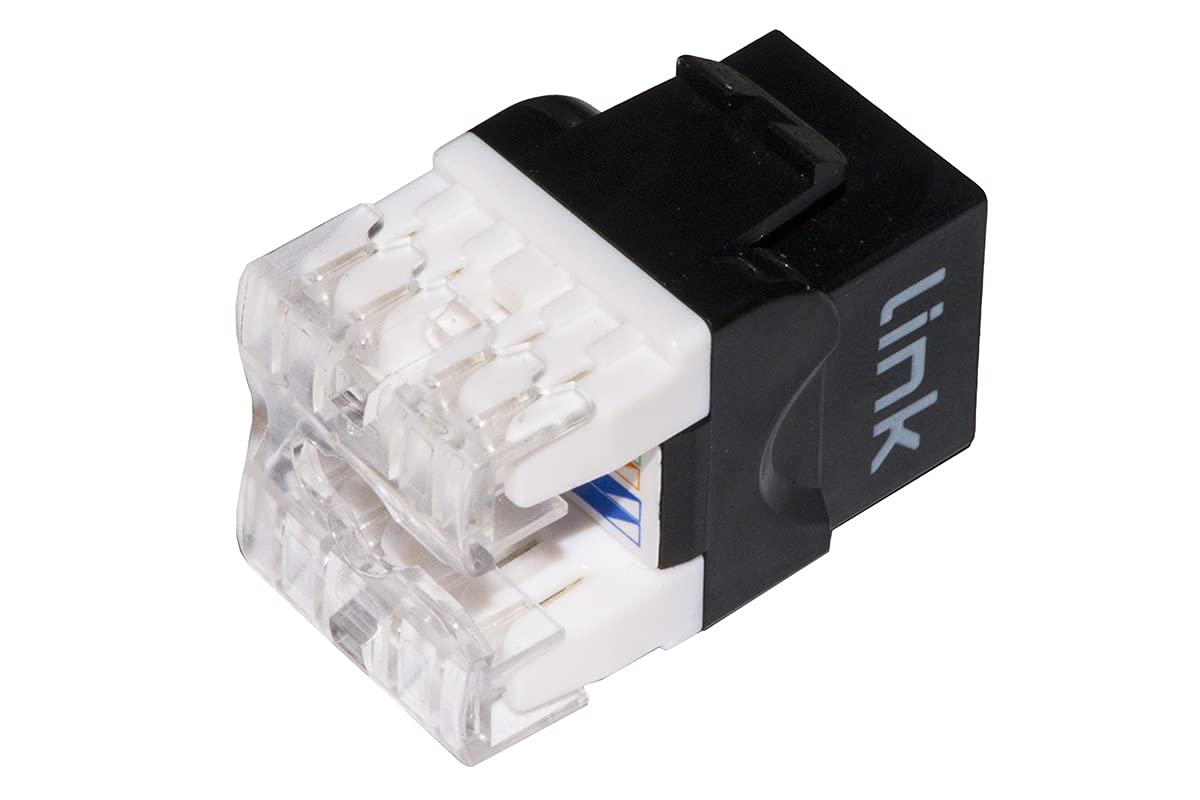

LINK LK5EUB KEYSTONE JACK RJ45 CATEGORY 5E UTP BLACK COLOR 180°

• Fruit (Keystone Jack) RJ45 8 Pole Unshielded UTP for Networks
• Category 5E White 180° Terminal Block
• These inserts can be placed in wall plates or blank patch panels.
• For 26 to 23 AWG solid cable.
• Gold contacts 50 microns

Fruit (Keystone Jack) RJ45 8 Pole Unshielded UTP Network Category 5E White 180° Terminal Block These inserts can be placed in wall plates or blank patch panels. Slim design, you can insert 24 pairs in 24 places 1U patch panels. Suitable for data, POE and POE+ Application area: Up to 100 MHz, 10/100Base-T, 1GBase-T White color. Standard ANS/TIA-568-C.2, ISO/IEC 11801 :2002/Amd.2:2010, YD/T 926.3-2009, conforms to ISO/IEC 60603-7 Compliant with Rohs Directive Current 1.5 Ampere Insulation Resistance > 500MOhm Contact Resistance <10mOhm Resistance DC <0 .1 Ohm Resistance Volt DC/AC DC1000V/AC750V 1 min. Plastic parts: impact resistant plastic flame retardant UL94V-0 PCB: FR-4, thickness 1.2 mm. Gold contacts 50 microns For cable from 26 to 23 AWG solid. Insertion > 750 cycles Contact force between plug and jack > 100 g. Plug retention force: >11 lbf Duration: 200 termination cycles CE certification
