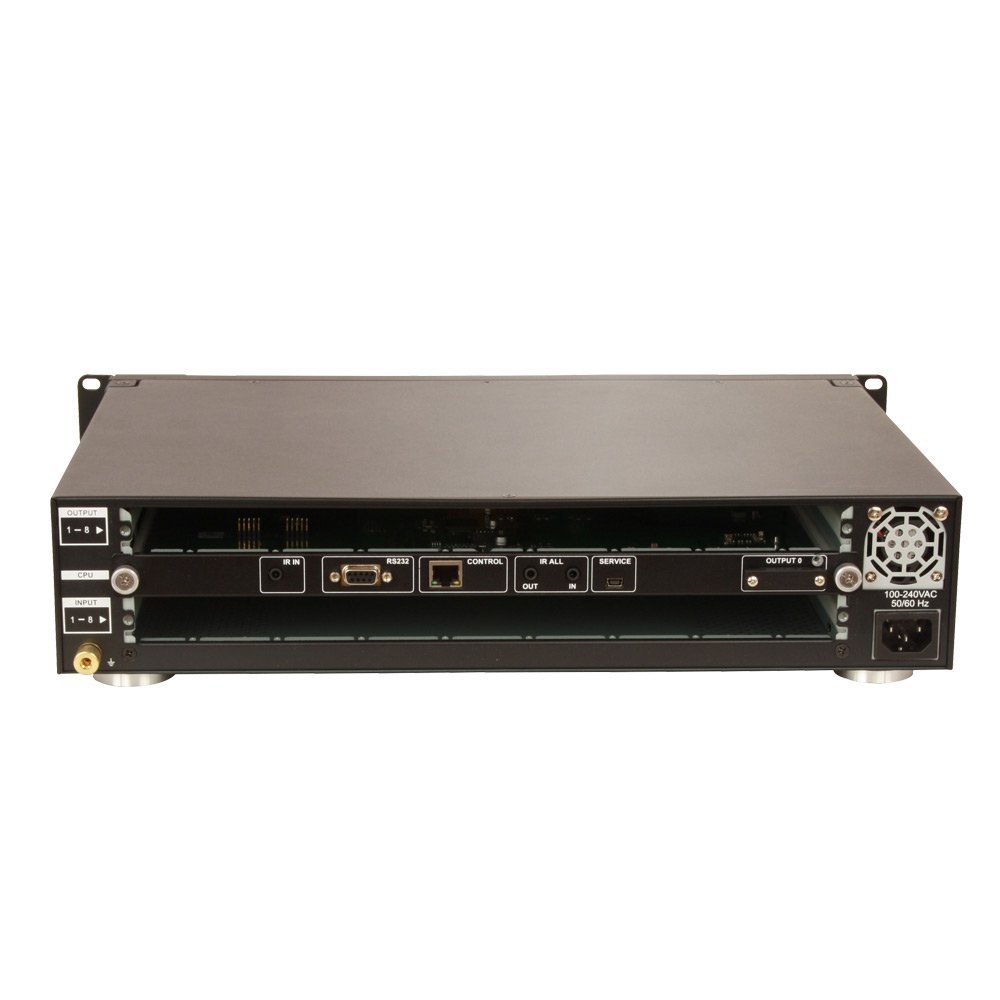

LINDY 8x8 Port Modular Enclosure Matrix Chassis

• For use with LINDY 38253 , 38254 , 38255, 38256 , 38257, 38259. NOTE: The chassis does not come with any input or output boards. Pictures are for illustration purposes only.

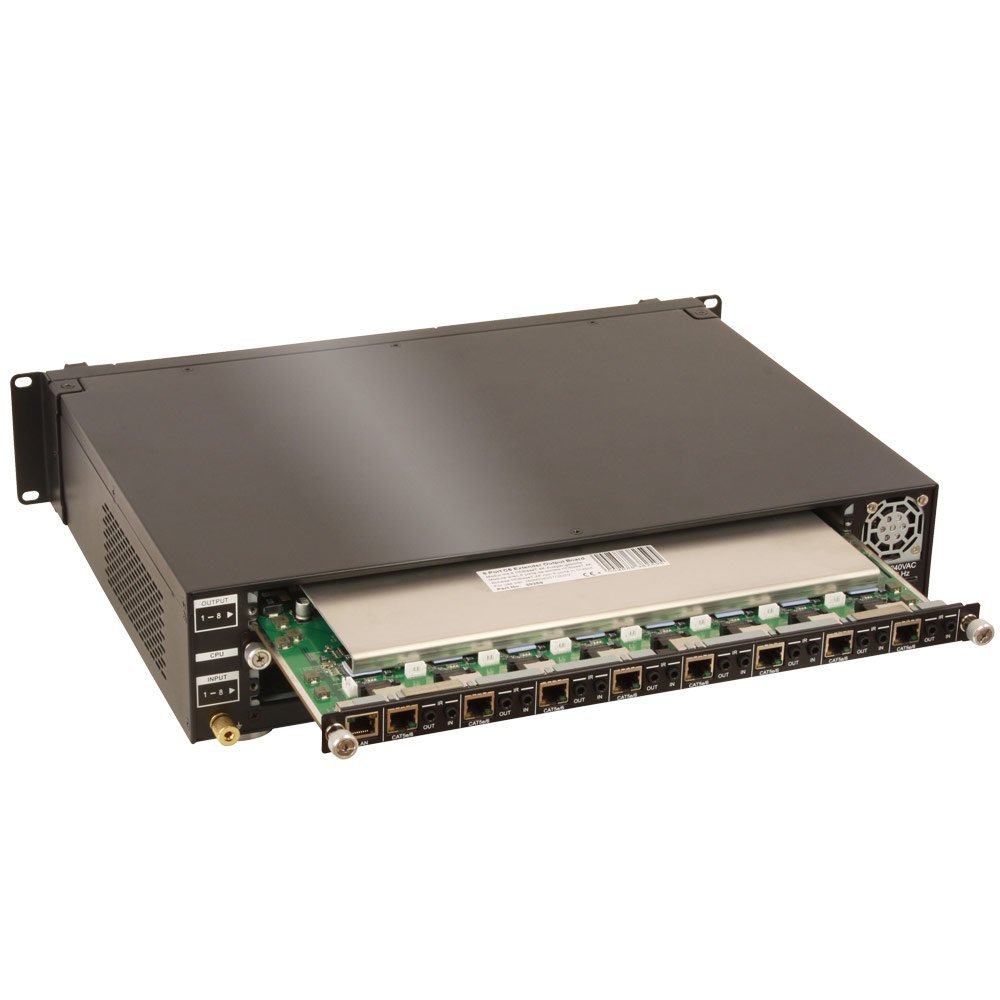

• 8 Port input and output modules can be mixed and added in multiple combinations
• Supports video resolutions up to 4kx2k@30Hz (depending on the boards installed)
• Supports multiple audio signals from Stereo audio to LPCM 7.1Ch & DTS-HD Master Audio Transmission with RS232, Telnet & Web GUI system control
• For further information on this product a user manual "Modular MatrixV2 [PDF]" is available in the Product details section below. 2 Year Warranty

Description Product Description The LINDY 8x8 Modular Matrix is designed to allow you to create a matrix with up to 8 input and 8 output ports. The input ports can be a choice of HDMI, DVI or VGA while the output ports can be HDMI, DVI or C6 HDBaseT. Any of the inputs can be combined with any of the outputs to create a UHD 4Kx2K@30Hz display over distances of up to 100m. The modular design provides the ultimate in flexibility for audio and video distribution as a matrix, convertor or an extender in retail product demonstration, training and public display application in schools, pubs etc. This product is intended to be used with the following modules. 8 Port 4K HDMI Input Module - LINDY 38253 Video Bandwidth: 300Mhz / 10.2Gbps Input Ports: HDMI Type A Female Video Resolutions: PC: VGA-WUXGA / HD: 480i-1080p & 4Kx2K@30Hz Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate) Cable Lengths: Maximum distance, 15m using LINDY CROMO cable Power Consumption: 22W 8 Port 4K HDMI Output Module - LINDY 38254 Video Bandwidth: 300Mhz / 10.2Gbps Output Ports: HDMI Type A Female Video Resolutions: PC: VGA-WUXGA / HD: 480i-1080p & 4Kx2K@30Hz Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate) Cable Lengths: Maximum distance, 15m using LINDY CROMO cable Power Consumption: 22W 8 Port DVI-D Input Module - LINDY 38255 Video Bandwidth: 225Mhz / 6.75Gbps Input Ports: DVI Female Video Resolutions: PC: VGA-WUXGA@60Hz / HD: 480i-1080p Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate) Cable Lengths: Maximum distance, 15m using LINDY Premium SLD cable Power Consumption: 20W 8 Port DVI-D Output Module - LINDY 38256 Video Bandwidth: 225Mhz / 6.75Gbps Output Ports: DVI Female Video Resolutions: PC: VGA-WUXGA@60Hz / HD: 480i-1080p Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate) Cable Lengths: Maximum distance, 15m using LINDY Premium SLD cable Power Consumption: 20W 8 Port VGA Input Module - LINDY 38257 Input Ports: VGA Female & 2.5mm jack (includes 8 x 2.5mm to 3.5mm adapters) Video Resolutions: PC: VGA-WUXGA@60Hz Audio Transmission: Stereo Cable Lengths: Maximum distance, 15m using LINDY Premium VGA cable Power Consumption: 22W 8 Port C6 HDBaseT Output Module - LINDY 38259 Video Bandwidth: 300Mhz / 10.2Gbps Features: Audio, Video, POE, IR, RS232 & Ethernet Output Ports: 8 x RJ45 Shielded Female C6 ports & 1 x RJ45 Network port Ethernet Speed: 100Mbps Video Resolutions: PC: VGA-WUXGA / HD: 480i-1080p & 4Kx2K@30Hz Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate) Cable Lengths: Up to 100m 1080p / 70m 4Kx2K@30Hz using CAT5e/6/7 solid core cable Power Consumption: 45W+POE / Module (10W/port) Box Contains Modular Matrix IR Blaster IR Extender Power Cord Remote control inc battery User manual
