LIKERAINY Opening Angle 135 Degree Mitred Flap Lid Hinge with 35mm Cup for Furniture Cabinet Chamfered Door with 45° Nickel-Plated Special Hinges for Cupboard Wardrobe Pack of 2

• ONLY for use in combination with flap support or lid stay; 3 Dimensional adjustment

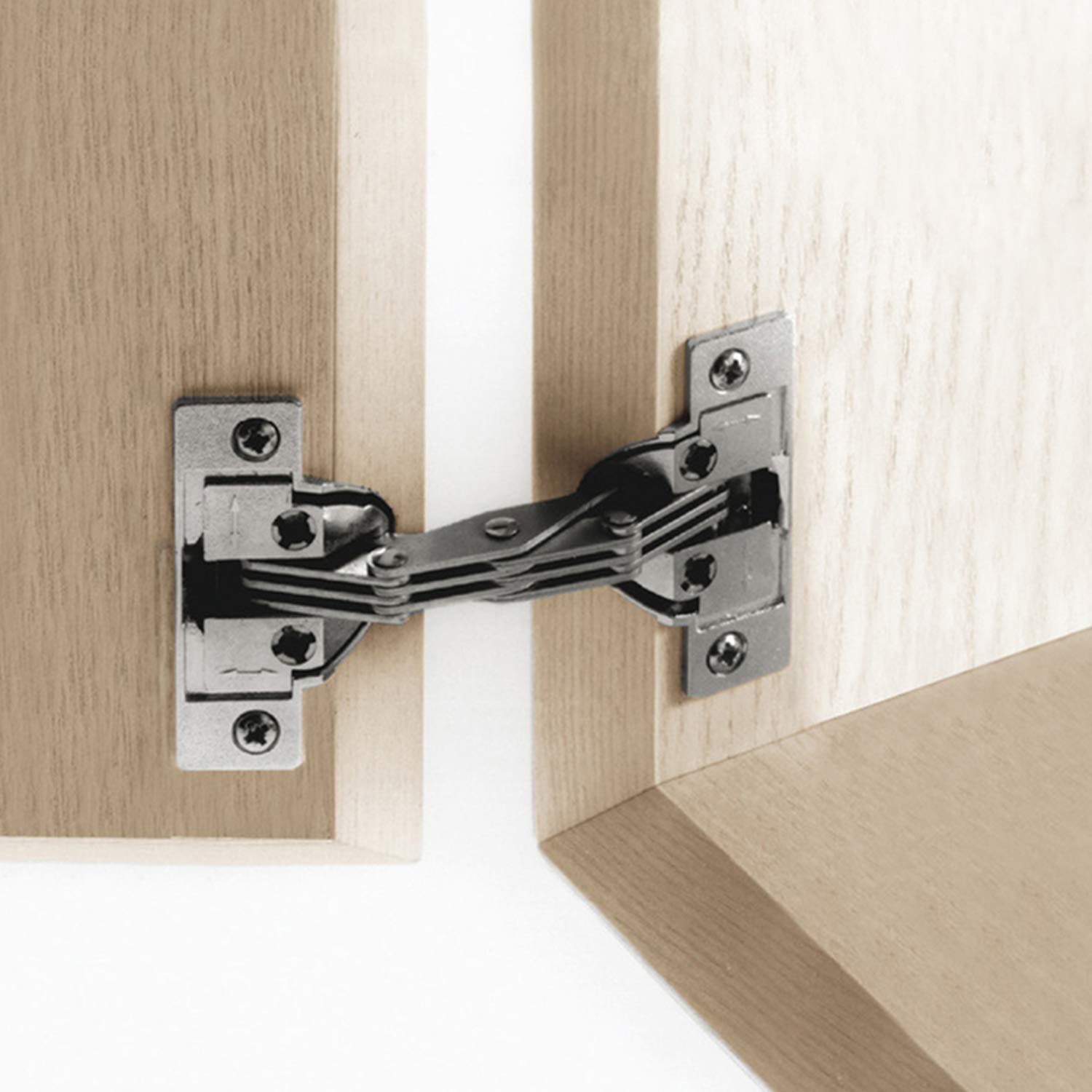

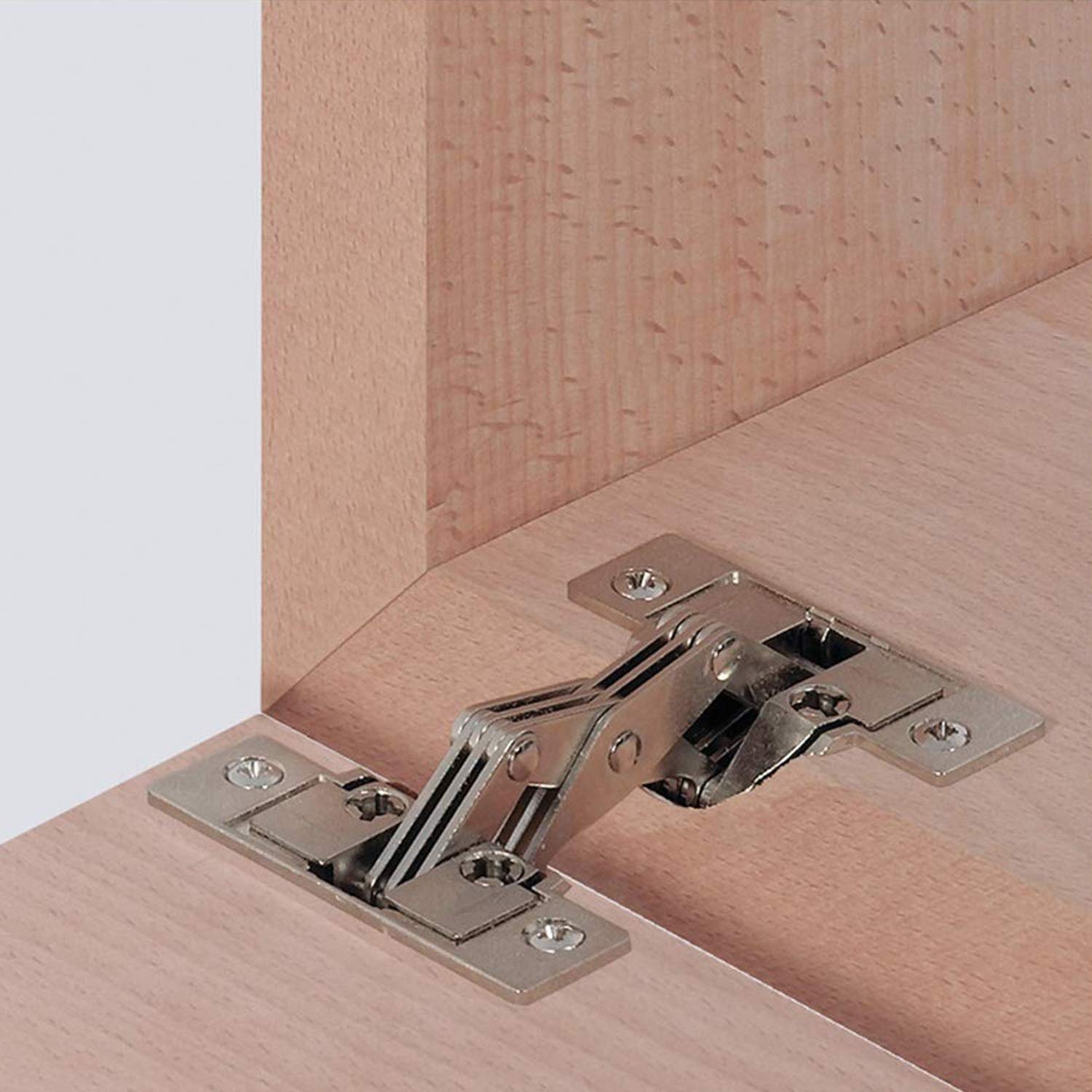

• Miter Hinge for cabinet and cupboard door 45° mitred applications
• Specially designed to enable door and carcase edges to meet at mitred angles
• For Door Thickness 16-22mm; Hole spacing: 52mm; Cup diameter Ø 35mm; Hinge cup depth 13.5mm
• Side panel thickness: 16–20mm; Made of steel and zinc alloy; Nickel plating surface

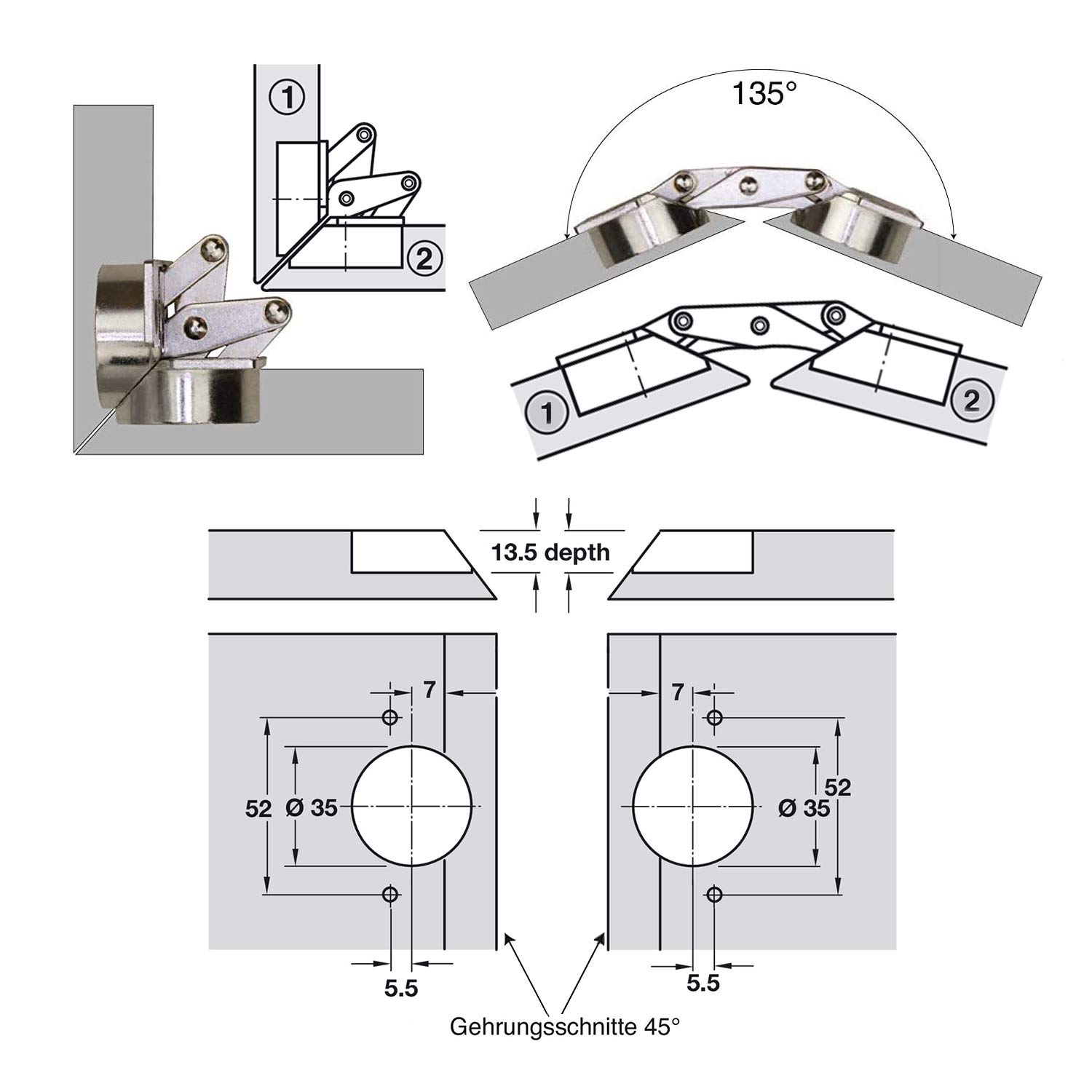

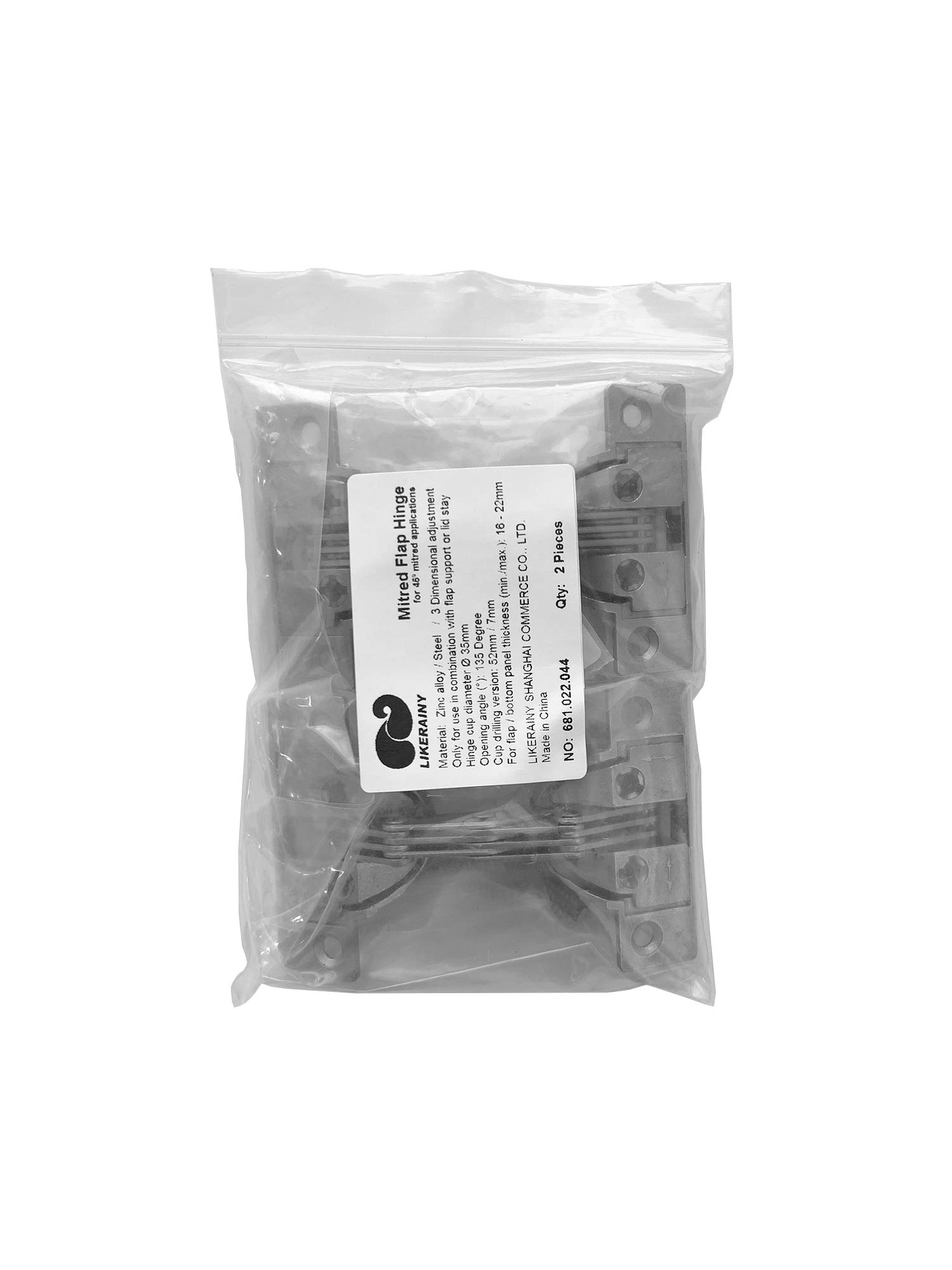

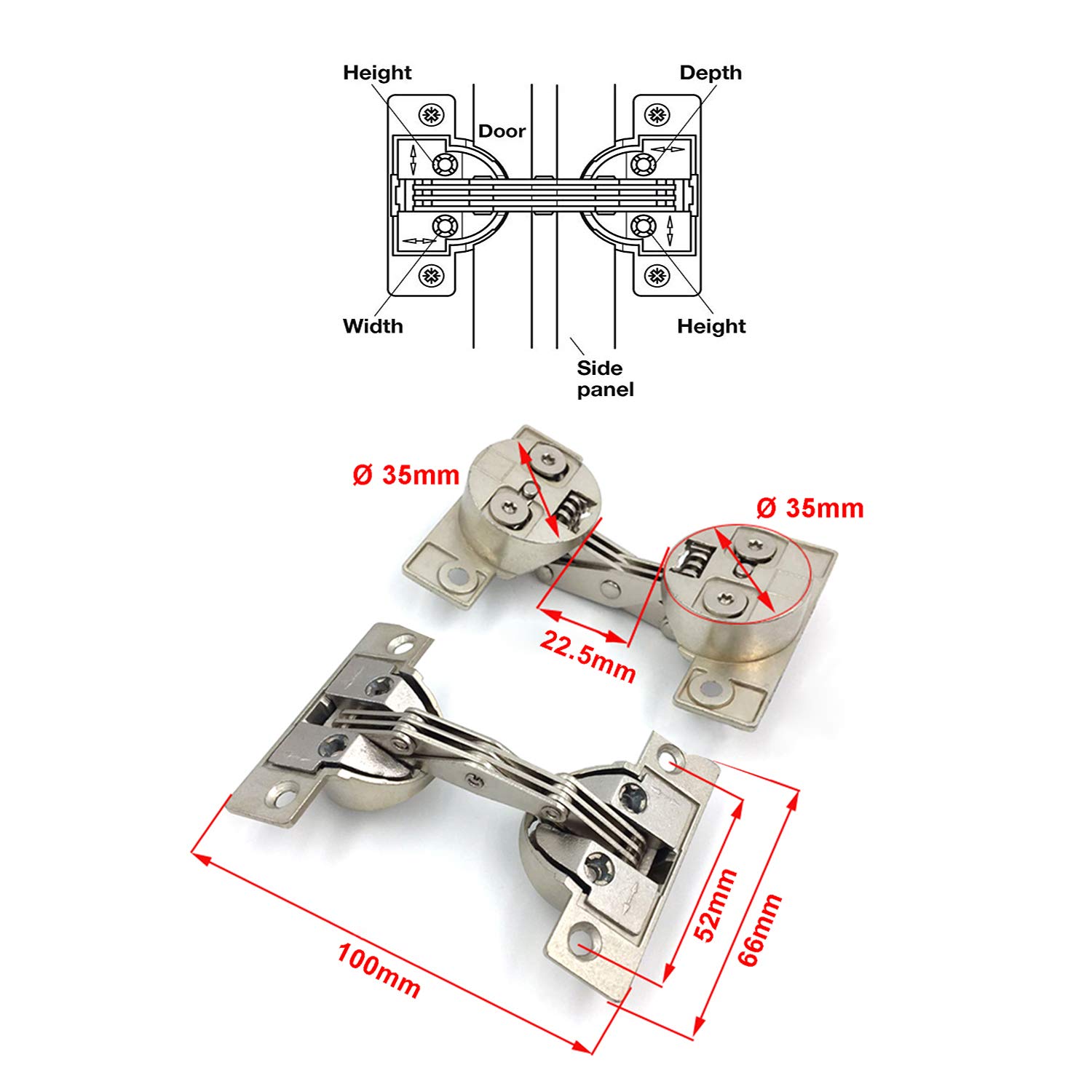

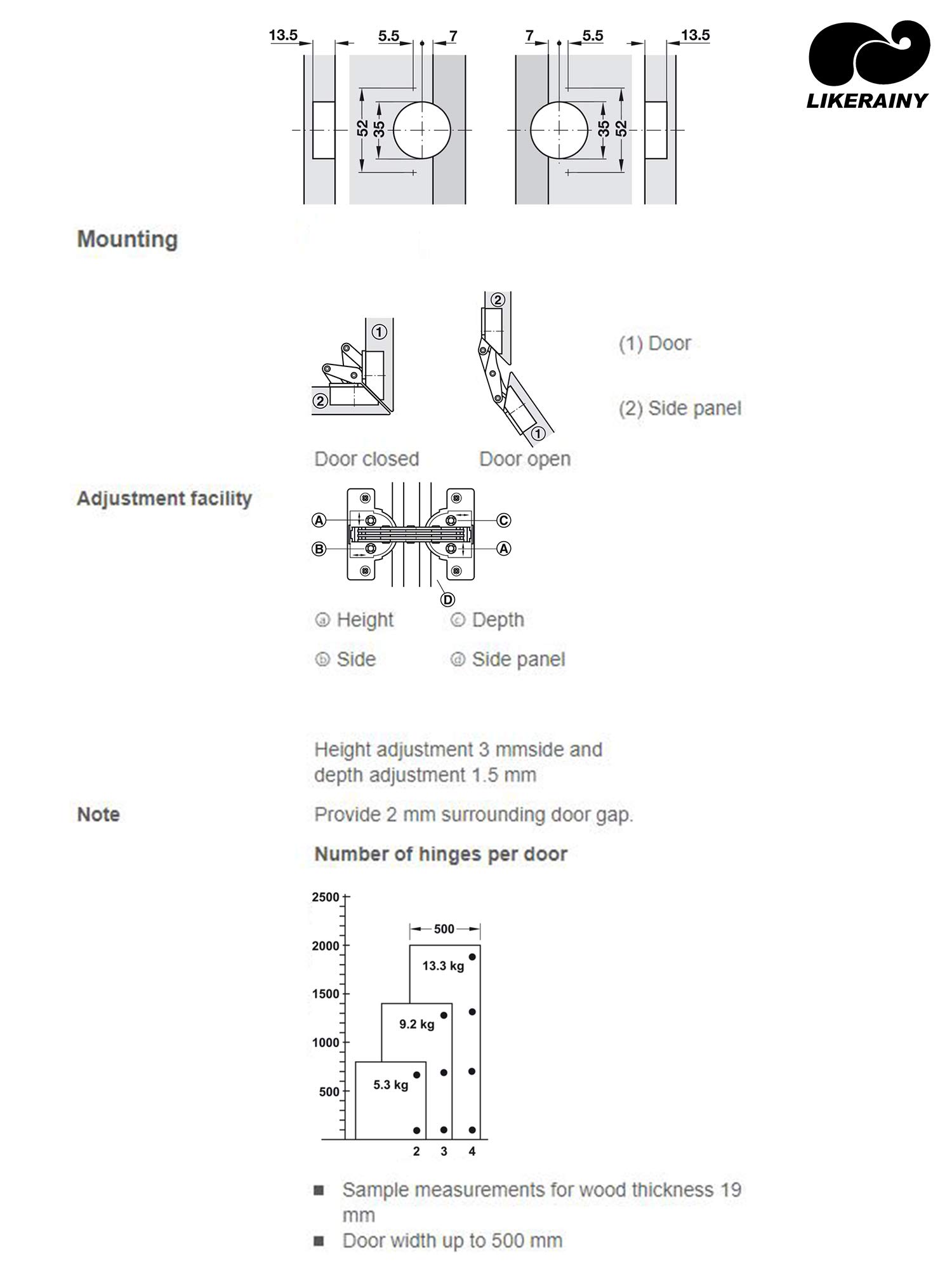

Product Dimension -Article type: LIKERAINY special miter hinge for door with 45° mitred application -Material: Cup: Zinc alloy / Hinge arm: Steel -Opening angle (°): 135 Degree -Cup drilling version: 52mm / 7mm -Cup diameter: Ø 35mm -Cup Depth: 13.5mm -DISTANCE between the two screw holes (next to the cup): 52mm -Drilling pattern: for 45° mitre cut -Mounting option: for screwing on -For flap and bottom panel thickness: 16mm (min.) – 22mm (max.) with 45° mitre angle -Side panel thickness: 16–20 mm (from 20mm the edge has to be chamfered 3mm) -Height adjustment: 3.0mm -Lateral and depth adjustment: 1.5mm -Hinge cup/arm finish: Nickel plated -Cover cap for hinge cup: NO -Provide 2mm surrounding door gap Package -Miter hinges: 2 Pieces -with mounting screws -No mounting instruction and processing information (see photos above)
