LIKERAINY 95 Deg Inset Blind Corner Hinge Ø 35 mm Without Damper for Cabinet Door Stud Hinges for Cupboard Wardrobe Doors Pack of 8

• Blind-corner hinge with screw fixing for kitchen corner folding cabinet doors
• Concealed furniture hinge for studs, Opening angle 95°, Pot strap, for cabinet door
• For Door Thickness 16-20 mm; Hinge length: 82 mm; Pot diameter Ø 35 mm; Pot depth 11.5 mm; Type: Internal stop
• Made of steel; Nickel plating; Hinge for studs constructions
• This hinge can be stopped at any position between the door opening angle of 45-95 degrees. If the opening angle is less than 45 degrees, the hinge can close automatically

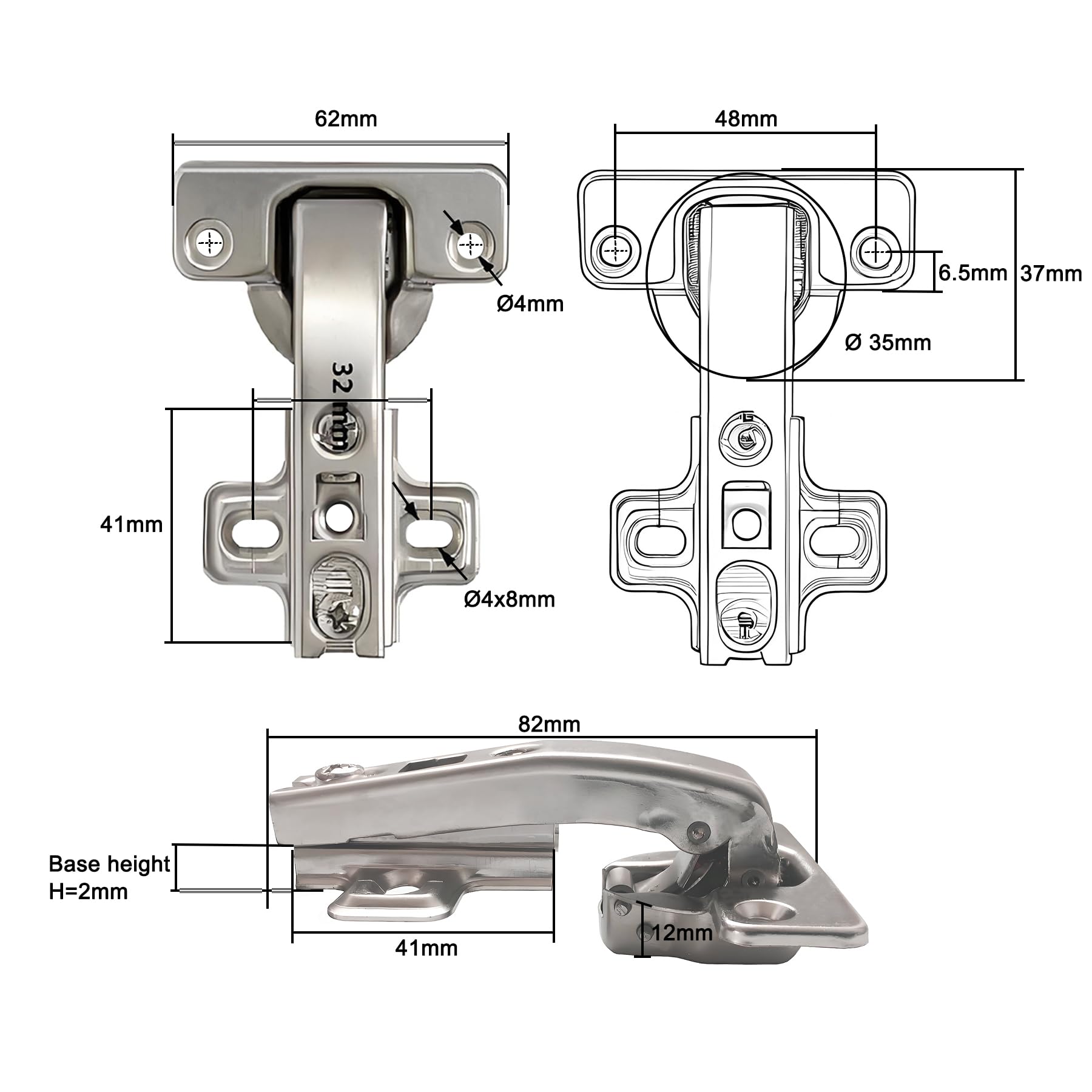

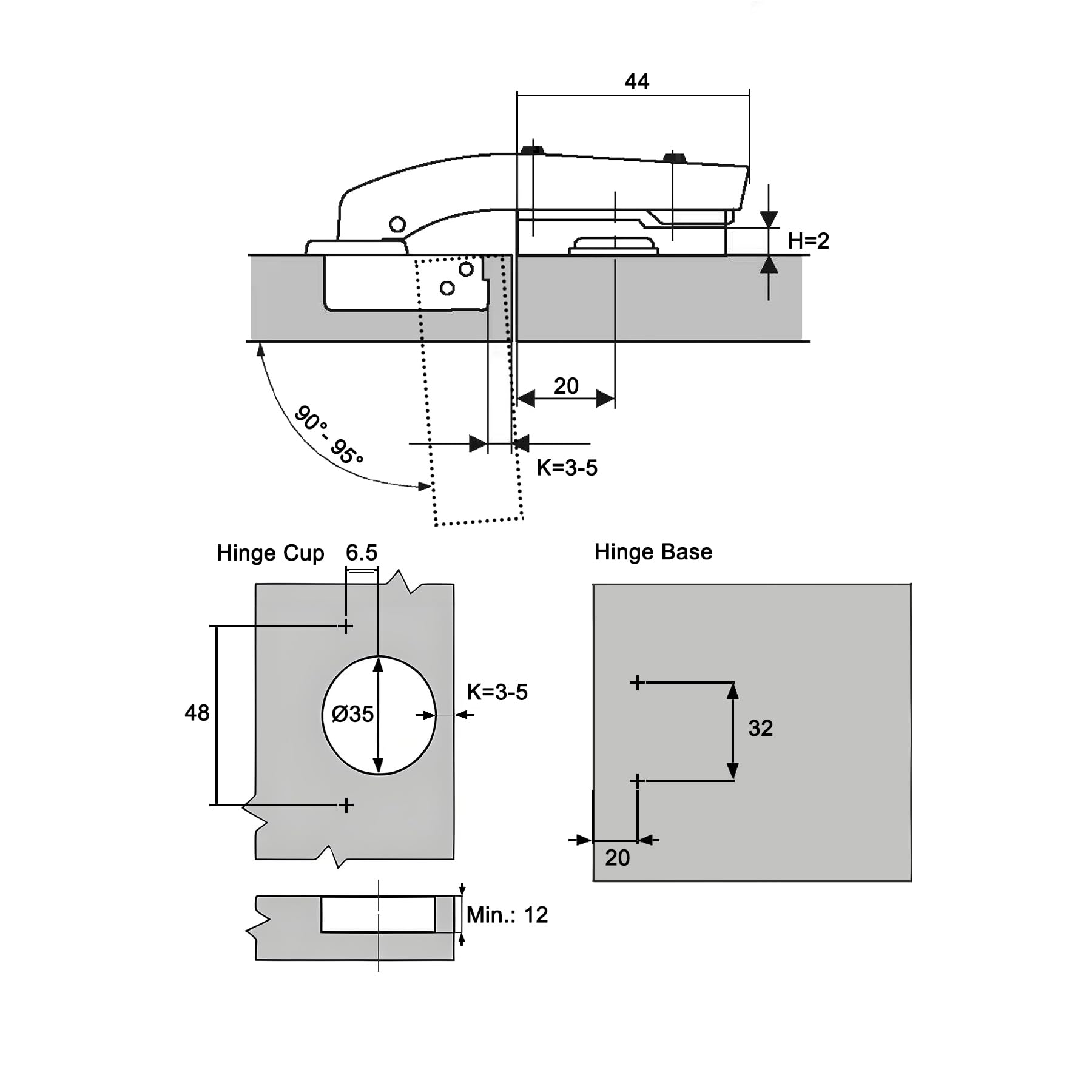

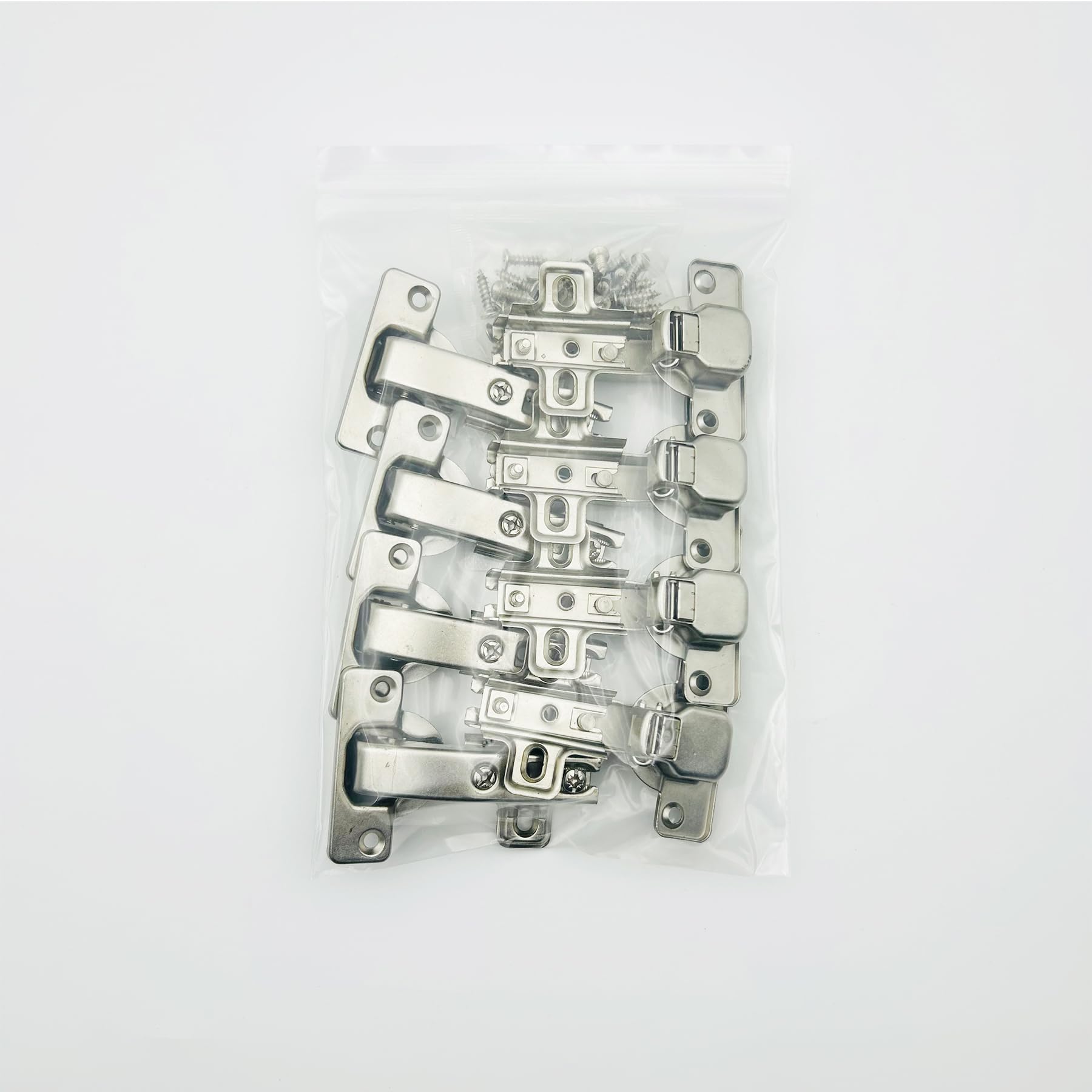

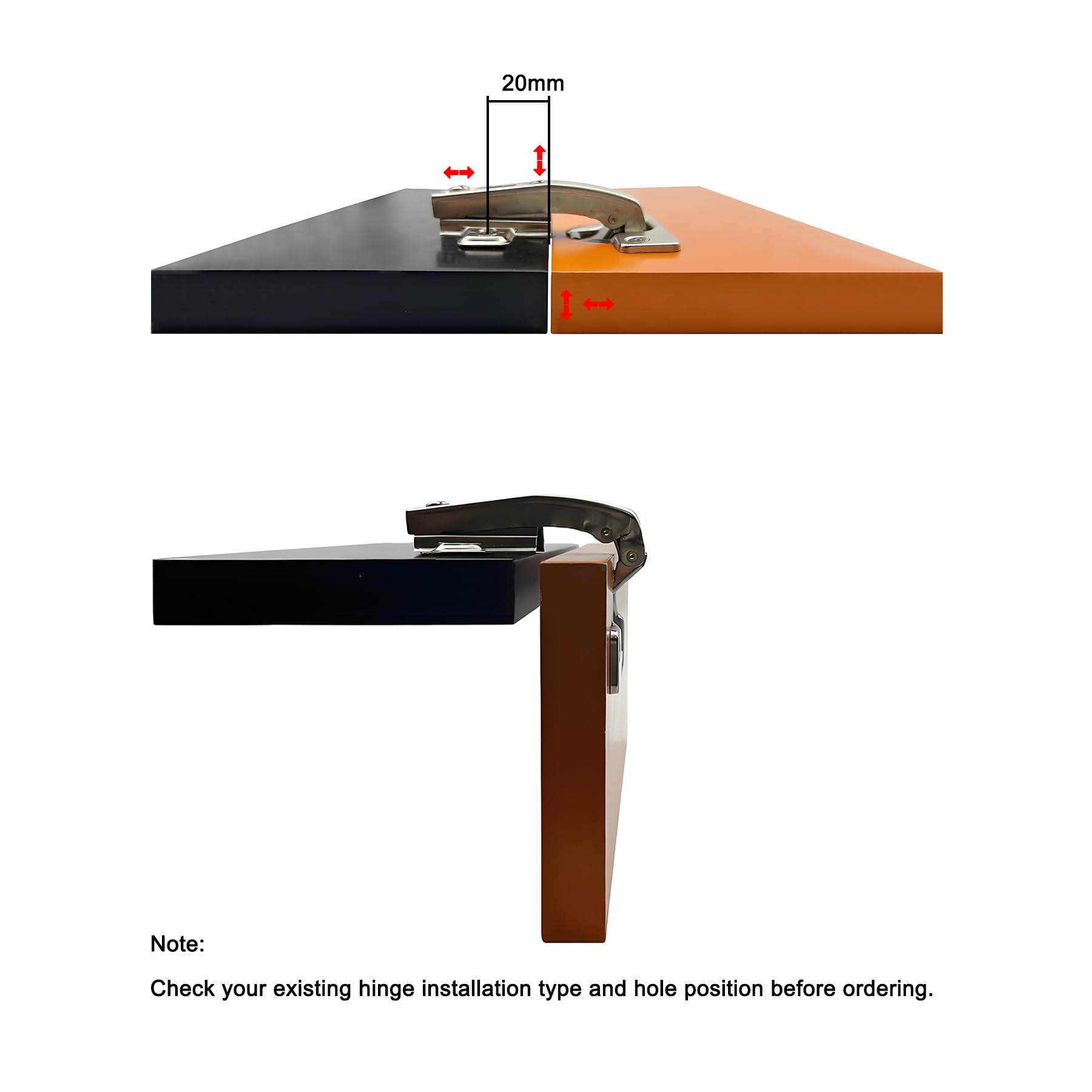

Note Check your existing hinge installation type and hole position before ordering Product Dimension Article type: LIKERAINY inset blind corner hinges without damper Material: Steel Opening angle (°): 95 Degree Pot drilling version: 48 mm / 6.5 mm Pot diameter: Ø 35 mm Pot depth: 11.5 mm Hinge length: 82 mm Installation type: Inside stop / Inset Distance between the two screw holes (next to the cup): 48 mm Mounting option: for screwing on For depth of side panel (min.): 45 mm (see photo above) For door thickness: 16 mm (min.) – 20 mm (max.) Integrated overlay adjustment: +2.5 mm / -2.5 mm Integrated depth adjustment: +2.0mm / -2.0 mm Hinge cup/arm finish: Nickel plated Cover cap for carcass: No Cover cap for hinge cup: No Package Blind-corner hinges: 8 Pieces with mounting screws No mounting instruction and processing information (see photos above)
